Isuzu WW
▶
TRUCKS
▶
FSR
▶
11683 - FSR RHD EUROPE EURO6 SPACECAB EVSC
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-65 - CONTROL LEVER; HEATER AND AIR CON
▶

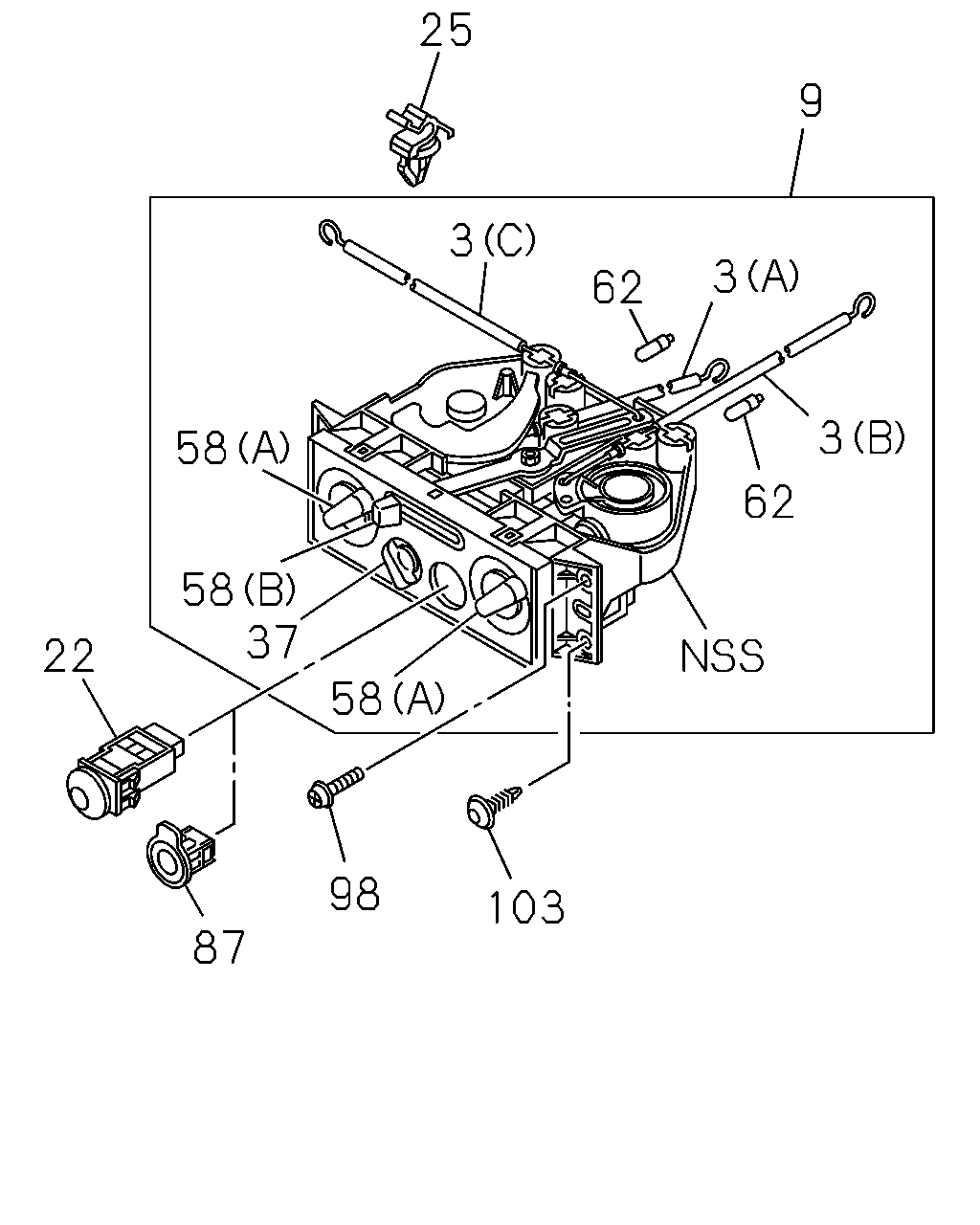

8-65 — CONTROL LEVER; HEATER AND AIR CON
(#164185) — 24 parça
25
9
3
62
3
3
62
58
58
22
87
103
58
37
98
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
CABLE; HTR CONT LVR
(B) A/M
8-98041-501-1
01
1
1507-1508
3
CABLE; HTR CONT LVR
(B) A/M
8-98041-501-1
01
1
1509-
3
CABLE; HTR CONT LVR
(C) R/F
8-98041-504-2
01
1
1507-1508
3
CABLE; HTR CONT LVR
(C) R/F
8-98041-504-2
01
1
1509-
3
CABLE; HTR CONT LVR
(A) MODE
8-98044-176-0
01
1
1507-1508
3
CABLE; HTR CONT LVR
(A) MODE
8-98044-176-0
01
1
1509-
9
LEVER ASM; HTR & A/C CONT
8-98041-318-2
01
1
1507-1508
9
LEVER ASM; HTR & A/C CONT
8-98041-318-2
01
1
1509-
22
SWITCH; A/C,MAIN
AIR CONDITIONER MANUAL CONTROL(C60)
8-98021-982-0
01
1
1507-
25
CLIP; CABLE,CONT LEVER
ID=4.8
8-94128-483-0
02
1
1507-1508
25
CLIP; CABLE,CONT LEVER
ID=4.8
8-94128-483-0
02
1
1509-
37
KNOB; SW,HTR CONT LVR
8-98037-368-0
01
1
1507-1508
37
KNOB; SW,HTR CONT LVR
8-98037-368-0
01
1
1509-
58
KNOB; LVR,HTR CONT LVR
(A)
8-98037-369-0
02
1
1507-1508
58
KNOB; LVR,HTR CONT LVR
(A)
8-98037-369-0
02
1
1509-
58
KNOB; LVR,HTR CONT LVR
(B)
8-98037-370-0
01
1
1507-1508
58
KNOB; LVR,HTR CONT LVR
(B)
8-98037-370-0
01
1
1509-
62
BULB; HTR CONT LVR
24V 1.1W
8-98037-371-0
02
1
1507-1508
62
BULB; HTR CONT LVR
24V 1.1W
8-98037-371-0
02
1
1509-
87
CAP; A/C SWITCH
HEATER & DEFROSTER(C41)
8-98006-089-0
01
1
1507-
98
SCREW; CONT PANEL
M5X20 TAPPING HEXALOBULAR
0-72180-520-0
01
1
1507-1508
98
SCREW; CONT PANEL
M5X20 TAPPING HEXALOBULAR
0-72180-520-0
01
1
1509-
103
CLIP
DARK GRAY
8-97098-326-0
01
1
1507-1508
103
CLIP
DARK GRAY
8-97098-326-0
01
1
1509-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
