8-45 — HEATER PIPING
(#164181) — 18 parça
◀

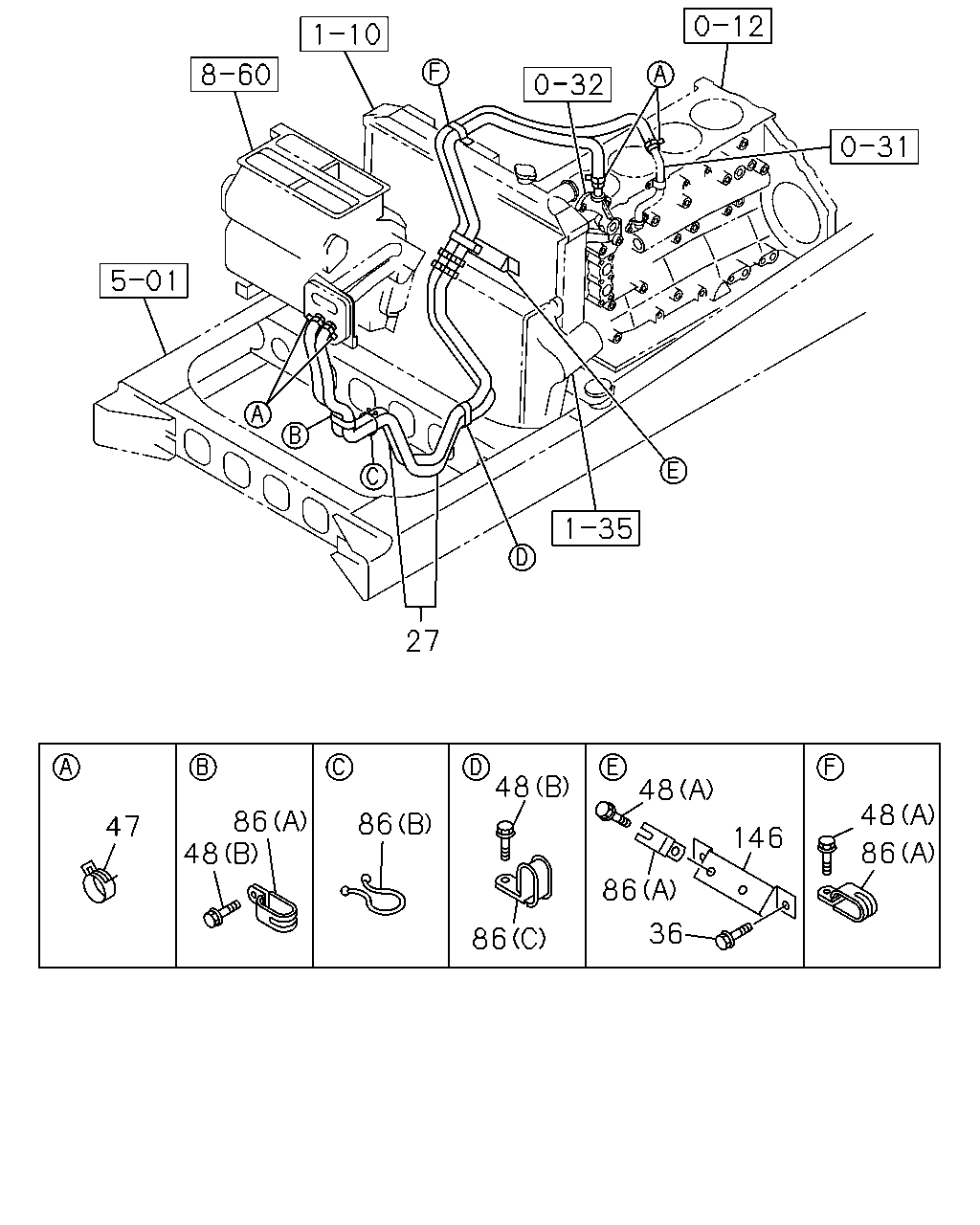

[845A] NO.1 (13 parça)
[845A] NO.2 (5 parça)
▶
27
47
146
36
86
48
86
86
86
48
48
48
86
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
27
HOSE; WATER,HTR UNIT TO WATER PIPE
8-98235-103-0
01
1
1507-
36
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
02
1
1507-
47
CLAMP; WATER HOSE,HTR
ID=22
8-97359-141-0
04
1
1507-1508
47
CLAMP; WATER HOSE,HTR
ID=22
8-97359-141-0
04
1
1509-
48
BOLT; CLIP FIX
(A) M8X20 FLANGE
0-28650-820-0
02
1
1507-
48
BOLT; CLIP FIX
(B) M8X25 FLANGE
0-28650-825-0
02
1
1507-1508
48
BOLT; CLIP FIX
(B) M8X25 FLANGE
0-28650-825-0
02
1
1509-
86
CLIP; HTR HOSE
(A) ID=24X2 L=25
1-09700-710-0
03
1
1507-
86
CLIP; HTR HOSE
(B)
8-94463-508-0
01
1
1507-1508
86
CLIP; HTR HOSE
(B)
8-94463-508-0
01
1
1509-
86
CLIP; HTR HOSE
(C)
8-98029-677-0
01
1
1507-1508
86
CLIP; HTR HOSE
(C)
8-98029-677-0
01
1
1509-
146
BRACKET; HTR HOSE
8-98102-154-1
01
1
1507-
27
63
56
56
56
56
63
63
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
27
HOSE; WATER,HTR UNIT TO WATER PIPE
8-98235-103-0
01
1
1507-
56
CLAMP; HTR HOSE
ID=22
8-97359-141-0
04
1
1507-
63
HOSE; WATER
(A)
8-98238-213-0
01
1
1507-
63
HOSE; WATER
(B)
8-98238-214-0
01
1
1507-
63
HOSE; WATER
(C)
8-98238-215-0
01
1
1507-
