8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#164177) — 85 parça
çizim 484437
587 396 587 814 813 621 803 803
BalonParca AdiParca NoAdetTipApplied Date
396 BRACKET
(A) 		8-98274-795-1 01 1 1507-
396 BRACKET
(B) 		8-98301-125-0 01 1 1507-
587 SCREW; CAMERA
(B) M6X16 		0-52000-616-0 02 1 1507-
587 SCREW; CAMERA
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1507-
621 SCREW
M4X8 		0-36230-408-0 02 1 1507-
803 COVER; CAMERA 8-97466-328-1 01 1 1507-
803 COVER; CAMERA 8-97466-358-2 01 1 1507-
813 CAMERA ASM 8-98318-101-0 01 1 1507-
814 BRACKET ASM; CAMERA 8-98301-124-0 01 1 1507-

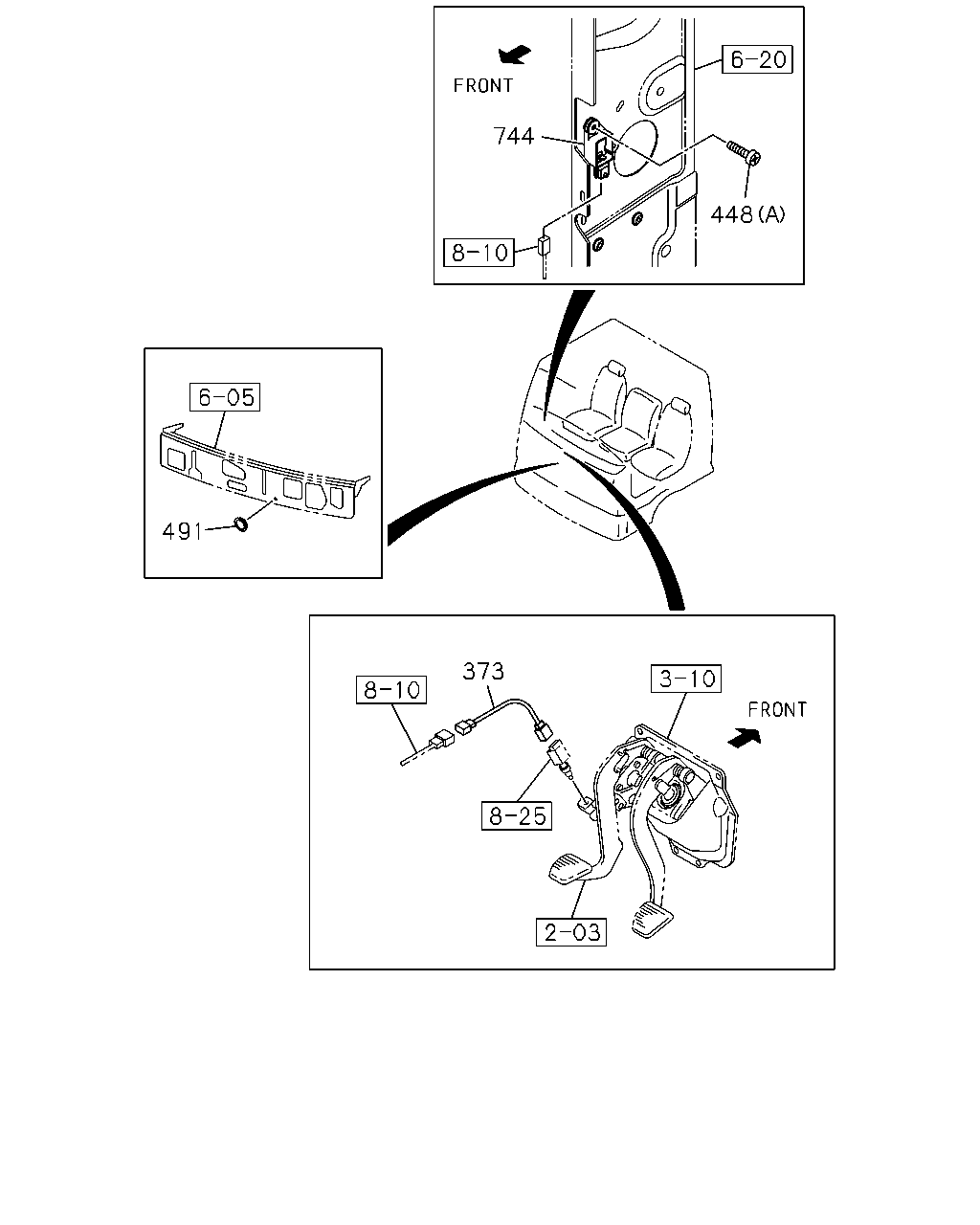

çizim 484487
744 448 491 373
BalonParca AdiParca NoAdetTipApplied Date
373 HARNESS; CLU SWITCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98059-419-2 01 1 1507-
448 BOLT; SENSOR
(B) M6X16 FLANGE 		0-28050-616-0 01 1 1507-
448 BOLT; SENSOR
(A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1507-1508
448 BOLT; SENSOR
(A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1509-
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 1507-
744 SENSOR; AIR BAG 8-98190-212-0 01 1 1507-1508
744 SENSOR; AIR BAG 8-98190-212-0 01 1 1509-

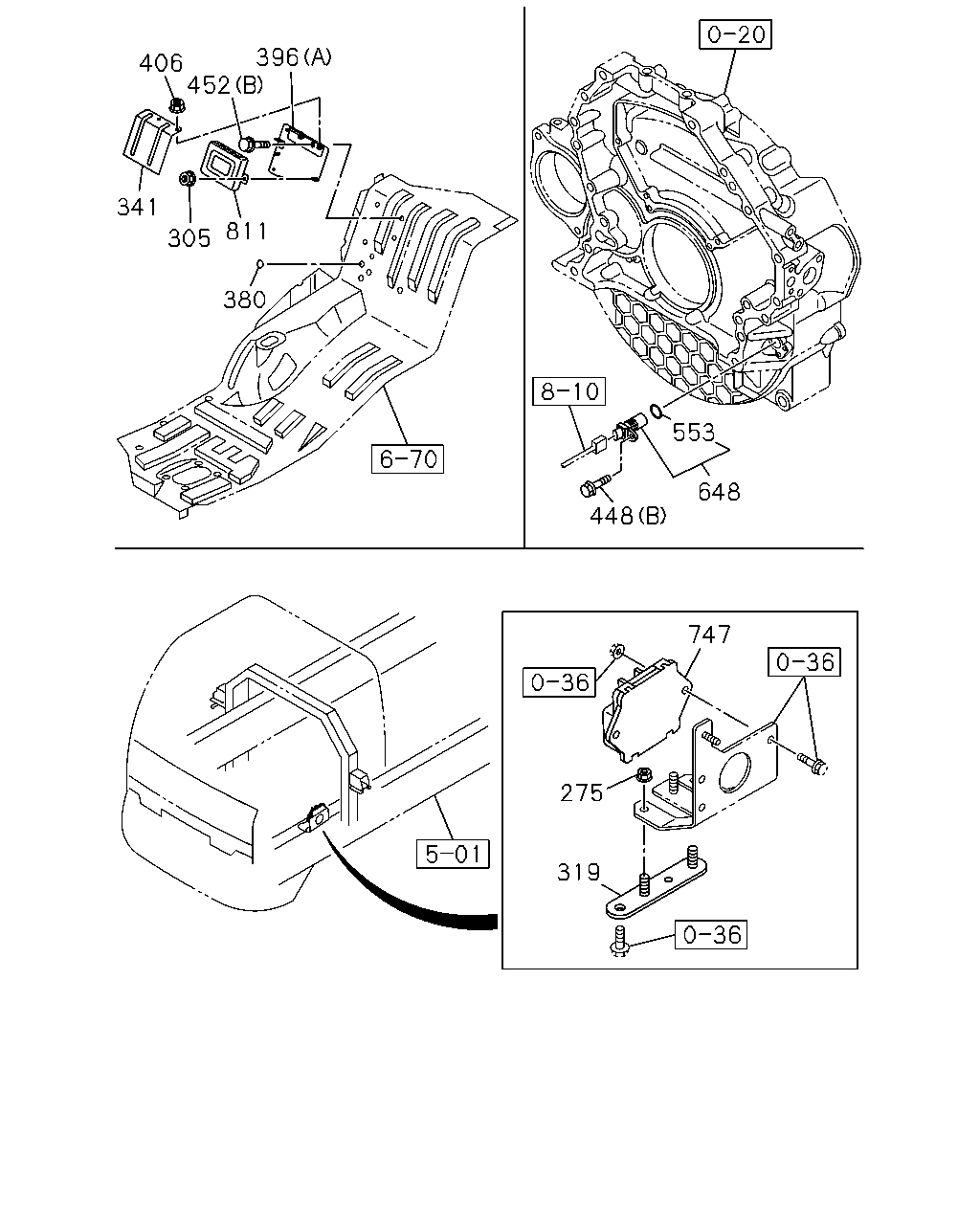

çizim 484513
406 396 811 452 341 380 305 448 553 648 747 275 319
BalonParca AdiParca NoAdetTipApplied Date
275 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 1507-
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 1507-
319 PLATE; LK 8-98151-544-2 01 1 1507-
341 COVER ASM 8-98274-796-0 01 1 1507-
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1507-
396 BRACKET
(A) 		8-98274-795-1 01 1 1507-
396 BRACKET
(B) 		8-98301-125-0 01 1 1507-
406 NUT; COVER
M6 FLANGE 		0-91180-106-0 02 1 1507-
448 BOLT; SENSOR
(B) M6X16 FLANGE 		0-28050-616-0 01 1 1507-
448 BOLT; SENSOR
(A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1507-1508
448 BOLT; SENSOR
(A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1509-
452 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 02 1 1507-1508
452 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 02 1 1509-
452 BOLT; BRKT
(B) M6X25 FLANGE 		0-28650-625-0 03 1 1507-
553 GASKET
ID=14.2 OD=18.8 		8-97369-404-0 01 1 1507-
648 SENSOR; CRANK ANGLE 8-97606-943-0 01 1 1507-
747 CONTROL UNIT; TURBOCHARGER 8-98133-124-1 01 1 1507-
811 CONTROL UNIT; VEH 8-98206-669-7 01 1 1507-

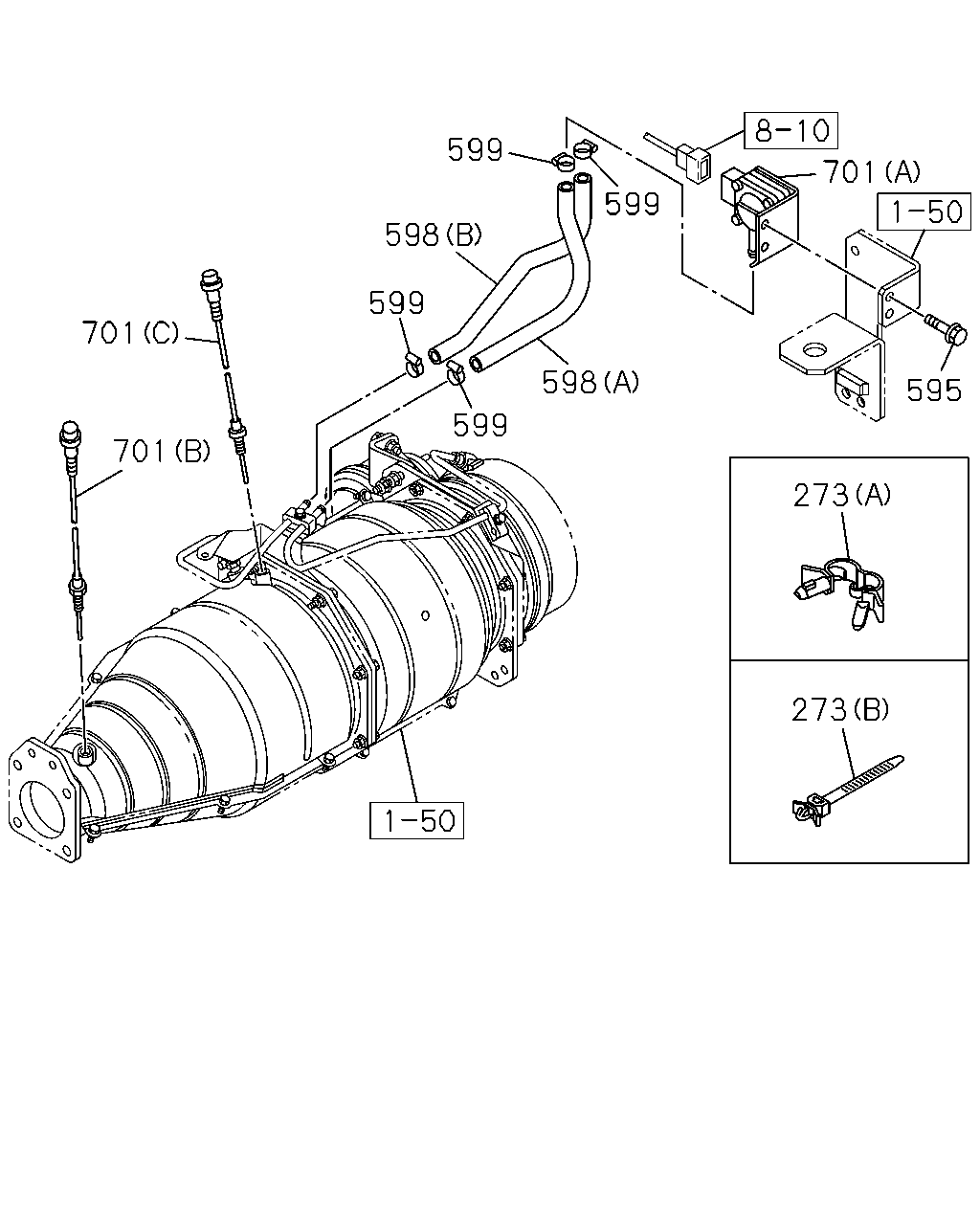

çizim 484557
273 273 595 701 599 598 599 599 598 599 701 701
BalonParca AdiParca NoAdetTipApplied Date
273 CLIP; HARNESS
(B) L=112 		8-94232-618-0 02 1 1507-
273 CLIP; HARNESS
(A) ID=7 L=7.5 		8-97369-561-0 01 1 1507-
595 BOLT; SENSOR
M8X20 FLANGE 		0-28650-820-0 02 1 1507-
598 HOSE; RUBBER,SENSOR
(B) 		8-98138-715-0 01 1 1507-
598 HOSE; RUBBER,SENSOR
(A) 		8-98138-716-0 01 1 1507-
599 CLIP; HOSE
ID=13 		8-97329-627-0 04 1 1507-
701 SENSOR; DPD
(A) 		8-97360-368-2 01 1 1507-
701 SENSOR; DPD
(B) 		8-98004-329-0 01 1 1507-
701 SENSOR; DPD
(C) 		8-98004-330-0 01 1 1507-

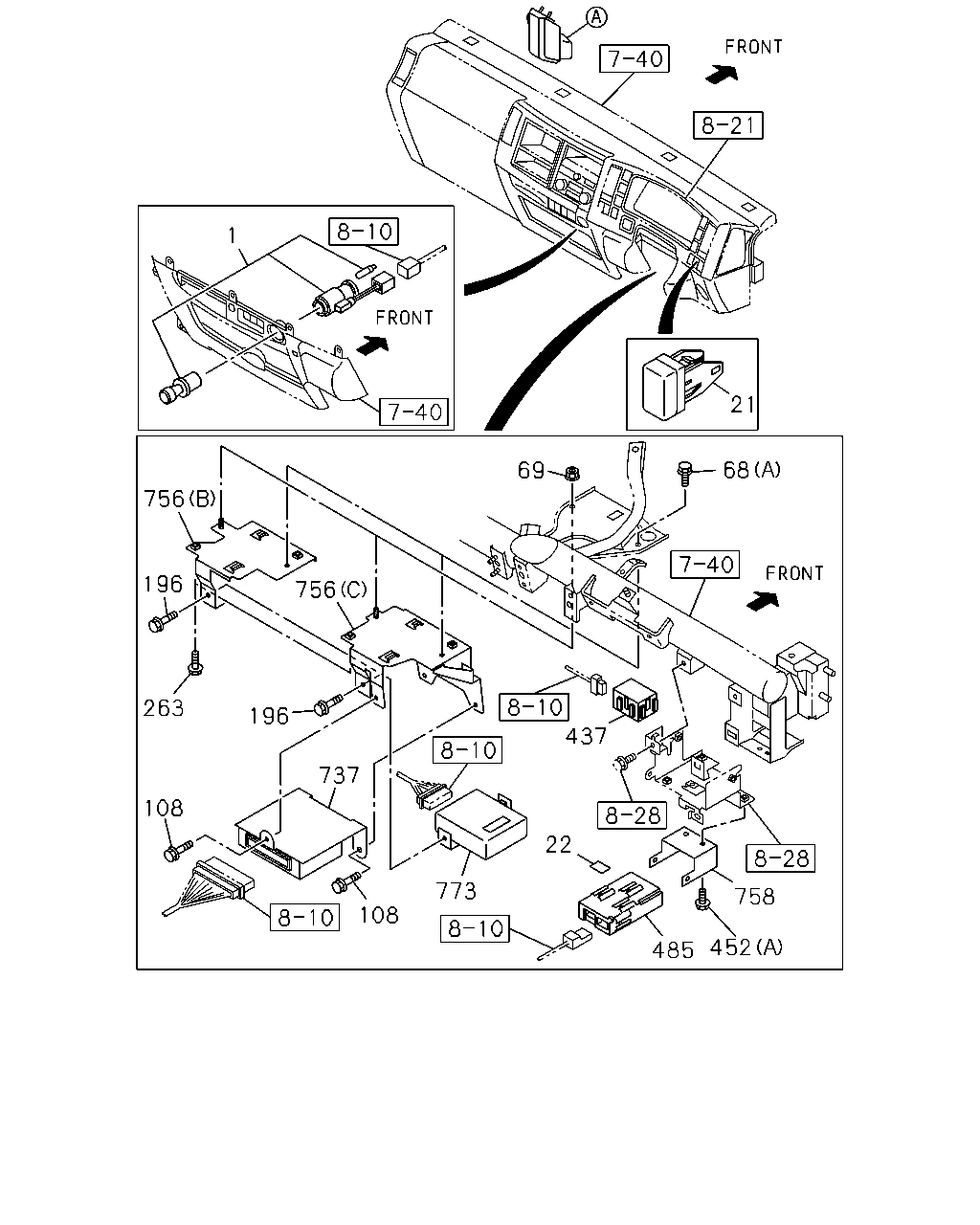

çizim 484625
485 758 452 773 108 108 263 196 737 22 437 756 756 196 69 68 21 1
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR 8-98142-962-0 01 1 1507-
21 COVER; HOLE 8-98025-954-1 01 1 1507-
22 SEAL; TAPE 8-98166-639-0 02 1 1507-
68 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 1507-1508
68 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 1509-
68 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1507-
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1507-1508
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1509-
108 BOLT; TRANS CONT MODULE
SMOOTHER-FX(TYPE2)(8NS) M6X16 FLANGE 		0-28650-616-0 03 1 1507-
196 BOLT
M6X16 FLANGE 		0-28650-616-0 02 1 1507-
263 BOLT; CONT UNIT
M6X16 FLANGE 		0-28650-616-0 04 1 1507-
437 CONVERTER; DC
KOITO 		8-97359-129-0 01 1 1507-
452 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 02 1 1507-1508
452 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 02 1 1509-
452 BOLT; BRKT
(B) M6X25 FLANGE 		0-28650-625-0 03 1 1507-
485 CONTROL UNIT; SPEED SENSOR
SMOOTHER-FX(TYPE2)(8NS) 		1-80190-059-1 01 1 1507-
485 CONTROL UNIT; SPEED SENSOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-80190-061-0 01 1 1507-
737 CONTROL UNIT; TRANSMISSION
SMOOTHER-FX(TYPE2)(8NS) 		8-98289-521-0 01 1 1507-
756 BRACKET; ECU,BCM
(A) 		8-98056-411-3 01 1 1507-
756 BRACKET; ECU,BCM
SMOOTHER-FX(TYPE2)(8NS) (C) 		8-98252-077-1 01 1 1507-
756 BRACKET; ECU,BCM
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98252-076-1 01 1 1507-
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR 8-98048-743-1 01 1 1507-1508
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR 8-98048-743-1 01 1 1509-
773 CONTROL UNIT; CMS 8-98312-079-0 01 1 1507-

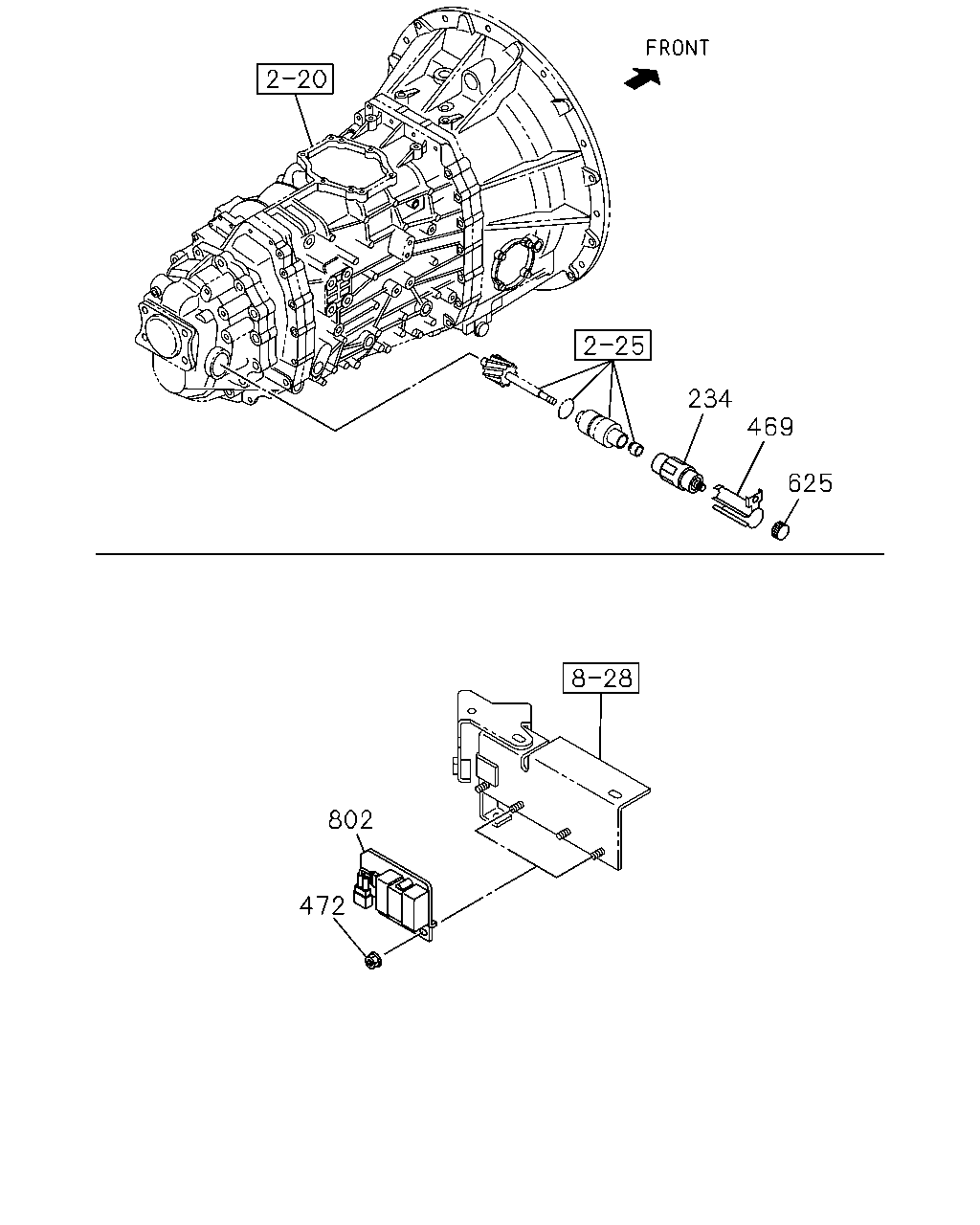

çizim 485198
234 625 469 802 472
BalonParca AdiParca NoAdetTipApplied Date
234 SENSOR; VEHICLE SPD
SMOOTHER-FX(TYPE2)(8NS) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 1507-
469 PROTECTOR; SPEED SENSOR
SMOOTHER-FX(TYPE2)(8NS) 		8-98119-901-0 01 1 1507-1508
469 PROTECTOR; SPEED SENSOR
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98119-901-0 01 1 1509-
472 NUT; RESISTOR
M6 FLANGE 		0-91180-106-0 04 1 1507-
625 CAP; SPEED SENSOR
SMOOTHER-FX(TYPE2)(8NS) 		1-83129-133-0 01 1 1507-
802 RESISTOR; DAYTIME RUNNING LP 8-98225-338-1 02 1 1507-

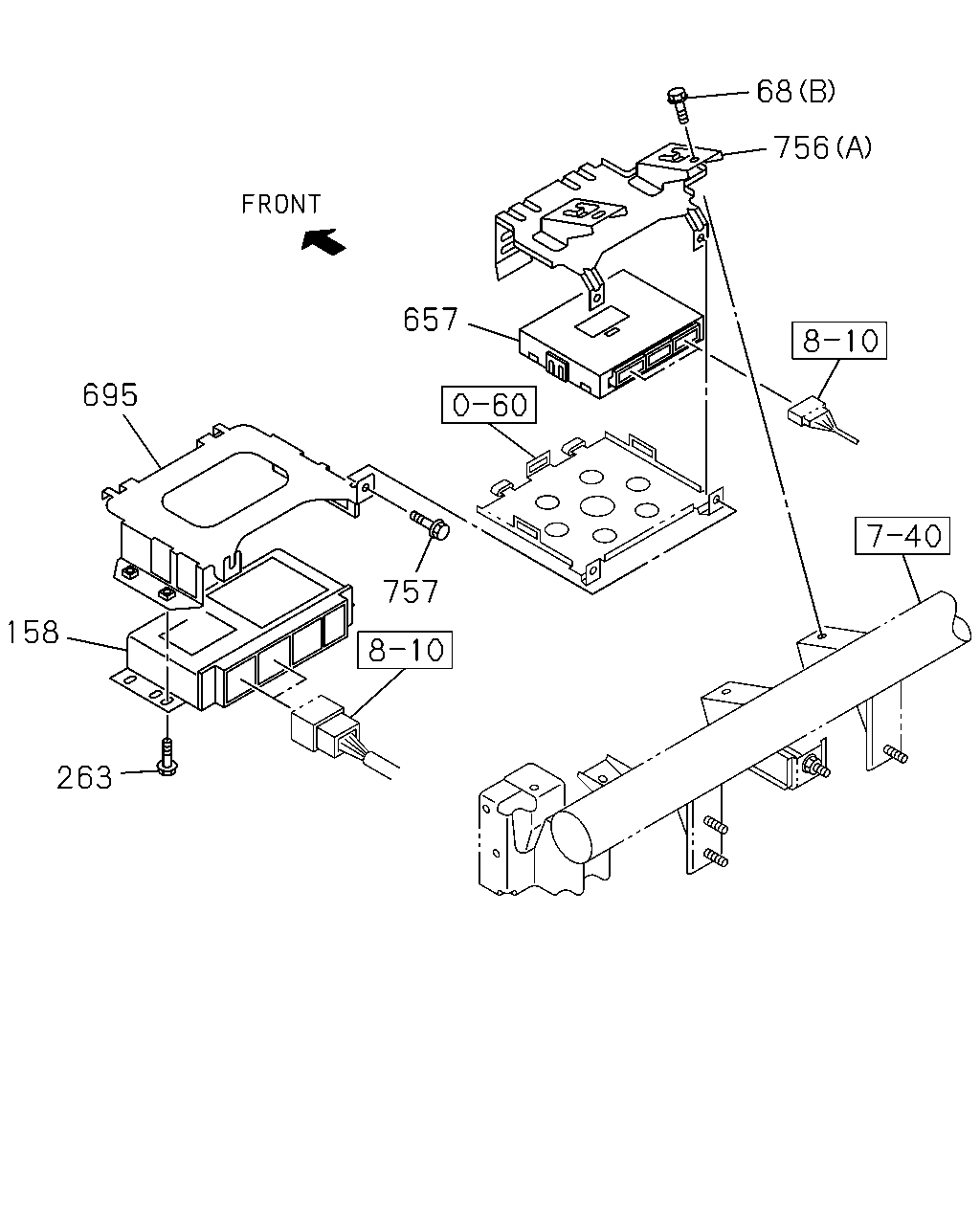

çizim 485261
657 695 158 757 756 68 263
BalonParca AdiParca NoAdetTipApplied Date
68 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 1507-1508
68 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 1509-
68 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1507-
158 CONTROLLER; ABS 8-98249-718-2 01 1 1507-
158 CONTROLLER; ABS 8-98249-718-2 01 1 1507-
263 BOLT; CONT UNIT
M6X16 FLANGE 		0-28650-616-0 04 1 1507-
657 CONTROL UNIT; MIMAMORI 8-98290-407-0 01 1 1507-
695 BRACKET; CONT UNIT,ABS 8-98045-016-1 01 1 1507-
756 BRACKET; ECU,BCM
(A) 		8-98056-411-3 01 1 1507-
756 BRACKET; ECU,BCM
SMOOTHER-FX(TYPE2)(8NS) (C) 		8-98252-077-1 01 1 1507-
756 BRACKET; ECU,BCM
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98252-076-1 01 1 1507-
757 BOLT; BRKT,BCM
M6X16 FLANGE 		0-28650-616-0 02 1 1507-
