◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11683 - FSR RHD EUROPE EURO6 SPACECAB EVSC ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#164175) — 21 parça

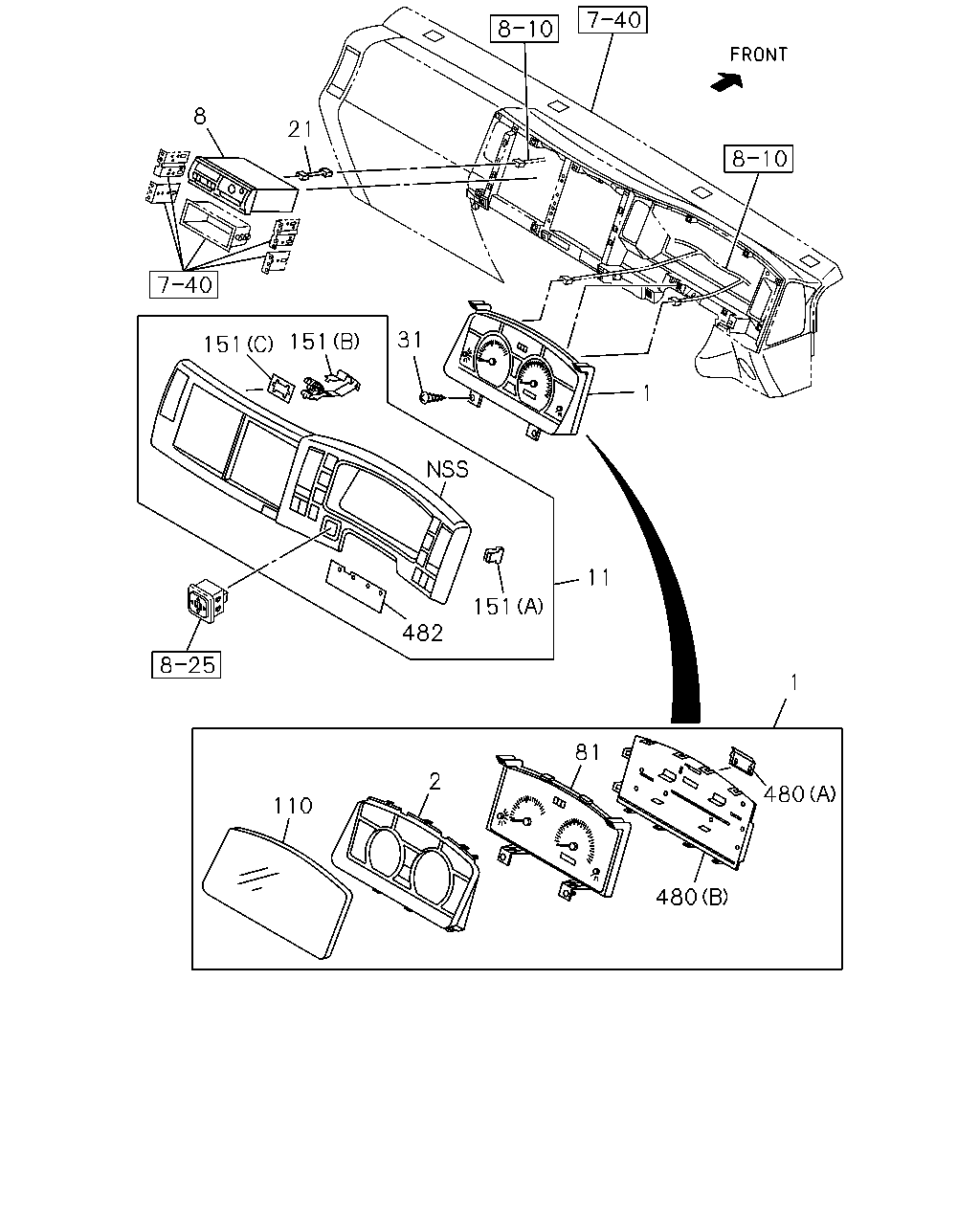

çizim 484348
21 8 151 151 31 1 11 151 482 2 81 1 480 480 110
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER
KILOMETER SPEEDOMETER<U18> SMOOTHER-FX(TYPE2)(8NS) 		8-98253-090-2 01 1 1507-
1 METER COMPL; CLUSTER
KILOMETER SPEEDOMETER<U18> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98253-089-2 01 1 1507-
1 METER COMPL; CLUSTER
MILE SPEEDOMETER<UC1> SMOOTHER-FX(TYPE2)(8NS) 		8-98270-890-2 01 1 1507-
1 METER COMPL; CLUSTER
MILE SPEEDOMETER<UC1> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98270-889-2 01 1 1507-
2 PANEL; CLUSTER 8-98054-432-0 01 1 1507-
8 TACHOGRAPH; CLUSTER METER 8-98204-004-0 01 1 1507-
11 CLUSTER ASM; METER
DARK GRAY 		8-97418-530-1 01 1 1507-
21 HARNESS; TACHOGRAPH
SMOOTHER-FX(TYPE2)(8NS) 		8-98203-748-0 01 1 1507-
21 HARNESS; TACHOGRAPH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98203-747-0 01 1 1507-
31 SCREW; METER,INST PANEL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1507-
81 METER SUB ASM
KILOMETER SPEEDOMETER<U18> SMOOTHER-FX(TYPE2)(8NS) 		8-98287-387-0 01 1 1507-
81 METER SUB ASM
KILOMETER SPEEDOMETER<U18> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98287-385-0 01 1 1507-
81 METER SUB ASM
MILE SPEEDOMETER<UC1> SMOOTHER-FX(TYPE2)(8NS) 		8-98287-388-0 01 1 1507-
81 METER SUB ASM
MILE SPEEDOMETER<UC1> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98287-386-0 01 1 1507-
110 GLASS; CLUSTER METER 8-98054-642-0 01 1 1507-
151 CLIP; METER CLUSTER
(A) 		8-98021-271-0 12 1 1507-
151 CLIP; METER CLUSTER
(B) 		8-98152-030-0 01 1 1507-
151 CLIP; METER CLUSTER
(C) 		8-98152-031-0 01 1 1507-
480 COVER; METER
(A) BLACK DOT MATRIX FOR FPC PROTECTION 		8-98054-881-0 01 1 1507-
480 COVER; METER
(B) 		8-98151-362-0 01 1 1507-
482 SEAL; CLUSTER METER 8-98116-842-0 01 1 1507-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
