8-01 — LAMP; FRONT AND FRONT SIDE (#164169) — 58 parça

1 4 338 339 408 420 20 23 457 382 5 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD	8-98241-320-0	01	1	1507-
1	LAMP ASM; HEAD	8-98241-319-0	01	1	1507-
4	HEADLAMP UNIT	8-98226-181-0	01	1	1507-
4	HEADLAMP UNIT	8-98226-180-0	01	1	1507-
5	BULB; HEADLAMP (B) 24V 5W	1-82194-042-0	02	1	1507-
5	BULB; HEADLAMP (A) 24V 75/70W	1-82194-063-0	02	1	1507-
20	SCREW; HEADLAMP	8-97378-871-0	06	1	1507-
23	COVER; BULB,HEADLAMP	8-97232-491-0	02	1	1507-
338	LEVELING; HEADLAMP	8-98010-256-0	02	1	1507-
339	GASKET; LEVELING	1-86830-158-0	02	1	1507-
382	PLUG; SOCKET,HEADLAMP	8-98225-685-0	02	1	1507-
408	CAP; BREATHER,HEADLAMP	8-97378-874-0	02	1	1507-
420	SPRING; BULB,HEADLAMP	8-98218-601-0	02	1	1507-
457	GRIP; HEADLAMP	8-98241-354-0	02	1	1507-

331 431 432 355 399 357 454 452 448 328 453 452 15 450

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	BULB; FOG LAMP 24V 70W	1-82194-106-0	02	1	1507-
328	COVER; LAMP	8-98240-559-0	02	1	1507-
331	LAMP; TURN SIGNAL	8-98155-459-0	01	1	1507-
331	LAMP; TURN SIGNAL	8-98155-458-0	01	1	1507-
355	SCREW; TURN SIGNAL	8-98051-428-0	04	1	1507-
357	BULB; TURN SIGNAL 24V 21W AMBER	8-97323-806-0	02	1	1507-
399	SOCKET; TURN SIGNAL	8-98051-387-0	02	1	1507-
431	CAP; TURN SIGNAL,LAMP	8-97378-874-0	02	1	1507-
432	FASTENER; TURN SIGNAL,LAMP	8-98051-431-0	04	1	1507-
448	CAP ASM; LAMP	8-97378-874-0	02	1	1507-
450	BULB; DRL LAMP 12V 13W	8-98285-107-0	02	1	1507-
452	SCREW; FOG & DRL	1-82119-086-1	10	1	1507-
453	SPRING; SET	8-98075-644-0	02	1	1507-
454	LAMP ASM; FOG & DRL	8-98218-599-1	01	1	1507-
454	LAMP ASM; FOG & DRL	8-98218-598-1	01	1	1507-

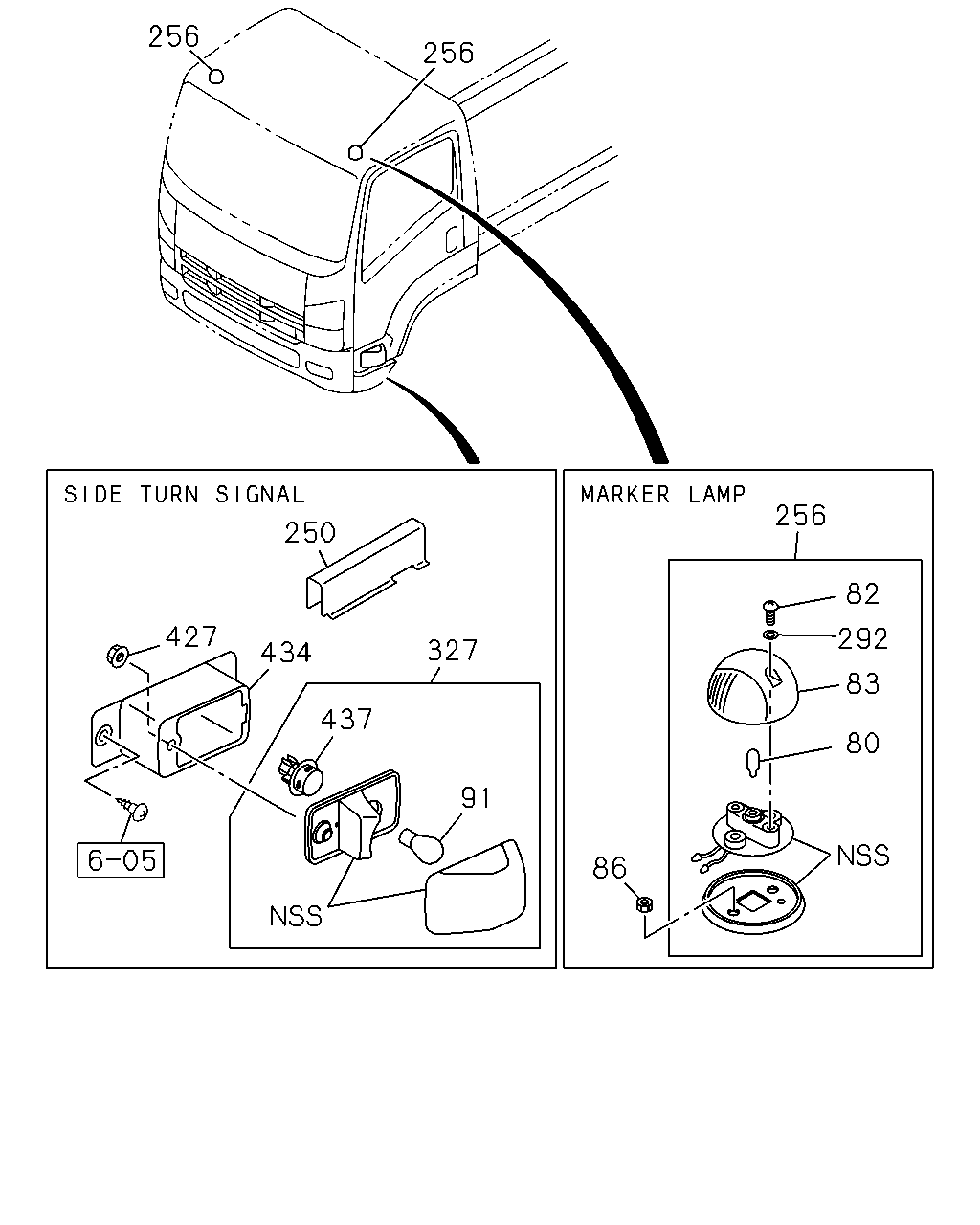

256 256 250 427 434 327 437 91 256 82 292 83 80 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
80	BULB; MARKER LAMP 24V 5W	8-94135-397-0	02	1	1507-
82	SCREW; MARKER LAMP	1-82219-011-0	04	1	1507-
83	LENS; MARKER LAMP	8-98057-958-0	02	1	1507-
86	NUT; MARKER LAMP M6 FLANGE	0-91180-106-0	04	1	1507-
91	BULB; SIDE TURN SIGNAL 24V 21W	8-98051-495-0	02	1	1507-
250	BRACKET ASM MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV>	8-98113-165-0	01	1	1507-
250	BRACKET ASM MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV>	8-98113-164-0	01	1	1507-
256	LAMP; MARKER	8-98097-467-3	01	1	1507-
256	LAMP; MARKER	8-98097-466-3	01	1	1507-
292	WASHER; MARKER LAMP	1-82219-012-0	04	1	1507-
327	LAMP ASM; SIDE TURN SIGNAL	8-97410-181-3	01	1	1507-
327	LAMP ASM; SIDE TURN SIGNAL	8-97410-180-4	01	1	1507-
427	NUT; TURN SIGNAL LAMP M6 FLANGE	0-91180-106-0	04	1	1507-
434	BASE; LAMP,SIDE TURN SIGNAL MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV>	8-98112-355-0	01	1	1507-
434	BASE; LAMP,SIDE TURN SIGNAL MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW EXTENDED LONG ARM<8MV>	8-98112-354-0	01	1	1507-
434	BASE; LAMP,SIDE TURN SIGNAL O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98063-727-1	01	1	1507-
434	BASE; LAMP,SIDE TURN SIGNAL O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98063-726-1	01	1	1507-
437	SOCKET; SIDE,TURN	8-98051-390-0	02	1	1507-

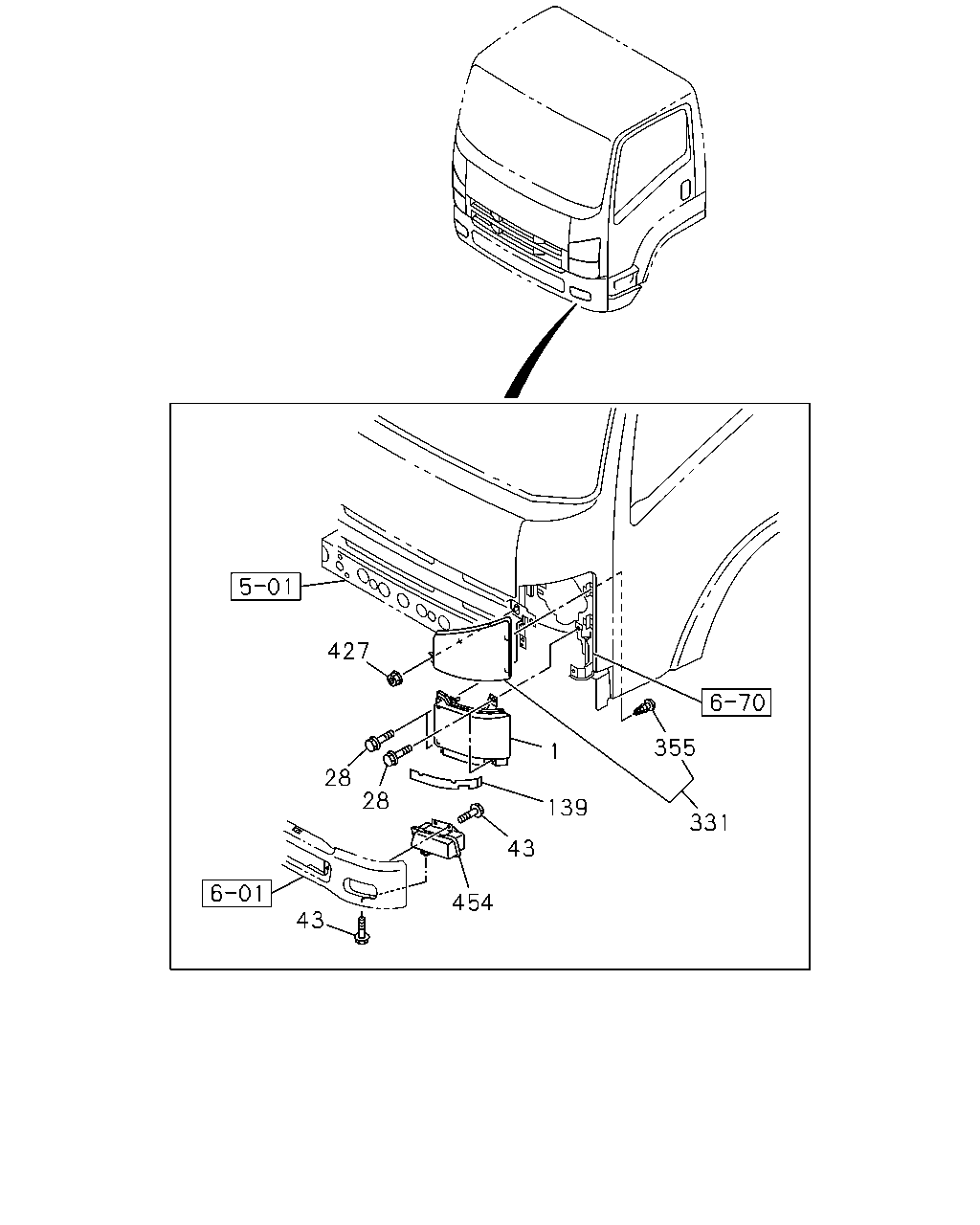

427 28 28 43 454 43 139 1 355 331

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD	8-98241-320-0	01	1	1507-
1	LAMP ASM; HEAD	8-98241-319-0	01	1	1507-
28	BOLT; HEADLAMP M6X23.5 W/LK&PL WASHER	8-98164-723-0	08	1	1507-
43	BOLT; FOG LAMP M6X19.5 W/LK&PL WASHER	8-97360-226-0	06	1	1507-
139	COVER; HEADLAMP	8-98054-342-0	02	1	1507-
331	LAMP; TURN SIGNAL	8-98155-459-0	01	1	1507-
331	LAMP; TURN SIGNAL	8-98155-458-0	01	1	1507-
355	SCREW; TURN SIGNAL	8-98051-428-0	04	1	1507-
427	NUT; TURN SIGNAL LAMP M6 FLANGE	0-91180-106-0	04	1	1507-
454	LAMP ASM; FOG & DRL	8-98218-599-1	01	1	1507-
454	LAMP ASM; FOG & DRL	8-98218-598-1	01	1	1507-
