Isuzu WW
▶
TRUCKS
▶
FSR
▶
11683 - FSR RHD EUROPE EURO6 SPACECAB EVSC
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-43 - SIDE TRIM
▶

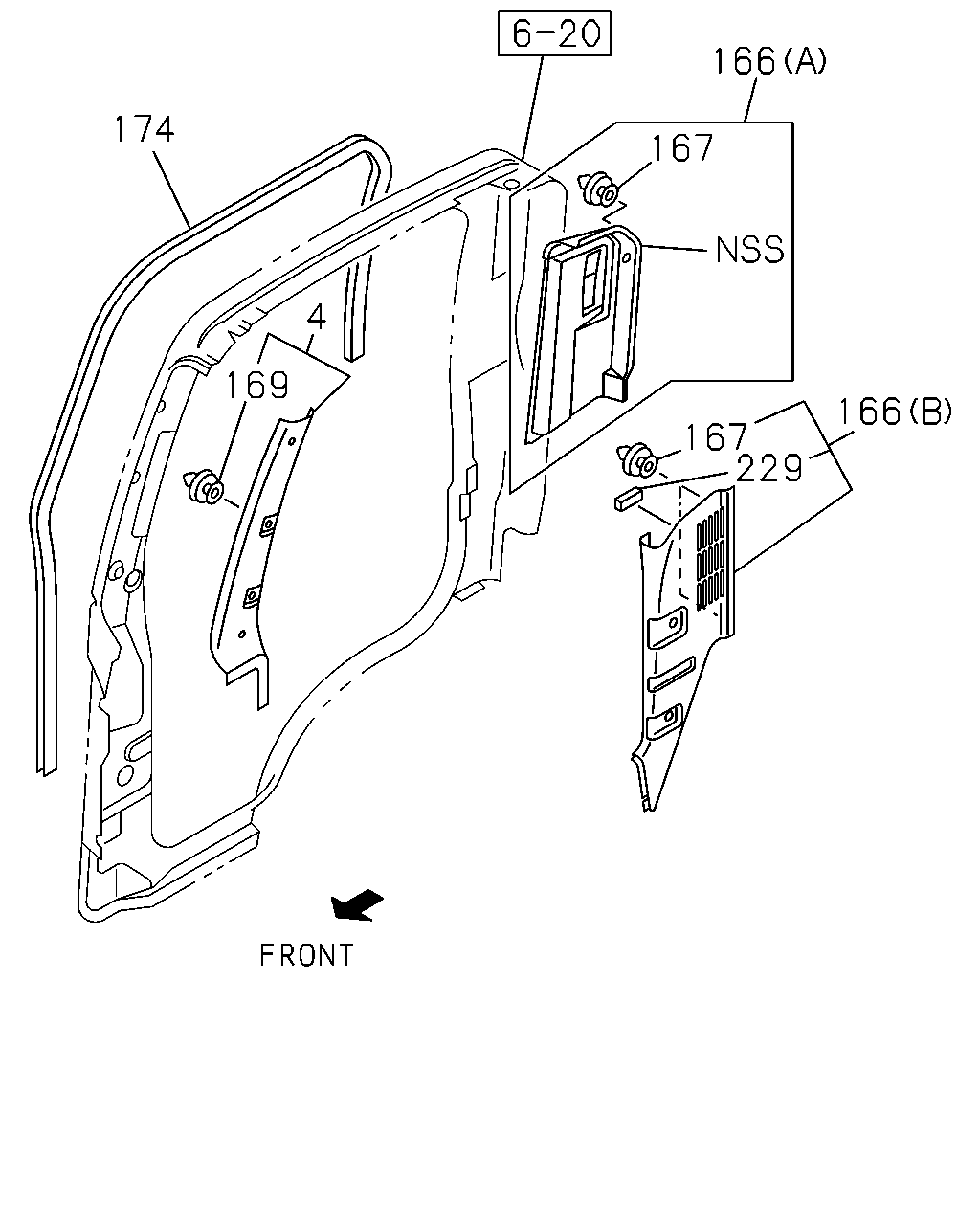

6-43 — SIDE TRIM
(#164146) — 15 parça
229
166
167
167
166
174
4
169
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
COVER; TRIM,FRT SIDE
DARK GRAY
8-97407-416-1
01
1
1507-
4
COVER; TRIM,FRT SIDE
DARK GRAY
8-97407-415-1
01
1
1507-
166
TRIM; RR PILLAR
(A) DARK GRAY
8-97406-796-1
01
1
1507-
166
TRIM; RR PILLAR
(B) GRAY
8-97407-540-0
01
1
1507-
166
TRIM; RR PILLAR
(A) DARK GRAY
8-97407-900-0
01
1
1507-
166
TRIM; RR PILLAR
(B) GRAY
8-97414-301-0
01
1
1507-
167
CLIP; TRIM,RR PILLAR
8-98059-610-0
04
1
1507-
167
CLIP; TRIM,RR PILLAR
8-98059-610-0
02
1
1507-
167
CLIP; TRIM,RR PILLAR
8-98059-610-0
02
1
1507-
169
CLIP; TRIM COVER,FRT PILLAR
OD=7.9 BLACK
8-94279-974-1
04
1
1507-
174
FINISHER; BODY SIDE
8-98155-184-0
01
1
1507-1509
174
FINISHER; BODY SIDE
8-98249-514-0
01
1
1510-
174
FINISHER; BODY SIDE
8-98155-183-0
01
1
1507-1509
174
FINISHER; BODY SIDE
8-98249-513-0
01
1
1510-
229
SEAL
8-98092-662-0
01
1
1507-
