Isuzu WW
▶
TRUCKS
▶
FSR
▶
11683 - FSR RHD EUROPE EURO6 SPACECAB EVSC
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

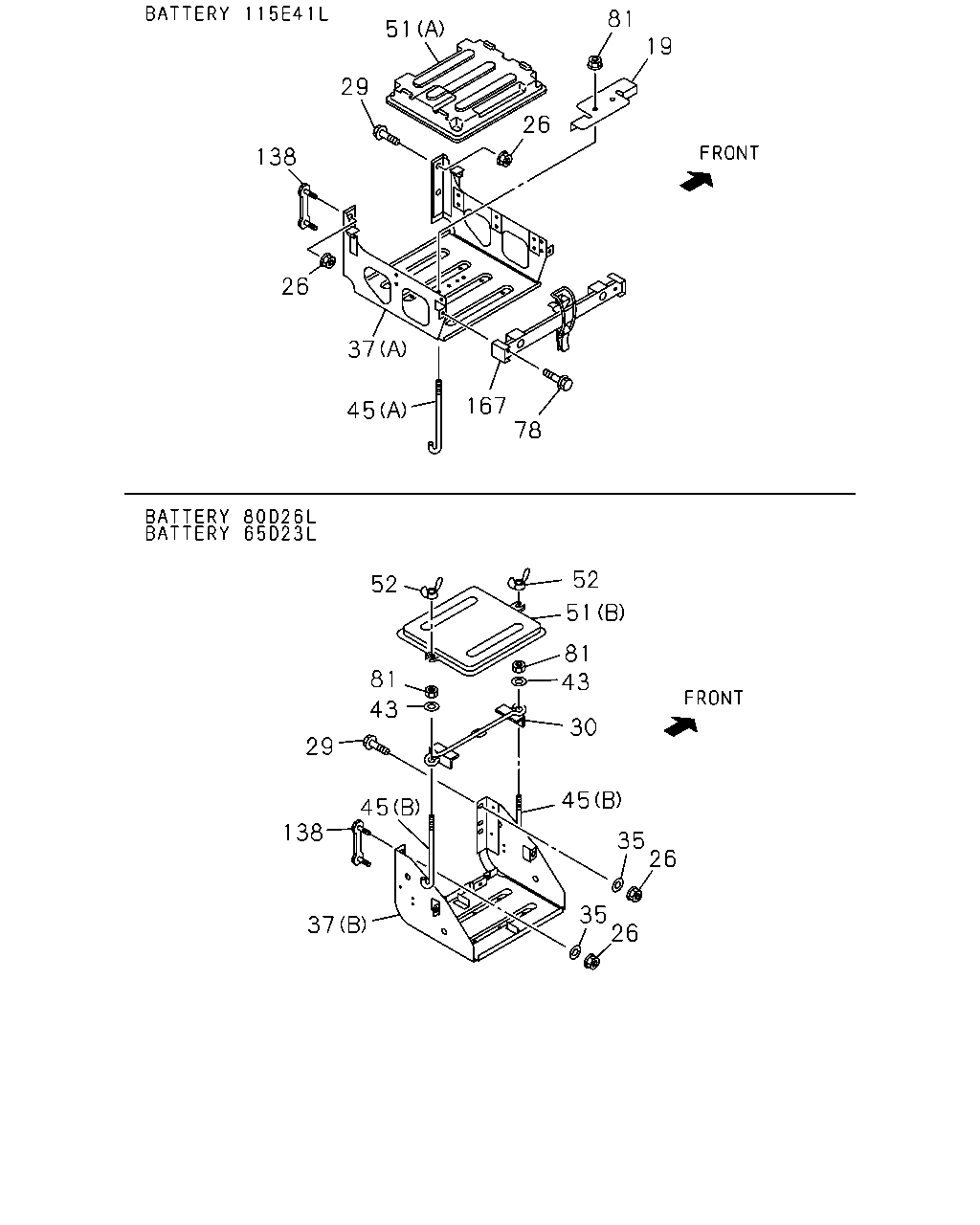

5-20 — BATTERY CARRIER
(#164134) — 25 parça
51
29
138
26
37
45
167
78
19
81
26
52
51
81
43
30
45
35
26
35
26
45
29
81
52
43
138
37
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
19
STAY; BATTERY
BATTERY 115E41L<8MA>
8-98120-443-0
01
1
1507-
26
NUT; BRKT
M10 FLANGE
0-91180-210-0
03
1
1507-
29
BOLT; BRKT TO FRAME
M10X35 FLANGE
0-28651-035-0
02
1
1507-
30
PLATE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
5-53615-004-1
01
1
1507-1508
30
PLATE; BATTERY
EXC. BATTERY 115E41L<8MA>
5-53615-004-1
01
1
1509-
35
WASHER; PL,BATTERY CARRIER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22
0-91614-610-0
04
1
1507-
37
BRACKET; BATTERY
BATTERY 115E41L<8MA> (A)
8-98204-178-2
01
1
1507-
37
BRACKET; BATTERY
BATTERY 65D23L<8EJ> (B)
8-97384-068-2
01
1
1507-
37
BRACKET; BATTERY
BATTERY 80D26L<TM1> (B)
8-97384-067-2
01
1
1507-
43
WASHER; PL,CLAMP
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=8.4 OD=22
0-91614-708-0
02
1
1507-1508
43
WASHER; PL,CLAMP
EXC. BATTERY 115E41L<8MA> ID=8.4 OD=22
0-91614-708-0
02
1
1509-
45
ROD; TENSION,BATTERY
BATTERY 115E41L<8MA> (A) L=235
8-98120-478-0
02
1
1507-
45
ROD; TENSION,BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) L=120
9-53616-615-0
02
1
1507-1508
45
ROD; TENSION,BATTERY
EXC. BATTERY 115E41L<8MA> (B) L=120
9-53616-615-0
02
1
1509-
51
COVER; BATTERY
BATTERY 115E41L<8MA> (A)
8-98124-443-0
01
1
1507-
51
COVER; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)
8-97120-747-0
01
1
1507-1508
51
COVER; BATTERY
EXC. BATTERY 115E41L<8MA> (B)
8-97120-747-0
01
1
1509-
52
NUT; WING,COVER FIX
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT
0-91118-408-0
02
1
1507-1508
52
NUT; WING,COVER FIX
EXC. BATTERY 115E41L<8MA> M8 WING NUT
0-91118-408-0
02
1
1509-
78
BOLT; COVER
BATTERY 115E41L<8MA> M8X20 FLANGE
0-28650-820-0
02
1
1507-
81
NUT; BATTERY
M8 FLANGE
0-91180-108-0
02
1
1507-1508
81
NUT; BATTERY
M8 FLANGE
0-91180-108-0
02
1
1509-
138
STUD
8-98255-710-0
01
1
1507-1508
138
STUD
8-98255-710-0
01
1
1509-
167
BRACKET; STOPPER
BATTERY 115E41L<8MA>
8-98204-179-2
01
1
1507-
