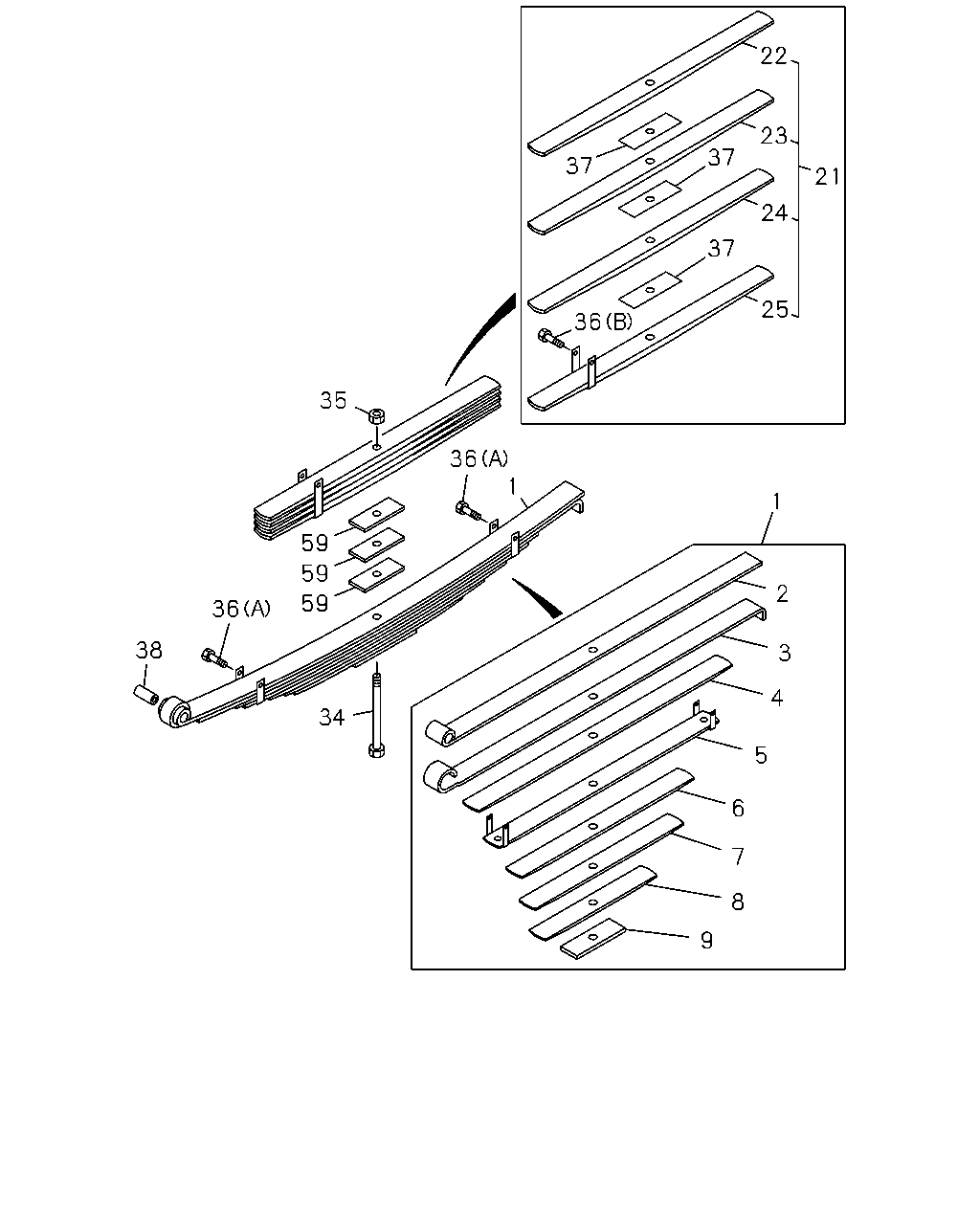

4-65 — REAR LEAF SPRING (#164129) — 21 parça

22 23 21 24 25 1 2 3 4 5 6 7 8 9 34 38 36 59 59 59 1 36 35 36 37 37 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR MAIN ASM PART: A = 8-98191-488-0	8-98205-788-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 8-98191-488-0	8-98205-789-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-98191-488-0	8-98205-790-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-98191-488-0	8-98205-791-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 8-98191-488-0	8-98205-792-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: A = 8-98191-488-0	8-98205-793-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: A = 8-98191-488-0	8-98205-794-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN ASM PART: A = 8-98191-488-0	8-98205-795-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN ASM PART: A = 8-98191-488-0	8-98205-796-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: A = 8-98191-488-0	8-98205-797-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-98191-488-0	8-98205-798-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: A = 8-98191-488-0	8-98205-799-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB ASM PART: A = 8-98191-488-0	8-98205-800-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB ASM PART: A = 8-98191-488-0	8-98205-801-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=210 ASM PART: A = 8-98191-488-0	1-51356-344-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: A = 8-98191-488-0	9-99110-512-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR (A), M8X85 ASM PART: A = 8-98191-488-0	1-09000-366-0	02	1	-
36	BOLT; CLIP,LEAF SPR,RR (B), M8X90.5 ASM PART: A = 8-98191-488-0	8-98040-333-0	01	1	-
37	SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: A = 8-98191-488-0	1-51377-361-0	03	1	-
38	BUSHING; LEAF SPR,RR ID=25 ASM PART: A = 8-98191-488-0	9-51151-032-0	01	1	-
59	SEAT; RR SPRING,SUB T=11 ASM PART: A = 8-98191-488-0	1-51377-199-0	03	1	-
