Isuzu WW
▶
TRUCKS
▶
FSR
▶
11683 - FSR RHD EUROPE EURO6 SPACECAB EVSC
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-50 - FRONT SUSPENSION
▶
4-50 — FRONT SUSPENSION
(#164126) — 39 parça
◀

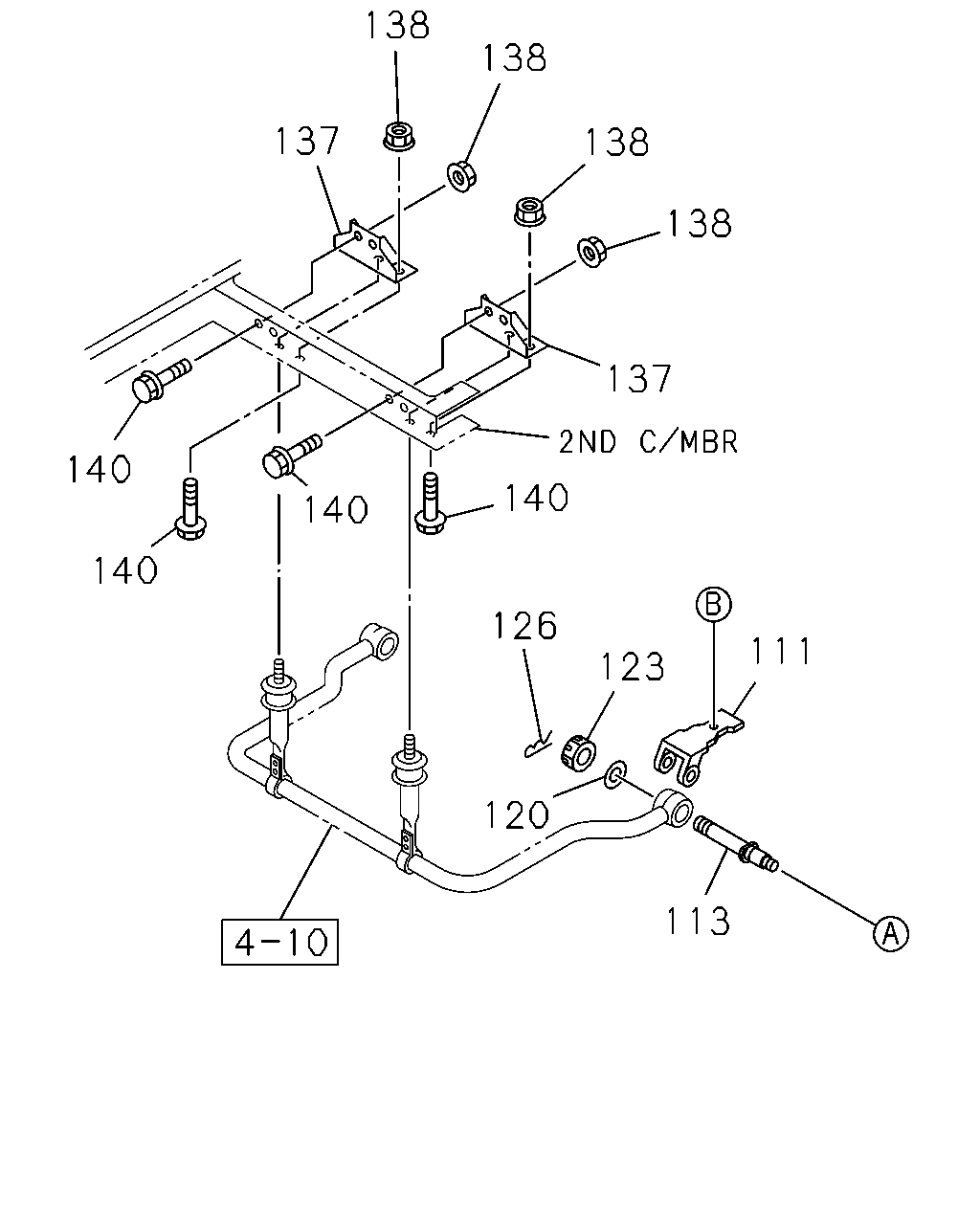

[450A] FRONT STABILIZER SHAFT (9 parça)

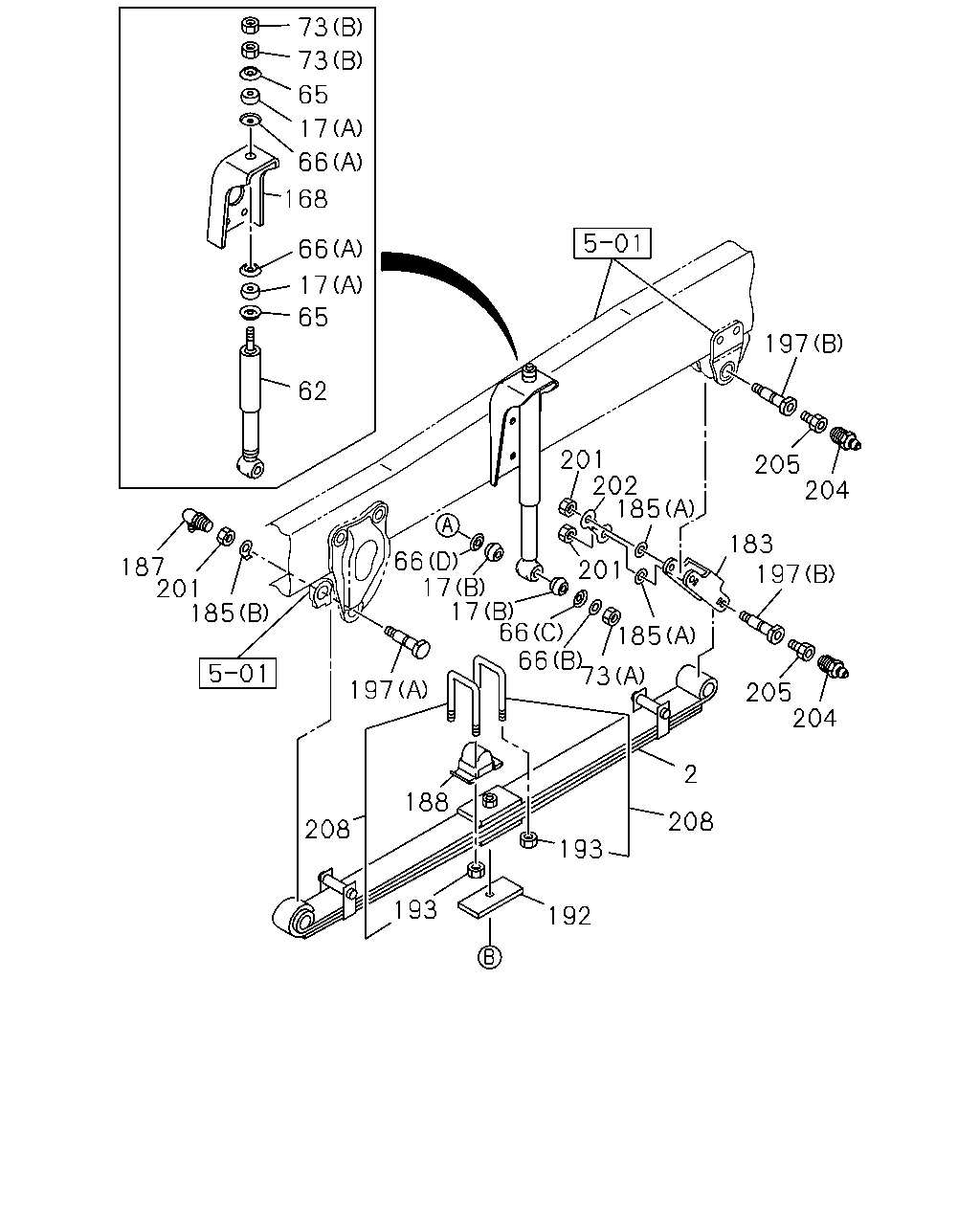

[450A] LEAF SPRING AND SHOCK ABSORBER (30 parça)
▶
138
138
138
138
137
140
126
123
120
113
111
140
140
140
137
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
111
SUPPORTER; S/ABS,FRT SUSP
1-51681-655-1
01
1
1507-
111
SUPPORTER; S/ABS,FRT SUSP
1-51681-654-1
01
1
1507-
113
PIN; SUPPORTER
8-98019-317-0
02
1
1507-
120
WASHER; PL,SUPPORT BRKT TO BODY
ID=23
0-91614-522-0
02
1
1507-
123
NUT; PIN TO SUPPORTER
M22
0-91116-522-0
02
1
1507-
126
PIN; SPLIT,STAB
OD=4.6 L=45
0-81125-045-0
02
1
1507-
137
BRACKET; STAB BAR TO FRAME
1-51781-060-2
02
1
1507-
138
NUT; BRKT
M10 FLANGE
0-91180-210-0
08
1
1507-
140
BOLT; BRKT
M10X25 FLANGE
0-28651-025-0
08
1
1507-
73
65
73
17
168
66
66
65
62
17
187
201
185
197
208
193
188
192
193
208
2
204
205
197
183
205
197
204
201
185
202
201
185
66
73
66
17
17
66
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
8-98229-528-0
01
1
1507-
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
8-98229-529-0
01
1
1507-
17
BUSHING; RUBBER,S/ABS
(B)
1-51631-009-1
04
1
1507-
17
BUSHING; RUBBER,S/ABS
(A)
9-51631-050-0
04
1
1507-
62
ABSORBER ASM; SHOCK,FRT
1-51630-302-1
02
1
1507-
65
WASHER; S/ABS
ID=14.5
9-51631-051-0
04
1
1507-1508
65
WASHER; S/ABS
ID=14.5
9-51631-051-0
04
1
1509-1510
65
WASHER; S/ABS
ID=14.5
9-51631-051-0
04
1
1509-1510
65
WASHER; S/ABS
ID=14.5
9-51631-051-0
04
1
1511-
66
WASHER; LK,S/ABS SETTING
(B) ID=17 OD=30
0-91610-516-0
02
1
1507-
66
WASHER; LK,S/ABS SETTING
(D) ID=23
1-51631-019-0
02
1
1507-
66
WASHER; LK,S/ABS SETTING
(C) ID=17
1-51631-020-0
02
1
1507-
66
WASHER; LK,S/ABS SETTING
(A) ID=16.8
1-51631-022-0
04
1
1507-
73
NUT; BRKT,SHOCK
(A) M16
0-91110-516-0
02
1
1507-
73
NUT; BRKT,SHOCK
(B) M12
8-98010-412-0
04
1
1507-
168
BRACKET; S/ABS,FRT SUSP
1-51681-820-0
02
1
1507-
183
SHACKLE; FRT SUSP
1-51162-037-0
02
1
1507-
185
WASHER; LK,PIN
(A) ID=25.5
8-98010-404-0
04
1
1507-
185
WASHER; LK,PIN
(B) ID=23
8-98010-411-0
02
1
1507-
187
NIPPLE; GREASE,FRT
PT1/8 ELBOW
0-90301-610-0
02
1
1507-
188
RUBBER; CLAMP,U-BOLT,FRT SPR
1-51172-124-0
02
1
1507-
192
PIECE; DIST
T=4.5
1-51177-149-0
AR
1
1507-
193
NUT; U BOLT
M18 FLANGE
1-09440-039-1
08
1
1507-
197
PIN; FRT SPR,FRT
(B)
8-98060-333-0
04
1
1507-
197
PIN; FRT SPR,FRT
(A)
8-98060-335-0
02
1
1507-
201
NUT; PIN LK
M22
0-91111-522-0
06
1
1507-
202
PLATE; LK,SPR PIN
8-98010-648-0
02
1
1507-
204
NIPPLE; GREASE,RR
PT1/8 STRAIGHT
0-90301-410-0
04
1
1507-
205
ATTACHMENT; GREASE NIPPLE
9-43165-001-0
04
1
1507-
208
U-BOLT SET; FRT SPRING
L=165
1-87870-444-0
04
1
1507-
