◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11683 - FSR RHD EUROPE EURO6 SPACECAB EVSC ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#164124) — 53 parça

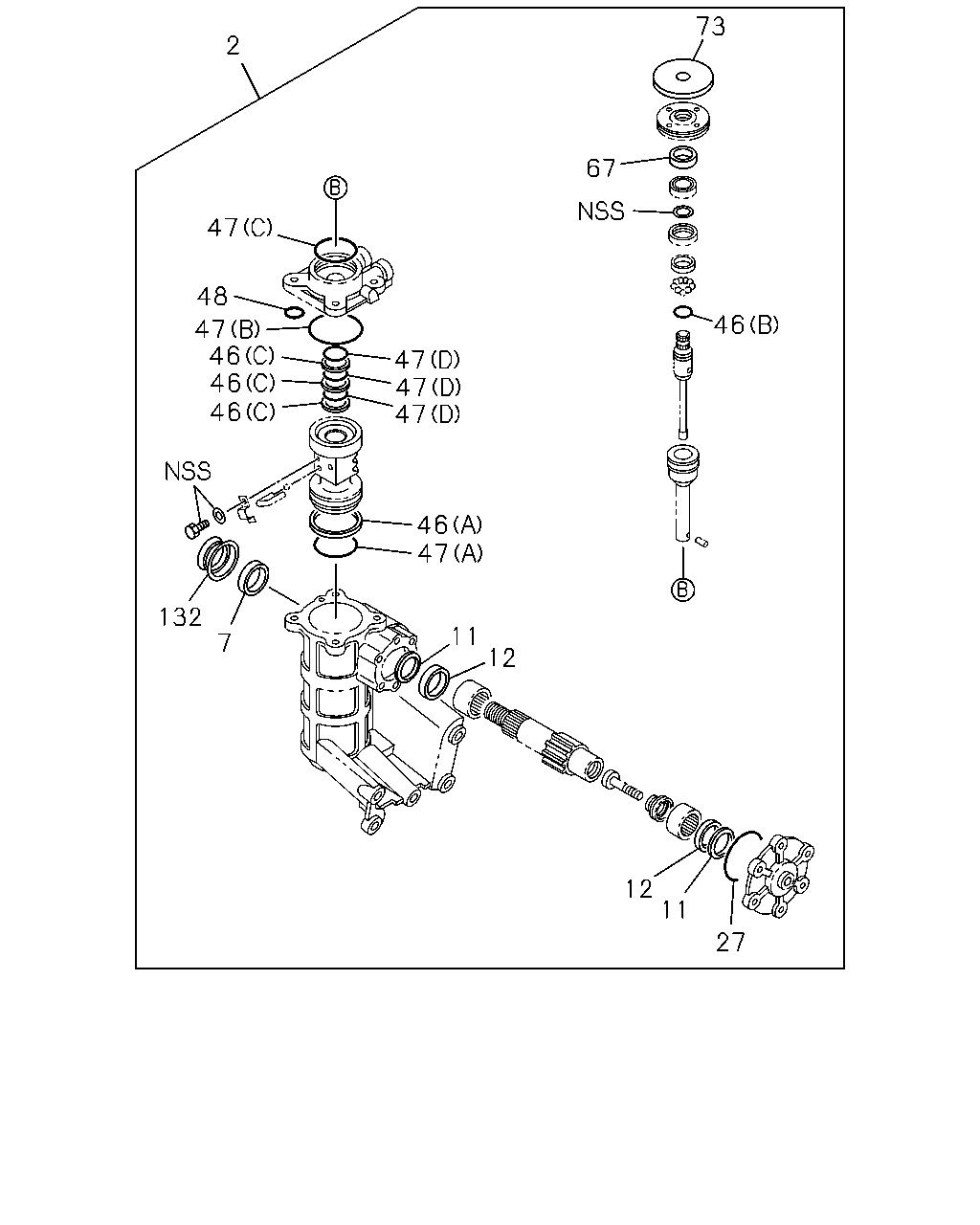

çizim 484686
2 47 48 46 46 46 47 47 47 47 46 47 11 12 7 132 12 11 27 46 67 73
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
ASM PART: A = 1-44000-952-2 		8-98075-903-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44519-102-0 01 1 -
11 RING; BACKUP,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44519-103-0 02 1 -
12 GASKET; SHAFT,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44519-226-0 02 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44519-109-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-952-2 		1-44159-046-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-952-2 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-952-2 		1-44519-100-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-952-2 		1-44519-090-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-952-2 		1-44519-098-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-952-2 		1-44519-099-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-952-2 		1-44519-101-0 03 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44519-097-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44259-036-1 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-952-2 		8-98074-089-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44159-119-0 01 1 -

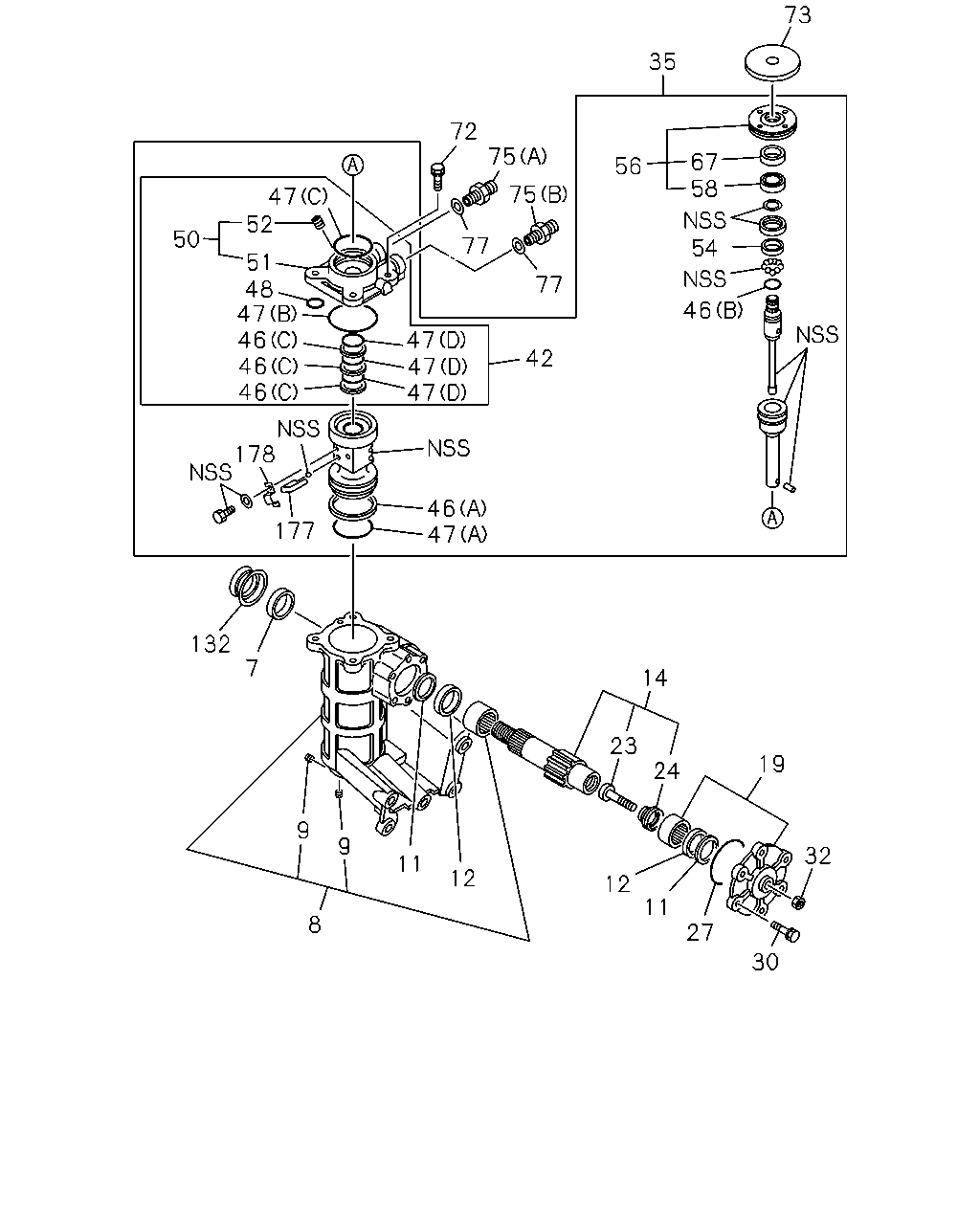

çizim 485003
73 35 56 67 54 58 46 42 77 77 75 75 72 47 51 50 52 48 46 47 46 46 47 47 47 46 47 177 178 132 7 11 12 9 9 8 12 24 11 27 30 32 19 14 23
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44519-102-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-952-2 		8-98159-675-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44519-103-0 02 1 -
12 GASKET; SHAFT,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44519-226-0 02 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44320-026-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-952-2 		8-98159-681-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44277-003-1 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44279-011-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44519-109-0 01 1 -
30 BOLT; COVER STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44519-107-0 06 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44269-037-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 1-44000-952-2 		8-98095-590-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44560-052-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-952-2 		1-44159-046-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-952-2 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-952-2 		1-44519-100-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-952-2 		1-44519-090-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-952-2 		1-44519-098-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-952-2 		1-44519-099-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-952-2 		1-44519-101-0 03 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44519-097-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44560-053-0 01 1 -
51 HOUSING; VALVE STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44561-015-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44241-088-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44250-006-1 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44259-029-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44259-036-1 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44519-110-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-952-2 		8-98074-089-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
(A), M20X1.5 ASM PART: A = 1-44000-952-2 		1-44259-034-1 01 1 -
75 CONNECTOR; HSG STRG UNIT
(B), M22X1.5 ASM PART: A = 1-44000-952-2 		1-44259-035-1 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: A = 1-44000-952-2 		9-89970-787-0 02 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44159-119-0 01 1 -
177 TUBE; BALL BRG STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44151-017-0 02 1 -
178 CLIP; BALL TUBE STRG UNIT
ASM PART: A = 1-44000-952-2 		1-44159-034-0 01 1 -
