Isuzu WW
▶
TRUCKS
▶
FYH
▶
11354 - FYH(THAILAND)EURO3
▶
0 - Engine, Emission, Engine Electrical
▶
0-36 - TURBOCHARGER SYSTEM
▶
0-36 — TURBOCHARGER SYSTEM
(#16412) — 29 parça
◀

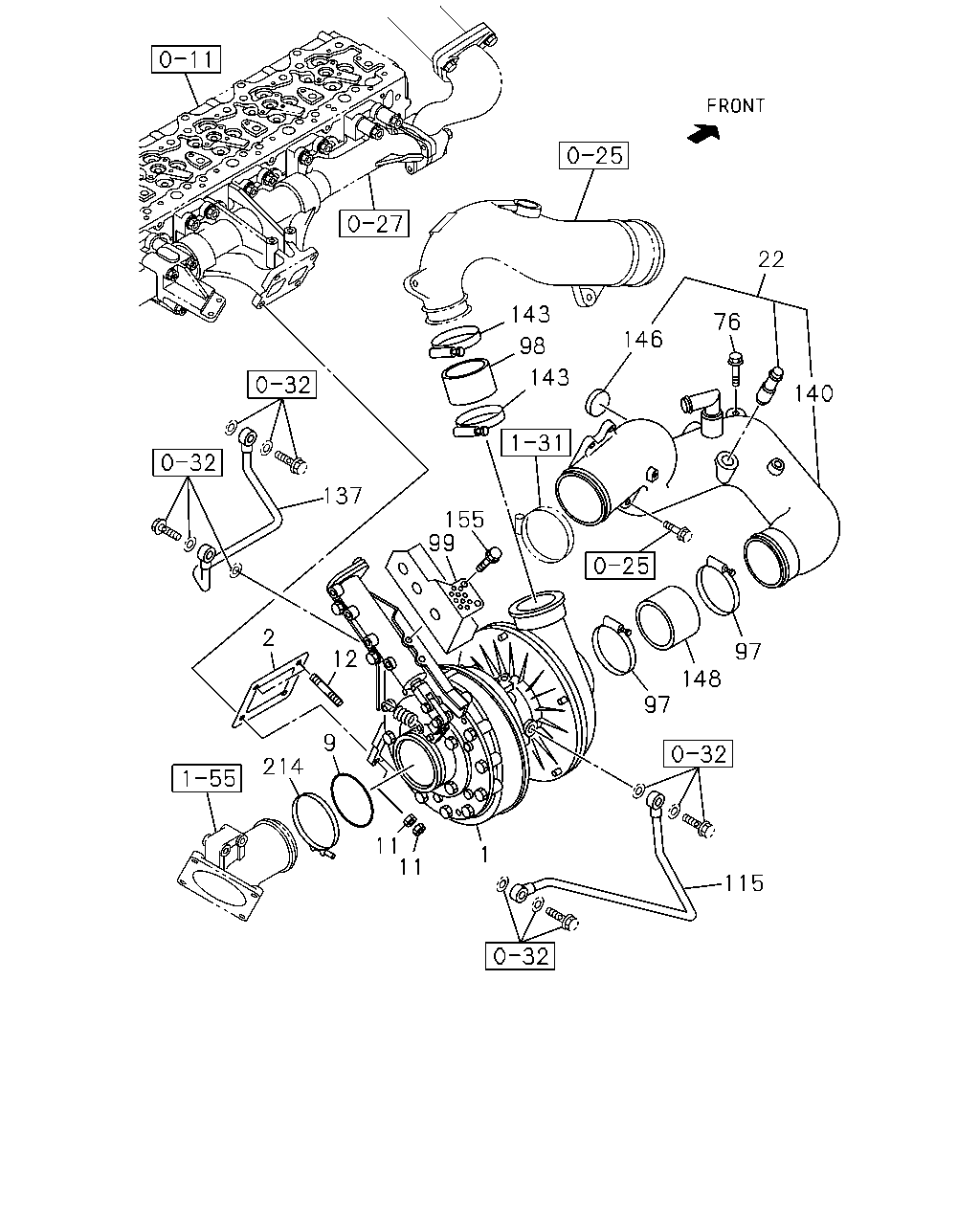

[036A] TURBOCHARGER FIXING (18 parça)
[036A] FLEX HOSE (11 parça)
▶
97
148
97
115
11
11
1
214
9
12
2
137
99
155
143
98
143
146
76
22
140
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TURBOCHARGER ASM
1-14400-429-5
01
1
1110-
2
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98162-161-0
01
1
1110-
9
GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=80 OD=84
8-97618-761-1
01
1
1110-
11
NUT; TURBOCHARGER
M10
1-09420-005-0
08
1
1110-
12
STUD; TURBOCHARGER
M10X25 L=47
8-97378-071-0
02
1
1110-
22
DUCT; INL,ACL TO TURBOCHARGER
8-97614-187-1
01
1
1110-
76
BOLT; AIR DUCT
M10X45 FLANGE THA
0-28151-045-0
03
1
1110-
97
CLIP; HOSE,TURBOCHARGER,INL
ID=87-116
1-09707-138-0
02
1
1110-
98
HOSE; RUBBER,TURBOCHARGER OUTLET
ID=63.6 L=64
8-98169-677-0
01
1
1110-
99
PROTECTOR; HEAT
1-14181-350-0
01
1
1110-
115
PIPE; WATER,TURBOCHARGER OUT
8-97605-217-0
01
1
1110-
137
PIPE; WATER,TURBOCHARGER IN
8-97607-435-0
01
1
1110-
140
PIPE; AIR PIPE
8-97603-427-1
01
1
1110-
143
CLIP; HOSE,TURBOCHARGER OUTLET
ID=68-85
8-98096-592-0
02
1
1110-
146
PLUG; INL PIPE
OD=40
8-94241-637-0
01
1
1110-
148
HOSE; TURBOCHARGER,INL
ID=101.6 OD=111.6 L=70
1-09360-913-0
01
1
1110-
155
BOLT; HEAT PROTECTOR
M6X10 FLANGE THA
0-28050-610-0
04
1
1110-
214
BAND; "V",TURBOCHARGER TO EXH PIPE
8-98006-007-1
01
1
1110-
392
514
514
515
523
276
217
479
276
523
523
479
479
272
272
268
268
514
268
272
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
217
BOLT; BRKT
M8X16 FLANGE THA
0-28050-816-0
02
1
1110-
268
NUT; FLEX TUBE
M12 THA
0-91110-512-0
03
1
1110-
272
WASHER; LK,FLEX HOSE
ID=12.2
0-91510-512-0
03
1
1110-
276
CLIP; PIPE
ID=6.35 & 6.35
1-09709-273-1
02
1
1110-
392
CLIP; FLEX HOSE
ID=10 & 10
1-09709-277-1
01
1
1110-
479
UNION; FLEX TUBE
M12 2WAY
1-09654-059-2
03
1
1110-
514
HOSE; FLEX
L=240
1-09363-671-0
03
1
1110-
515
BRACKET; UNION
8-97608-912-1
01
1
1110-
523
PIPE; AIR,MAG VLV TO FLEX HOSE
(A) L=512 SERVICED BY L=550 THA
1-47428-808-0
01
1
1110-
523
PIPE; AIR,MAG VLV TO FLEX HOSE
(B) L=439 THA
8-97618-499-0
01
1
1110-
523
PIPE; AIR,MAG VLV TO FLEX HOSE
(C) L=379 THA
8-97618-500-0
01
1
1110-
