Sayfa 4-01 - Isuzu EPC

4-01 — PROPELLER SHAFT (#164114) — 233 parça

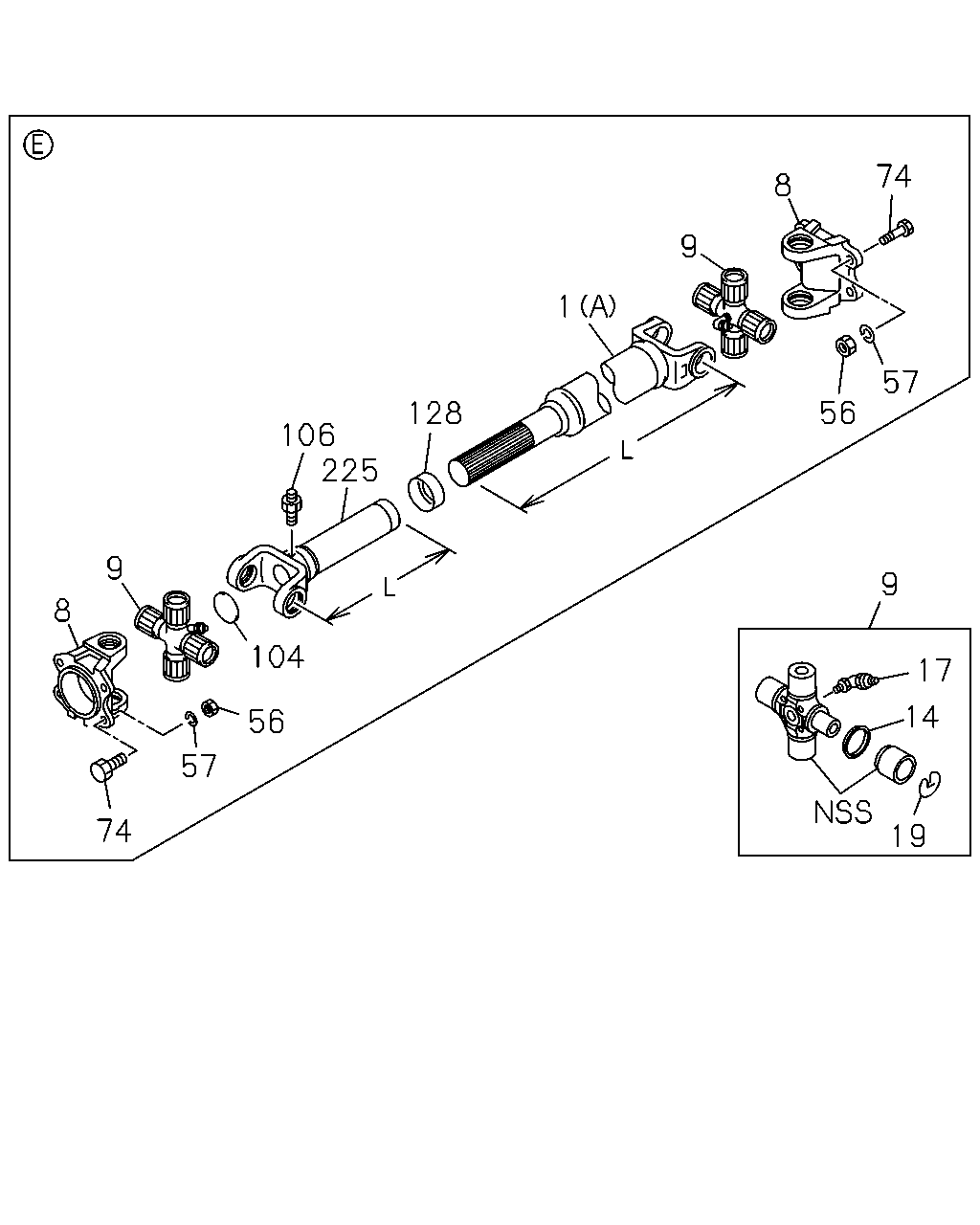

8 74 57 56 9 17 14 19 1 9 128 225 106 9 8 57 74 56 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; PROP SMOOTHER-FX(TYPE2)(8NS) (B) L=714	8-98205-026-0	01	1	1507-	●
1	SHAFT; PROP (A) L=931	8-98069-695-0	01	1	1507-	●
1	SHAFT; PROP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=789	8-98069-581-0	01	1	1507-	●
1	SHAFT; PROP (C) L=569	8-98069-566-0	01	1	1507-		●
1	SHAFT; PROP (A) L=1101	8-98069-675-0	01	1	1507-		●
1	SHAFT; PROP SMOOTHER-FX(TYPE2)(8NS) (B) L=1099	8-98150-816-0	01	1	1507-		●
1	SHAFT; PROP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1179	8-98069-574-0	01	1	1507-		●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	02	1	1507-1508	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	01	1	1509-	●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	01	1	1509-		●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	01	1	1507-1508	●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	02	1	1509-	●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	03	1	1507-1508		●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	02	1	1507-1508	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	01	1	1509-	●	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	01	1	1509-		●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	01	1	1507-1508	●	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	02	1	1509-	●	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	03	1	1507-1508		●
14	COVER; DUST,SPIDER	8-98020-800-0	08	1	1507-1508	●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	1509-	●	●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	1509-		●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	1507-1508	●	●
14	COVER; DUST,SPIDER	8-98020-800-0	08	1	1509-	●	●
14	COVER; DUST,SPIDER	8-98020-800-0	12	1	1507-1508		●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	1507-1508	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1509-	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1509-		●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1507-1508	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	1509-	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	03	1	1507-1508		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	1507-1508	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1509-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1509-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	1507-1508	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1509-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1509-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	1507-1508	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1509-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1509-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1507-1508	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	1509-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1507-1508	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	1509-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1507-1508	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	1509-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	12	1	1507-1508		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	12	1	1507-1508		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	12	1	1507-1508		●
56	NUT; YOKE M14	0-91110-514-0	08	1	1507-1508	●	●
56	NUT; YOKE M14	0-91110-514-0	08	1	1509-	●	●
57	WASHER; LK,YOKE ID=14.2	0-91510-614-0	08	1	1507-1508	●	●
57	WASHER; LK,YOKE ID=14.2	0-91510-614-0	08	1	1509-	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	08	1	1507-1508	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	08	1	1509-	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	1507-		●
104	PLUG; SLEEVE YOKE	1-09600-064-0	01	1	1507-	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT M6 STRAIGHT	0-90301-406-0	01	1	1507-	●	●
128	SEAL; SLEEVE	1-37247-024-0	01	1	1507-	●	●
225	YOKE; SLEEVE,PROP SHAFT L=254	8-98020-885-0	01	1	1507-	●	●

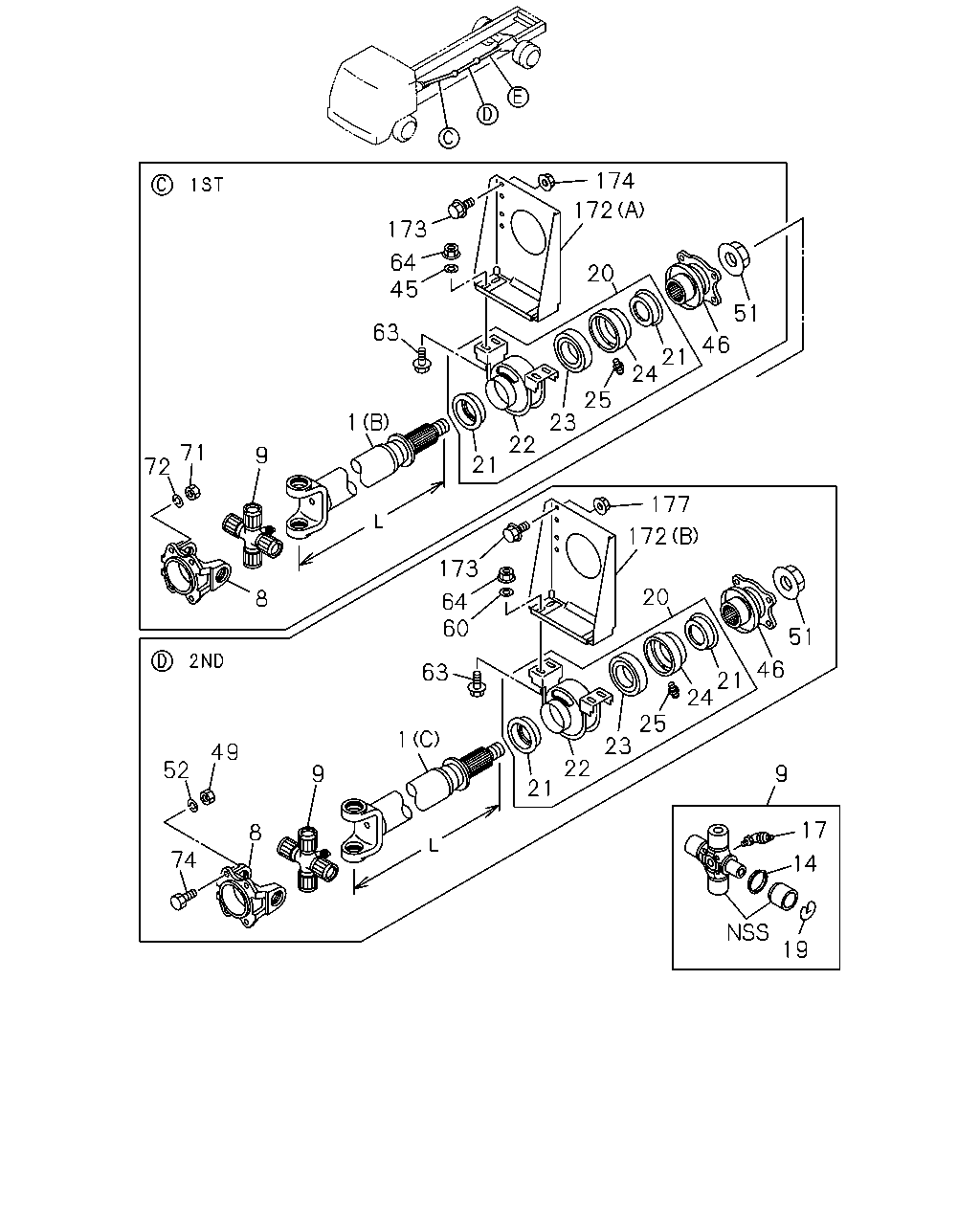

174 172 20 24 21 46 51 25 23 22 21 1 63 45 64 173 72 71 9 8 49 52 74 8 9 1 63 60 64 173 177 172 20 51 46 21 24 25 23 22 21 9 17 14 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; PROP SMOOTHER-FX(TYPE2)(8NS) (B) L=714	8-98205-026-0	01	1	1507-	●
1	SHAFT; PROP (A) L=931	8-98069-695-0	01	1	1507-	●
1	SHAFT; PROP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=789	8-98069-581-0	01	1	1507-	●
1	SHAFT; PROP (C) L=569	8-98069-566-0	01	1	1507-		●
1	SHAFT; PROP (A) L=1101	8-98069-675-0	01	1	1507-		●
1	SHAFT; PROP SMOOTHER-FX(TYPE2)(8NS) (B) L=1099	8-98150-816-0	01	1	1507-		●
1	SHAFT; PROP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1179	8-98069-574-0	01	1	1507-		●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	02	1	1507-1508	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	01	1	1509-	●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	01	1	1509-		●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	01	1	1507-1508	●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	02	1	1509-	●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	03	1	1507-1508		●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	02	1	1507-1508	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	01	1	1509-	●	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	01	1	1509-		●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	01	1	1507-1508	●	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	02	1	1509-	●	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	03	1	1507-1508		●
14	COVER; DUST,SPIDER	8-98020-800-0	08	1	1507-1508	●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	1509-	●	●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	1509-		●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	1507-1508	●	●
14	COVER; DUST,SPIDER	8-98020-800-0	08	1	1509-	●	●
14	COVER; DUST,SPIDER	8-98020-800-0	12	1	1507-1508		●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	1507-1508	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1509-	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1509-		●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1507-1508	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	1509-	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	03	1	1507-1508		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	1507-1508	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1509-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1509-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	1507-1508	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1509-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1509-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	1507-1508	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1509-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1509-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1507-1508	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	1509-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1507-1508	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	1509-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1507-1508	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	1509-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	12	1	1507-1508		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	12	1	1507-1508		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	12	1	1507-1508		●
20	BEARING ASM; CTR,PROP SHAFT	8-98020-881-0	01	1	1507-	●	●
20	BEARING ASM; CTR,PROP SHAFT	8-98020-881-0	01	1	1507-		●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	1507-	●	●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	1507-		●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	1507-	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	1507-		●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	1507-	●	●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	1507-		●
24	RETAINER; CENTER BRG,1ST	8-98020-882-0	01	1	1507-	●	●
24	RETAINER; CENTER BRG,1ST	8-98020-882-0	01	1	1507-		●
25	NIPPLE; GREASE,CENTER BRG	8-98020-889-0	01	1	1507-	●	●
25	NIPPLE; GREASE,CENTER BRG	8-98020-889-0	01	1	1507-		●
45	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	1507-1508	●	●
45	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	1509-	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	8-98020-815-0	01	1	1507-	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	8-98020-815-0	01	1	1507-		●
49	NUT; YOKE M14	0-91110-514-0	04	1	1507-		●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	1507-	●	●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	1507-		●
52	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	1507-		●
60	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	1507-		●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	04	1	1507-	●	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	04	1	1507-		●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	04	1	1507-	●	●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	04	1	1507-		●
71	NUT; YOKE M14	0-91110-514-0	04	1	1507-1508	●	●
71	NUT; YOKE M14	0-91110-514-0	04	1	1509-	●	●
72	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	1507-1508	●	●
72	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	1509-	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	08	1	1507-1508	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	08	1	1509-	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	1507-		●
172	BRACKET; CENTER BRG (A)	1-37515-119-0	01	1	1507-		●
172	BRACKET; CENTER BRG (B)	8-98318-142-0	01	1	1507-		●
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	1507-		●
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	1507-		●
174	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	1507-		●
177	NUT M10 FLANGE	0-91180-210-0	04	1	1507-		●

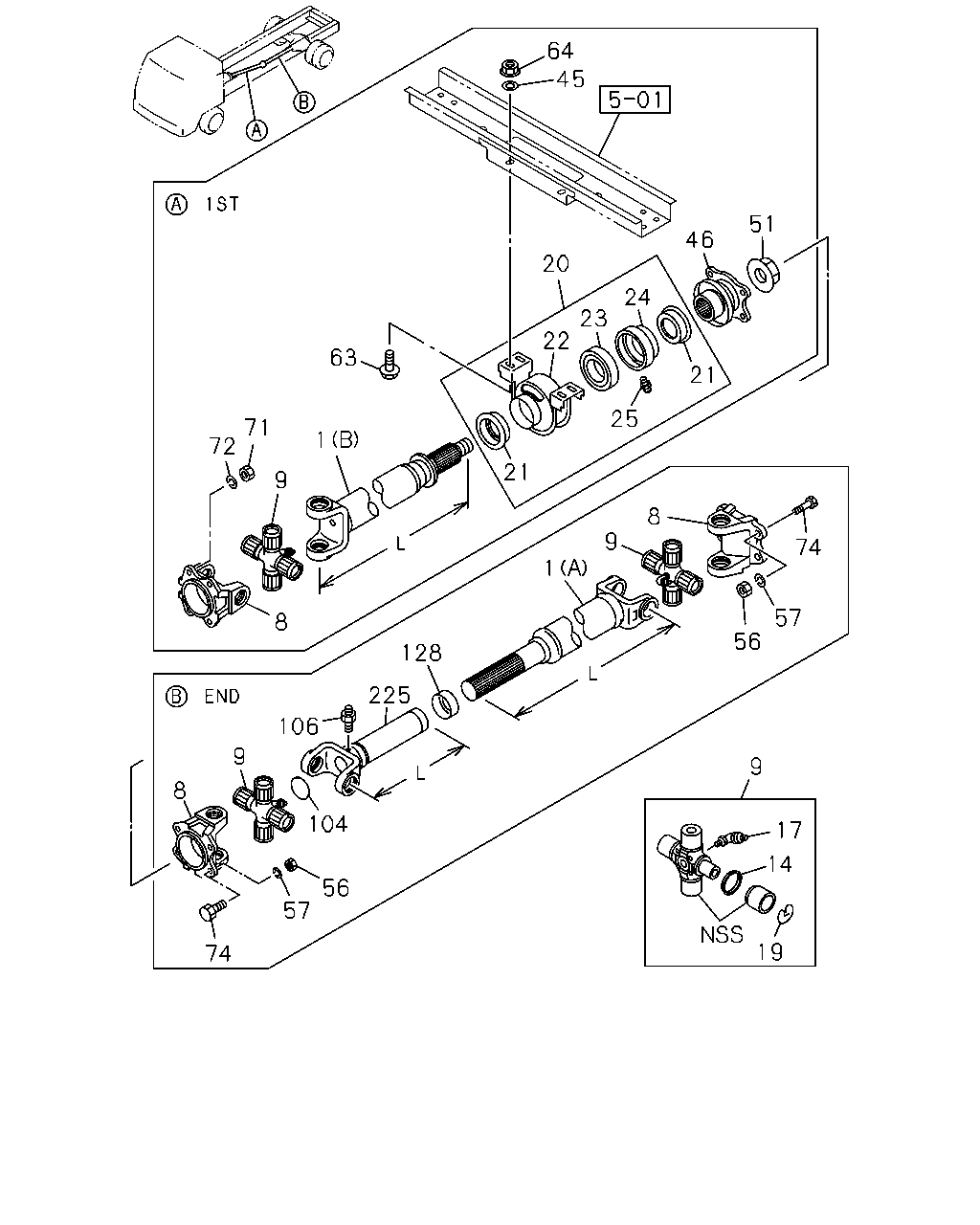

64 45 20 22 23 24 46 51 21 25 21 9 8 56 57 74 128 225 106 9 8 74 57 56 104 9 17 14 19 1 1 71 72 9 8 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; PROP SMOOTHER-FX(TYPE2)(8NS) (B) L=714	8-98205-026-0	01	1	1507-	●
1	SHAFT; PROP (A) L=931	8-98069-695-0	01	1	1507-	●
1	SHAFT; PROP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=789	8-98069-581-0	01	1	1507-	●
1	SHAFT; PROP (C) L=569	8-98069-566-0	01	1	1507-		●
1	SHAFT; PROP (A) L=1101	8-98069-675-0	01	1	1507-		●
1	SHAFT; PROP SMOOTHER-FX(TYPE2)(8NS) (B) L=1099	8-98150-816-0	01	1	1507-		●
1	SHAFT; PROP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1179	8-98069-574-0	01	1	1507-		●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	02	1	1507-1508	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	01	1	1509-	●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	01	1	1509-		●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	01	1	1507-1508	●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	02	1	1509-	●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	03	1	1507-1508		●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	02	1	1507-1508	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	01	1	1509-	●	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	01	1	1509-		●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	01	1	1507-1508	●	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	02	1	1509-	●	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	03	1	1507-1508		●
14	COVER; DUST,SPIDER	8-98020-800-0	08	1	1507-1508	●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	1509-	●	●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	1509-		●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	1507-1508	●	●
14	COVER; DUST,SPIDER	8-98020-800-0	08	1	1509-	●	●
14	COVER; DUST,SPIDER	8-98020-800-0	12	1	1507-1508		●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	1507-1508	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1509-	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1509-		●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1507-1508	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	1509-	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	03	1	1507-1508		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	1507-1508	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1509-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1509-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	1507-1508	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1509-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1509-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	1507-1508	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1509-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1509-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1507-1508	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	1509-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1507-1508	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	1509-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1507-1508	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	1509-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	12	1	1507-1508		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	12	1	1507-1508		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	12	1	1507-1508		●
20	BEARING ASM; CTR,PROP SHAFT	8-98020-881-0	01	1	1507-	●	●
20	BEARING ASM; CTR,PROP SHAFT	8-98020-881-0	01	1	1507-		●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	1507-	●	●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	1507-		●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	1507-	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	1507-		●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	1507-	●	●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	1507-		●
24	RETAINER; CENTER BRG,1ST	8-98020-882-0	01	1	1507-	●	●
24	RETAINER; CENTER BRG,1ST	8-98020-882-0	01	1	1507-		●
25	NIPPLE; GREASE,CENTER BRG	8-98020-889-0	01	1	1507-	●	●
25	NIPPLE; GREASE,CENTER BRG	8-98020-889-0	01	1	1507-		●
45	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	1507-1508	●	●
45	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	1509-	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	8-98020-815-0	01	1	1507-	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	8-98020-815-0	01	1	1507-		●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	1507-	●	●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	1507-		●
56	NUT; YOKE M14	0-91110-514-0	08	1	1507-1508	●	●
56	NUT; YOKE M14	0-91110-514-0	08	1	1509-	●	●
57	WASHER; LK,YOKE ID=14.2	0-91510-614-0	08	1	1507-1508	●	●
57	WASHER; LK,YOKE ID=14.2	0-91510-614-0	08	1	1509-	●	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	04	1	1507-	●	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	04	1	1507-		●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	04	1	1507-	●	●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	04	1	1507-		●
71	NUT; YOKE M14	0-91110-514-0	04	1	1507-1508	●	●
71	NUT; YOKE M14	0-91110-514-0	04	1	1509-	●	●
72	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	1507-1508	●	●
72	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	1509-	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	08	1	1507-1508	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	08	1	1509-	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	1507-		●
104	PLUG; SLEEVE YOKE	1-09600-064-0	01	1	1507-	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT M6 STRAIGHT	0-90301-406-0	01	1	1507-	●	●
128	SEAL; SLEEVE	1-37247-024-0	01	1	1507-	●	●
225	YOKE; SLEEVE,PROP SHAFT L=254	8-98020-885-0	01	1	1507-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
