3-75 — BRAKE PIPING; AIR,FRONT (#164111) — 24 parça

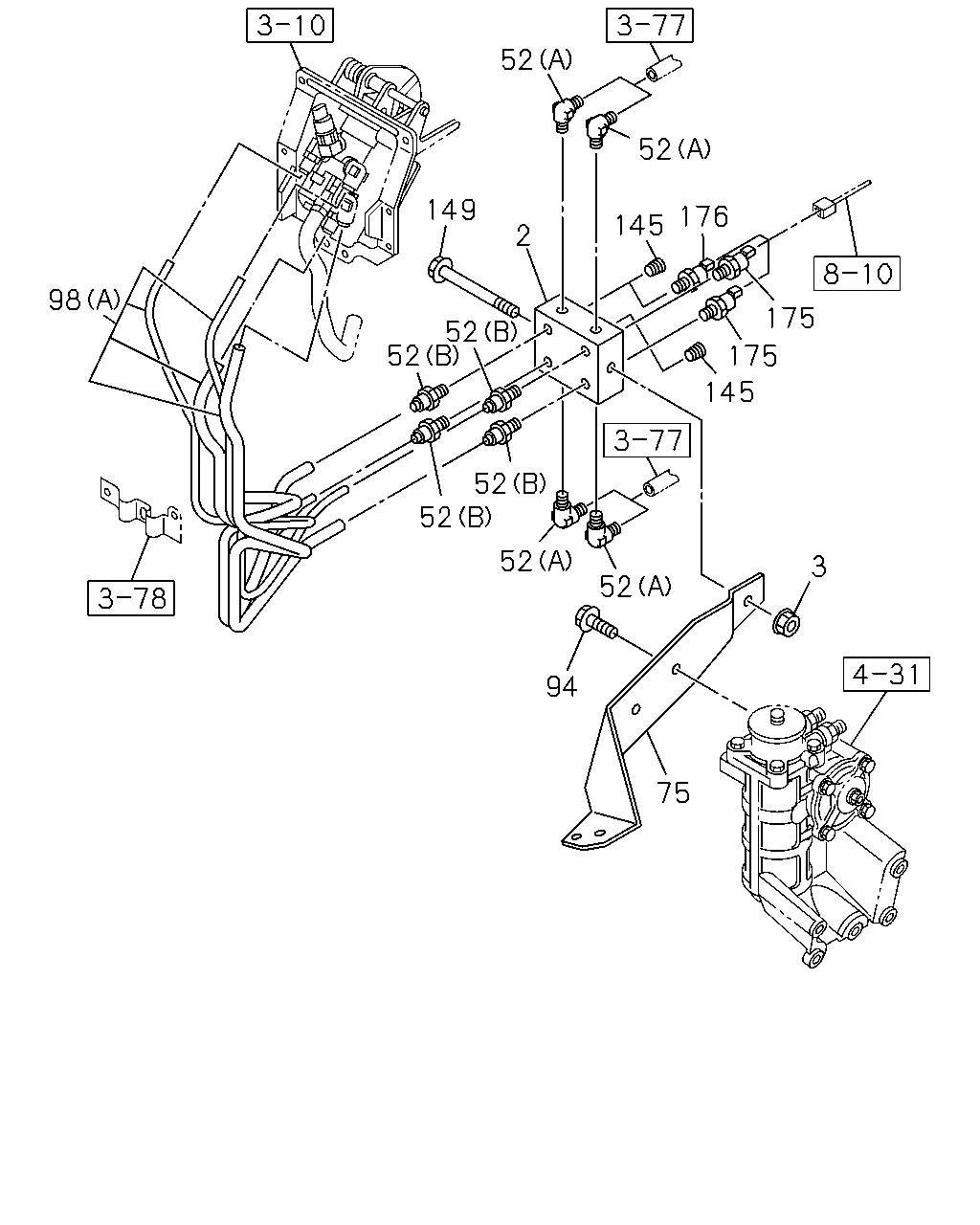

52 149 52 52 52 52 52 52 94 75 3 145 175 175 145 176 52 98 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	UNION; AIR PIPE	8-98057-394-1	01	1	1507-
3	NUT; PIPE UNION M8 FLANGE	0-91180-108-0	01	1	1507-
52	CONNECTOR; NYLON TUBE (A) DIN8 & R1/4 ELBOW	1-09660-956-0	04	1	1507-
52	CONNECTOR; NYLON TUBE (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	04	1	1507-
75	BRACKET; UNION	8-98257-652-0	01	1	1507-
94	BOLT; BRKT M10X20 FLANGE	0-28151-020-0	02	1	1507-
98	TUBE; NYLON (A)	8-98303-984-0	01	1	1507-
98	TUBE; NYLON (B)	8-98302-860-0	01	1	1507-
98	TUBE; NYLON (C)	8-98302-859-0	01	1	1507-
98	TUBE; NYLON (D) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1507-
145	PLUG SMOOTHER-FX(TYPE2)(8NS) PT1/4	9-99204-513-0	01	1	1507-
145	PLUG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PT1/4	9-99204-513-0	02	1	1507-
149	BOLT; UNION M8X100 FLANGE	0-28050-800-0	01	1	1507-
175	SENSOR; AIR PRESS THREAD R1/4	1-80220-023-1	02	1	1507-
176	SWITCH; AIR PRESS SMOOTHER-FX(TYPE2)(8NS) STAMP 2.2	8-98010-858-0	01	1	1507-

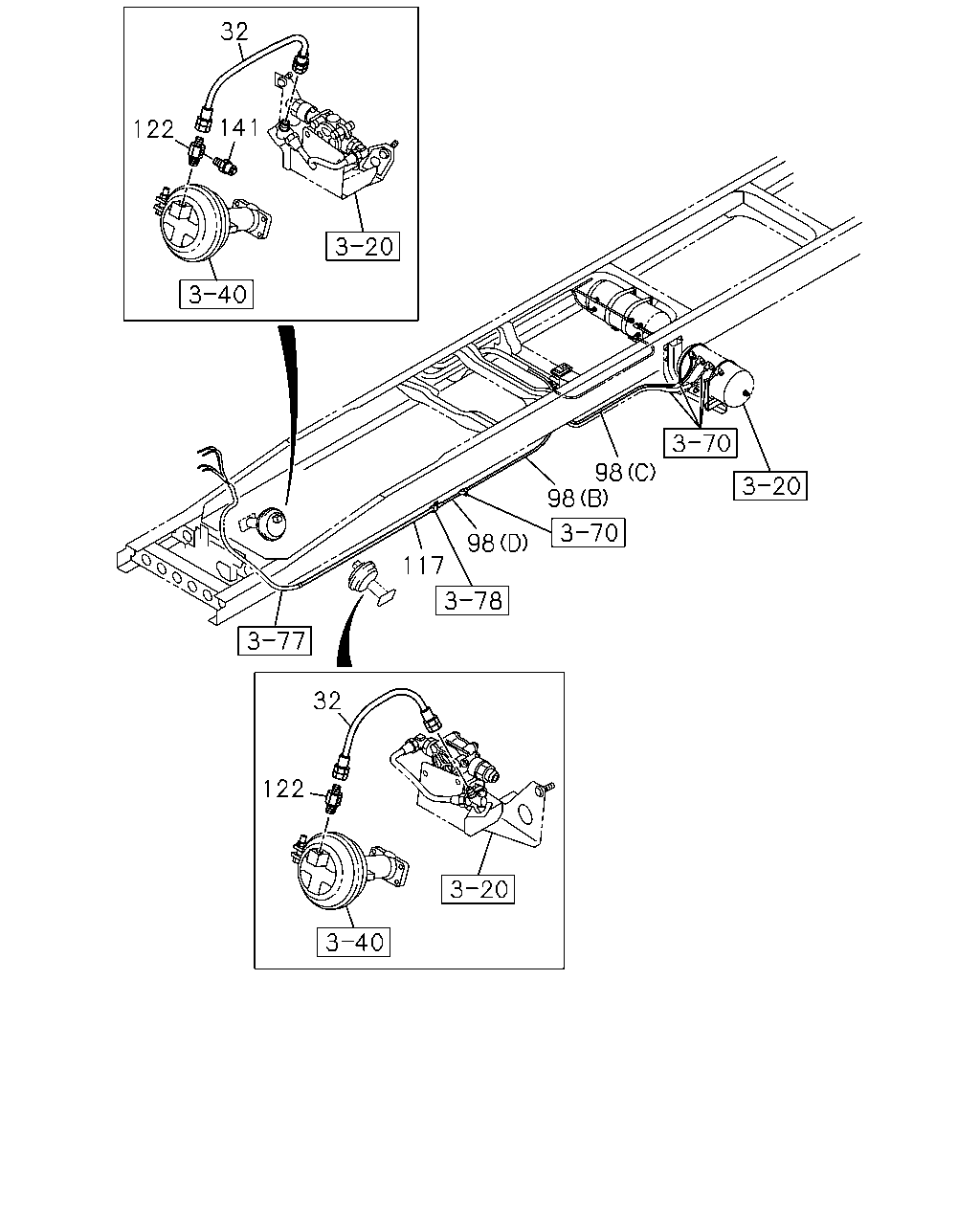

32 122 117 98 98 32 122 98 141

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	HOSE; FLEX,FRT	8-98304-002-0	02	1	1507-
98	TUBE; NYLON (A)	8-98303-984-0	01	1	1507-
98	TUBE; NYLON (B)	8-98302-860-0	01	1	1507-
98	TUBE; NYLON (C)	8-98302-859-0	01	1	1507-
98	TUBE; NYLON (D) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1507-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	1507-
122	CONNECTOR; FLEX HOSE M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	1507-
122	CONNECTOR; FLEX HOSE M16 & PT3/8 STRAIGHT	1-09656-643-1	01	1	1507-
141	CONNECTOR; TEST R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1507-
