Isuzu WW
▶
TRUCKS
▶
FSR
▶
11683 - FSR RHD EUROPE EURO6 SPACECAB EVSC
▶
3 - Brakes, Brake System
▶
3-01 - FRONT WHEEL BRAKE
▶

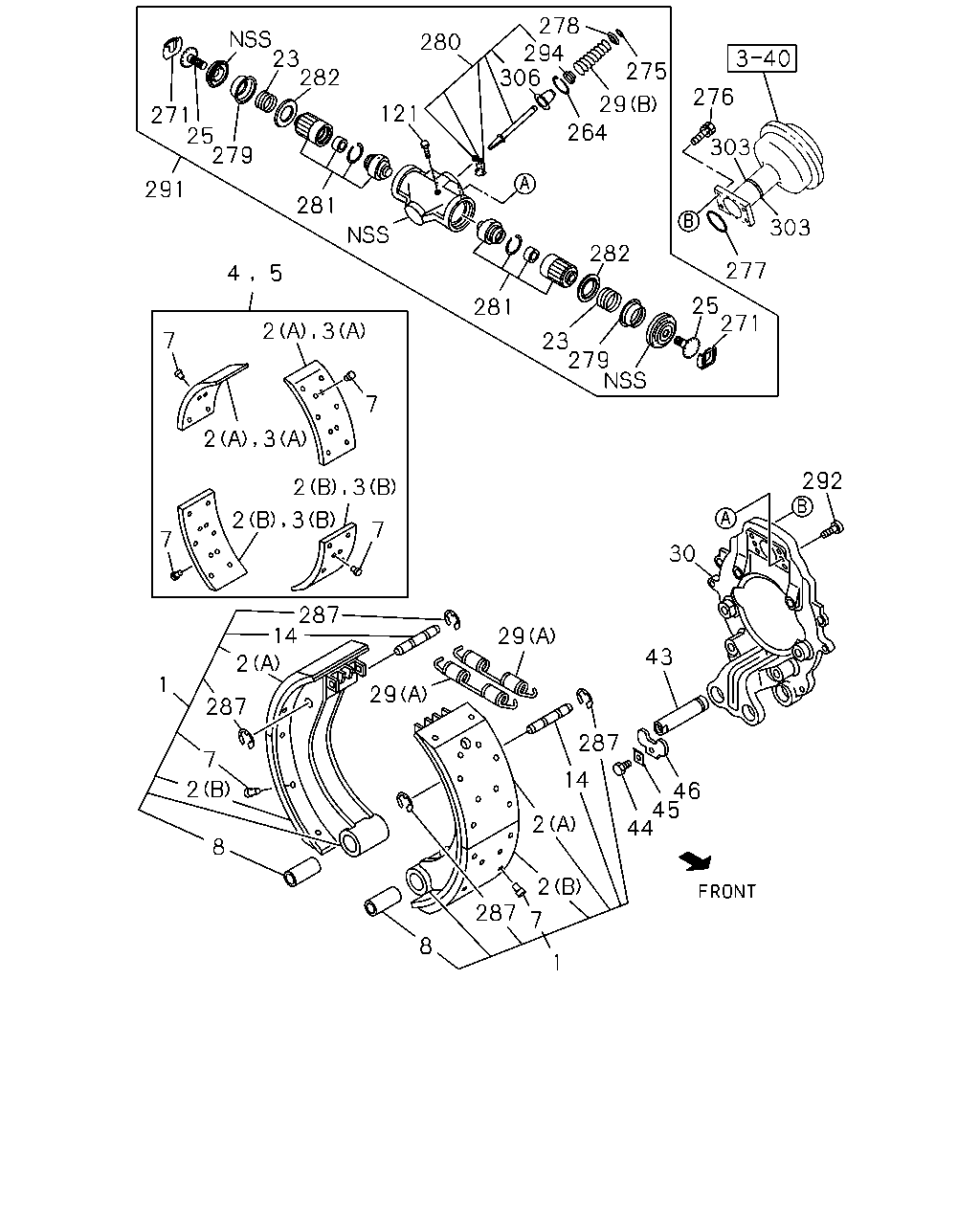

3-01 — FRONT WHEEL BRAKE
(#164099) — 50 parça
◀

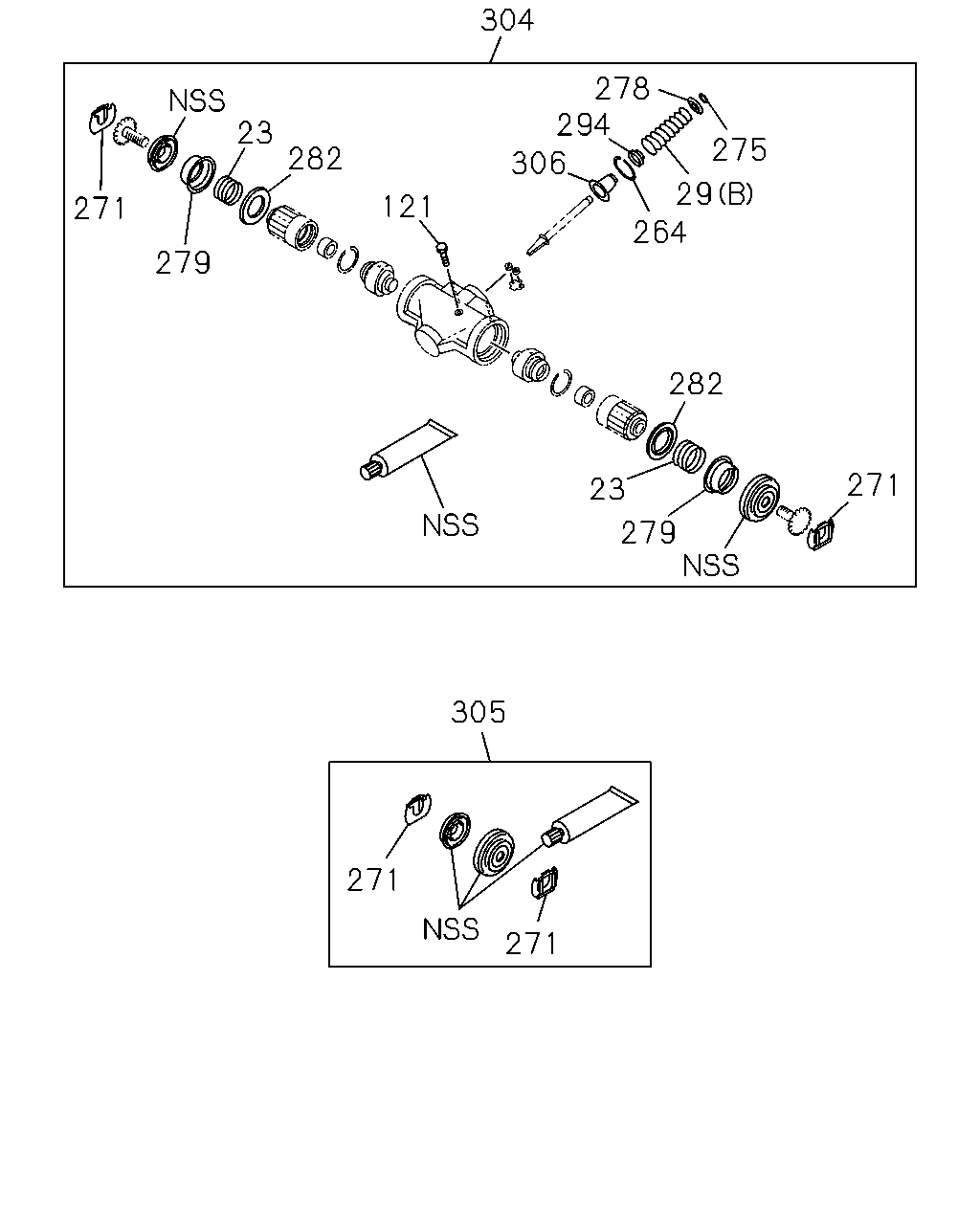

[301A] REPAIR KIT (14 parça)
[301A] COMPONENT (36 parça)
▶
271
271
305
271
282
23
279
275
29
264
278
294
306
304
121
282
23
279
271
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
23
SPRING; COIL
1-47629-196-0
04
1
1507-
29
SPRING; RETURN,FRT BRK SHOE
(A)
1-09583-370-0
04
1
1507-
29
SPRING; RETURN,FRT BRK SHOE
(B)
1-47649-041-0
02
1
1507-
121
SCREW; LK SPR FRT WHEEL CYL
1-47619-149-1
04
1
1507-
264
RING; SNAP,SPR PIN
1-47649-034-1
02
1
1507-
271
CLIP; ADJ
1-47621-017-0
04
1
1507-
275
RING; RETAINER
1-47649-031-0
02
1
1507-
278
RETAINER; SPRING
1-47649-020-0
02
1
1507-
279
CAGE; SPRING
1-47629-192-0
04
1
1507-
282
RING; DRIVE
1-47629-200-0
04
1
1507-
294
BOOT; WEDGE
1-47649-042-0
02
1
1507-
304
REPAIR KIT; EXPANDER
1-85576-403-0
02
1
1507-
305
REPAIR KIT; BOOT,EXPANDER
1-85576-404-0
02
1
1507-
306
CAP; EXPANDER
1-47649-044-0
02
1
1507-
278
276
275
29
264
280
294
306
303
303
277
25
282
271
279
23
281
121
282
23
271
25
279
281
291
5
4
7
2
3
7
2
3
2
3
3
2
7
7
292
30
43
46
45
44
287
29
14
2
2
7
1
287
8
8
2
287
7
1
287
14
2
29
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHOE; BRK,FRT
1-47170-267-0
04
1
1507-
2
LINING; FRT BRK SHOE,STANDARD
(A)
1-47126-677-0
04
1
1507-
2
LINING; FRT BRK SHOE,STANDARD
(B)
1-47126-679-0
04
1
1507-
3
LINING; FRT BRK SHOE,OVER SIZE
(A)
1-47126-678-0
04
1
1507-
3
LINING; FRT BRK SHOE,OVER SIZE
(B)
1-47126-680-0
04
1
1507-
4
LINING SET; FRT BRK,STANDARD
1-88311-343-0
02
1
1507-
5
LINING SET; FRT BRK,OVER SIZE
1-88311-345-0
02
1
1507-
7
RIVET; LINING,FRT BRK
1-09732-055-0
88
1
1507-
8
BUSHING; BRK SHOE
1-47112-022-0
04
1
1507-
14
PIN; SHOE RETURN SPR
1-47119-171-1
04
1
1507-
23
SPRING; COIL
1-47629-196-0
04
1
1507-
25
SCREW; ADJ,FRT WHEEL CYL
1-47623-035-2
04
1
1507-
29
SPRING; RETURN,FRT BRK SHOE
(A)
1-09583-370-0
04
1
1507-
29
SPRING; RETURN,FRT BRK SHOE
(B)
1-47649-041-0
02
1
1507-
30
BRACKET; ANCHOR,FRT
8-98285-289-0
02
1
1507-
43
PIN; ANCHOR
1-47131-051-0
04
1
1507-
44
BOLT; LOCK,ANCHOR PIN
M10X16
1-47139-173-0
02
1
1507-
45
WASHER; LK
1-47133-011-0
02
1
1507-
46
PLATE; LOCK
1-47133-005-0
02
1
1507-
121
SCREW; LK SPR FRT WHEEL CYL
1-47619-149-1
04
1
1507-
264
RING; SNAP,SPR PIN
1-47649-034-1
02
1
1507-
271
CLIP; ADJ
1-47621-017-0
04
1
1507-
275
RING; RETAINER
1-47649-031-0
02
1
1507-
276
BOLT; CHAMBER
M10X42.5
1-47139-163-0
08
1
1507-
277
RING; CHAMBER
1-48259-231-0
02
1
1507-
278
RETAINER; SPRING
1-47649-020-0
02
1
1507-
279
CAGE; SPRING
1-47629-192-0
04
1
1507-
280
WEDGE; FRT WHEEL CYL
1-47640-012-0
02
1
1507-
281
SLEEVE
1-47629-247-1
04
1
1507-
282
RING; DRIVE
1-47629-200-0
04
1
1507-
287
RING; SNAP
ID=10
0-91805-510-0
08
1
1507-
291
EXPANDER
1-47601-087-0
02
1
1507-
292
BOLT; EXPANDER
M8X16 HEXALOBULAR SOCKET
1-47634-008-0
04
1
1507-
294
BOOT; WEDGE
1-47649-042-0
02
1
1507-
303
SEAL; CHAMBER
1-47159-223-0
04
1
1507-
306
CAP; EXPANDER
1-47649-044-0
02
1
1507-
