◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11683 - FSR RHD EUROPE EURO6 SPACECAB EVSC ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-39 - POWER ASSISTOR ▶
2-39 — POWER ASSISTOR (#164094) — 27 parça

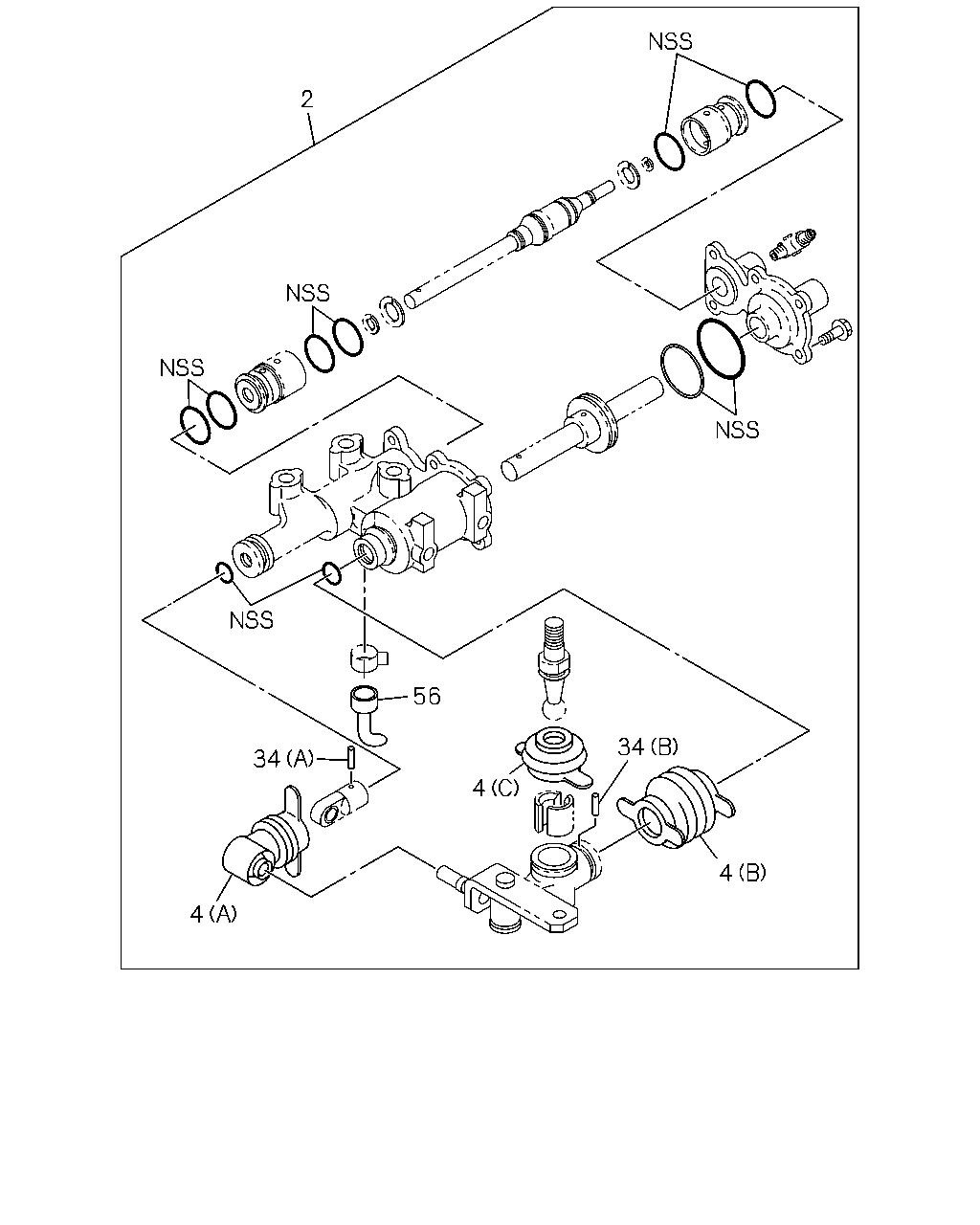

çizim 484310
2 34 4 4 34 4 56
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33738-028-0 01 1 1507-
4 BOOT; POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		1-33739-843-0 01 1 1507-
4 BOOT; POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		1-33739-844-0 01 1 1507-
4 BOOT; POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		1-33739-847-0 01 1 1507-
34 PIN; STRAIGHT,POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		1-33739-885-0 01 1 1507-
34 PIN; STRAIGHT,POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		1-33739-974-0 01 1 1507-
56 HOSE; POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33739-848-0 01 1 1507-

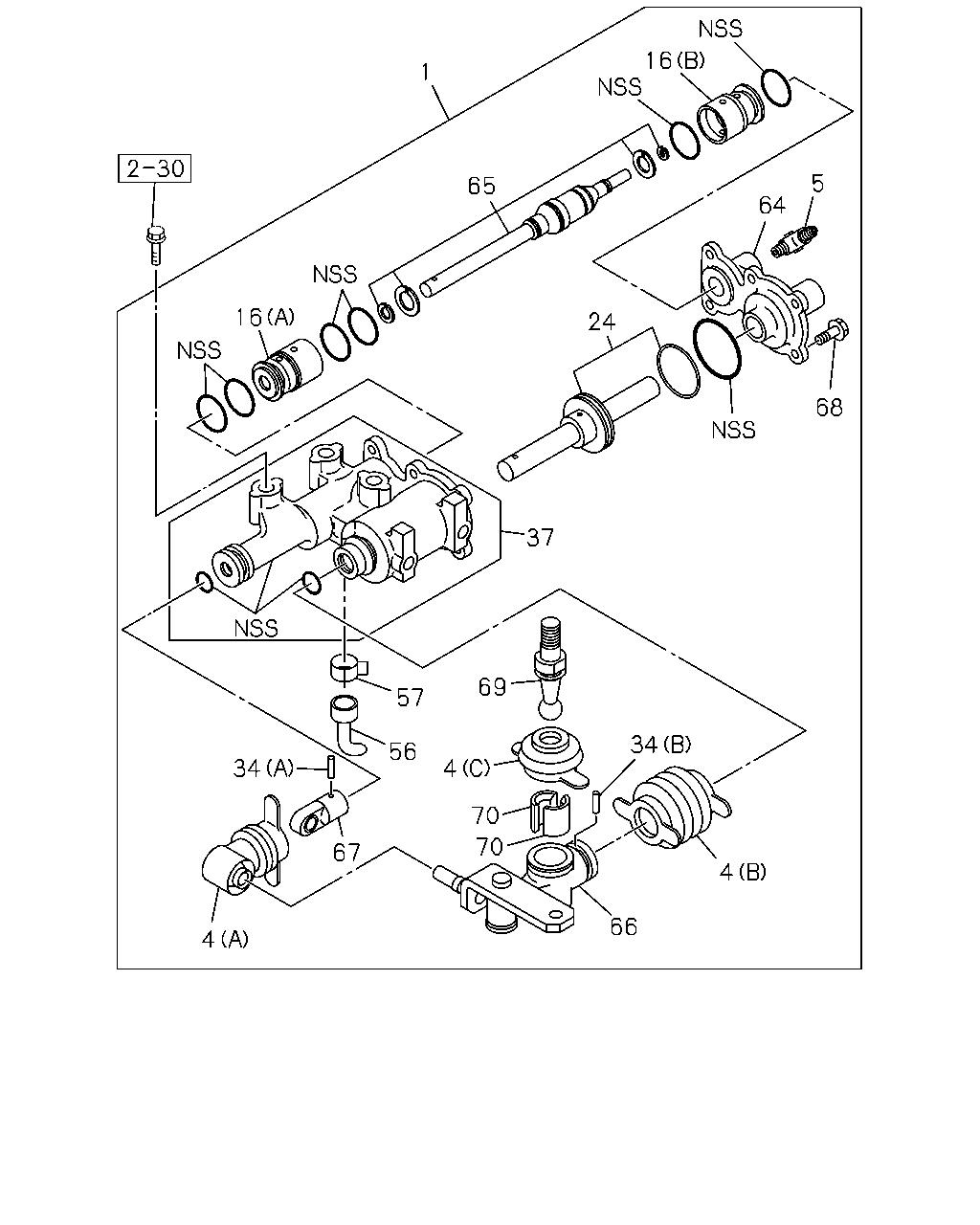

çizim 484323
1 64 5 68 37 24 65 16 57 56 67 4 34 66 4 34 4 69 70 70 16
BalonParca AdiParca NoAdetTipApplied Date
1 ASSISTOR ASM; POWER,SHIFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98022-843-0 01 1 1507-
4 BOOT; POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		1-33739-843-0 01 1 1507-
4 BOOT; POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		1-33739-844-0 01 1 1507-
4 BOOT; POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		1-33739-847-0 01 1 1507-
5 CONNECTOR; CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12 & PT1/8 		0-92124-306-0 01 1 1507-
16 SEAT; VALVE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97388-032-0 01 1 1507-
16 SEAT; VALVE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97388-033-0 01 1 1507-
24 PISTON
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33739-836-1 01 1 1507-
34 PIN; STRAIGHT,POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		1-33739-885-0 01 1 1507-
34 PIN; STRAIGHT,POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		1-33739-974-0 01 1 1507-
37 HOUSING; POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33739-969-0 01 1 1507-
56 HOSE; POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33739-848-0 01 1 1507-
57 CLAMP; HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33739-849-0 01 1 1507-
64 COVER; HOUSING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33739-970-0 01 1 1507-
65 VALVE; POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97388-029-0 01 1 1507-
66 JOINT ASM; POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33739-972-0 01 1 1507-
67 JOINT; BALL,POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33739-973-0 01 1 1507-
68 BOLT; COVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6X12 FLANGE 		1-33739-842-0 06 1 1507-
69 STUD; BALL,POWER SHIFTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33739-846-0 01 1 1507-
70 SEAT; BALL STUD
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33659-118-0 02 1 1507-
