◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11683 - FSR RHD EUROPE EURO6 SPACECAB EVSC ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#164091) — 64 parça

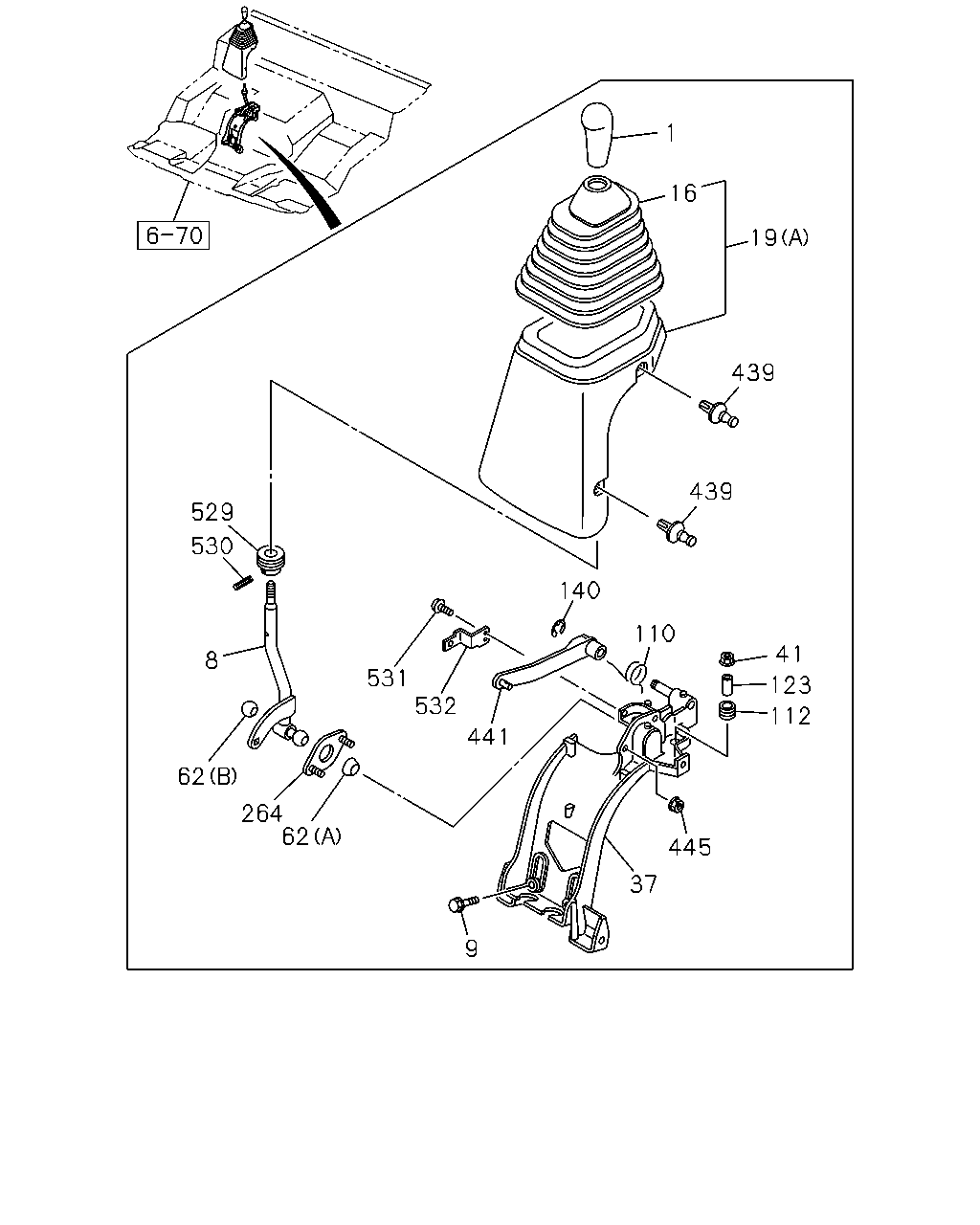

çizim 484284
1 16 19 439 439 110 140 41 123 112 445 37 9 441 532 531 62 264 62 8 530 529
BalonParca AdiParca NoAdetTipApplied Date
1 KNOB; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33611-070-1 01 1 1507-1508
1 KNOB; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33611-070-1 01 1 1509-
8 LEVER; CHANGE
SMOOTHER-FX(TYPE2)(8NS) DARK GRAY 		8-97465-737-1 01 1 1507-
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-282-0 01 1 1507-1508
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-282-0 01 1 1509-
9 BOLT; CHANGE LEVER
SMOOTHER-FX(TYPE2)(8NS) M8X20 FLANGE 		0-28650-820-0 02 1 1507-1508
9 BOLT; CHANGE LEVER
SMOOTHER-FX(TYPE2)(8NS) M8X20 FLANGE 		0-28650-820-0 02 1 1509-
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 1507-1508
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 1509-
16 BOOT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-79998-751-4 01 1 1507-
19 COVER; CHANGE LEVER
SMOOTHER-FX(TYPE2)(8NS) (B) GRAY 		8-97407-501-0 01 1 1507-
19 COVER; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) GRAY 		8-97407-953-0 01 1 1507-
37 BRACKET; CHANGE LEVER SUPPORT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-281-0 01 1 1507-1508
37 BRACKET; CHANGE LEVER SUPPORT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-281-0 01 1 1509-
41 NUT; CHANGE LEVER
SMOOTHER-FX(TYPE2)(8NS) M8 W/DISHED WASHER 		8-97329-625-0 06 1 1507-1508
41 NUT; CHANGE LEVER
SMOOTHER-FX(TYPE2)(8NS) M8 W/DISHED WASHER 		8-97329-625-0 06 1 1509-
41 NUT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 W/DISHED WASHER 		8-97329-625-0 02 1 1507-1508
41 NUT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 W/DISHED WASHER 		8-97329-625-0 02 1 1509-
62 SEAT; BALL,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		1-33619-427-0 01 1 1507-1508
62 SEAT; BALL,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		1-33619-427-0 01 1 1509-
62 SEAT; BALL,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97049-147-0 01 1 1507-1508
62 SEAT; BALL,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97049-147-0 01 1 1509-
110 SPRING; RETURN,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33619-586-0 01 1 1507-1508
110 SPRING; RETURN,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33619-586-0 01 1 1509-
112 RUBBER; CUSHION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97091-426-0 04 1 1507-1508
112 RUBBER; CUSHION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97091-426-0 04 1 1509-
123 COLLAR; DIST,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97091-427-0 04 1 1507-1508
123 COLLAR; DIST,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97091-427-0 04 1 1509-
140 RING; SNAP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10 		0-91805-510-0 01 1 1507-1508
140 RING; SNAP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10 		0-91805-510-0 01 1 1509-
264 PLATE; COVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33619-430-0 01 1 1507-1508
264 PLATE; COVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33619-430-0 01 1 1509-
439 FASTENER; COVER
GRAY 		8-97407-955-0 04 1 1507-
441 LEVER; SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-283-0 01 1 1507-1508
441 LEVER; SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-283-0 01 1 1509-
445 NUT; PLATE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6 FLANGE 		0-91180-106-0 02 1 1507-1508
445 NUT; PLATE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6 FLANGE 		0-91180-106-0 02 1 1509-
529 RING; BOOT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33619-504-0 01 1 1507-1508
529 RING; BOOT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33619-504-0 01 1 1509-
530 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33619-505-0 01 1 1507-1508
530 PIN; SPRING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33619-505-0 01 1 1509-
531 SCREW; STAY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M5X10 W/PL WASHER 		9-03900-510-0 01 1 1507-1508
531 SCREW; STAY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M5X10 W/PL WASHER 		9-03900-510-0 01 1 1509-
532 STAY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-284-0 01 1 1507-1508
532 STAY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-284-0 01 1 1509-

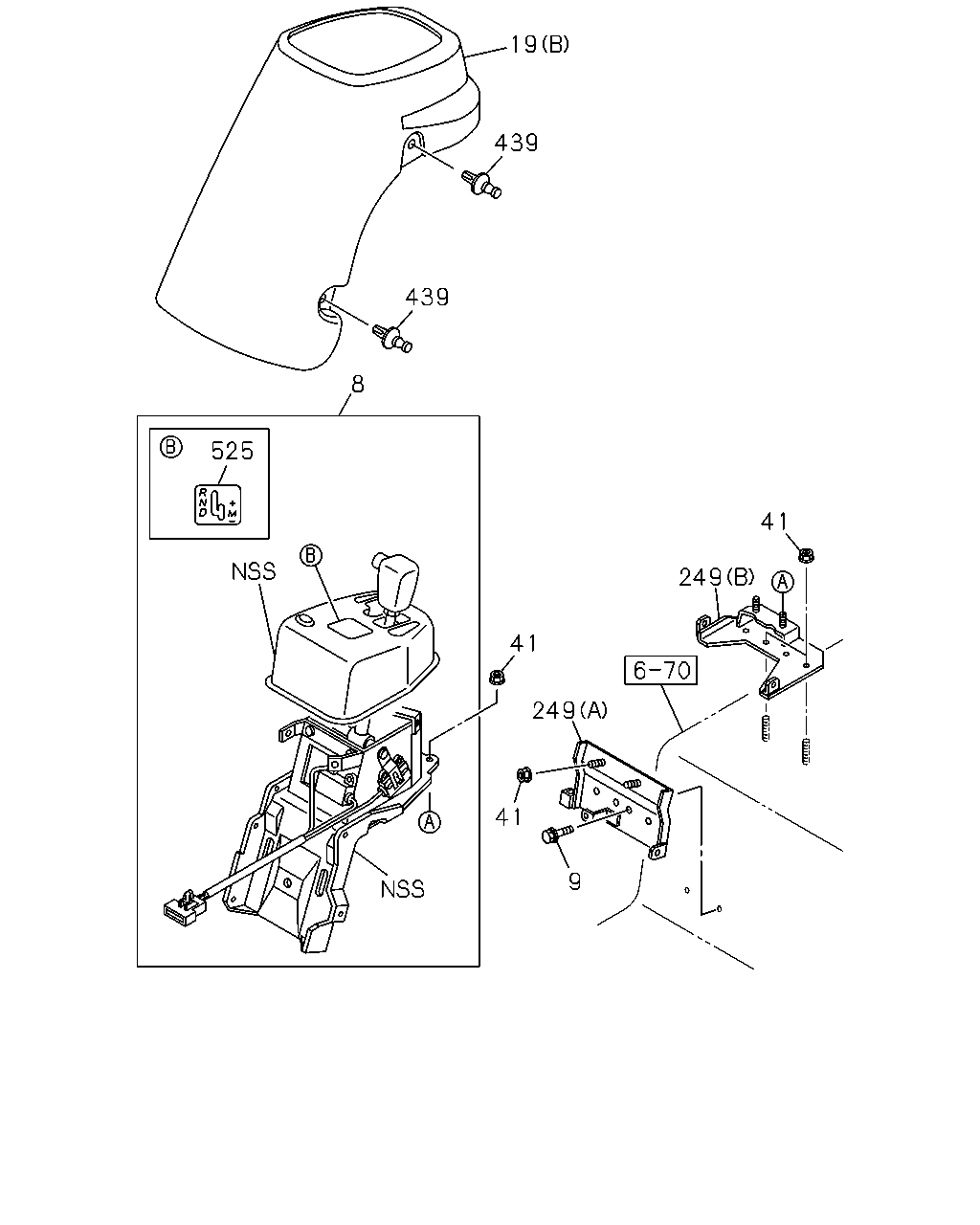

çizim 484948
19 439 439 8 525 41 249 41 9 249 41
BalonParca AdiParca NoAdetTipApplied Date
8 LEVER; CHANGE
SMOOTHER-FX(TYPE2)(8NS) DARK GRAY 		8-97465-737-1 01 1 1507-
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-282-0 01 1 1507-1508
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-282-0 01 1 1509-
9 BOLT; CHANGE LEVER
SMOOTHER-FX(TYPE2)(8NS) M8X20 FLANGE 		0-28650-820-0 02 1 1507-1508
9 BOLT; CHANGE LEVER
SMOOTHER-FX(TYPE2)(8NS) M8X20 FLANGE 		0-28650-820-0 02 1 1509-
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 1507-1508
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 1509-
19 COVER; CHANGE LEVER
SMOOTHER-FX(TYPE2)(8NS) (B) GRAY 		8-97407-501-0 01 1 1507-
19 COVER; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) GRAY 		8-97407-953-0 01 1 1507-
41 NUT; CHANGE LEVER
SMOOTHER-FX(TYPE2)(8NS) M8 W/DISHED WASHER 		8-97329-625-0 06 1 1507-1508
41 NUT; CHANGE LEVER
SMOOTHER-FX(TYPE2)(8NS) M8 W/DISHED WASHER 		8-97329-625-0 06 1 1509-
41 NUT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 W/DISHED WASHER 		8-97329-625-0 02 1 1507-1508
41 NUT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 W/DISHED WASHER 		8-97329-625-0 02 1 1509-
249 BRACKET; COVER
SMOOTHER-FX(TYPE2)(8NS) (A) 		8-98016-951-3 01 1 1507-1508
249 BRACKET; COVER
SMOOTHER-FX(TYPE2)(8NS) (A) 		8-98016-951-3 01 1 1509-
249 BRACKET; COVER
SMOOTHER-FX(TYPE2)(8NS) (B) 		8-98016-952-3 01 1 1507-1508
249 BRACKET; COVER
SMOOTHER-FX(TYPE2)(8NS) (B) 		8-98016-952-3 01 1 1509-
439 FASTENER; COVER
GRAY 		8-97407-955-0 04 1 1507-
525 LABEL; SHIFT POSITION
SMOOTHER-FX(TYPE2)(8NS) 		8-98048-480-1 01 1 1507-
