2-26 — MANUAL TRANSMISSION GEAR (#164089) — 126 parça

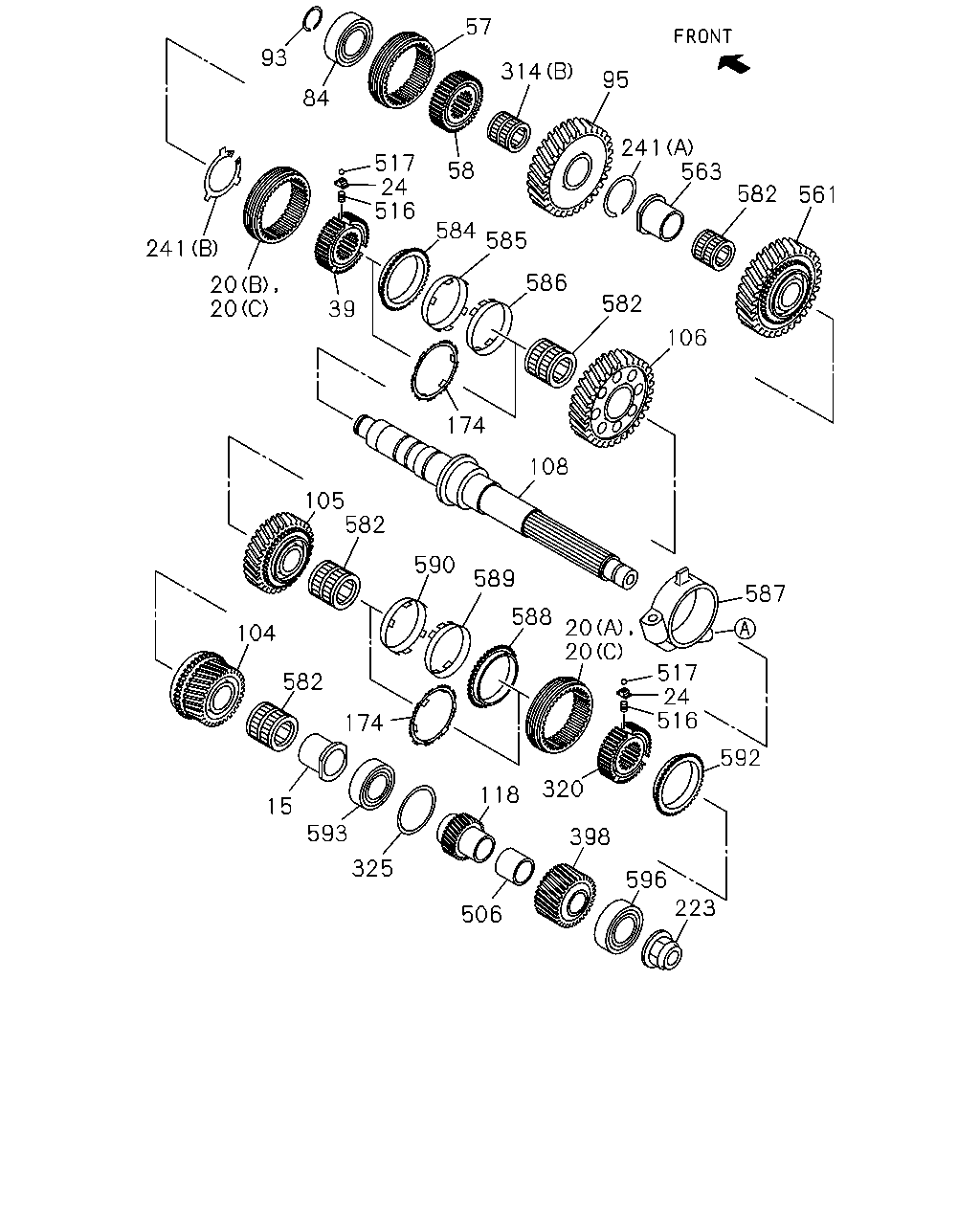

çizim 485166
57 95 314 241 582 563 561 106 582 586 585 584 516 24 517 20 241 20 39 108 174 58 587 517 20 20 588 590 582 105 589 84 93 104 582 174 15 593 325 118 398 320 506 596 223 592 516 24
BalonParca AdiParca NoAdetTipApplied Date
15 COLLAR; 4TH GEAR 8-98146-345-0 01 1 1507-
20 SLEEVE
SMOOTHER-FX(TYPE2)(8NS) (A) Z=45 		8-98258-279-0 02 1 1509-
20 SLEEVE
(B) Z=45 		8-98034-769-0 01 1 1507-1508
20 SLEEVE
SMOOTHER-FX(TYPE2)(8NS) (B) Z=45 		8-98034-769-0 01 1 1509-
20 SLEEVE
(A) Z=45 		8-98258-279-0 02 1 1507-1508
20 SLEEVE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) Z=45 		8-98258-279-0 03 1 1509-
24 BLOCK; INDEX,SYN 8-97241-313-1 09 1 1507-
39 HUB; CLU,LOW & 2ND
Z=45 		8-98303-646-0 01 1 1507-1507
39 HUB; CLU,LOW & 2ND
Z=45 		8-98309-852-0 01 1 1508-
57 SLEEVE; REV
Z=45 		8-94421-871-1 01 1 1507-
58 HUB; CLU,REV
Z=45-27 		8-98005-296-0 01 1 1507-
84 BEARING; COUNTER SHAFT,FRT 8-97377-957-1 01 1 1507-
93 RING; SNAP,COUNTER FRT BRG 8-97377-958-0 01 1 1507-
95 GEAR; REV,COUNTER
Z=44 		8-98005-229-0 01 1 1507-
104 GEAR; 4TH,COUNTER
Z=29 		8-98198-297-0 01 1 1507-
105 GEAR; 3RD,COUNTER
Z=35 		8-98168-501-0 01 1 1507-
106 GEAR; 2ND,COUNTER
Z=44 		8-98140-884-0 01 1 1507-
108 SHAFT; COUNTER
Z=27-42-26 		8-98303-643-0 01 1 1507-
118 GEAR; 6TH,COUNTER
Z=17 		8-98005-292-1 01 1 1507-
174 SYNCHRONIZER ASM; 2ND-3RD
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98315-823-2 02 1 1509-
223 NUT; COUNTER SHAFT END
M34 FLANGE 		8-98005-894-0 01 1 1507-
241 RING; SNAP
(A) ID=46.5 T=1.8 		8-97254-743-0 01 1 1507-
241 RING; SNAP
(B) ID=96 T=2.5 		8-98009-391-0 01 1 1507-
314 BEARING; NEEDLE,REV GEAR
(A) JTEKT 		1-09811-017-0 02 1 1507-
314 BEARING; NEEDLE,REV GEAR
(B) NSK 		8-97253-111-0 01 1 1507-
320 HUB; CLU,4TH & 3RD
Z=45 		8-98303-649-0 01 1 1507-1507
320 HUB; CLU,4TH & 3RD
Z=45 		8-98309-859-0 01 1 1508-
325 SHIM; COUNTER SHAFT BRG
T=1.56 		8-97377-994-0 01 1 1507-
325 SHIM; COUNTER SHAFT BRG
T=1.62 		8-97377-995-0 01 1 1507-
325 SHIM; COUNTER SHAFT BRG
T=1.68 		8-97377-996-0 01 1 1507-
325 SHIM; COUNTER SHAFT BRG
T=1.74 		8-97377-997-0 01 1 1507-
325 SHIM; COUNTER SHAFT BRG
T=1.80 		8-97377-998-0 01 1 1507-
325 SHIM; COUNTER SHAFT BRG
T=1.26 		8-98009-373-0 01 1 1507-
325 SHIM; COUNTER SHAFT BRG
T=1.32 		8-98009-374-0 01 1 1507-
325 SHIM; COUNTER SHAFT BRG
T=1.38 		8-98009-375-0 01 1 1507-
325 SHIM; COUNTER SHAFT BRG
T=1.44 		8-98009-376-0 01 1 1507-
325 SHIM; COUNTER SHAFT BRG
T=1.50 		8-98009-377-0 01 1 1507-
325 SHIM; COUNTER SHAFT BRG
T=1.14 		8-98022-218-0 01 1 1507-
325 SHIM; COUNTER SHAFT BRG
T=1.20 		8-98022-219-0 01 1 1507-
398 GEAR; COUNTER
Z=22 		8-97380-568-0 01 1 1507-
506 COLLAR; 6TH,COUNTER 8-97377-965-0 01 1 1507-
516 SPRING; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98032-197-0 09 1 1507-
516 SPRING; SYNCHRO,INDEX
SMOOTHER-FX(TYPE2)(8NS) 		8-98054-981-0 09 1 1507-
517 BALL; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97252-935-0 09 1 1507-
517 BALL; SYNCHRO,INDEX
SMOOTHER-FX(TYPE2)(8NS) 		8-97252-935-0 10 1 1507-
561 GEAR; LOW,COUNTER
Z=44 		8-98000-330-0 01 1 1507-
563 COLLAR; 1ST GEAR 8-98146-345-0 01 1 1507-
582 BEARING; NEEDLE,COUNTER GEAR 8-97253-110-0 04 1 1507-
584 RING; BLOCK,2ND
Z=45 		8-98034-770-0 01 1 1507-1508
584 RING; BLOCK,2ND
SMOOTHER-FX(TYPE2)(8NS) Z=45 		8-98034-770-0 01 1 1509-
585 RING; OUTSIDE,2ND 8-97241-309-1 01 1 1507-1508
585 RING; OUTSIDE,2ND
SMOOTHER-FX(TYPE2)(8NS) 		8-97241-309-1 01 1 1509-
586 RING; INSIDE,2ND 8-97241-312-1 01 1 1507-1508
586 RING; INSIDE,2ND
SMOOTHER-FX(TYPE2)(8NS) 		8-97241-312-1 01 1 1509-
587 CASE; PUMP,COUNTER 8-98303-650-0 01 1 1507-
588 RING; BLOCK,3RD
Z=45 		8-97241-306-1 01 1 1507-1508
588 RING; BLOCK,3RD
SMOOTHER-FX(TYPE2)(8NS) Z=45 		8-97241-306-1 01 1 1509-
589 RING; OUTSIDE,3RD 8-97241-309-1 01 1 1507-1508
589 RING; OUTSIDE,3RD
SMOOTHER-FX(TYPE2)(8NS) 		8-97241-309-1 01 1 1509-
590 RING; INSIDE,3RD 8-97241-312-1 01 1 1507-1508
590 RING; INSIDE,3RD
SMOOTHER-FX(TYPE2)(8NS) 		8-97241-312-1 01 1 1509-
592 RING; BLOCK,4TH
Z=45 		8-97241-306-1 01 1 1507-
593 BEARING; COUNTER MIDDLE 8-97377-976-0 01 1 1507-
596 BEARING; ROOLER,COUNTER END 8-97377-968-0 01 1 1507-

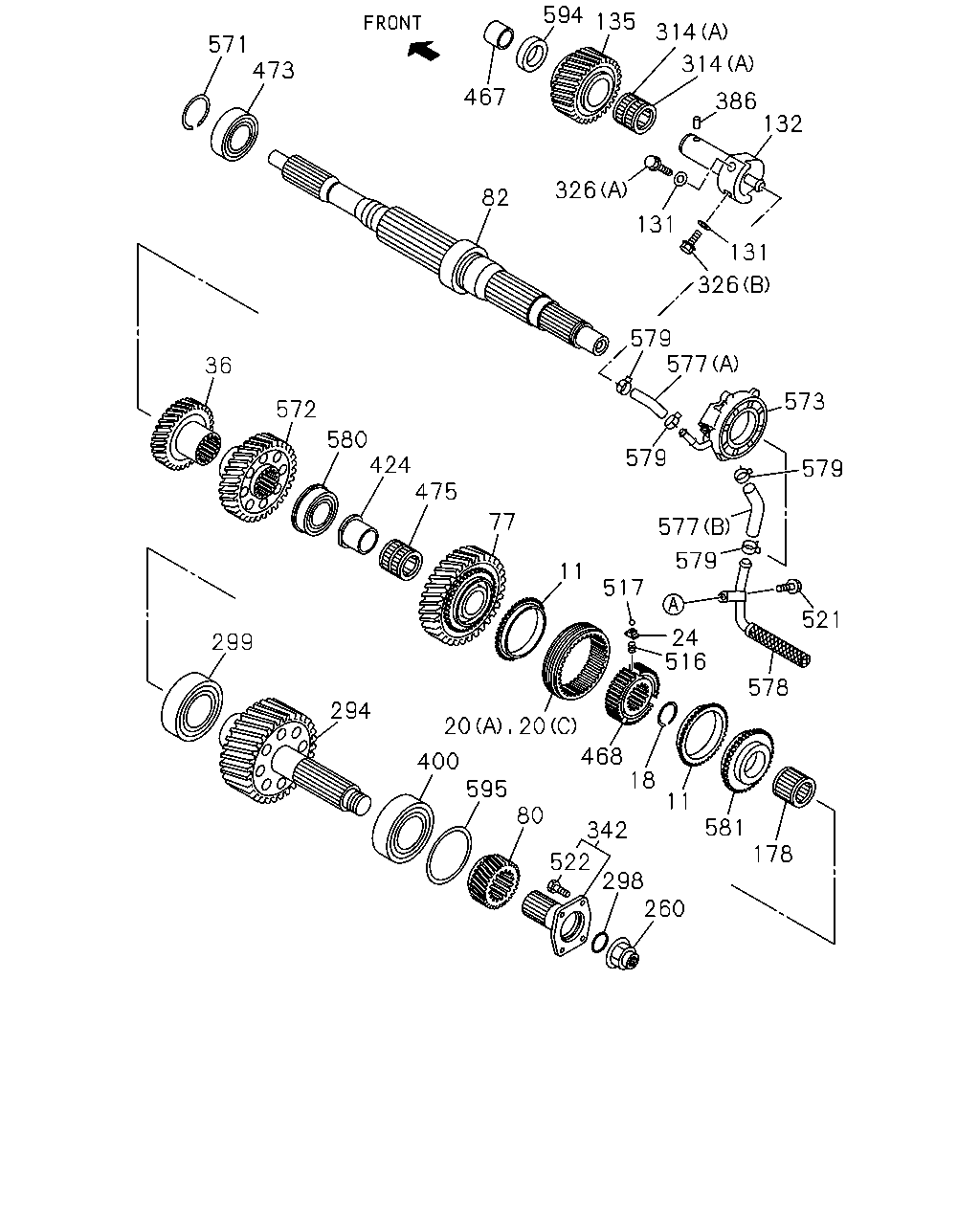

çizim 485289
571 473 594 135 467 314 314 386 132 326 82 131 131 326 579 577 573 579 579 577 579 521 36 572 580 424 475 77 11 517 24 516 578 178 581 11 18 468 20 20 299 294 400 595 80 342 298 260 522
BalonParca AdiParca NoAdetTipApplied Date
11 RING; BLOCK,5TH & 6TH
Z=45 		8-97241-306-1 02 1 1507-
18 RING; SNAP,CLU HUB
ID=35.7 T=1.8 		8-97256-855-0 01 1 1507-
20 SLEEVE
SMOOTHER-FX(TYPE2)(8NS) (A) Z=45 		8-98258-279-0 02 1 1509-
20 SLEEVE
(B) Z=45 		8-98034-769-0 01 1 1507-1508
20 SLEEVE
SMOOTHER-FX(TYPE2)(8NS) (B) Z=45 		8-98034-769-0 01 1 1509-
20 SLEEVE
(A) Z=45 		8-98258-279-0 02 1 1507-1508
20 SLEEVE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) Z=45 		8-98258-279-0 03 1 1509-
24 BLOCK; INDEX,SYN 8-97241-313-1 09 1 1507-
36 GEAR; 3RD,MAINSHAFT
Z=29 		8-98168-499-0 01 1 1507-
77 GEAR; 6TH,MAINSHAFT
Z=46 		8-98137-256-0 01 1 1507-
80 GEAR; SPD DRIVE
Z=5 		8-97377-978-1 01 1 1507-
82 SHAFT; MAIN,TRANS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=13-21-19-26 		8-98245-057-0 01 1 1507-
82 SHAFT; MAIN,TRANS
SMOOTHER-FX(TYPE2)(8NS) Z=14-13-21-19-26 		8-98245-058-0 01 1 1507-1507
82 SHAFT; MAIN,TRANS
SMOOTHER-FX(TYPE2)(8NS) Z=14-13-21-19-26 		8-98292-396-0 01 1 1508-
131 GASKET; REV SHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=10.2 OD=16.0 		9-09571-410-0 02 1 1507-
132 SHAFT; REV 8-98009-372-0 01 1 1507-
135 GEAR; REV IDLER
Z=27 		8-98005-601-1 01 1 1507-
178 BEARING; NEEDLE,MAINSHAFT 8-97253-099-1 01 1 1507-
260 NUT; MAINSHAFT END
M36 FLANGE 		8-98014-140-0 01 1 1507-
294 SHAFT; OUTPUT
Z=43 		8-97380-571-0 01 1 1507-
298 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5 		1-09623-380-0 01 1 1507-
299 BEARING; OUTPUT SHAFT FRT 8-97377-970-0 01 1 1507-
314 BEARING; NEEDLE,REV GEAR
(A) JTEKT 		1-09811-017-0 02 1 1507-
314 BEARING; NEEDLE,REV GEAR
(B) NSK 		8-97253-111-0 01 1 1507-
326 BOLT; REV SHAFT
(A) M10X50 FLANGE 		0-29261-050-0 01 1 1507-
326 BOLT; REV SHAFT
(B) M10X50 		8-98014-738-0 01 1 1507-
342 FLANGE; OUTPUT 8-98155-334-0 01 1 1507-
386 PIN; REV SHAFT
OD=4 L=8 		9-08150-408-0 01 1 1507-
400 BEARING; OUTPUT SHAFT RR 8-97377-977-0 01 1 1507-
424 COLLAR; 6TH GEAR 8-98125-318-0 01 1 1507-
467 COLLAR; SHAFT
SMOOTHER-FX(TYPE2)(8NS) 		8-97255-183-1 01 1 1507-
468 HUB; CLU,5TH & 6TH
Z=45 		8-98075-734-0 01 1 1507-
473 BEARING; INPUT SHAFT 8-97377-950-0 01 1 1507-
475 BEARING; 6TH
COLLAR OD=-49.999 		8-98101-505-0 01 1 1507-
475 BEARING; 6TH
COLLAR OD=50.000- 		8-98142-265-0 01 1 1507-
516 SPRING; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98032-197-0 09 1 1507-
516 SPRING; SYNCHRO,INDEX
SMOOTHER-FX(TYPE2)(8NS) 		8-98054-981-0 09 1 1507-
517 BALL; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97252-935-0 09 1 1507-
517 BALL; SYNCHRO,INDEX
SMOOTHER-FX(TYPE2)(8NS) 		8-97252-935-0 10 1 1507-
521 BOLT
M8X12 FLANGE 		0-28050-812-0 01 1 1507-
522 BOLT; FLANGE
M14X43 KNURL 		8-98014-003-0 04 1 1507-
571 RING; SNAP,BRG 8-97377-951-0 01 1 1507-
572 GEAR; 4TH,INPUT
Z=37 		8-98168-500-0 01 1 1507-
573 PUMP ASM; OIL 8-98212-241-0 01 1 1507-
577 HOSE; OIL PUMP
(A) 		8-98033-981-0 02 1 1507-
577 HOSE; OIL PUMP
(B) 		8-98033-982-0 02 1 1507-
578 SCREEN; OIL PUMP 8-98009-345-0 02 1 1507-
579 CLAMP; HOSE
ID=16 		8-97329-628-0 04 1 1507-
580 BEARING; MAINSHAFT RR 8-97377-953-0 01 1 1507-
581 CLUTCH; DOG,5TH GEAR 8-97377-956-0 01 1 1507-
594 WASHER; THRUST,REV IDLE 8-98005-633-0 01 1 1507-
595 SHIM; OUTPUT SHAFT
T=1.44 		8-97377-984-0 01 1 1507-
595 SHIM; OUTPUT SHAFT
T=1.50 		8-97377-985-0 01 1 1507-
595 SHIM; OUTPUT SHAFT
T=1.56 		8-97377-986-0 01 1 1507-
595 SHIM; OUTPUT SHAFT
T=1.62 		8-97377-987-0 01 1 1507-
595 SHIM; OUTPUT SHAFT
T=1.68 		8-97377-988-0 01 1 1507-
595 SHIM; OUTPUT SHAFT
T=1.74 		8-97377-989-0 01 1 1507-
595 SHIM; OUTPUT SHAFT
T=1.80 		8-97377-990-0 01 1 1507-
595 SHIM; OUTPUT SHAFT
T=1.86 		8-97377-991-0 01 1 1507-
595 SHIM; OUTPUT SHAFT
T=1.38 		8-98009-379-0 01 1 1507-
595 SHIM; OUTPUT SHAFT
T=1.26 		8-98022-221-0 01 1 1507-
595 SHIM; OUTPUT SHAFT
T=1.32 		8-98022-222-0 01 1 1507-
