2-25 — SPEEDOMETER DRIVEN GEAR (#164088) — 13 parça

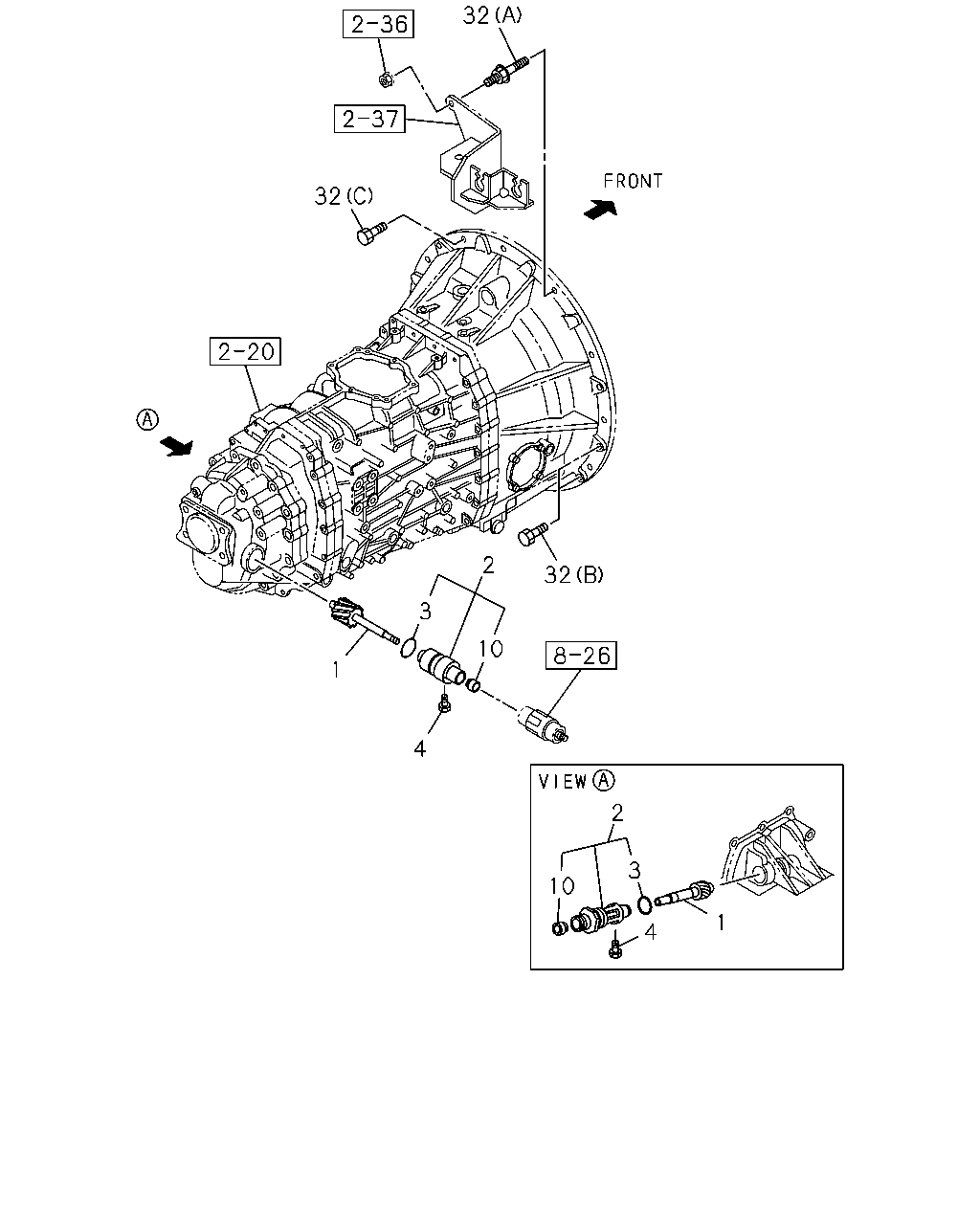

çizim 484267
1 4 3 2 10 32 2 10 3 4 1 32 32
BalonParca AdiParca NoAdetTipApplied Date
1 GEAR; DRIVEN,SPD
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=15 		1-33372-133-5 01 1 1507-
1 GEAR; DRIVEN,SPD
SMOOTHER-FX(TYPE2)(8NS) Z=15 		1-33372-133-5 02 1 1507-
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98000-271-0 01 1 1507-
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
SMOOTHER-FX(TYPE2)(8NS) 		8-98000-271-0 02 1 1507-
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-09623-246-0 01 1 1507-
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-FX(TYPE2)(8NS) 		1-09623-246-0 02 1 1507-
4 BOLT; RET,DRIVEN GEAR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6X12.5 FLANGE 		8-98014-141-0 01 1 1507-
4 BOLT; RET,DRIVEN GEAR
SMOOTHER-FX(TYPE2)(8NS) M6X12.5 FLANGE 		8-98014-141-0 02 1 1507-
10 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) NOK 		1-09625-510-0 01 1 1507-
10 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). SMOOTHER-FX(TYPE2)(8NS) NOK 		1-09625-510-0 02 1 1507-
32 BOLT; CLU HSG TO FLYWHEEL HSG
(C) M10X30 FLANGE 		0-28151-030-0 07 1 1507-
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X20,M10X26 L=56 		8-98010-334-0 03 1 1507-
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X45 FLANGE 		8-98234-150-0 02 1 1507-
