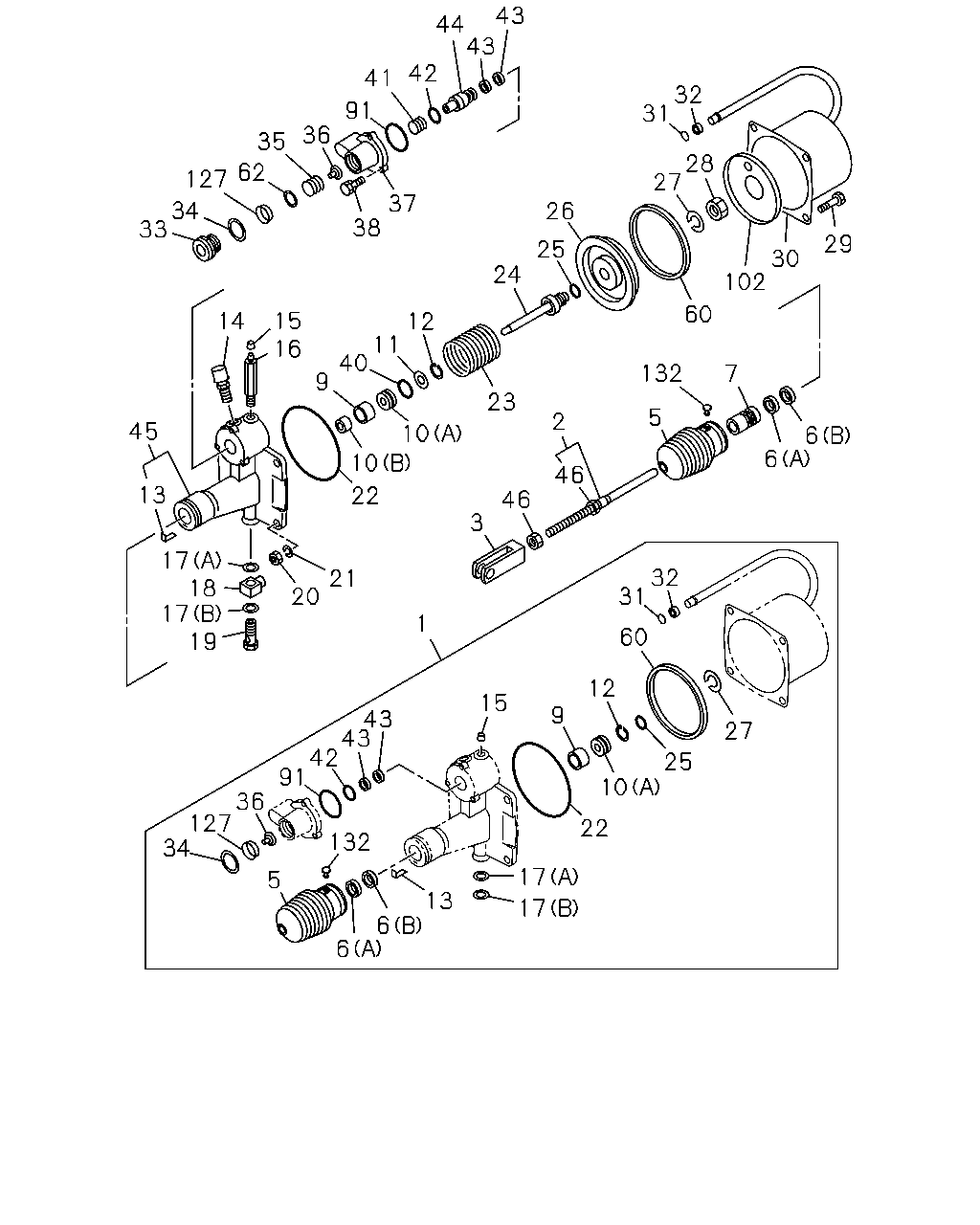

2-07 — CLUTCH BOOSTER; MINIPACK (#164084) — 52 parça

35 62 127 34 33 36 91 41 42 44 43 43 32 31 28 27 29 30 102 60 7 6 6 132 5 2 23 46 46 3 10 22 10 12 11 40 9 16 15 14 45 13 17 18 17 19 20 21 1 15 9 12 60 31 32 43 43 42 91 36 127 34 132 5 13 6 6 17 17 22 25 10 27 24 25 26 37 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; CLU BOOSTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31829-636-0	01	1	1507-
2	ROD; PUSH,CLU BOOSTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31824-261-0	01	1	1507-
3	CLEVIS; PUSH ROD,CLU BOOSTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31829-189-0	01	1	1507-
5	GUARD; PISTON,CLU BOOSTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31829-633-0	01	1	1507-
6	GASKET; PISTON CUP,CLU BOOSTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	1-31829-055-0	01	1	1507-
6	GASKET; PISTON CUP,CLU BOOSTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	1-31829-056-0	01	1	1507-
7	PISTON; CLU BOOSTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31821-048-0	01	1	1507-
9	GASKET; PISTON CUP,CLU BOOSTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31829-251-0	01	1	1507-
10	RETAINER; PISTON,CLU BOOSTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	1-31829-285-0	01	1	1507-
10	RETAINER; PISTON,CLU BOOSTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	1-31829-428-0	01	1	1507-
11	WASHER; PISTON,CLU BOOSTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31829-105-0	01	1	1507-
12	RING; RET,CLU BOOSTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	9-83315-315-0	01	1	1507-
13	PIN; SPR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31829-109-0	01	1	1507-
14	COVER; EXH,CLU BOOSTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31829-564-0	01	1	1507-
15	PROTECTOR; END PLATE,CLU BOOSTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	9-83335-044-0	01	1	1507-
16	PLUG; END PLATE,CLU BOOSTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	9-83331-704-0	01	1	1507-
17	GASKET; CONN,CLU BOOSTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	9-09920-267-0	01	1	1507-
17	GASKET; CONN,CLU BOOSTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	9-09920-268-0	01	1	1507-
18	CONNECTOR; END PLATE,CLU BOOSTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31829-248-0	01	1	1507-
19	BOLT; EYE,END PLATE,CLU BOOSTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	9-83315-047-0	01	1	1507-
20	NUT; END PLATE TO SHELL,CLU BOOSTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31829-624-0	04	1	1507-
21	WASHER; END PLATE TO SHELL,CLU BOOSTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.2	9-09150-510-0	04	1	1507-
22	GASKET; END PLATE TO SHELL,CLU BOOSTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-09623-322-0	01	1	1507-
23	SPRING; SHELL,CLU BOOSTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31829-632-0	01	1	1507-
24	ROD; PUSH,CLU BOOSTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31824-259-0	01	1	1507-
25	GASKET; PUSH ROD,CLU BOOSTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-09623-321-0	01	1	1507-
26	PISTON; SHELL,CLU BOOSTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31821-007-0	01	1	1507-
27	SPRING; CLU BOOSTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31829-111-0	01	1	1507-
28	NUT; PUSH ROD,CLU BOOSTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	9-88510-365-0	01	1	1507-
29	BOLT; END PLATE TO SHELL,CLU BOOSTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	9-83315-099-0	04	1	1507-
30	SHELL; CYL,CLU BOOSTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31811-155-0	01	1	1507-
31	GASKET; SHELL,CLU BOOSTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31829-279-0	01	1	1507-
32	BUSHING; SHELL,CLU BOOSTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31829-280-0	01	1	1507-
33	CONNECTOR; UPR,VLV,CLU BOOSTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31829-214-0	01	1	1507-
34	GASKET; CONN,CLU BOOSTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31829-053-0	01	1	1507-
35	SPRING; POPPET VLV,CLU BOOSTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31829-537-0	01	1	1507-
36	VALVE; POPPET,CLU BOOSTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31829-536-0	01	1	1507-
37	BODY; UPR,VLV,CLU BOOSTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31811-085-0	01	1	1507-
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	9-83315-113-0	03	1	1507-
40	GASKET; PISTON,CLU BOOSTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31829-037-0	01	1	1507-
41	SPRING; DIAPH,CLU BOOSTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31829-329-0	01	1	1507-
42	GASKET; FITTING,CLU BOOSTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31829-123-0	01	1	1507-
43	GASKET; UPR VLV,CLU BOOSTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31829-060-0	02	1	1507-
44	PISTON; UPR VLV,CLU BOOSTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31821-092-0	01	1	1507-
45	PLATE; END,CLU BOOSTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31811-156-0	01	1	1507-
46	NUT; PUSH ROD,CLU BOOSTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31829-624-0	02	1	1507-
60	GASKET; SHELL,CLU BOOSTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31829-058-0	01	1	1507-
62	RETAINER; POPPET TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31829-489-0	01	1	1507-
91	GASKET; CLU BOOSTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31829-103-0	01	1	1507-
102	PLATE; BOOSTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31829-635-0	01	1	1507-
127	FILTER; POPPET TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31829-495-0	01	1	1507-
132	CAP; CLU BOOSTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31829-634-0	01	1	1507-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
