◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11683 - FSR RHD EUROPE EURO6 SPACECAB EVSC ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-03 - CLUTCH PEDAL AND CONTROL ▶
2-03 — CLUTCH PEDAL AND CONTROL (#164082) — 21 parça

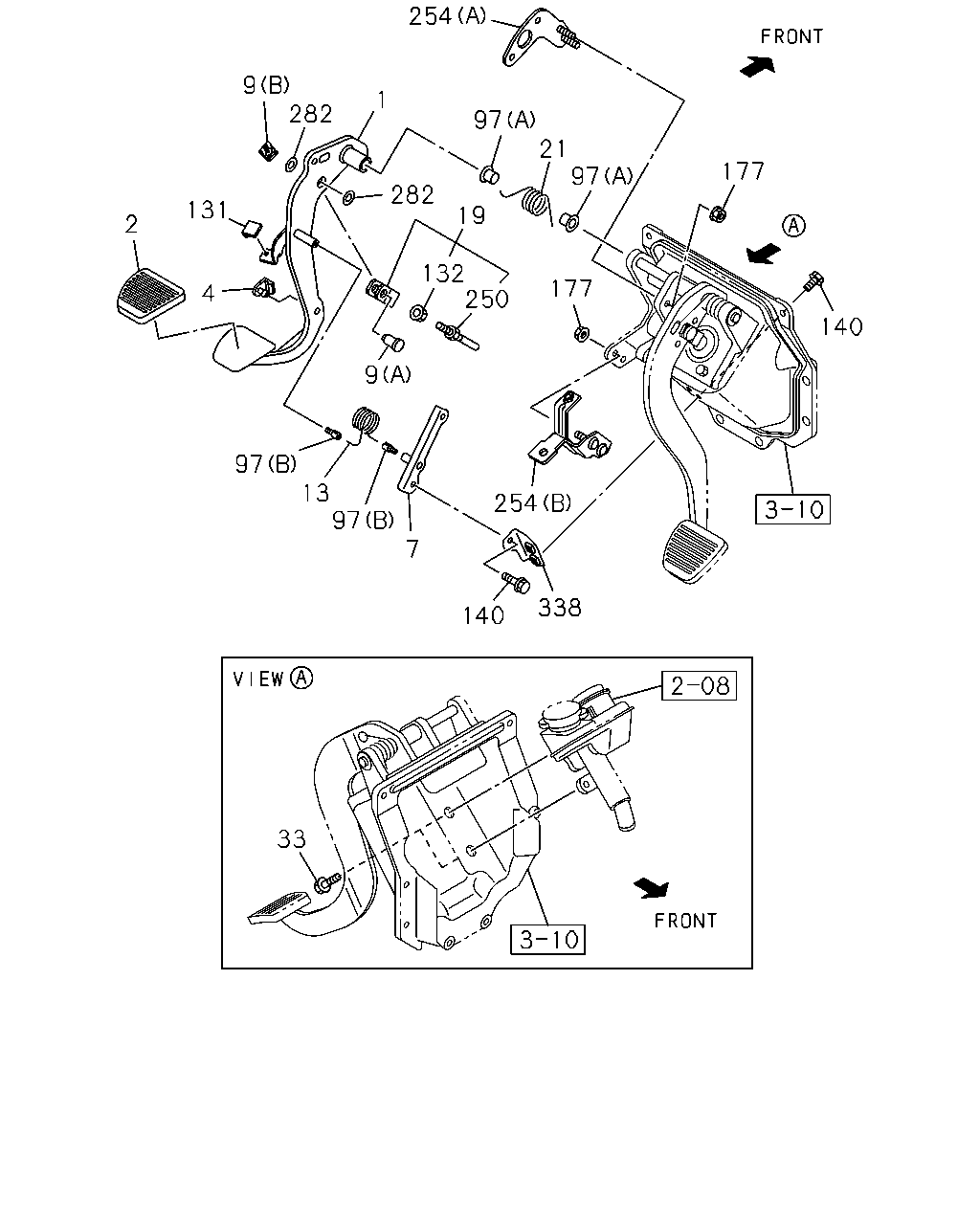

çizim 484245
97 13 97 140 140 177 97 21 97 282 132 1 282 9 131 2 4 9 254 338 7 177 250 19 254 33
BalonParca AdiParca NoAdetTipApplied Date
1 PEDAL; CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98222-862-0 01 1 1507-
2 COVER; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98056-865-0 01 1 1507-
4 STOPPER; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98079-251-0 01 1 1507-
7 BRACKET; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98284-540-0 01 1 1507-
9 PIN; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98007-161-0 01 1 1507-
9 PIN; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98147-657-0 01 1 1507-
13 SPRING; ASSIST,CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98222-844-0 01 1 1507-
19 ROD ASM; PUSH,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98021-406-1 01 1 1507-
21 SPRING; RETURN,CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98021-560-0 01 1 1507-
33 BOLT; CLU M/CYL TO BRKT
15" CLUTCH(RE9) M12X20 FLANGE 		0-28051-220-0 02 1 1507-
97 BUSHING; CLU PEDAL SHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-94238-596-0 02 1 1507-
97 BUSHING; CLU PEDAL SHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98285-207-0 02 1 1507-
131 STOPPER; CLU SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97302-305-0 01 1 1507-
132 NUT; LK,PUSH ROD
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		0-91180-108-0 01 1 1507-
140 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE 		0-28050-816-0 03 1 1507-
177 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		0-91180-108-0 04 1 1507-
250 ROD; PUSH,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97615-589-0 01 1 1507-
254 BRACKET; CLU SENSOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98021-376-1 01 1 1507-
254 BRACKET; CLU SENSOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98021-377-1 01 1 1507-
282 SPACER; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98070-329-0 02 1 1507-
338 SUPPORT; CLUTCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98222-861-0 01 1 1507-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
