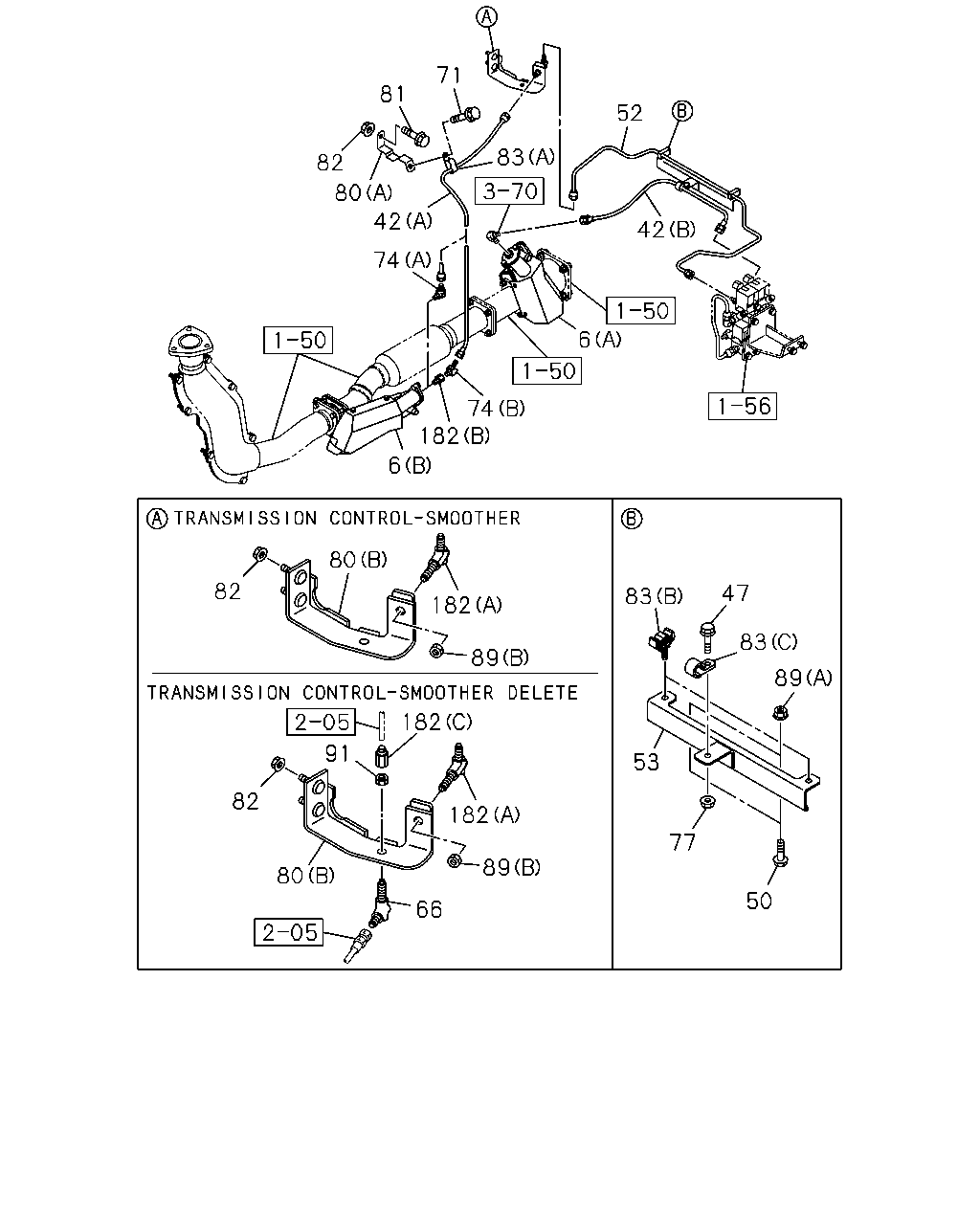

1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#164079) — 28 parça

71 81 82 80 42 74 83 52 42 74 182 6 6 80 82 182 89 91 182 182 89 66 80 82 47 83 83 89 53 77 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	VALVE; EXH BRAKE (A)	8-98160-836-3	01	1	1507-
6	VALVE; EXH BRAKE (B)	8-98193-416-1	01	1	1507-
42	HOSE; FLEX,EXH BRK SMOOTHER-FX(TYPE2)(8NS) (A) L=440	8-98238-300-0	01	1	1507-
42	HOSE; FLEX,EXH BRK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=310	1-09363-713-0	01	1	1507-
42	HOSE; FLEX,EXH BRK WHEEL BASE 3700MM(37W) (B) L=620	8-98236-995-0	01	1	1507-
42	HOSE; FLEX,EXH BRK WHEEL BASE 4900MM(49W) (B) L=530	8-98236-996-0	01	1	1507-
47	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1507-
50	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1507-
52	PIPE ASM; AIR FLEX HOSE	8-98232-881-0	01	1	1507-
53	BRACKET; CLIP	8-98232-876-1	01	1	1507-
66	UNION TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12 ELBOW	0-92125-206-0	01	1	1507-
71	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	1507-
74	CONNECTOR; EXH BRK VLV SMOOTHER-FX(TYPE2)(8NS) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1507-
74	CONNECTOR; EXH BRK VLV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12 & PT1/4 ELBOW	8-98299-777-0	01	1	1507-
77	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1507-
80	BRACKET; FLEX HOSE (A)	8-98078-153-0	01	1	1507-
80	BRACKET; FLEX HOSE (B)	8-98232-877-0	01	1	1507-
81	BOLT; HOSE BRKT M10X25 FLANGE	0-28051-025-0	01	1	1507-
82	NUT; HOSE BRKT M10 FLANGE	0-91180-210-0	03	1	1507-
83	CLIP; FLEX HOSE (C) ID=13 L=20	0-95235-235-0	01	1	1507-
83	CLIP; FLEX HOSE (A) ID=11X2 L=16	1-09700-820-0	01	1	1507-
83	CLIP; FLEX HOSE (B)	8-98012-254-1	02	1	1507-
89	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1507-
89	NUT; BRKT (B) M12	9-09840-280-0	01	1	1507-
91	NUT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12	9-09840-280-0	01	1	1507-
182	CONNECTOR (A) M12 ELBOW	0-92125-206-0	01	1	1507-
182	CONNECTOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) PS1/4 & PT1/4 STRAIGHT	1-09660-090-0	01	1	1507-
182	CONNECTOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1507-
