◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11683 - FSR RHD EUROPE EURO6 SPACECAB EVSC ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#164078) — 105 parça

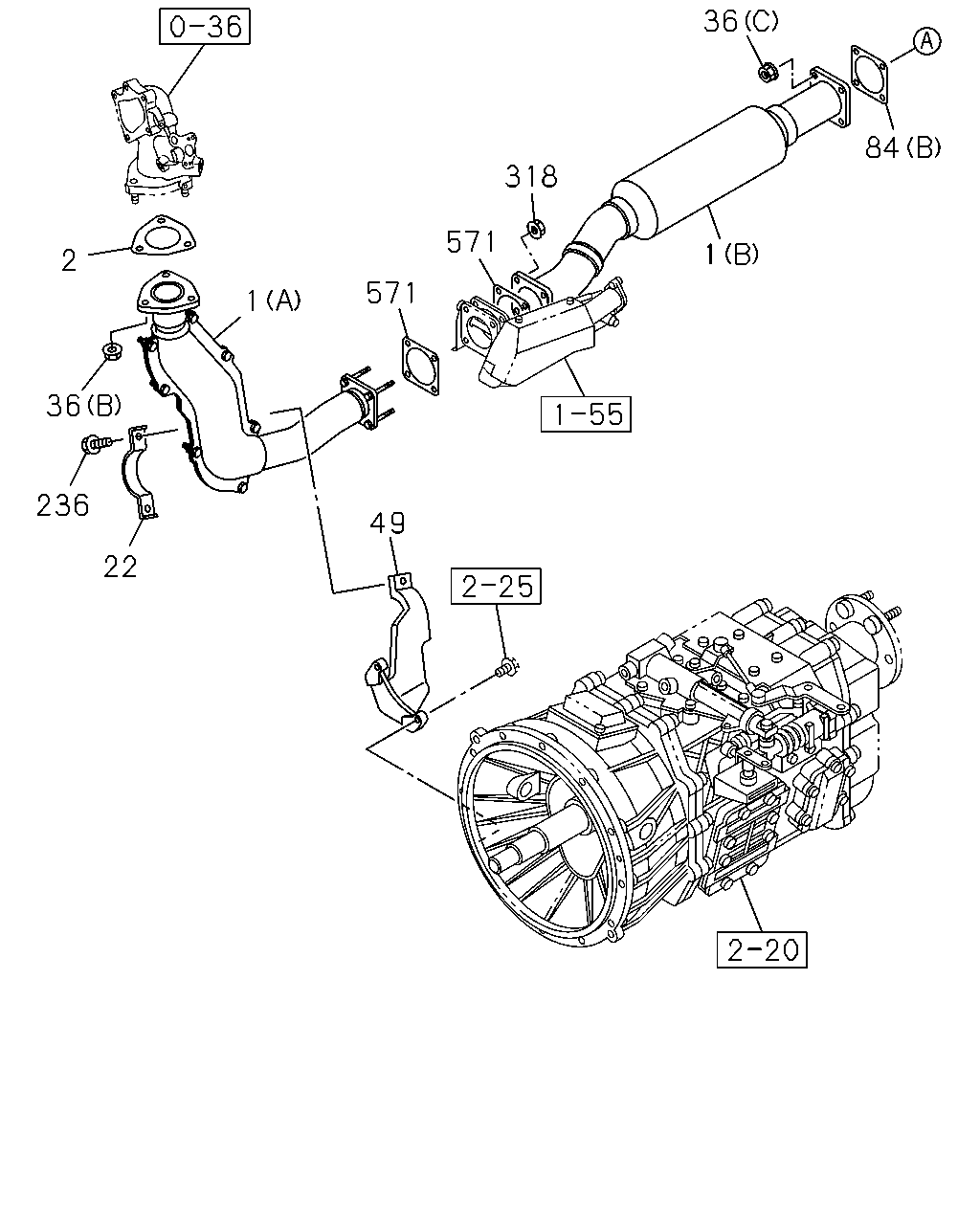

çizim 484235
2 36 236 22 1 571 571 318 36 1 84 49
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
(B) 		8-98229-236-0 01 1 1507-
1 PIPE; EXH
(A) 		8-98252-498-0 01 1 1507-
1 PIPE; EXH
WHEEL BASE 4900MM(49W) (C) 		8-98229-233-0 01 1 1507-
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). ID=77.5 		8-98159-745-0 01 1 1507-
22 CLAMP; EXH PIPE 8-98147-597-1 01 1 1507-
36 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-1 03 1 1507-
36 NUT; EXH PIPE
(C) M8 W/LK WASHER 		8-97581-234-0 04 1 1507-
36 NUT; EXH PIPE
WHEEL BASE 4900MM(49W) (A) M8 FLANGE 		0-91180-108-0 04 1 1507-
49 BRACKET; EXH PIPE TO TRANS
SMOOTHER-FX(TYPE2)(8NS) 		8-98147-599-0 01 1 1507-
49 BRACKET; EXH PIPE TO TRANS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98147-598-0 01 1 1507-
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 1507-
84 GASKET; EXH PIPE
(B) ID=64 		8-97373-108-0 02 1 1507-
84 GASKET; EXH PIPE
WHEEL BASE 4900MM(49W) (B) ID=64 		8-97373-108-0 01 1 1507-
236 BOLT; PIPE CLAMP TO BRKT
M10X30 FLANGE 		0-28051-030-0 02 1 1507-
318 NUT; EXH PIPE,FRT
M8 W/LK WASHER 		8-97581-234-0 04 1 1507-
571 GASKET
ID=64 		8-97373-108-0 02 1 1507-

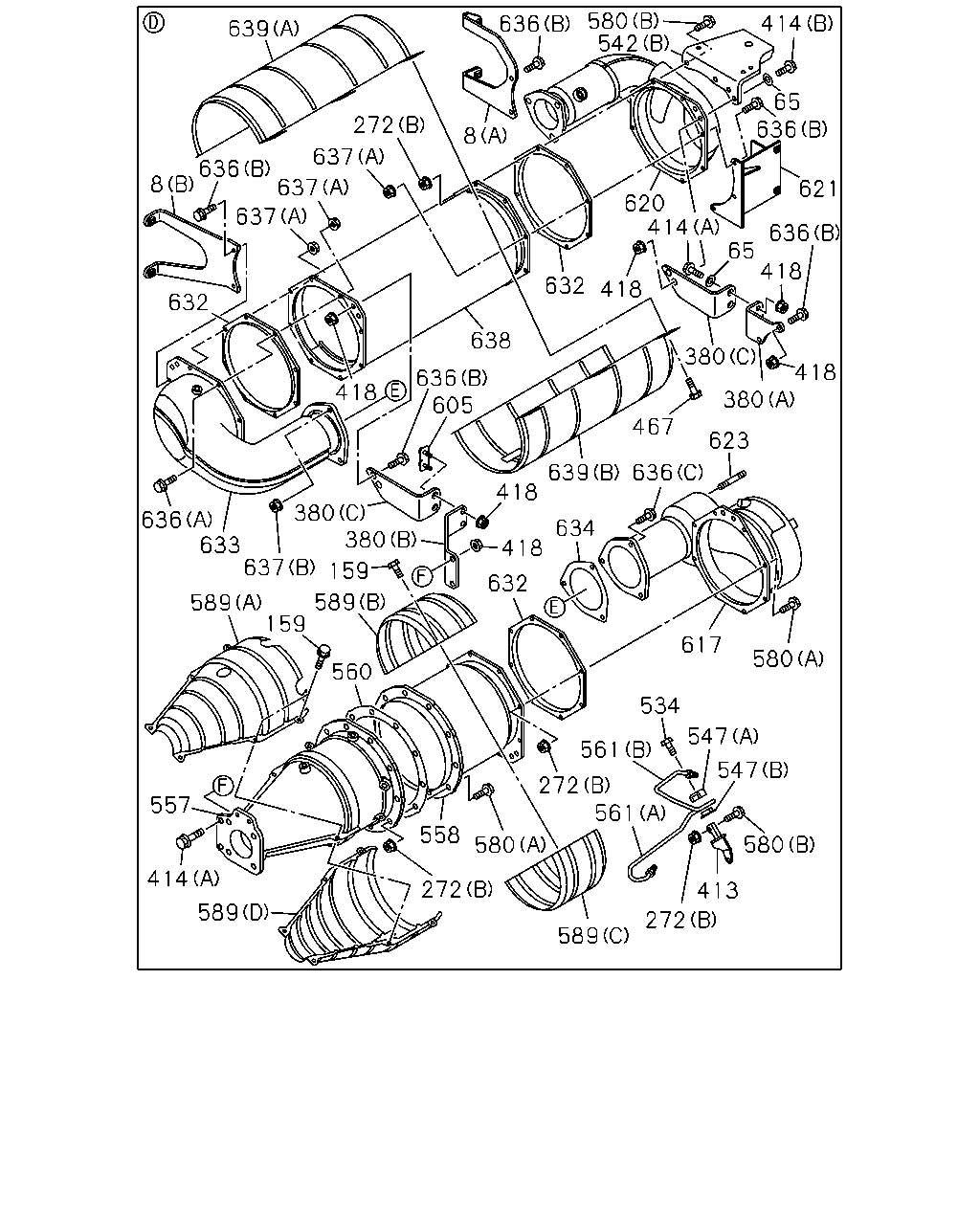

çizim 484927
639 636 8 637 637 637 272 8 636 580 542 414 65 636 621 636 418 65 380 380 418 623 467 636 639 634 617 580 534 547 547 580 413 272 589 272 589 414 557 560 558 580 561 272 561 159 589 637 633 636 380 589 589 380 418 632 418 605 636 638 418 632 632 418 620 414
BalonParca AdiParca NoAdetTipApplied Date
8 BRACKET; EXH PIPE
(A) 		8-98144-459-0 01 1 1507-
8 BRACKET; EXH PIPE
(B) 		8-98203-726-0 01 1 1507-
65 WASHER; PL
ID=10.5 OD=22 		0-91614-610-0 06 1 1507-
159 BOLT; HEAT PROTECTOR
M6X16 		8-98019-179-0 10 1 1507-
272 NUT; FLANGE
(B) M8 FLANGE 		0-91180-108-0 18 1 1507-
272 NUT; FLANGE
(A) M12 FLANGE 		0-91180-212-0 03 1 1507-
380 BRACKET; STAY
(A) 		8-98118-879-0 01 1 1507-
380 BRACKET; STAY
(C) 		8-98138-457-1 02 1 1507-
380 BRACKET; STAY
(B) 		8-98205-012-0 01 1 1507-
413 BRACKET; EXH PIPE,CONN 8-98138-485-0 01 1 1507-
414 BOLT; BRKT
(A) M10X35 FLANGE 		0-28051-035-0 06 1 1507-
414 BOLT; BRKT
(B) M10X45 FLANGE 		0-28051-045-0 02 1 1507-
418 NUT; BRKT
M10 FLANGE 		0-91180-110-0 10 1 1507-
467 BOLT; PROTECTOR
M6X16 		8-98019-179-0 06 1 1507-
534 BOLT; CLIP
M6X30 FLANGE 		0-28050-630-0 01 1 1507-
542 BRACKET
(B) 		8-98232-788-0 01 1 1507-
542 BRACKET
(A) 		8-98236-728-0 01 1 1507-
547 CLIP; PIPE
(A) 		8-97381-635-0 01 1 1507-
547 CLIP; PIPE
(B) 		8-97381-636-0 01 1 1507-
557 CATALYST ASM 8-98204-940-1 01 1 1507-
558 FILTER ASM 8-98204-942-0 01 1 1507-
560 GASKET; DPD 8-97611-080-0 01 1 1507-
561 PIPE; DPD
(A) 		8-98138-575-0 01 1 1507-
561 PIPE; DPD
(B) 		8-98138-576-0 01 1 1507-
580 BOLT; FLANGE
(A) M8X30 FLANGE 		0-28050-830-0 14 1 1507-
580 BOLT; FLANGE
(B) M8X40 FLANGE 		0-28050-840-0 04 1 1507-
589 PROTECTOR; HEAT,DPD
(A) 		8-97611-086-0 01 1 1507-
589 PROTECTOR; HEAT,DPD
(B) 		8-97628-261-0 01 1 1507-
589 PROTECTOR; HEAT,DPD
(C) 		8-97628-262-0 01 1 1507-
589 PROTECTOR; HEAT,DPD
(D) 		8-98140-713-0 01 1 1507-
605 PLATE; NUT 8-98148-511-0 01 1 1507-
617 CHAMBER SUB ASM; MIXER 8-98204-944-1 01 1 1507-
620 CHAMBER ASM; RR 8-98205-011-0 01 1 1507-
621 BRACKET; PROTECTOR 8-98159-190-1 01 1 1507-
623 STUD; FLANGE
M6 		8-98141-351-0 03 1 1507-
632 GASKET; FILTER,DEF 8-97628-257-0 03 1 1507-
633 CHAMBER SUB ASM; DEF,FRONT 8-98138-451-0 01 1 1507-
634 GASKET; MIXER 8-98118-422-1 01 1 1507-
636 BOLT; FLANGE,DEF FRONT
(A) M8X30 FLANGE 		0-28050-830-0 07 1 1507-
636 BOLT; FLANGE,DEF FRONT
(B) M8X40 FLANGE 		0-28050-840-0 09 1 1507-
636 BOLT; FLANGE,DEF FRONT
(C) M10X40 FLANGE 		0-28051-040-0 03 1 1507-
637 NUT; FLANGE,DEF FRONT
(A) M8 FLANGE 		0-91180-108-0 15 1 1507-
637 NUT; FLANGE,DEF FRONT
(B) M10 FLANGE 		0-91180-110-0 03 1 1507-
638 CATALYST ASM; DEF 8-98205-010-0 01 1 1507-
639 PROTECTOR; HEAT,CATALYST ASM DEF
(A) 		8-98136-188-0 01 1 1507-
639 PROTECTOR; HEAT,CATALYST ASM DEF
(B) 		8-98136-189-1 01 1 1507-
çizim 485207
5 262 81 60 81 226 60 81 56 70 121 226 62 104 70 17 84 555 52 226 56 44 52 52 70 60 226 62 52 56 81 60 56 226 62 226 121 44 506 84 81 121 44 70 81 121 44 226 60 81 107 542 81 226 62 272 17 107 126 36 84 1 562
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
(B) 		8-98229-236-0 01 1 1507-
1 PIPE; EXH
(A) 		8-98252-498-0 01 1 1507-
1 PIPE; EXH
WHEEL BASE 4900MM(49W) (C) 		8-98229-233-0 01 1 1507-
5 PROTECTOR; HEAT 8-98236-295-0 01 1 1507-
17 BOLT; EXH PIPE
(A) M12X35 FLANGE 		0-28051-235-0 03 1 1507-
17 BOLT; EXH PIPE
(B) M8X65 FLANGE 		1-09044-072-1 04 1 1507-
36 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-1 03 1 1507-
36 NUT; EXH PIPE
(C) M8 W/LK WASHER 		8-97581-234-0 04 1 1507-
36 NUT; EXH PIPE
WHEEL BASE 4900MM(49W) (A) M8 FLANGE 		0-91180-108-0 04 1 1507-
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 09 1 1507-
52 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 07 1 1507-
52 NUT; BRKT
(B) M12 FLANGE 		0-91180-212-0 04 1 1507-
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-98203-966-0 01 1 1507-
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98228-981-0 01 1 1507-
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98229-042-0 01 1 1507-
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-98229-237-0 01 1 1507-
60 BRACKET; FRAME TO BRKT
(A) 		8-98159-854-0 01 1 1507-
60 BRACKET; FRAME TO BRKT
(D) 		8-98159-985-0 01 1 1507-
60 BRACKET; FRAME TO BRKT
(B) 		8-98223-954-0 01 1 1507-
60 BRACKET; FRAME TO BRKT
(E) 		8-98228-982-0 01 1 1507-
60 BRACKET; FRAME TO BRKT
(C) 		8-98229-041-0 01 1 1507-
62 TUBE; DIST,BRKT 8-98131-254-0 04 1 1507-
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 03 1 1507-
70 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 02 1 1507-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 1507-
81 NUT; BRKT
WHEEL BASE 3700MM(37W) M10 FLANGE 		0-91180-210-0 06 1 1507-
81 NUT; BRKT
WHEEL BASE 4900MM(49W) M10 FLANGE 		0-91180-210-0 04 1 1507-
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 1507-
84 GASKET; EXH PIPE
(B) ID=64 		8-97373-108-0 02 1 1507-
84 GASKET; EXH PIPE
WHEEL BASE 4900MM(49W) (B) ID=64 		8-97373-108-0 01 1 1507-
104 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1507-
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 06 1 1507-
121 WASHER; PL,BRKT
ID=10.5 OD=70 		8-97625-671-0 04 1 1507-
126 PIPE; EXH,RR 8-98224-713-0 01 1 1507-
226 RUBBER; CUSHION 8-97625-670-0 08 1 1507-
262 BOLT; HANGER TO BODY
M8X25 W/LK&PL WASHER 		1-09980-548-0 04 1 1507-
272 NUT; FLANGE
(B) M8 FLANGE 		0-91180-108-0 18 1 1507-
272 NUT; FLANGE
(A) M12 FLANGE 		0-91180-212-0 03 1 1507-
506 BRACKET; STUD
M12X35 		1-22131-963-0 02 1 1507-
542 BRACKET
(B) 		8-98232-788-0 01 1 1507-
542 BRACKET
(A) 		8-98236-728-0 01 1 1507-
555 PIPE; EXH,DPD 8-98224-353-0 01 1 1507-
562 PLATE; STUD,BOLT
WHEEL BASE 4900MM(49W) 		8-97373-966-0 02 1 1507-
