1-41 — FUEL PIPING; CHASSIS (#164075) — 172 parça

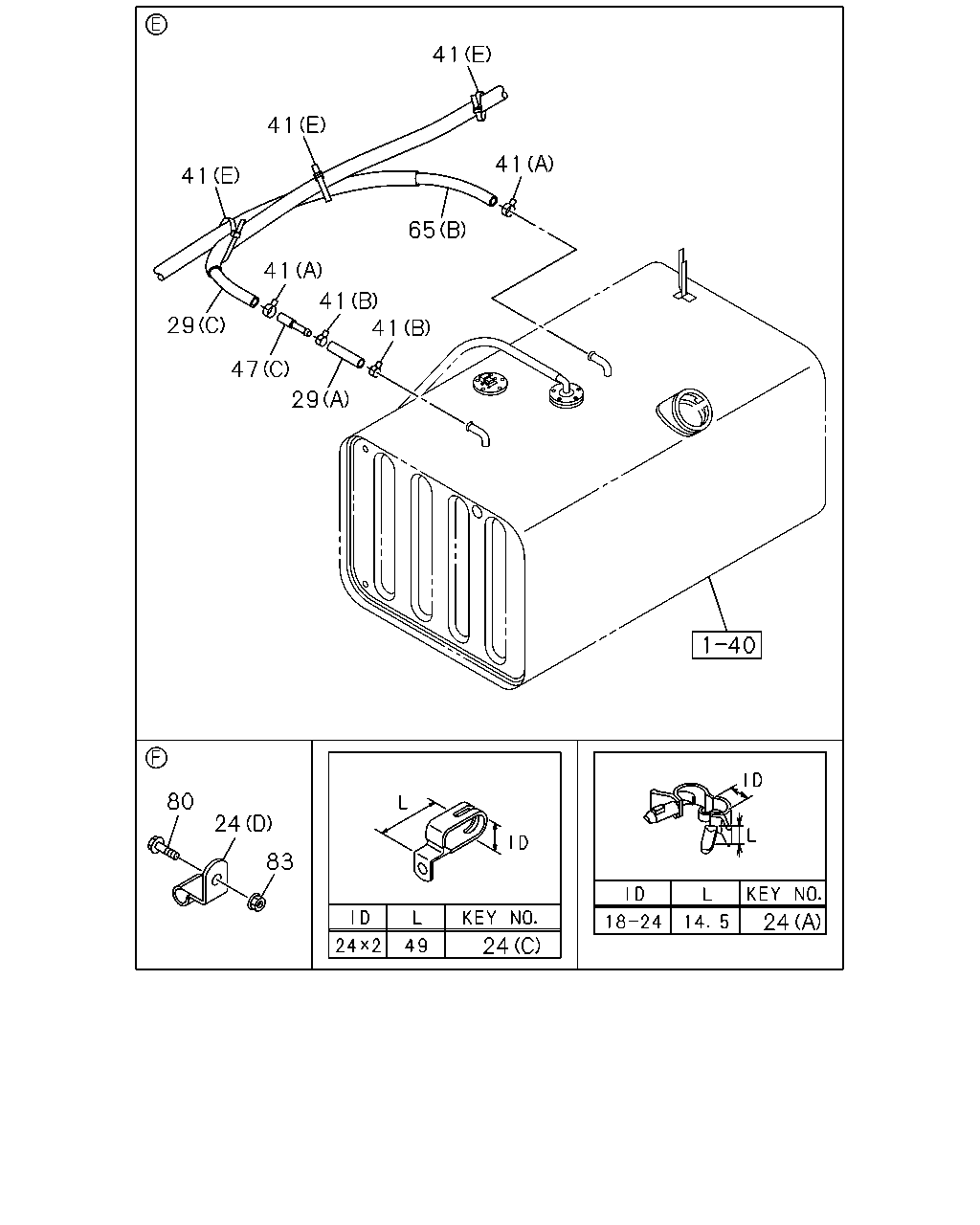

41 41 65 41 41 41 41 41 29 47 29 80 24 83 24 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE (C) ID=24 & 24 L=49	1-09701-018-0	01	1	1507-
24	CLIP; FUEL HOSE (B)	8-98203-791-0	01	1	1507-
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W) (A) ID=18-24 L=14.5	1-09709-298-0	01	1	1507-
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W) (D) ID=11 H=20 L=20	8-98033-780-0	02	1	1507-
29	HOSE; FUEL (A) L=80 SERVICED BY L=3000	0-01558-300-0	01	1	1507-
29	HOSE; FUEL (D)	8-98165-972-0	01	1	1507-
29	HOSE; FUEL (E)	8-98291-065-0	01	1	1507-
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (B) L=210 SERVICED BY L=3000	0-01558-300-0	02	1	1507-
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (C)	8-98284-923-0	01	1	1507-
29	HOSE; FUEL WHEEL BASE 4900MM(49W) (B) L=170 SERVICED BY L=3000	0-01558-300-0	02	1	1507-
29	HOSE; FUEL WHEEL BASE 4900MM(49W) (C)	8-98284-925-0	01	1	1507-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1507-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1507-
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=10 & 10	1-09709-241-0	02	1	1507-
41	CLIP; FUEL PIPE,FUEL TANK (G) ID=10 & 10	1-09709-243-0	02	1	1507-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	1507-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	08	1	1507-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	08	1	1507-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=13	8-94238-571-0	04	1	1507-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=13	8-94238-571-0	06	1	1507-
47	PIPE; FUEL,RETURN WHEEL BASE 4900MM(49W) (D)	8-98317-339-0	01	1	1507-
47	PIPE; FUEL,RETURN (C)	8-98009-438-1	01	1	1507-
47	PIPE; FUEL,RETURN (B) L=284	8-98209-084-0	01	1	1507-
47	PIPE; FUEL,RETURN (A) L=1539	8-98284-903-0	01	1	1507-
47	PIPE; FUEL,RETURN WHEEL BASE 3700MM(37W) (D)	8-98303-948-0	01	1	1507-
65	HOSE; FUEL,DELIVERY PIPE (A) L=280 SERVICED BY L=3000	0-01859-300-0	01	1	1507-
65	HOSE; FUEL,DELIVERY PIPE (B) L=600	8-98234-314-0	01	1	1507-
80	BOLT; CLIP,FUEL TANK M8X50 FLANGE	0-28050-850-0	02	1	1507-
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	02	1	1507-
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	05	1	1507-

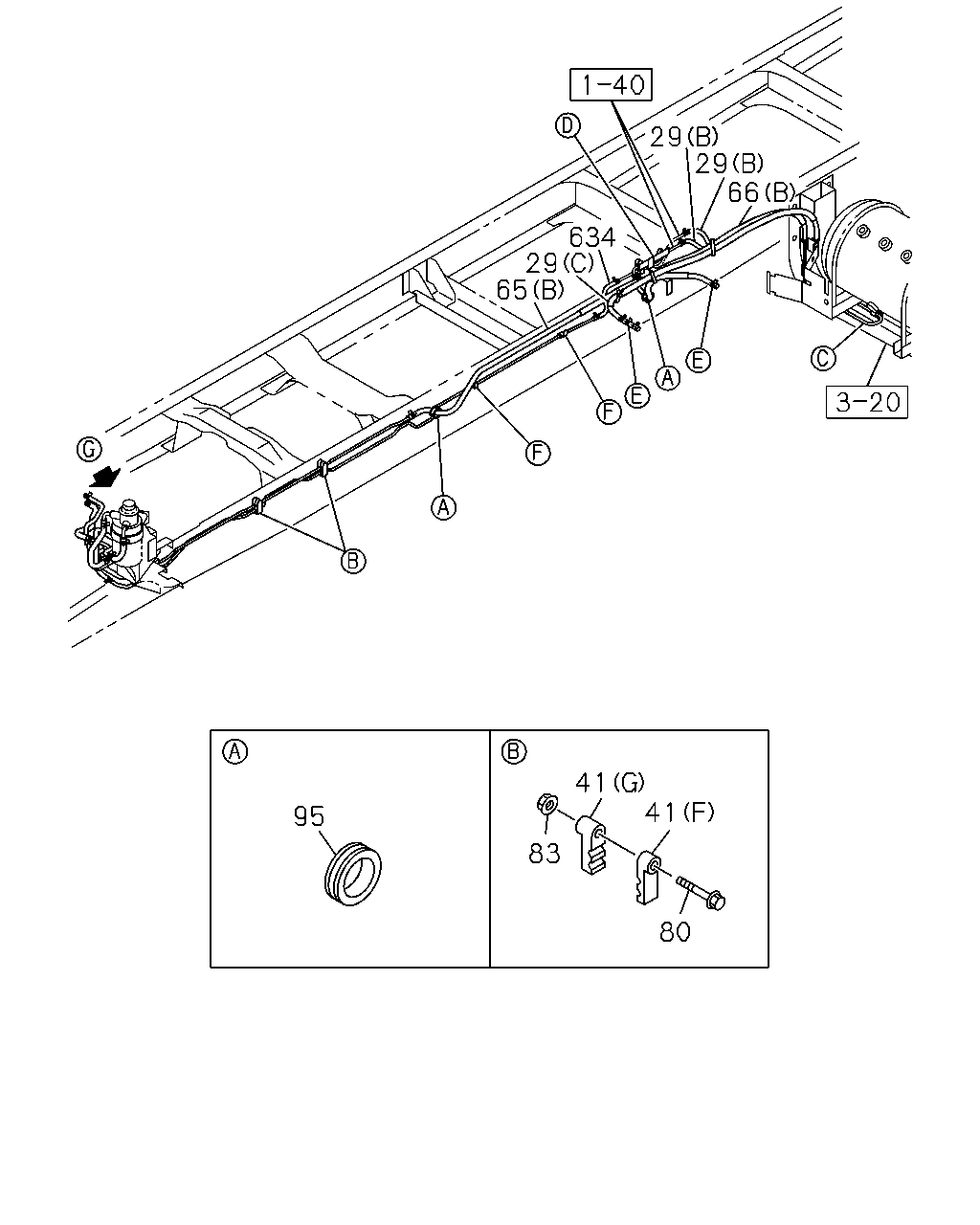

29 29 66 634 29 65 95 41 41 80 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	HOSE; FUEL (A) L=80 SERVICED BY L=3000	0-01558-300-0	01	1	1507-
29	HOSE; FUEL (D)	8-98165-972-0	01	1	1507-
29	HOSE; FUEL (E)	8-98291-065-0	01	1	1507-
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (B) L=210 SERVICED BY L=3000	0-01558-300-0	02	1	1507-
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (C)	8-98284-923-0	01	1	1507-
29	HOSE; FUEL WHEEL BASE 4900MM(49W) (B) L=170 SERVICED BY L=3000	0-01558-300-0	02	1	1507-
29	HOSE; FUEL WHEEL BASE 4900MM(49W) (C)	8-98284-925-0	01	1	1507-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1507-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1507-
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=10 & 10	1-09709-241-0	02	1	1507-
41	CLIP; FUEL PIPE,FUEL TANK (G) ID=10 & 10	1-09709-243-0	02	1	1507-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	1507-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	08	1	1507-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	08	1	1507-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=13	8-94238-571-0	04	1	1507-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=13	8-94238-571-0	06	1	1507-
65	HOSE; FUEL,DELIVERY PIPE (A) L=280 SERVICED BY L=3000	0-01859-300-0	01	1	1507-
65	HOSE; FUEL,DELIVERY PIPE (B) L=600	8-98234-314-0	01	1	1507-
66	HOSE; FUEL,RETURN PIPE (A) L=230 SERVICED BY L=3000	0-01558-300-0	01	1	1507-
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3700MM(37W) (B) L=980	8-98304-399-0	01	1	1507-
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 4900MM(49W) (B) L=630	8-98304-400-0	01	1	1507-
80	BOLT; CLIP,FUEL TANK M8X50 FLANGE	0-28050-850-0	02	1	1507-
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	02	1	1507-
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	05	1	1507-
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	02	1	1507-
634	HOSE; RUBBER RETURN L=140 SERVICED BY L=3000	0-01859-300-0	01	1	1507-

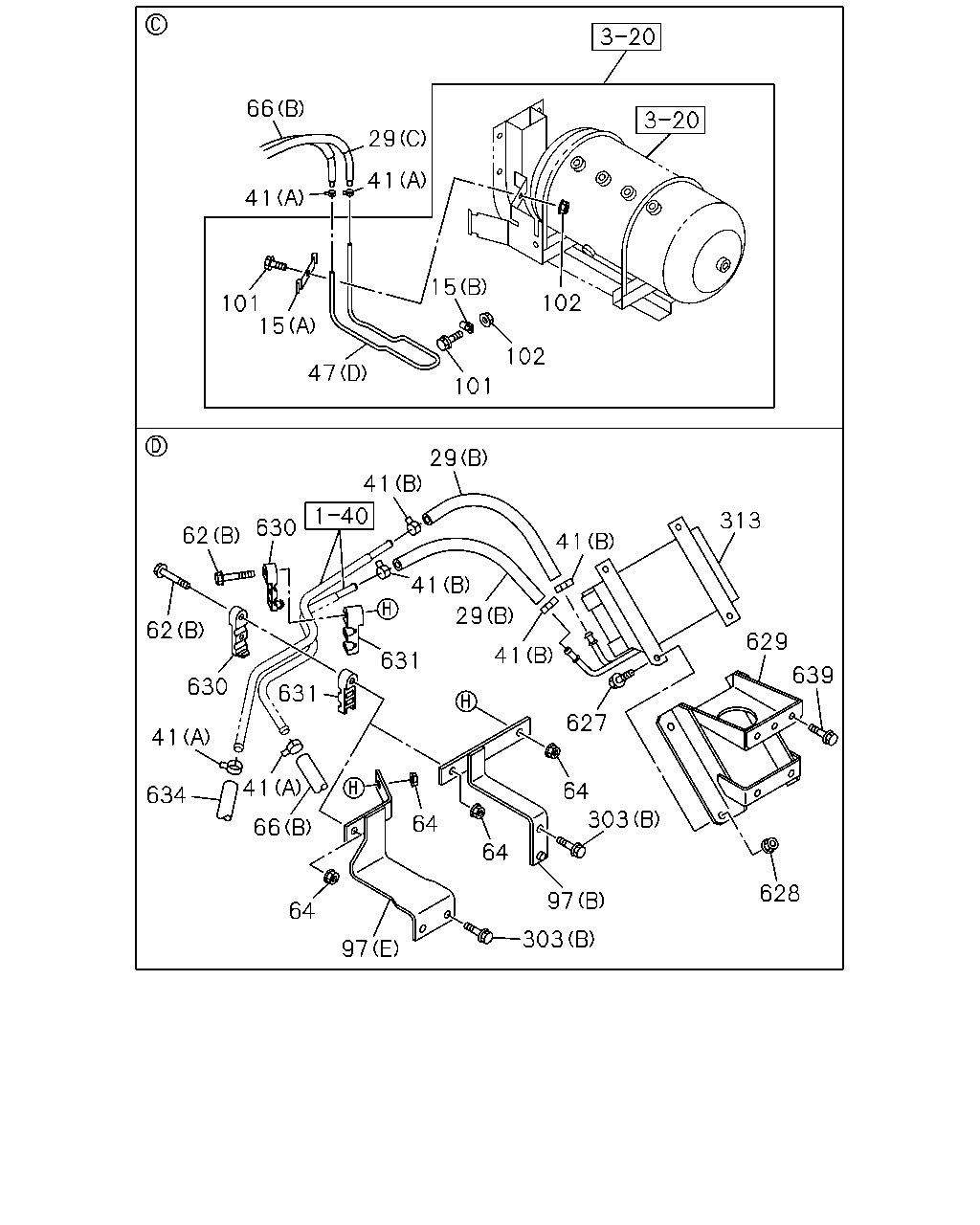

66 41 41 29 101 47 15 15 102 102 101 29 41 630 62 62 630 631 631 41 29 41 41 313 629 639 628 303 64 627 97 303 64 64 97 64 66 41 41 634

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	CLIP; FUEL PIPE (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	01	1	1507-
15	CLIP; FUEL PIPE WHEEL BASE 3700MM(37W) (B) ID=11 H=20 L=20	8-98033-780-0	01	1	1507-
29	HOSE; FUEL (A) L=80 SERVICED BY L=3000	0-01558-300-0	01	1	1507-
29	HOSE; FUEL (D)	8-98165-972-0	01	1	1507-
29	HOSE; FUEL (E)	8-98291-065-0	01	1	1507-
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (B) L=210 SERVICED BY L=3000	0-01558-300-0	02	1	1507-
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (C)	8-98284-923-0	01	1	1507-
29	HOSE; FUEL WHEEL BASE 4900MM(49W) (B) L=170 SERVICED BY L=3000	0-01558-300-0	02	1	1507-
29	HOSE; FUEL WHEEL BASE 4900MM(49W) (C)	8-98284-925-0	01	1	1507-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1507-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1507-
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=10 & 10	1-09709-241-0	02	1	1507-
41	CLIP; FUEL PIPE,FUEL TANK (G) ID=10 & 10	1-09709-243-0	02	1	1507-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	1507-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	08	1	1507-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	08	1	1507-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=13	8-94238-571-0	04	1	1507-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=13	8-94238-571-0	06	1	1507-
47	PIPE; FUEL,RETURN WHEEL BASE 4900MM(49W) (D)	8-98317-339-0	01	1	1507-
47	PIPE; FUEL,RETURN (C)	8-98009-438-1	01	1	1507-
47	PIPE; FUEL,RETURN (B) L=284	8-98209-084-0	01	1	1507-
47	PIPE; FUEL,RETURN (A) L=1539	8-98284-903-0	01	1	1507-
47	PIPE; FUEL,RETURN WHEEL BASE 3700MM(37W) (D)	8-98303-948-0	01	1	1507-
62	BOLT; CLIP FIX (B) M8X50 FLANGE	0-28050-850-0	02	1	1507-
62	BOLT; CLIP FIX (A) M8X20 FLANGE	0-28650-820-0	01	1	1507-
62	BOLT; CLIP FIX (A) M8X30 FLANGE	0-28650-830-0	01	1	1507-
62	BOLT; CLIP FIX WHEEL BASE 4900MM(49W) (A) M8X25 FLANGE	0-28650-825-0	02	1	1507-
64	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1507-
64	NUT; CLIP WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	02	1	1507-
64	NUT; CLIP WHEEL BASE 4900MM(49W) M8 FLANGE	0-91180-108-0	04	1	1507-
66	HOSE; FUEL,RETURN PIPE (A) L=230 SERVICED BY L=3000	0-01558-300-0	01	1	1507-
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3700MM(37W) (B) L=980	8-98304-399-0	01	1	1507-
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 4900MM(49W) (B) L=630	8-98304-400-0	01	1	1507-
97	BRACKET; CLIP (C)	8-98245-737-0	01	1	1507-
97	BRACKET; CLIP (A)	8-98302-551-0	01	1	1507-
97	BRACKET; CLIP (D)	8-98302-796-0	01	1	1507-
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (E)	8-98284-913-0	01	1	1507-
97	BRACKET; CLIP WHEEL BASE 4900MM(49W) (B)	8-98239-701-0	01	1	1507-
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 3700MM(37W) M8X20 FLANGE	0-28650-820-0	02	1	1507-
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 4900MM(49W) M8X20 FLANGE	0-28650-820-0	01	1	1507-
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	02	1	1507-
102	NUT; CLIP,FUEL PIPE WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	02	1	1507-
102	NUT; CLIP,FUEL PIPE WHEEL BASE 4900MM(49W) M8 FLANGE	0-91180-108-0	01	1	1507-
303	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	01	1	1507-
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1507-
303	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	01	1	1507-
303	BOLT; BRKT WHEEL BASE 4900MM(49W) (B) M10X30 FLANGE	0-28651-030-0	01	1	1507-
303	BOLT; BRKT WHEEL BASE 3700MM(37W) (B) M10X30 FLANGE	0-28651-030-0	02	1	1507-
313	COOLER ASM; FUEL	8-98227-679-1	01	1	1507-
627	BOLT; FUEL CLR M6X25 FLANGE	0-28650-625-0	04	1	1507-
628	NUT; FUEL CLR M6 FLANGE	0-91180-106-0	04	1	1507-
629	BRACKET; FUEL CLR	8-98224-320-1	01	1	1507-
630	CLIP; UPR ID=10 & 10	1-09709-241-0	02	1	1507-
631	CLIP; LWR ID=10 & 10	1-09709-243-0	02	1	1507-
634	HOSE; RUBBER RETURN L=140 SERVICED BY L=3000	0-01859-300-0	01	1	1507-
639	BOLT; BRKT,FUEL CLR M10X30 FLANGE	0-28651-030-0	04	1	1507-

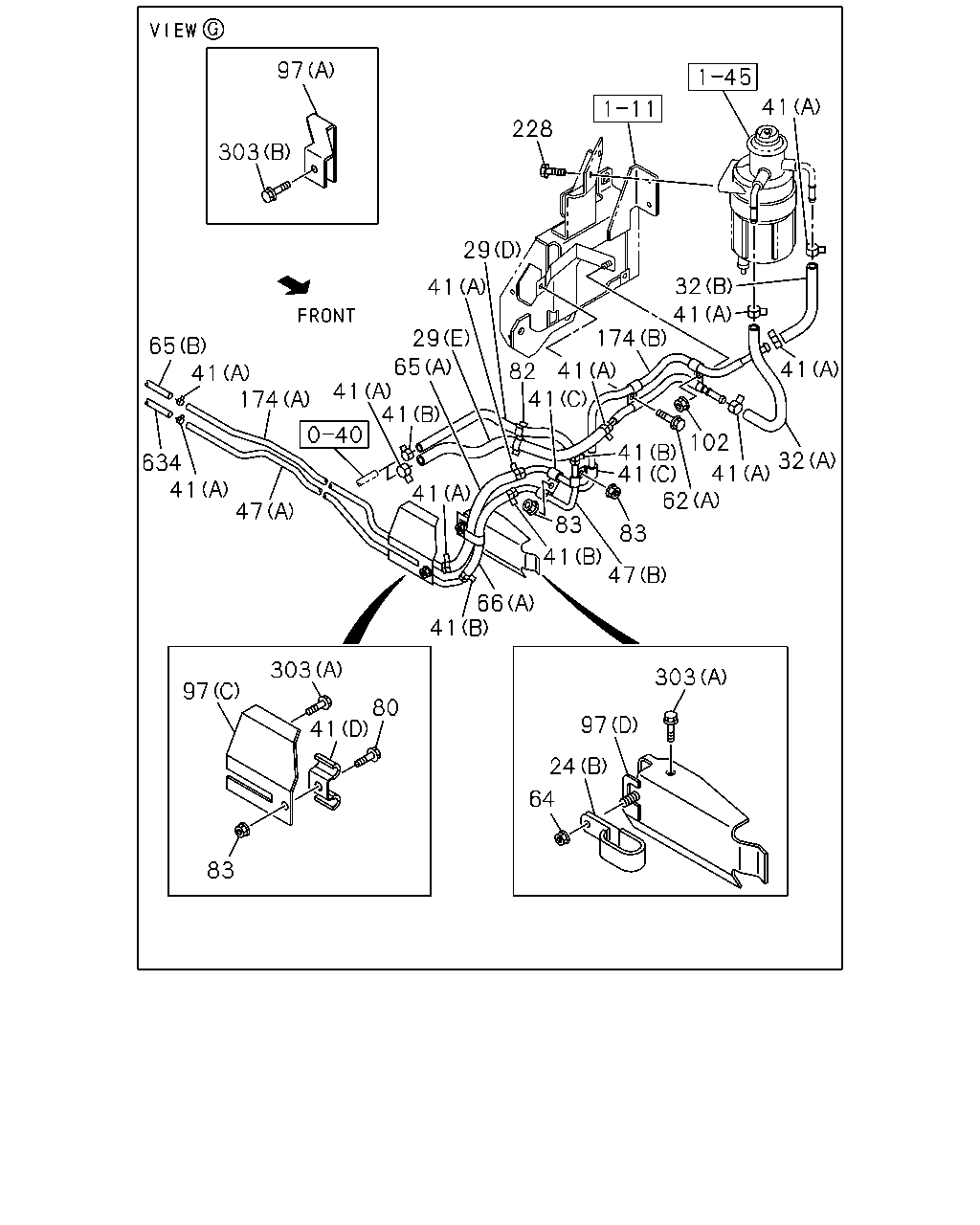

97 303 65 41 634 41 47 174 41 65 29 41 29 228 41 32 41 174 41 41 41 41 82 41 41 102 41 32 41 41 66 41 83 83 62 47 303 97 41 80 83 64 24 97 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE (C) ID=24 & 24 L=49	1-09701-018-0	01	1	1507-
24	CLIP; FUEL HOSE (B)	8-98203-791-0	01	1	1507-
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W) (A) ID=18-24 L=14.5	1-09709-298-0	01	1	1507-
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W) (D) ID=11 H=20 L=20	8-98033-780-0	02	1	1507-
29	HOSE; FUEL (A) L=80 SERVICED BY L=3000	0-01558-300-0	01	1	1507-
29	HOSE; FUEL (D)	8-98165-972-0	01	1	1507-
29	HOSE; FUEL (E)	8-98291-065-0	01	1	1507-
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (B) L=210 SERVICED BY L=3000	0-01558-300-0	02	1	1507-
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (C)	8-98284-923-0	01	1	1507-
29	HOSE; FUEL WHEEL BASE 4900MM(49W) (B) L=170 SERVICED BY L=3000	0-01558-300-0	02	1	1507-
29	HOSE; FUEL WHEEL BASE 4900MM(49W) (C)	8-98284-925-0	01	1	1507-
32	PIPE; DELIVERY,FUEL TANK (B) L=140 SERVICED BY L=3000	0-01859-300-0	01	1	1507-
32	PIPE; DELIVERY,FUEL TANK (A)	8-98204-102-0	01	1	1507-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1507-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1507-
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=10 & 10	1-09709-241-0	02	1	1507-
41	CLIP; FUEL PIPE,FUEL TANK (G) ID=10 & 10	1-09709-243-0	02	1	1507-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	1507-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	08	1	1507-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	08	1	1507-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=13	8-94238-571-0	04	1	1507-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=13	8-94238-571-0	06	1	1507-
47	PIPE; FUEL,RETURN WHEEL BASE 4900MM(49W) (D)	8-98317-339-0	01	1	1507-
47	PIPE; FUEL,RETURN (C)	8-98009-438-1	01	1	1507-
47	PIPE; FUEL,RETURN (B) L=284	8-98209-084-0	01	1	1507-
47	PIPE; FUEL,RETURN (A) L=1539	8-98284-903-0	01	1	1507-
47	PIPE; FUEL,RETURN WHEEL BASE 3700MM(37W) (D)	8-98303-948-0	01	1	1507-
62	BOLT; CLIP FIX (B) M8X50 FLANGE	0-28050-850-0	02	1	1507-
62	BOLT; CLIP FIX (A) M8X20 FLANGE	0-28650-820-0	01	1	1507-
62	BOLT; CLIP FIX (A) M8X30 FLANGE	0-28650-830-0	01	1	1507-
62	BOLT; CLIP FIX WHEEL BASE 4900MM(49W) (A) M8X25 FLANGE	0-28650-825-0	02	1	1507-
64	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1507-
64	NUT; CLIP WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	02	1	1507-
64	NUT; CLIP WHEEL BASE 4900MM(49W) M8 FLANGE	0-91180-108-0	04	1	1507-
65	HOSE; FUEL,DELIVERY PIPE (A) L=280 SERVICED BY L=3000	0-01859-300-0	01	1	1507-
65	HOSE; FUEL,DELIVERY PIPE (B) L=600	8-98234-314-0	01	1	1507-
66	HOSE; FUEL,RETURN PIPE (A) L=230 SERVICED BY L=3000	0-01558-300-0	01	1	1507-
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3700MM(37W) (B) L=980	8-98304-399-0	01	1	1507-
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 4900MM(49W) (B) L=630	8-98304-400-0	01	1	1507-
80	BOLT; CLIP,FUEL TANK M8X50 FLANGE	0-28050-850-0	02	1	1507-
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	02	1	1507-
82	CLIP; FUEL HOSE ID=13 & 16.5	8-94169-028-0	01	1	1507-
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	05	1	1507-
97	BRACKET; CLIP (C)	8-98245-737-0	01	1	1507-
97	BRACKET; CLIP (A)	8-98302-551-0	01	1	1507-
97	BRACKET; CLIP (D)	8-98302-796-0	01	1	1507-
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (E)	8-98284-913-0	01	1	1507-
97	BRACKET; CLIP WHEEL BASE 4900MM(49W) (B)	8-98239-701-0	01	1	1507-
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	02	1	1507-
102	NUT; CLIP,FUEL PIPE WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	02	1	1507-
102	NUT; CLIP,FUEL PIPE WHEEL BASE 4900MM(49W) M8 FLANGE	0-91180-108-0	01	1	1507-
174	PIPE; FUEL,FEED,FRT (A)	8-98284-902-0	01	1	1507-
174	PIPE; FUEL,FEED,FRT (B)	8-98291-066-0	01	1	1507-
228	BOLT; BRKT,SEDIMENTER M10X20 FLANGE	0-28651-020-0	02	1	1507-
303	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	01	1	1507-
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1507-
303	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	01	1	1507-
303	BOLT; BRKT WHEEL BASE 4900MM(49W) (B) M10X30 FLANGE	0-28651-030-0	01	1	1507-
303	BOLT; BRKT WHEEL BASE 3700MM(37W) (B) M10X30 FLANGE	0-28651-030-0	02	1	1507-
634	HOSE; RUBBER RETURN L=140 SERVICED BY L=3000	0-01859-300-0	01	1	1507-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
