◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11683 - FSR RHD EUROPE EURO6 SPACECAB EVSC ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-40 - FUEL TANK ▶
1-40 — FUEL TANK (#164074) — 24 parça

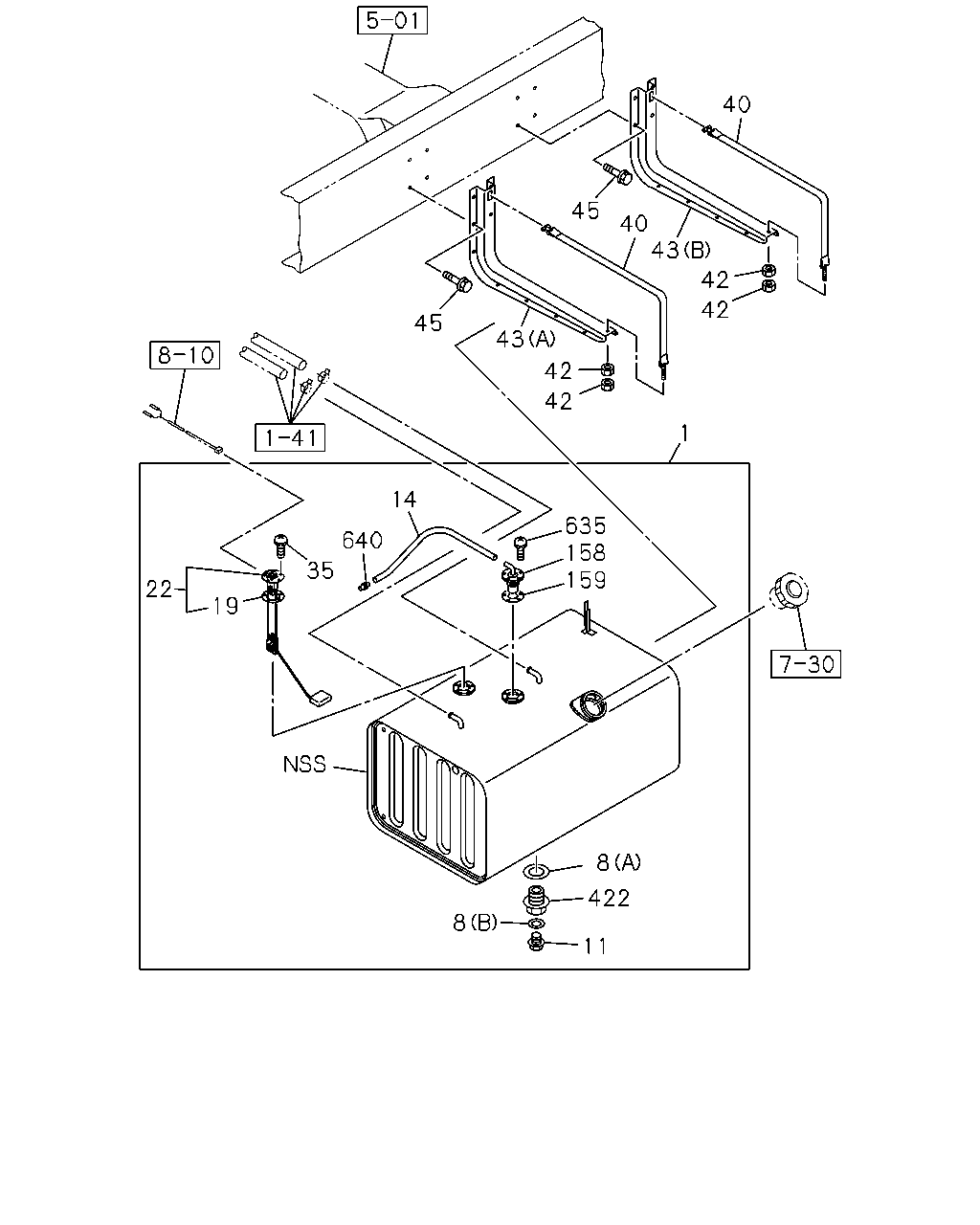

çizim 484208
40 45 40 43 42 42 42 42 43 45 1 14 640 35 19 22 635 158 159 8 422 11 8
BalonParca AdiParca NoAdetTipApplied Date
1 TANK; FUEL
820X500X400 140L 		8-98224-123-0 01 1 1507-
8 GASKET; DRAIN PLUG,FUEL TANK
(A) ID=30 		8-98067-041-0 01 1 1507-
8 GASKET; DRAIN PLUG,FUEL TANK
(B) ID=18.2 OD=26.0 		9-09571-418-0 01 1 1507-
11 PLUG; DRAIN,FUEL TANK
M18 		8-98068-006-0 01 1 1507-
14 HOSE; BREATHER,OUTLET
L=430 		8-98131-037-0 01 1 1507-
19 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 1507-
22 UNIT; FUEL TANK 8-98099-319-0 01 1 1507-
35 SCREW; FUEL TANK UNIT
M5X12 W/LK WASHER 		0-36220-512-0 05 1 1507-
40 BELT; SUPPORT,FUEL TANK
L=925 		8-98049-769-1 02 1 1507-
42 NUT; SUPPORT BELT
M10 		0-91110-510-0 04 1 1507-
43 BRACKET; FUEL TANK
(A) 		8-98127-229-0 01 1 1507-
43 BRACKET; FUEL TANK
(B) 		8-98127-230-0 01 1 1507-
45 BOLT; BRKT,FUEL TANK
M10X35 FLANGE 		0-28651-035-0 08 1 1507-
158 VALVE; ROLL OVER & FLOAT 8-98095-223-0 01 1 1507-
159 SEAL; ROLL OVER & FLOAT VALVE
ID=45 OD=67 		1-83149-003-0 01 1 1507-
422 PLUG; FUEL TANK
M30 		8-98067-038-0 01 1 1507-
635 SCREW; ROLL OVER & FLOAT VALVE
M5X10 W/LK WASHER 		0-36220-510-0 05 1 1507-
640 VENTILATOR; HOSE,BREATHER 8-98092-398-0 01 1 1507-

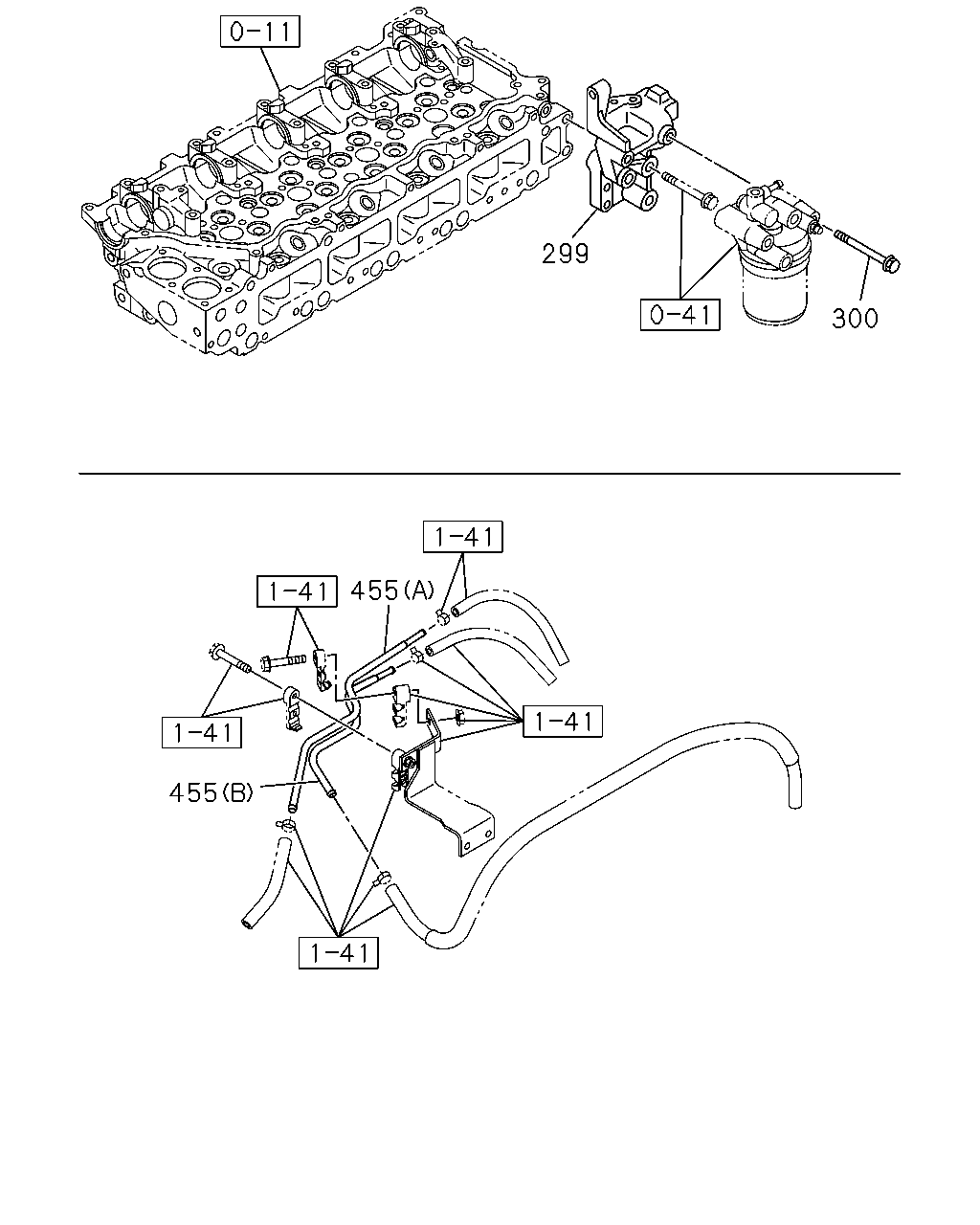

çizim 485294
299 300 455 455
BalonParca AdiParca NoAdetTipApplied Date
299 BRACKET; FUEL FILTER 8-98092-459-3 01 1 1507-
300 BOLT; BRKT TO BODY
M10X100 FLANGE 		0-28151-000-0 02 1 1507-
455 PIPE; FUEL,RETURN
WHEEL BASE 3700MM(37W) (A) L=423 		8-98284-905-0 01 1 1507-
455 PIPE; FUEL,RETURN
WHEEL BASE 3700MM(37W) (B) L=326 		8-98304-266-0 01 1 1507-
455 PIPE; FUEL,RETURN
WHEEL BASE 4900MM(49W) (A) L=1523 		8-98284-908-0 01 1 1507-
455 PIPE; FUEL,RETURN
WHEEL BASE 4900MM(49W) (B) L=373 		8-98304-265-0 01 1 1507-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
