1-11 — RADIATOR HOSE AND SUB TANK (#164070) — 16 parça

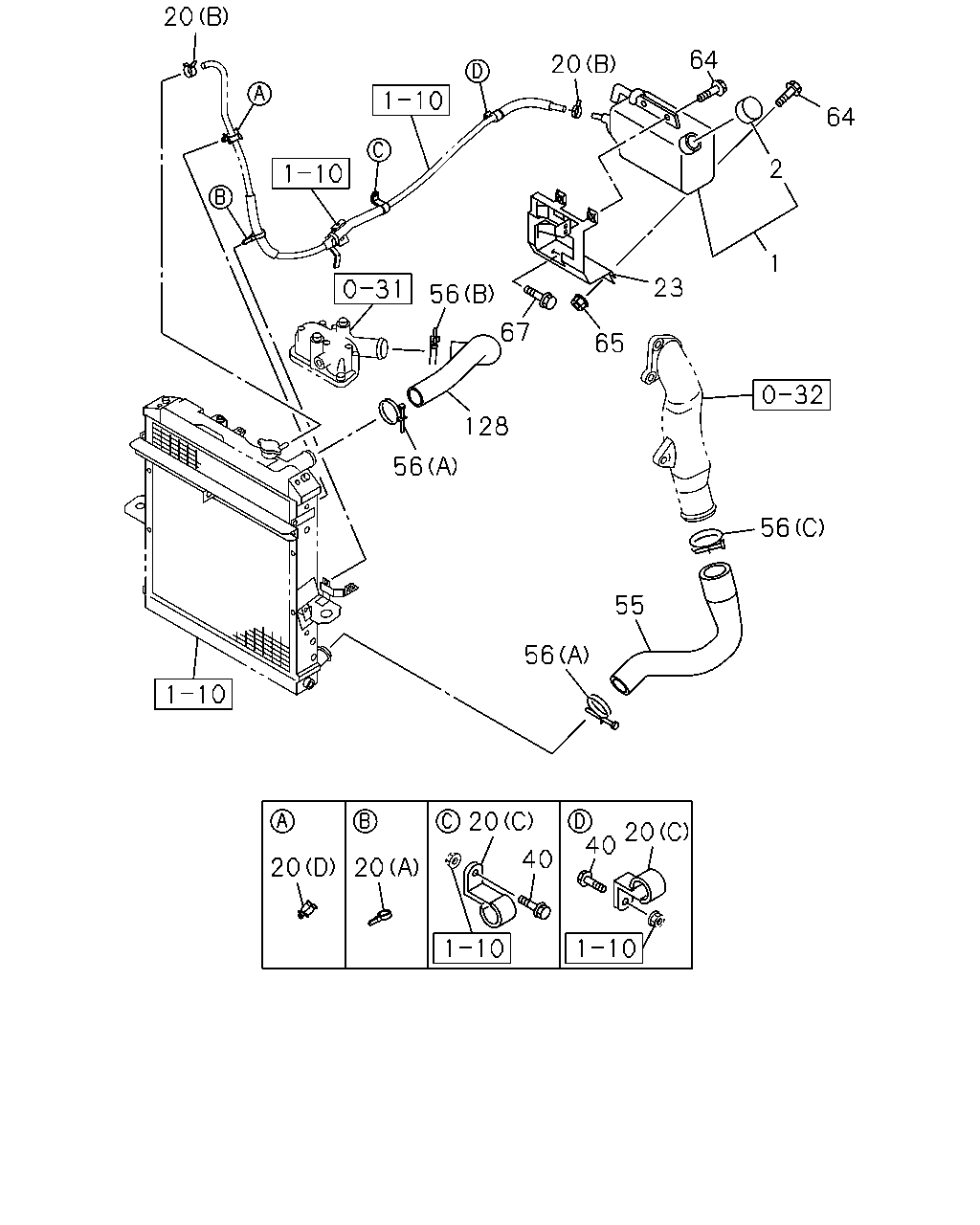

çizim 484201
20 56 128 56 56 55 56 1 23 65 67 2 64 64 20 20 20 20 40 20 40
BalonParca AdiParca NoAdetTipApplied Date
1 TANK; SURGE,RAD 8-98171-757-0 01 1 1507-
2 CAP; SURGE TANK 8-98178-074-0 01 1 1507-
20 CLIP; HOSE,RAD
(C) ID=12 H=24 L=20 		1-09700-605-0 02 1 1507-
20 CLIP; HOSE,RAD
(B) ID=11.5 		8-97375-638-0 02 1 1507-
20 CLIP; HOSE,RAD
(D) ID=12 		8-98029-256-0 01 1 1507-
20 CLIP; HOSE,RAD
(A) ID=20 L=50 		9-09917-430-0 01 1 1507-
23 BRACKET; RESERVE TANK 8-98253-099-1 01 1 1507-
40 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1507-
55 HOSE; WATER,RAD OUTLET 8-98235-622-0 01 1 1507-
56 CLIP; WATER HOSE,RAD
(B) ID=52 		1-09704-057-0 01 1 1507-
56 CLIP; WATER HOSE,RAD
(A) ID=48 		8-98133-956-0 02 1 1507-
56 CLIP; WATER HOSE,RAD
(C) ID=62 		8-98133-957-0 01 1 1507-
64 BOLT; BRKT,SUB TANK
M8X25 W/LK&PL WASHER 		1-09030-093-0 03 1 1507-
65 NUT; BRKT,SUB TANK
M8 FLANGE 		0-91180-108-0 01 1 1507-
67 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 03 1 1507-
128 HOSE; WATER,RAD INL 8-98107-609-0 01 1 1507-
