◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11683 - FSR RHD EUROPE EURO6 SPACECAB EVSC ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-01 - ACCELERATOR PEDAL AND CONTROL ▶
1-01 — ACCELERATOR PEDAL AND CONTROL (#164068) — 19 parça

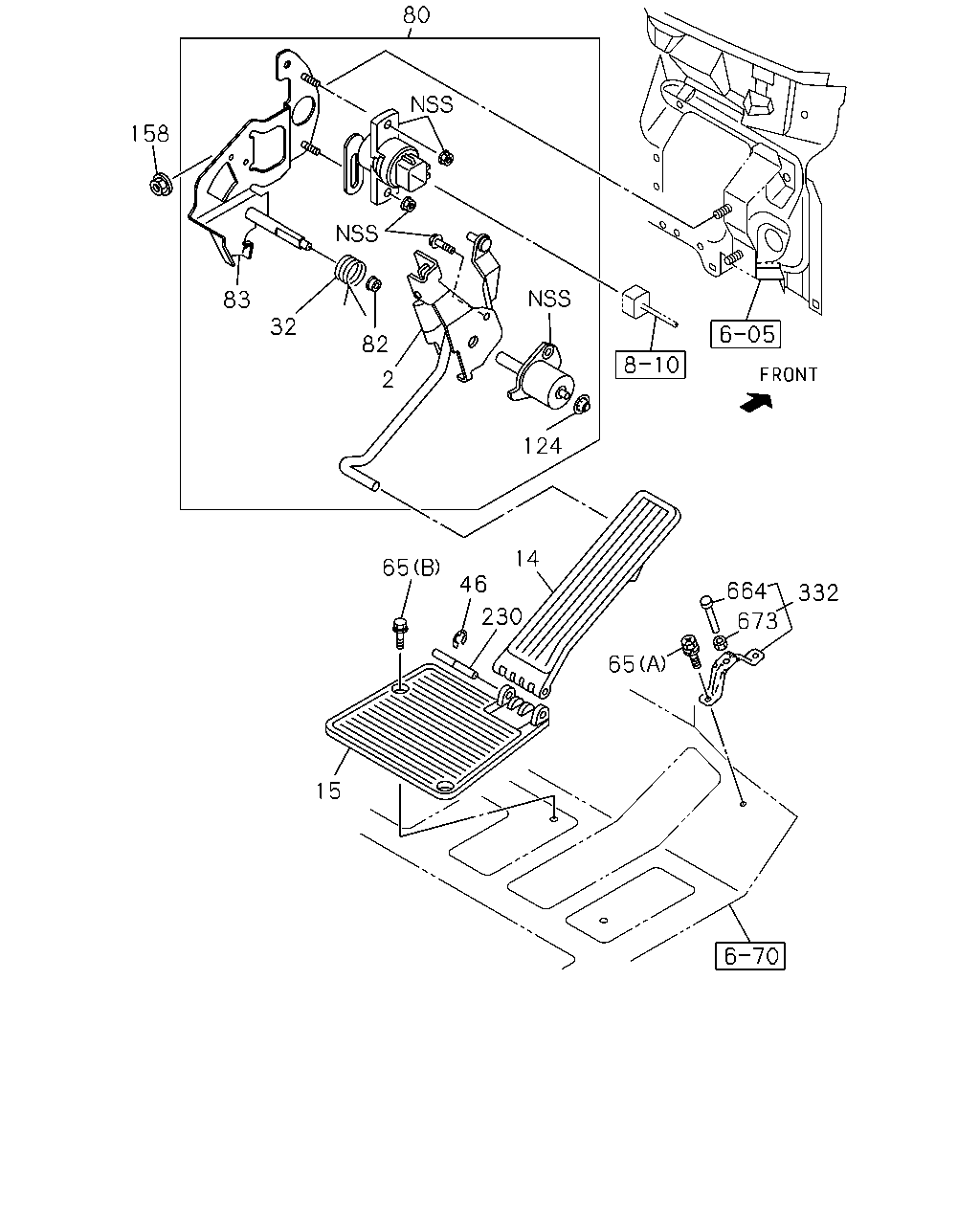

çizim 484191
80 158 83 32 82 2 124 65 15 46 230 14 65 664 673 332
BalonParca AdiParca NoAdetTipApplied Date
2 LEVER; ENG CONT 8-98049-120-1 01 1 1507-
14 PAD; PEDAL,ACCEL 8-98089-176-0 01 1 1507-
15 STAND; HEEL,ACCEL PEDAL 8-98089-191-1 01 1 1507-
32 SPRING; RETURN,ACCEL PEDAL 8-98031-665-0 01 1 1507-
46 RING; SNAP,ACCEL CONT PEDAL
ID=4 		0-91805-504-0 01 1 1507-
65 BOLT
(B) M6X28 W/LK&PL WASHER 		1-09980-543-0 02 1 1507-
65 BOLT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1507-
80 LINK ASM; ENG CONT 8-98038-418-4 01 1 1507-
82 BUSHING; ENG CONT LVR 8-97581-053-0 01 1 1507-
83 BRACKET; CONT LINK 8-98020-217-0 01 1 1507-
124 NUT; LEVER
ID=7.9 PUSH NUT 		8-94368-617-0 01 1 1507-
158 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1507-
230 PIN; JOINT,ACCEL PEDAL TO BRKT 8-98089-193-0 01 1 1507-
332 BRACKET; ACCEL PEDAL STOPPER 8-98011-468-2 01 1 1507-
664 BOLT; STOPPER
M8X40 		0-20850-840-0 01 1 1507-
673 NUT; STOPPER
M8 		0-91110-508-0 01 1 1507-

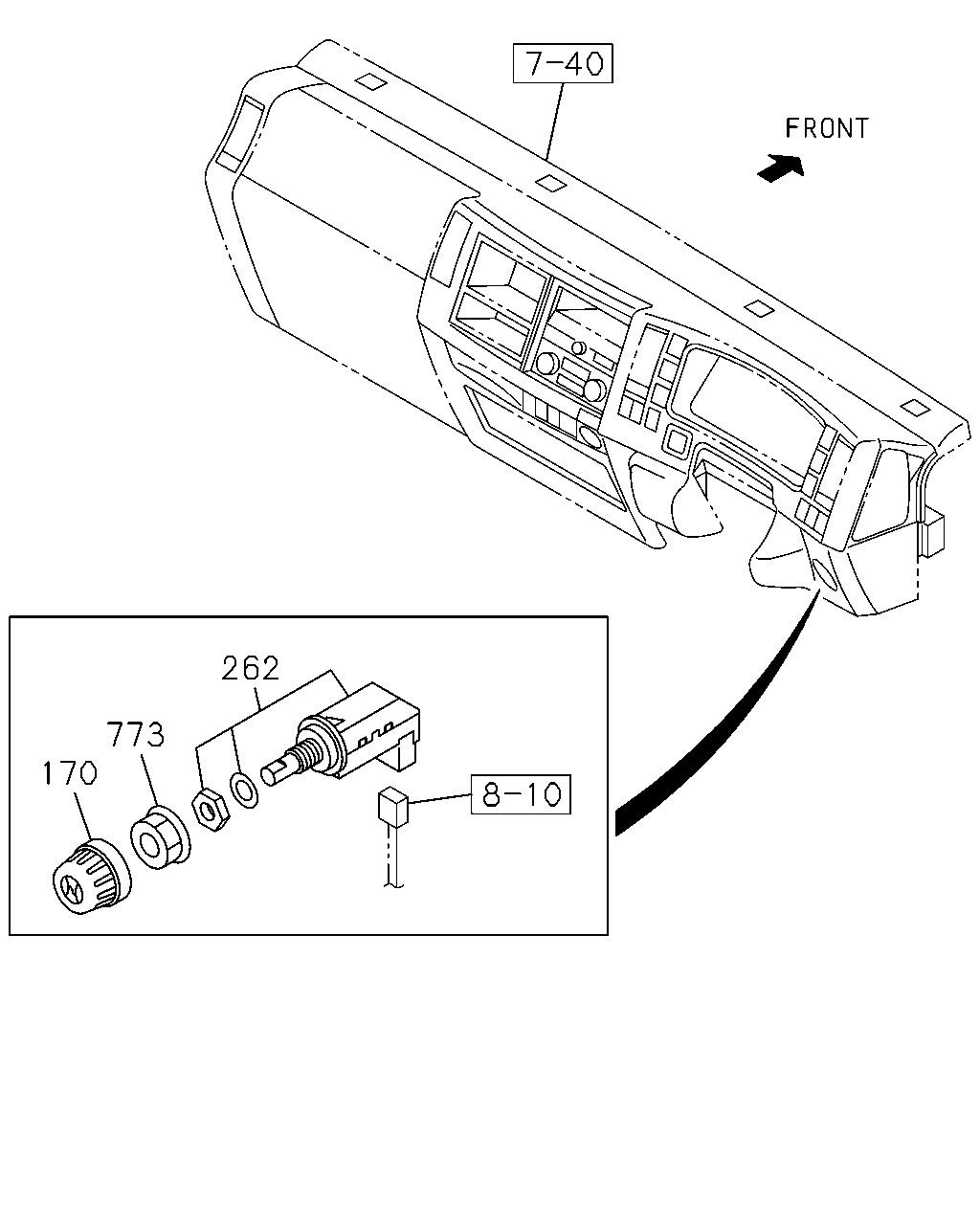

çizim 485158
262 773 170
BalonParca AdiParca NoAdetTipApplied Date
170 KNOB 8-98013-420-0 01 1 1507-
262 SWITCH; ACCEL,IDLE 8-98013-418-0 01 1 1507-
773 HOLDER; ACCEL PEDAL 8-97352-127-0 01 1 1507-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
