0-41 — FUEL FILTER AND BRACKET (#164055) — 18 parça

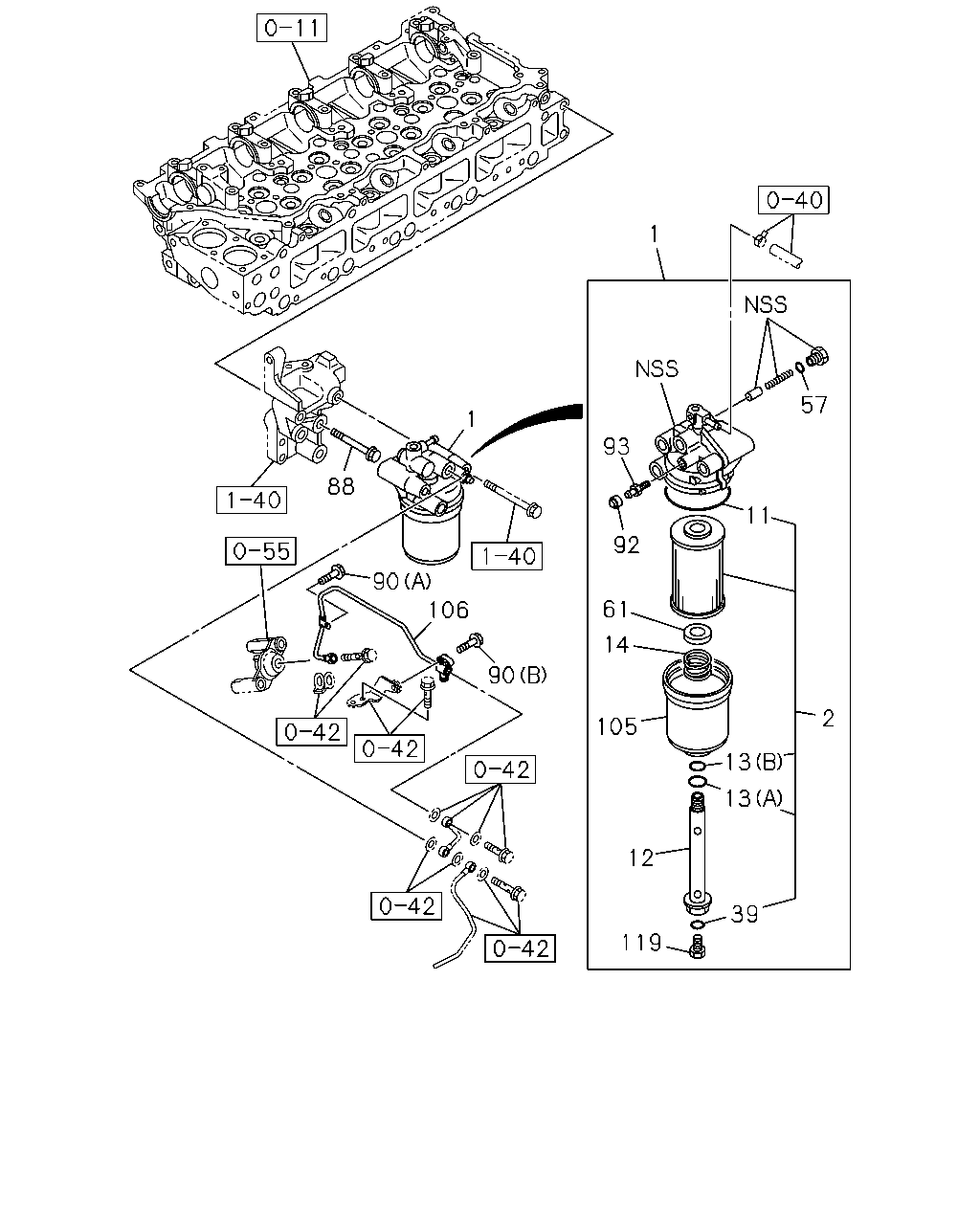

çizim 484135
1 57 11 93 92 61 14 105 12 13 13 2 39 119 90 106 1 90 88
BalonParca AdiParca NoAdetTipApplied Date
1 FILTER ASM; FUEL 8-98087-925-4 01 1 1507-
2 ELEMENT KIT; FUEL FILTER 8-98147-525-0 01 1 1507-
11 GASKET; CASE TO BODY,FUEL FILTER 8-98024-708-0 01 1 1507-
12 BOLT; CENTER,FUEL FILTER 8-98093-406-0 01 1 1507-
13 GASKET; CENTER BOLT
(A) 		8-98158-464-0 01 1 1507-
13 GASKET; CENTER BOLT
(B) 		8-98165-968-0 01 1 1507-
14 SPRING; ELEMENT SUPPORT,FUEL FILTER 8-98093-413-0 01 1 1507-
39 GASKET; DRAIN PLUG 8-98158-466-0 01 1 1507-
57 GASKET; PLUG 8-98159-365-0 01 1 1507-
61 SEAT; SPR ELEMENT 8-98110-233-0 01 1 1507-
88 BOLT; BRKT,FUEL FILTER
M12X80 		0-28151-280-0 03 1 1507-
90 BOLT; PIPE TO BRKT
(A) M6X16 FLANGE 		0-28050-616-0 01 1 1507-
90 BOLT; PIPE TO BRKT
(B) M8X35 FLANGE 		0-28050-835-0 01 1 1507-
92 CAP; FUEL FILTER 8-98034-314-0 01 1 1507-
93 CONNECTOR; FUEL FILTER
M8X10 		8-98034-312-0 01 1 1507-
105 CASE; FUEL FILTER 8-98093-416-0 01 1 1507-
106 PIPE; FUEL 8-98202-495-0 01 1 1507-
119 PLUG; DRAIN,FUEL FILTER
M10 		1-09000-105-0 01 1 1507-
