0-32 — WATER PIPING; ENGINE
(#164047) — 50 parça
◀

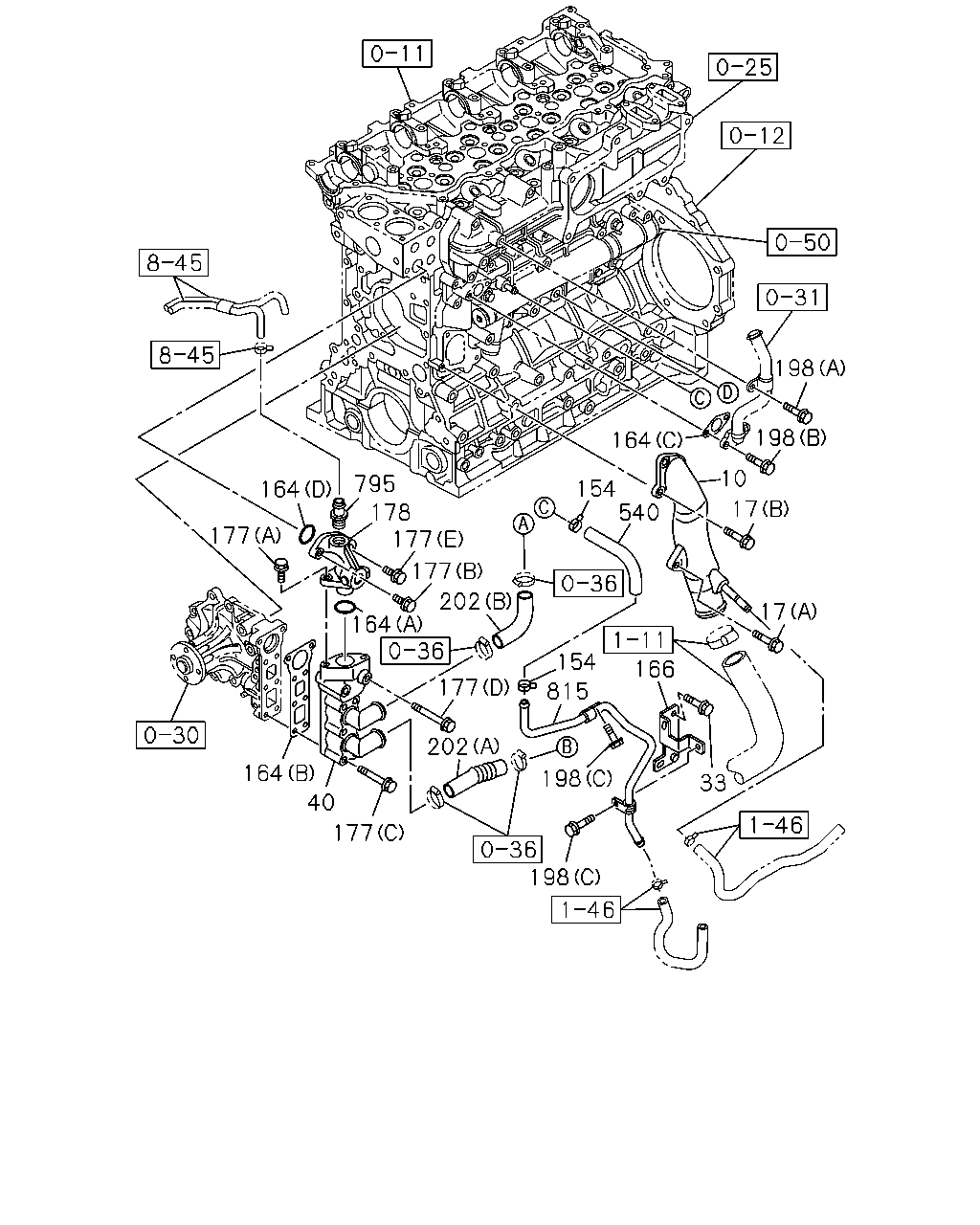

[032A] SUCTION PIPE AND WATER DUCT (28 parça)

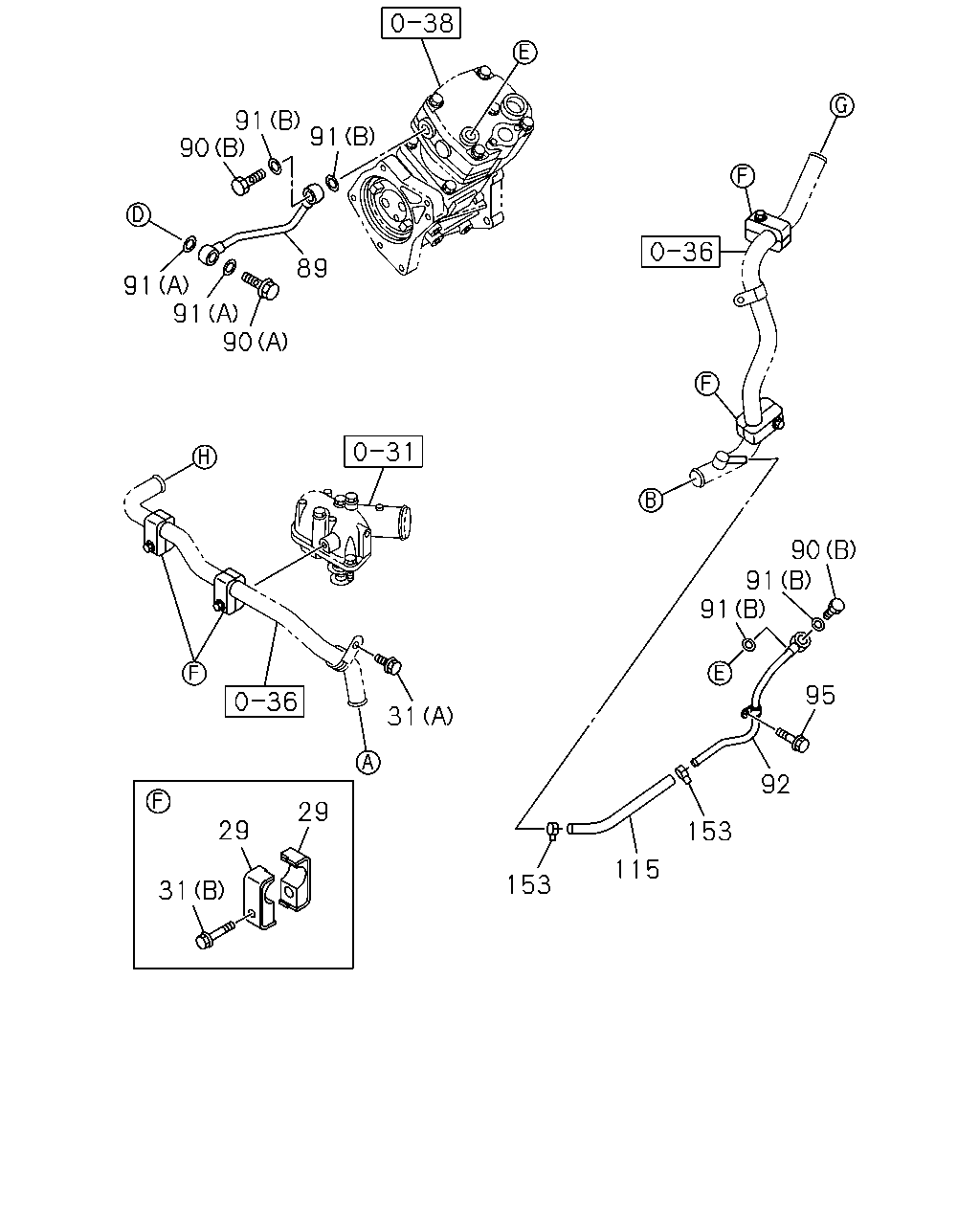

[032A] AIR COMPRESSOR PIPING (12 parça)

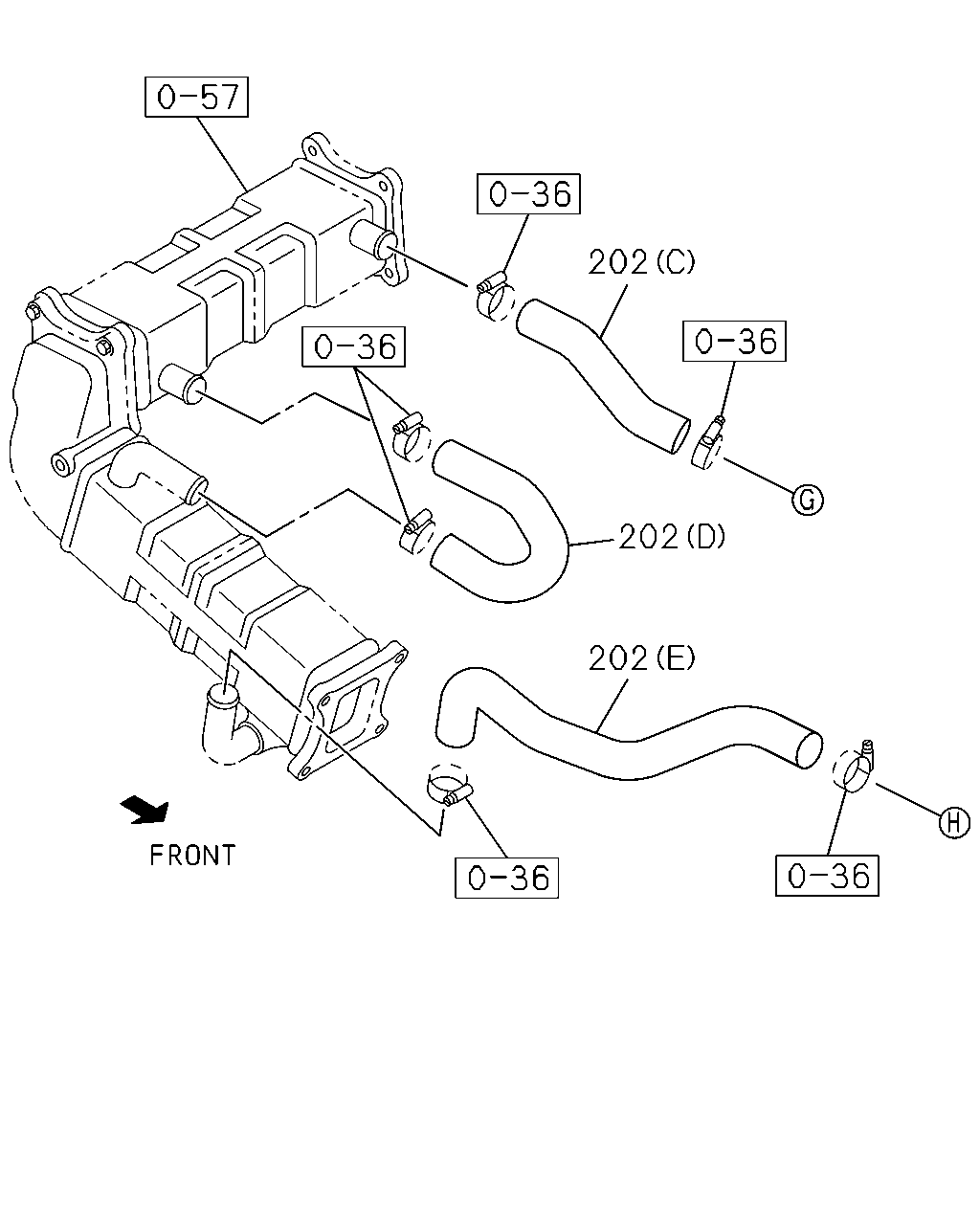

[032A] HOSE (5 parça)

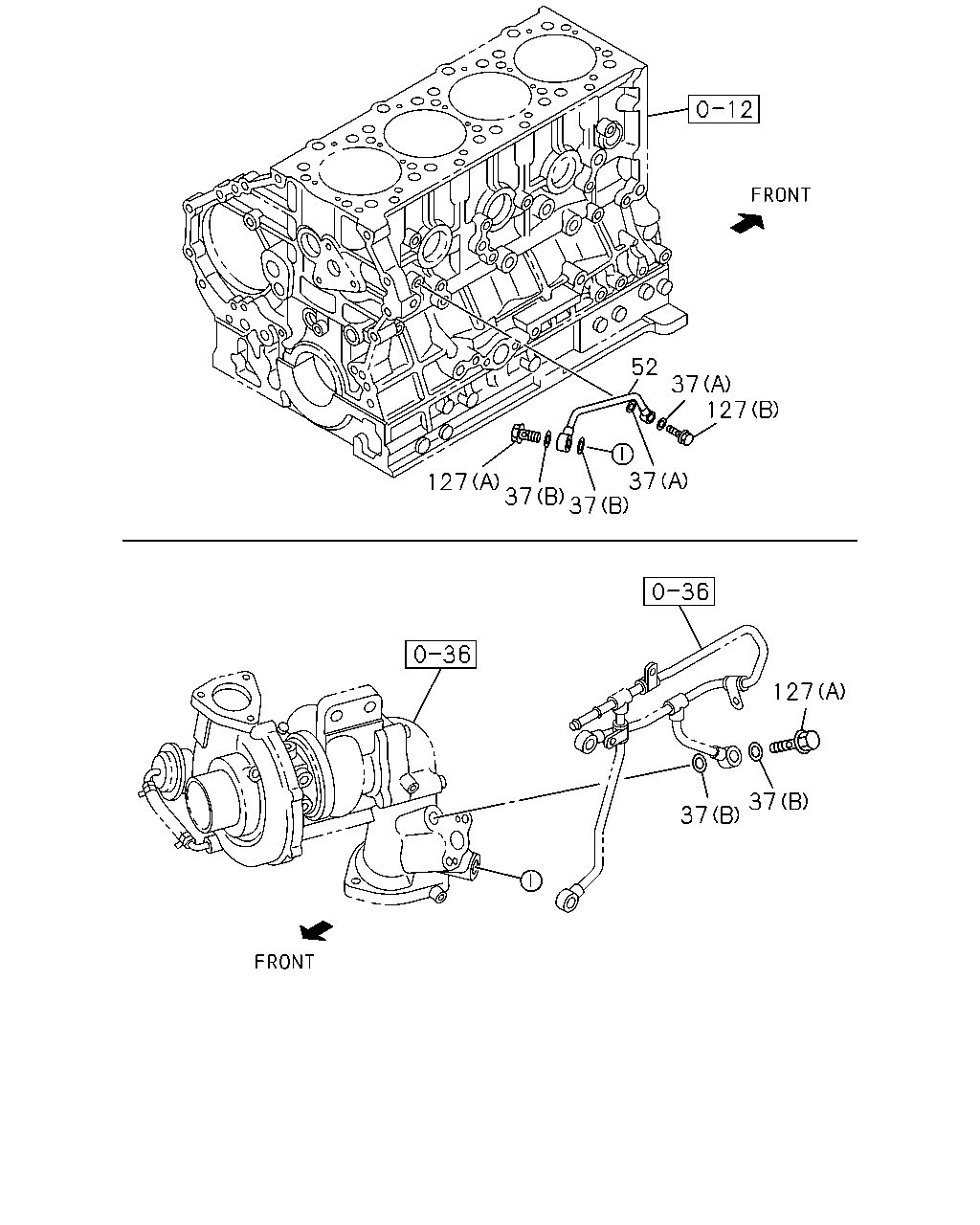

[032A] WATER FEED PIPE (5 parça)
▶
164
177
795
177
178
177
202
177
202
198
198
33
166
154
815
17
17
10
198
198
164
154
164
40
177
540
164
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
PIPE; SUCTION
8-98201-485-0
01
1
1507-
17
BOLT; SUCTION PIPE
(A) M10X25 FLANGE
0-28151-025-0
01
1
1507-
17
BOLT; SUCTION PIPE
(B) M8X48 FLANGE
8-94458-473-1
01
1
1507-
33
BOLT; BRKT
M10X20 FLANGE
0-28151-020-0
01
1
1507-
40
DUCT; WATER
8-98287-948-0
01
1
1507-
154
CLIP; WATER HOSE
ID=16
8-97329-628-0
02
1
1507-
164
GASKET
(B)
8-98092-274-0
01
1
1507-
164
GASKET
(C)
8-98096-166-0
01
1
1507-
164
GASKET
(A) ID=31.2
8-98276-756-0
01
1
1507-
164
GASKET
(D) ID=35.2
8-98296-500-0
01
1
1507-
166
BRACKET; CLIP
8-98201-489-1
01
1
1507-
177
BOLT; WATER DUCT
(A) M8X20 FLANGE
0-28050-820-0
02
1
1507-
177
BOLT; WATER DUCT
(B) M8X25 FLANGE
0-28050-825-0
01
1
1507-
177
BOLT; WATER DUCT
(C) M8X60 FLANGE
0-28050-860-0
06
1
1507-
177
BOLT; WATER DUCT
(D) M8X80 FLANGE
0-28050-880-0
02
1
1507-
177
BOLT; WATER DUCT
(E) M16X40 FLANGE
8-97359-817-0
01
1
1507-
178
DUCT; WATER,BYPASS
8-98287-952-0
01
1
1507-
198
BOLT; PIPE
(A) M8X12 FLANGE
0-28050-812-0
01
1
1507-
198
BOLT; PIPE
(C) M8X16 FLANGE
0-28050-816-0
02
1
1507-
198
BOLT; PIPE
(B) M8X20 FLANGE
0-28050-820-0
02
1
1507-
202
HOSE; RUBBER,EGR COOLER
(A)
8-98096-660-0
01
1
1507-
202
HOSE; RUBBER,EGR COOLER
(B)
8-98096-661-0
01
1
1507-
202
HOSE; RUBBER,EGR COOLER
(C)
8-98096-831-0
01
1
1507-
202
HOSE; RUBBER,EGR COOLER
(D)
8-98112-202-2
01
1
1507-
202
HOSE; RUBBER,EGR COOLER
(E)
8-98112-203-2
01
1
1507-
540
HOSE; WATER,DEF TANK FEED
8-98309-726-0
01
1
1507-
795
JOINT; PIPE,HEATER
8-94396-180-0
01
1
1507-
815
PIPE; WATER,DEF TANK FEED
8-98309-724-0
01
1
1507-
91
91
90
89
90
91
91
90
91
91
95
92
153
115
153
29
29
31
31
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
CLIP; PIPE
ID=24.5 L=22
8-97603-362-1
08
1
1507-
31
BOLT; CLIP
(A) M8X16 FLANGE
0-28050-816-0
01
1
1507-
31
BOLT; CLIP
(B) M8X50 FLANGE
0-28050-850-0
04
1
1507-
89
PIPE; WATER,AIR CMPR,IN
8-98140-112-0
01
1
1507-
90
BOLT; EYE,WATER PIPE,AIR CMPR
(A) M14X27 EYE-BOLT
1-09675-193-0
01
1
1507-
90
BOLT; EYE,WATER PIPE,AIR CMPR
(B) M16X28
8-97245-666-0
02
1
1507-
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2
1-09630-086-0
04
1
1507-
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2
8-98251-345-0
02
1
1507-
92
PIPE; WATER,AIR CMPR,OUT
8-98270-885-0
01
1
1507-
95
BOLT; CLIP
M6X16 FLANGE
0-28050-616-0
01
1
1507-
115
HOSE; RUBBER
8-98153-121-1
01
1
1507-
153
CLIP; RUBBER HOSE
ID=12.8
8-94367-943-0
02
1
1507-
202
202
202
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
202
HOSE; RUBBER,EGR COOLER
(A)
8-98096-660-0
01
1
1507-
202
HOSE; RUBBER,EGR COOLER
(B)
8-98096-661-0
01
1
1507-
202
HOSE; RUBBER,EGR COOLER
(C)
8-98096-831-0
01
1
1507-
202
HOSE; RUBBER,EGR COOLER
(D)
8-98112-202-2
01
1
1507-
202
HOSE; RUBBER,EGR COOLER
(E)
8-98112-203-2
01
1
1507-
52
37
37
37
37
127
127
127
37
37
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
37
GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=16.0
9-09571-410-0
02
1
1507-
37
GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=20.0
9-09571-414-0
04
1
1507-
52
PIPE; WATER FEED
8-98107-152-0
01
1
1507-
127
BOLT; EYE
(A) M14X27 FLANGE
1-09675-086-0
02
1
1507-
127
BOLT; EYE
(B) M10X23
8-98037-824-0
01
1
1507-
