0-25 — INLET MANIFOLD (#164042) — 24 parça

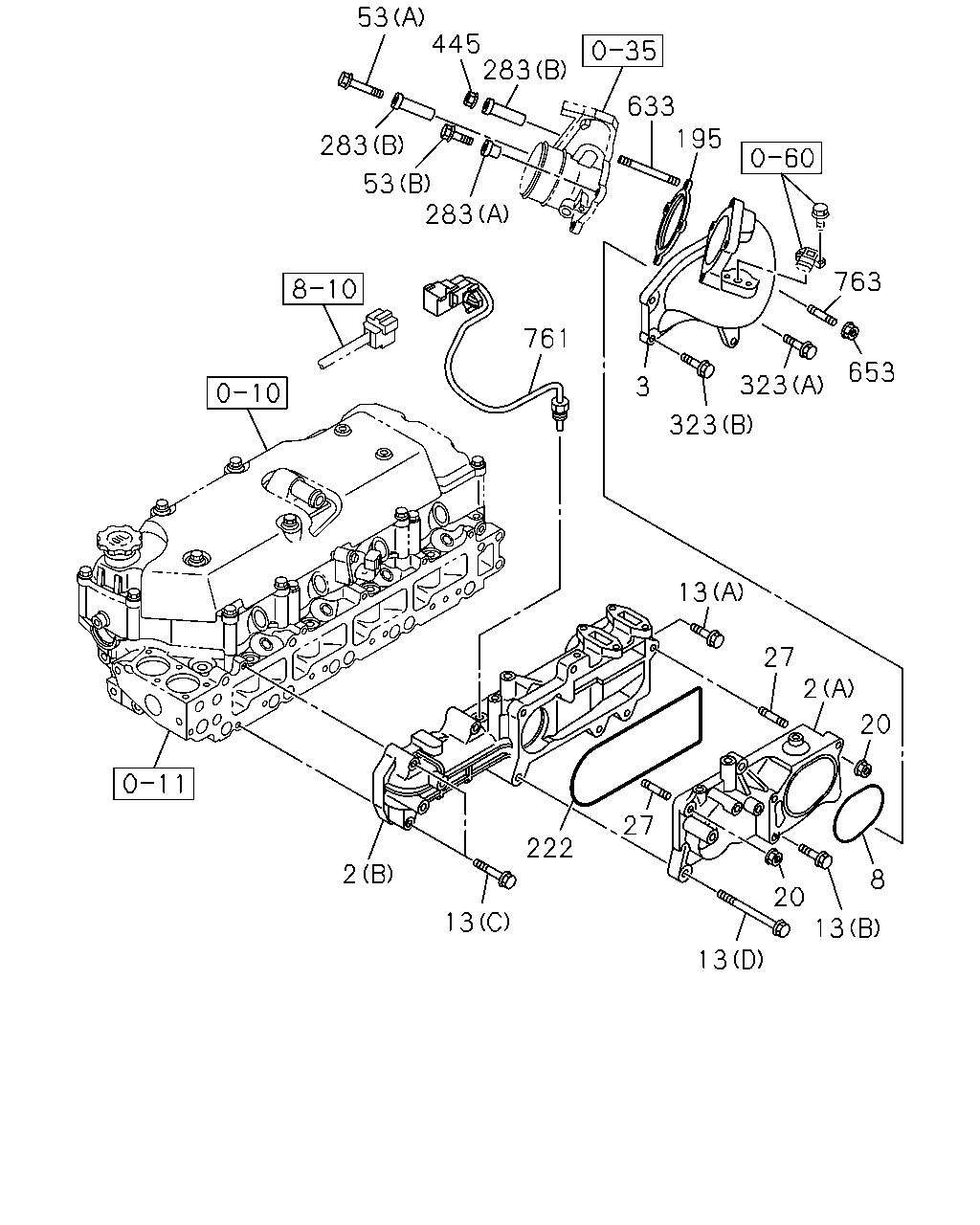

53 283 283 53 445 283 633 195 761 323 3 323 653 763 2 13 222 27 13 20 13 20 8 2 27 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	COVER; INL (B)	8-98072-556-4	01	1	1507-
2	COVER; INL (A)	8-98072-558-1	01	1	1507-
3	DUCT; INT	8-98110-214-1	01	1	1507-
8	GASKET; INT DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	9-09567-395-0	01	1	1507-
13	BOLT; INL MANIF (A) M8X30 FLANGE	0-28050-830-0	04	1	1507-
13	BOLT; INL MANIF (B) M8X35 FLANGE	0-28050-835-0	02	1	1507-
13	BOLT; INL MANIF (C) M8X60 FLANGE	0-28050-860-0	04	1	1507-
13	BOLT; INL MANIF (D) M8X120 FLANGE	0-28055-812-0	02	1	1507-
20	NUT; INL MANIF M8 FLANGE	0-91180-108-0	02	1	1507-
27	STUD; INL MANIF M8X35 L=47	0-41010-835-0	02	1	1507-
53	BOLT; INL PIPE (A) M8X80 FLANGE	0-28050-880-0	01	1	1507-
53	BOLT; INL PIPE (B) M8X35 FLANGE	0-28650-835-0	02	1	1507-
195	GASKET; THROTTLE BODY INJECTOR ALSO INCLUDED IN GASKET SET(ENGINE). ID=88	8-97387-009-0	01	1	1507-
222	GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98072-559-0	01	1	1507-
283	RUBBER (A) L=18	8-97219-650-0	02	1	1507-
283	RUBBER (B) L=58	8-97387-995-1	02	1	1507-
323	BOLT; DUCT (A) M8X30 FLANGE	0-28050-830-0	01	1	1507-
323	BOLT; DUCT (B) M8X52 L=68	8-98048-395-0	02	1	1507-
445	NUT; THROTTLE BODY TO MANIF M8 FLANGE	0-91180-108-0	01	1	1507-
633	STUD; THROTTLE BODY M8X71 L=83	9-09830-212-0	01	1	1507-
653	NUT; DUCT,AIR INLET M8 FLANGE	0-91180-108-0	01	1	1507-
761	SENSOR; MANIF	8-97381-182-0	01	1	1507-
763	STUD M8X28 L=46	0-49140-828-0	01	1	1507-

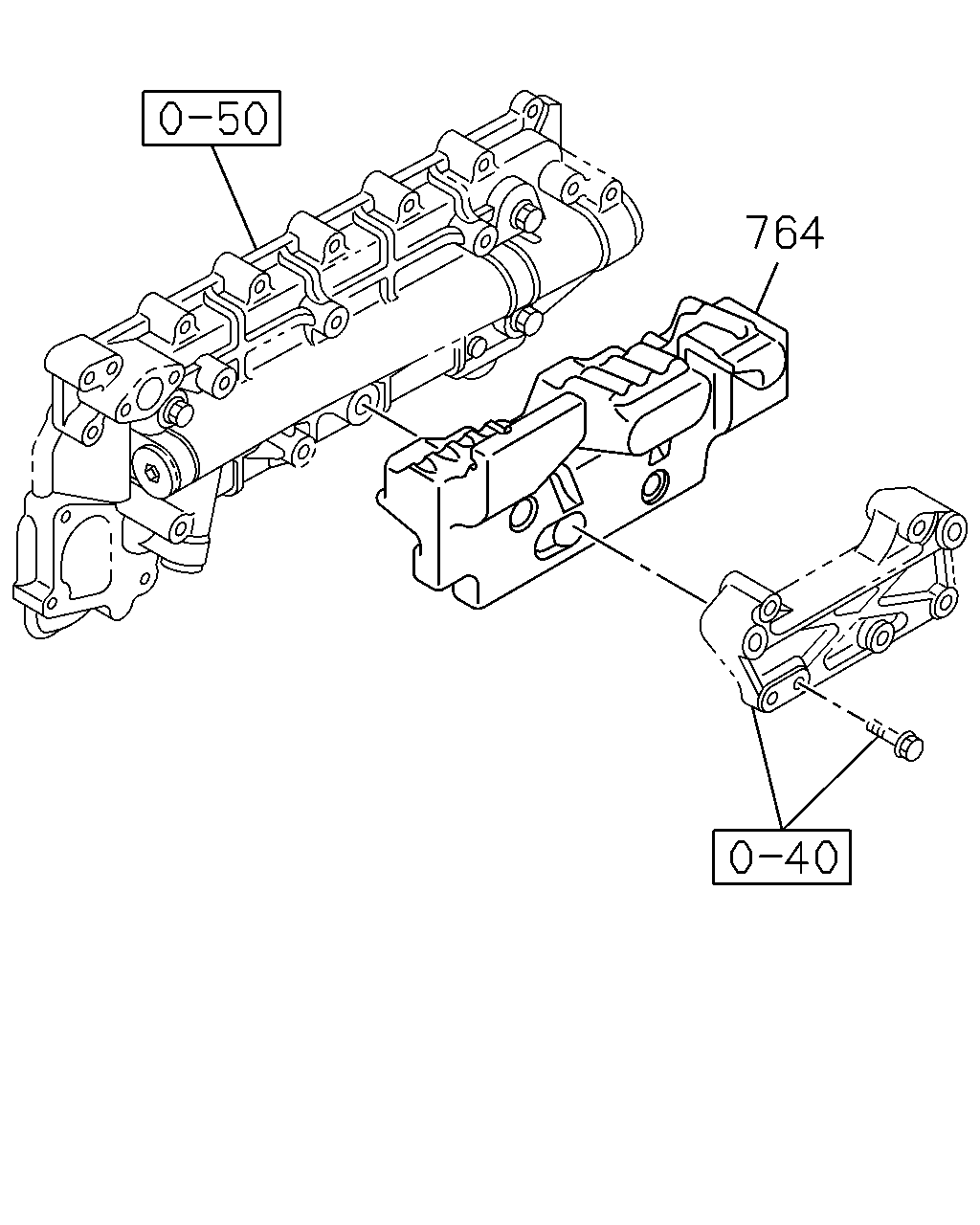

764

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	764	SPACER; INL COVER	8-98140-422-1	01	1	1507-
