2-31 — AIR CONTROL TRANSMISSION (A.C.T.) (#164026) — 65 parça

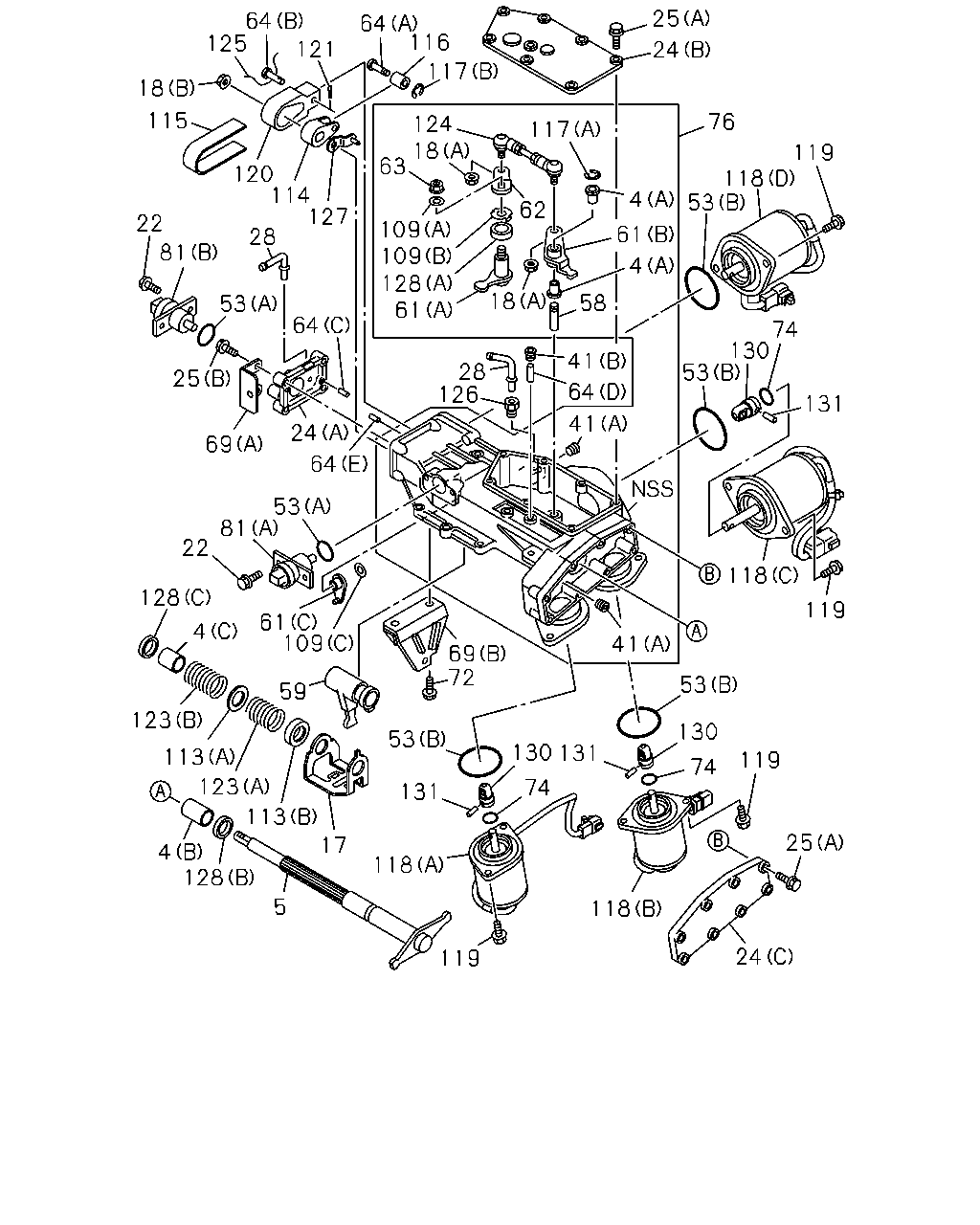

çizim 485066
25 24 76 119 118 53 74 130 53 131 118 119 53 130 119 74 25 24 118 119 118 5 74 130 131 131 53 72 69 17 113 128 4 123 113 123 59 109 61 4 128 22 81 53 41 41 64 41 28 126 64 24 69 25 64 53 81 22 28 61 18 58 4 61 4 62 117 124 18 63 109 128 109 127 114 120 115 18 125 64 121 64 116 117
BalonParca AdiParca NoAdetTipApplied Date
4 BUSHING; SHIFT UNIT
(A) ASM PART: A = 8-98302-712-0 		1-09330-144-0 02 1 -
4 BUSHING; SHIFT UNIT
(C), ID=20 OD=23 ASM PART: A = 8-98302-712-0 		1-33549-016-0 01 1 -
4 BUSHING; SHIFT UNIT
(B), ID=28 OD=32 ASM PART: A = 8-98302-712-0 		1-33549-104-0 01 1 -
5 ROD; SHIFT UNIT
ASM PART: A = 8-98302-712-0 		8-98046-922-0 01 1 -
17 YOKE; SHIFT UNIT
ASM PART: A = 8-98302-712-0 		1-33529-126-0 01 1 -
18 NUT; ROD
(B), M10 FLANGE ASM PART: A = 8-98302-712-0 		0-91180-110-0 01 1 -
18 NUT; ROD
(A), M8 FLANGE ASM PART: A = 8-98302-712-0 		1-09440-062-1 02 1 -
22 BOLT; SW
M6X12 FLANGE ASM PART: A = 8-98302-712-0 		0-28050-612-0 04 1 -
24 COVER; SHIFT UNIT
(C) ASM PART: A = 8-98302-712-0 		1-34141-023-1 01 1 -
24 COVER; SHIFT UNIT
(B) ASM PART: A = 8-98302-712-0 		1-34141-028-0 01 1 -
24 COVER; SHIFT UNIT
(A) ASM PART: A = 8-98302-712-0 		8-98047-742-0 01 1 -
25 BOLT; COVER
(A), M8X16 FLANGE ASM PART: A = 8-98302-712-0 		0-28050-816-0 15 1 -
25 BOLT; COVER
(B), M6X25 FLANGE ASM PART: A = 8-98302-712-0 		0-28650-625-0 04 1 -
28 PIPE; SHIFT UNIT
ASM PART: A = 8-98302-712-0 		8-97358-318-0 02 1 -
41 PLUG; SHIFT UNIT
(B), PT3/8 ASM PART: A = 8-98302-712-0 		1-09605-056-0 01 1 -
41 PLUG; SHIFT UNIT
(A) ASM PART: A = 8-98302-712-0 		8-94403-163-0 02 1 -
53 GASKET
(A), ID=26.8 ASM PART: A = 8-98302-712-0 		1-09623-058-0 02 1 -
53 GASKET
(B) ASM PART: A = 8-98302-712-0 		9-09561-360-0 04 1 -
58 SHAFT; GEAR SHIFT UNIT
ASM PART: A = 8-98302-712-0 		1-33659-240-0 01 1 -
59 LEVER; INNER,GEAR SHIFT UNIT
ASM PART: A = 8-98302-712-0 		1-33521-188-0 01 1 -
61 LEVER; GEAR SHIFT UNIT
(A) ASM PART: A = 8-98302-712-0 		1-33522-194-0 01 1 -
61 LEVER; GEAR SHIFT UNIT
(C) ASM PART: A = 8-98302-712-0 		8-98186-070-0 01 1 -
61 LEVER; GEAR SHIFT UNIT
(B) ASM PART: A = 8-98302-712-0 		8-98302-746-0 01 1 -
62 LEVER; OUTER,GEAR SHIFT UNIT
ASM PART: A = 8-98302-712-0 		8-98302-744-0 01 1 -
63 NUT; LEVER,GEAR SHIFT UNIT
M10 FLANGE ASM PART: A = 8-98302-712-0 		0-91180-110-0 01 1 -
64 PIN; GEAR SHIFT UNIT
(B) ASM PART: A = 8-98302-712-0 		0-82353-827-0 01 1 -
64 PIN; GEAR SHIFT UNIT
(A) ASM PART: A = 8-98302-712-0 		1-31424-011-0 01 1 -
64 PIN; GEAR SHIFT UNIT
(D), OD=6 L=40 ASM PART: A = 8-98302-712-0 		8-98036-471-1 01 1 -
64 PIN; GEAR SHIFT UNIT
(E), OD=3 L=6.36 ASM PART: A = 8-98302-712-0 		8-98046-977-0 02 1 -
64 PIN; GEAR SHIFT UNIT
(C), OD=5 L=10 ASM PART: A = 8-98302-712-0 		9-08150-510-0 02 1 -
69 BRACKET; SHIFT UNIT
(B) ASM PART: A = 8-98302-712-0 		1-82569-396-2 01 1 -
69 BRACKET; SHIFT UNIT
(A) ASM PART: A = 8-98302-712-0 		1-82698-527-0 01 1 -
72 BOLT; BRKT
M12X30 FLANGE ASM PART: A = 8-98302-712-0 		0-28151-230-0 02 1 -
74 RING; RETAINING
ASM PART: A = 8-98302-712-0 		8-98147-139-0 03 1 -
76 CASE; SHIFT UNIT
ASM PART: A = 8-98302-712-0 		8-98302-738-0 01 1 -
81 SENSOR; SHIFT UNIT
(A) ASM PART: A = 8-98302-712-0 		8-98107-824-0 01 1 -
81 SENSOR; SHIFT UNIT
(B) ASM PART: A = 8-98302-712-0 		8-98123-907-0 01 1 -
109 WASHER; PL
(C), ID=12.5 OD=26 ASM PART: A = 8-98302-712-0 		0-91610-612-0 01 1 -
109 WASHER; PL
(A), ID=10.5 OD=22 ASM PART: A = 8-98302-712-0 		0-91614-610-0 01 1 -
109 WASHER; PL
(B), OD=40 ASM PART: A = 8-98302-712-0 		1-09532-008-0 01 1 -
113 SEAT; SPRING
(B) ASM PART: A = 8-98302-712-0 		1-33537-024-0 01 1 -
113 SEAT; SPRING
(A) ASM PART: A = 8-98302-712-0 		1-33549-404-0 01 1 -
114 CAM; GEAR SHIFT UNIT
ASM PART: A = 8-98302-712-0 		8-98046-921-0 01 1 -
115 GUIDE; PLATE,CAM
ASM PART: A = 8-98302-712-0 		1-33549-401-0 01 1 -
116 ROLLER; SHAFT
ASM PART: A = 8-98302-712-0 		1-33529-121-0 01 1 -
117 RING; SNAP
(B), ID=4 ASM PART: A = 8-98302-712-0 		0-91805-504-0 01 1 -
117 RING; SNAP
(A), ID=10 ASM PART: A = 8-98302-712-0 		0-91805-510-0 01 1 -
118 SOLENOID ASM; GEAR SHIFT UNIT
(A) ASM PART: A = 8-98302-712-0 		8-98283-991-0 01 1 -
118 SOLENOID ASM; GEAR SHIFT UNIT
(B) ASM PART: A = 8-98302-712-0 		8-98283-992-0 01 1 -
118 SOLENOID ASM; GEAR SHIFT UNIT
(C) ASM PART: A = 8-98302-712-0 		8-98283-994-0 01 1 -
118 SOLENOID ASM; GEAR SHIFT UNIT
(D) ASM PART: A = 8-98302-712-0 		8-98283-995-0 01 1 -
119 BOLT; SOLENOID
M10X25 FLANGE ASM PART: A = 8-98302-712-0 		0-28751-025-0 08 1 -
120 PLATE; CAM
ASM PART: A = 8-98302-712-0 		1-33529-125-0 01 1 -
121 PIN; SPRIT
L=27.7 ASM PART: A = 8-98302-712-0 		1-09747-005-0 01 1 -
123 SPRING; SELECT
(A) ASM PART: A = 8-98302-712-0 		1-09580-593-0 01 1 -
123 SPRING; SELECT
(B) ASM PART: A = 8-98302-712-0 		1-09580-594-0 01 1 -
124 ROD ASM; LINK
ASM PART: A = 8-98302-712-0 		8-98302-741-0 01 1 -
125 WIRE
L=200 ASM PART: A = 8-98302-712-0 		9-08351-020-0 01 1 -
126 PLUG; BREATHER
ASM PART: A = 8-98302-712-0 		1-33149-023-0 01 1 -
127 PLATE; PIN,CAM TO SHIFT SENSOR
ASM PART: A = 8-98302-712-0 		8-98046-924-0 01 1 -
128 SEAL; OIL,SHIFT UNIT
(A), OD=30 ASM PART: A = 8-98302-712-0 		1-09625-386-0 01 1 -
128 SEAL; OIL,SHIFT UNIT
(C) ASM PART: A = 8-98302-712-0 		1-09625-612-1 01 1 -
128 SEAL; OIL,SHIFT UNIT
(B), OD=41 ASM PART: A = 8-98302-712-0 		1-09625-647-0 01 1 -
130 JOINT; SOLENOID
ASM PART: A = 8-98302-712-0 		8-98147-138-1 03 1 -
131 PIN; STRAIGHT
ASM PART: A = 8-98302-712-0 		8-98147-341-0 03 1 -
