2-26B — MANUAL TRANSMISSION GEAR (#164023) — 106 parça

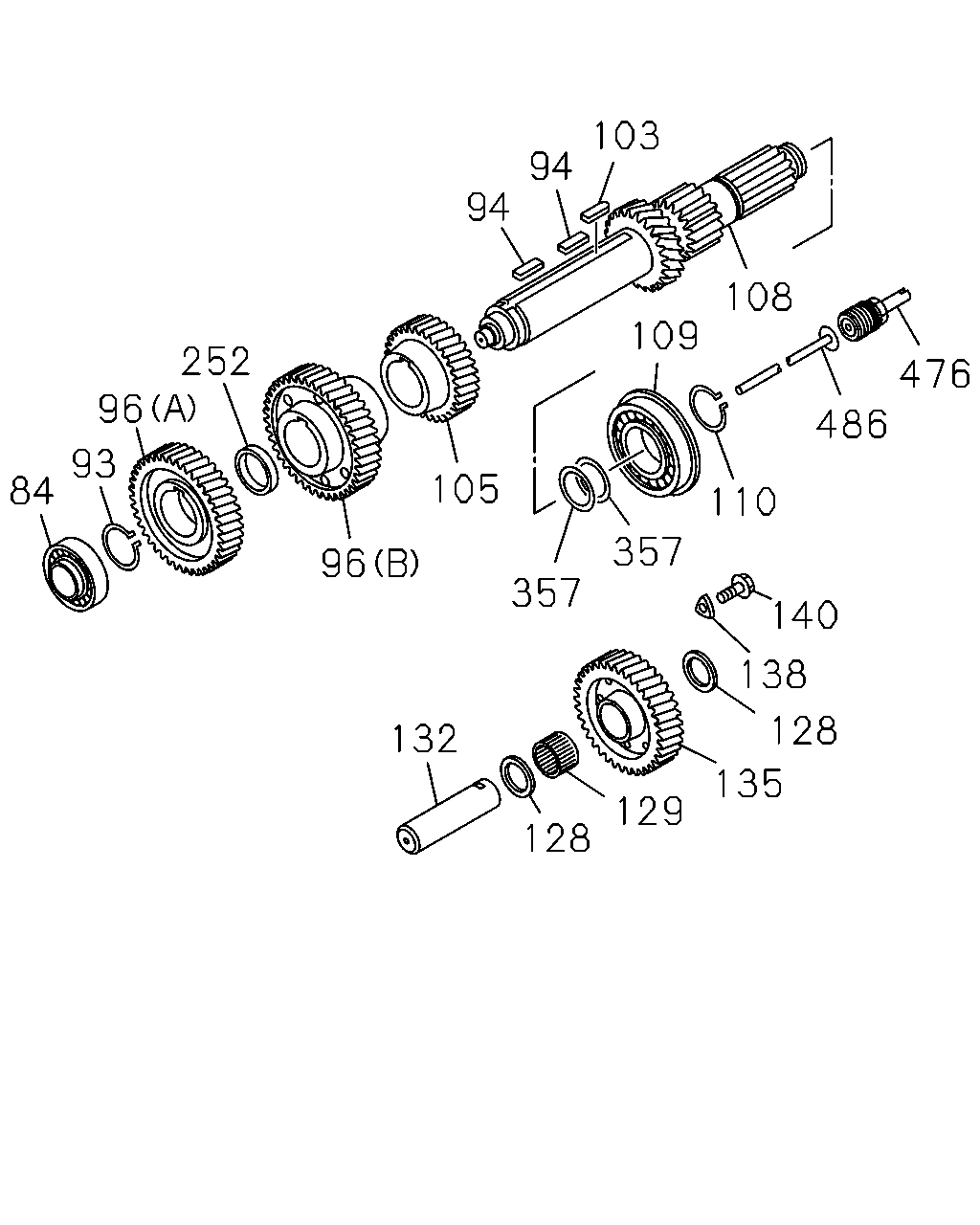

çizim 484279
103 94 94 252 96 93 84 96 105 109 108 476 486 110 357 357 132 128 128 135 140 138 129
BalonParca AdiParca NoAdetTipApplied Date
84 BEARING; COUNTER SHAFT,FRT
NSK 		1-09810-221-0 01 1 1507-
84 BEARING; COUNTER SHAFT,FRT
NTN 		1-09810-222-0 01 1 1507-
93 RING; SNAP,COUNTER FRT BRG 1-09588-149-0 01 1 1507-
94 KEY; FEATHER,COUNTER SHAFT
L=70 		1-09735-046-0 02 1 1507-
96 GEAR; COUNTER DRIVE
(A) Z=35 		1-33331-258-2 01 1 1507-
96 GEAR; COUNTER DRIVE
(B) Z=38 		1-33338-374-3 01 1 1507-
103 KEY; COUNTER GEAR
L=75.3 		1-09735-042-0 01 1 1507-
105 GEAR; 3RD,COUNTER
Z=36 		1-33338-373-1 01 1 1507-
108 SHAFT; COUNTER
Z=26-21 		8-98202-384-0 01 1 1507-
109 BEARING; COUNTER SHAFT,RR
NSK 		1-09810-186-0 01 1 1507-
109 BEARING; COUNTER SHAFT,RR
NTN 		1-09810-207-0 01 1 1507-
110 RING; SNAP,COUNTER BRG 1-09588-193-1 01 1 1507-
128 WASHER; THRUST,REV SHAFT
T=4.0 		9-33363-015-0 02 1 1507-
129 BEARING; NEEDLE,IDLER
NSK 		1-09811-384-0 01 1 1507-
129 BEARING; NEEDLE,IDLER
NTN 		1-09811-385-0 01 1 1507-
132 SHAFT; REV 1-33351-035-1 01 1 1507-
135 GEAR; REV IDLER
Z=30 		1-33361-081-1 01 1 1507-
138 PIECE; LK,REV SHAFT 9-33354-007-0 01 1 1507-
140 BOLT; LK PIECE
M10X25 		1-09049-006-1 01 1 1507-
252 SPACER 8-98202-499-1 01 1 1507-
357 RING 1-31349-044-0 04 1 1507-
476 ADAPTER; PUMP DRIVE 1-33339-091-1 01 1 1507-
486 NOZZLE; CONT SHAFT 1-33219-254-1 01 1 1507-

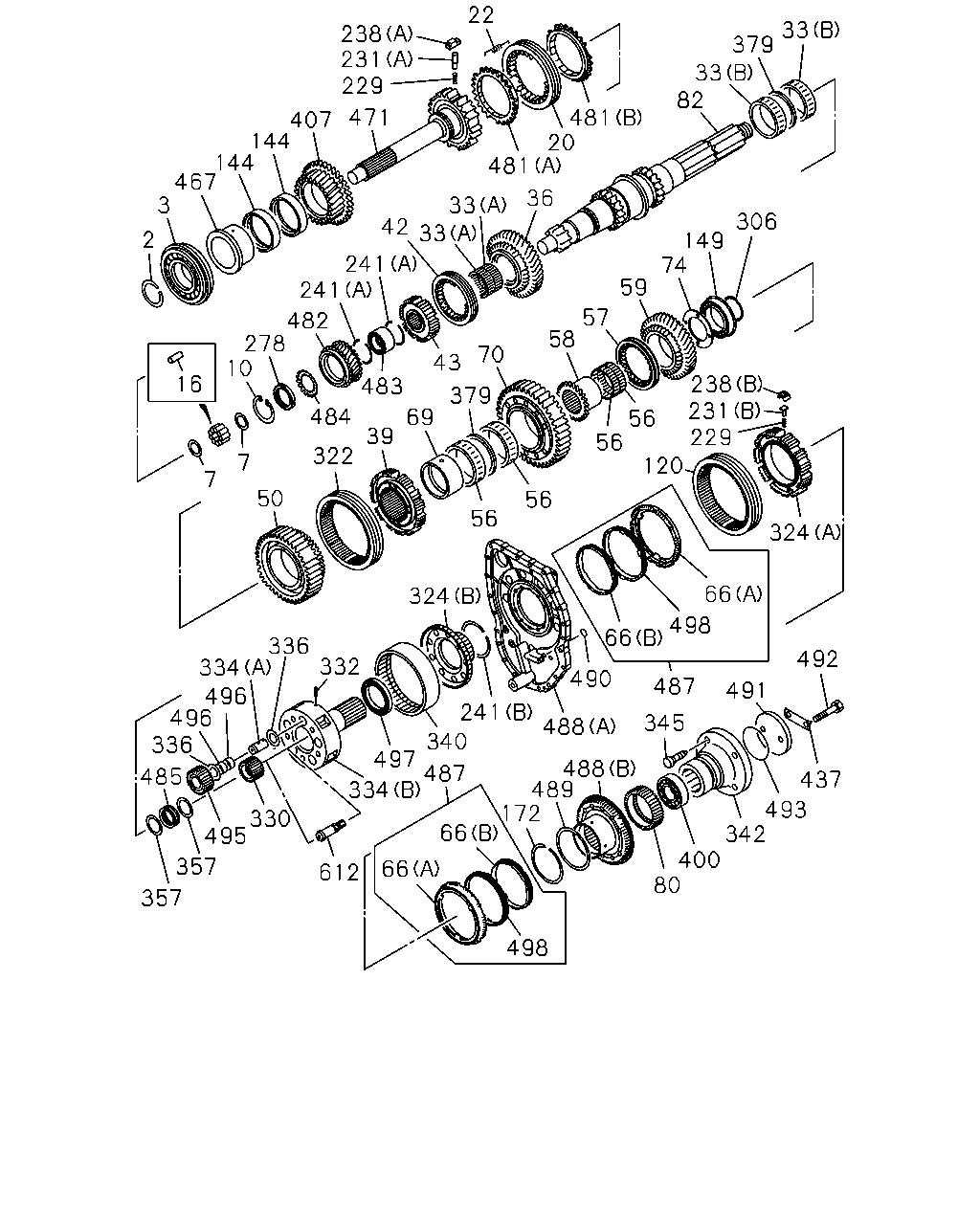

çizim 485146
238 229 231 22 471 407 144 144 467 3 2 16 7 7 10 278 482 241 241 42 33 33 481 20 481 36 82 33 379 33 306 149 74 59 57 58 70 43 483 484 50 322 39 69 379 56 56 56 56 238 120 229 231 324 66 498 66 487 345 490 488 241 324 332 336 341 496 496 336 485 495 357 357 330 497 487 334 489 172 66 66 612 498 80 342 340 488 491 437 493 492 400
BalonParca AdiParca NoAdetTipApplied Date
2 RING; SNAP,TOP GEAR SHAFT
ID=71 T=2.53 WHITE 		1-09588-181-0 AR 1 1507-
2 RING; SNAP,TOP GEAR SHAFT
ID=71 T=2.56 YELLOW 		1-09588-182-0 AR 1 1507-
2 RING; SNAP,TOP GEAR SHAFT
ID=71 T=2.60 BLUE 		1-09588-183-0 AR 1 1507-
2 RING; SNAP,TOP GEAR SHAFT
ID=71 T=2.64 GREEN 		1-09588-184-0 AR 1 1507-
3 BEARING; TOP GEAR SHAFT
NSK 		1-09810-278-0 01 1 1507-
7 WASHER; THRUST,MAINSHAFT 1-33239-262-0 02 1 1507-
10 RING; SNAP,PILOT BRG
OD=72.5 		9-09180-168-0 01 1 1507-
16 BEARING; PILOT,MAINSHAFT
NSK 		1-09810-260-0 16 1 1507-
16 BEARING; PILOT,MAINSHAFT
NTN 		1-09810-261-0 16 1 1507-
20 SLEEVE 1-33262-222-0 01 1 1507-
22 SPRING; BLOCK,INSERT 1-09583-171-0 03 1 1507-
33 BEARING; NEEDLE,3RD GEAR
(A) NTN 		1-09811-379-0 02 1 1507-
33 BEARING; NEEDLE,3RD GEAR
(B) NTN 		1-09811-423-0 02 1 1507-
36 GEAR; 3RD,MAINSHAFT
Z=41 		1-33253-680-1 01 1 1507-
39 HUB; CLU,LOW & 2ND 1-33261-279-1 01 1 1507-
42 SLEEVE 1-33262-222-0 01 1 1507-
43 HUB; CLU,3RD & 4TH,MAIN 1-33261-278-1 01 1 1507-
50 GEAR; 2ND,MAINSHAFT
Z=43 		1-33251-393-1 01 1 1507-
56 BEARING; NEEDLE,1ST,REV
NTN 		1-09811-423-0 04 1 1507-
57 SLEEVE; REV 1-33262-209-1 01 1 1507-
58 HUB; CLU,REV 1-33261-286-1 01 1 1507-
59 GEAR; REV MAINSHAFT
Z=44 		1-33257-081-2 01 1 1507-
66 RING; BLOCK,SYN
(A) 		8-98239-909-1 02 1 1507-
66 RING; BLOCK,SYN
(B) 		8-98239-911-1 02 1 1507-
69 COLLAR; 1ST GEAR MAIN 1-33234-099-0 01 1 1507-
70 GEAR; 1ST,MAINSHAFT
Z=49 		1-33255-071-1 01 1 1507-
74 WASHER; THRUST,REV GEAR 1-33239-308-0 01 1 1507-
80 GEAR; SPD DRIVE
Z=11 		1-33371-069-0 01 1 1507-
82 SHAFT; MAIN,TRANS
Z=37-40-28-19 		1-33231-327-2 01 1 1507-
120 SLEEVE 1-33262-229-0 01 1 1507-
144 BEARING; NEEDLE,INPUT GEAR
NTN 		1-09811-423-0 02 1 1507-
149 BEARING; NEEDLE,MAINSHAFT,RR
NSK 		1-09810-256-0 01 1 1507-
149 BEARING; NEEDLE,MAINSHAFT,RR
NTN 		1-09810-257-0 01 1 1507-
172 RING; SNAP,CLU HUB
OD=121.2 		1-09587-031-0 01 1 1507-
229 SPRING; PLUNGER
D=6.2 		1-09580-091-1 15 1 1507-
231 PLUNGER
(A) 		1-33263-020-0 06 1 1507-
231 PLUNGER
(B) 		1-33263-038-1 09 1 1507-
238 INSERT
(A) 		1-33263-025-2 06 1 1507-
238 INSERT
(B) 		1-33263-039-0 09 1 1507-
241 RING; SNAP
(A) 		1-09587-023-0 02 1 1507-
241 RING; SNAP
(B) 		1-09587-104-0 01 1 1507-
278 NUT; BRG 1-09449-080-0 01 1 1507-
306 RING; SNAP,MAINSHAFT 1-09588-149-0 01 1 1507-
322 SLEEVE; SYN,LOW & 2ND 1-33262-222-0 01 1 1507-
324 HUB; CLU
(A) 		1-34231-015-0 01 1 1507-
324 HUB; CLU
(B) 		8-98239-089-0 01 1 1507-
330 GEAR; SUN
Z=24 		1-34311-010-0 01 1 1507-
332 PIN; LOCK,SHAFT 1-09748-025-0 05 1 1507-
334 SHAFT; PLANETARY GEAR
(A) 		1-34353-010-1 05 1 1507-
334 SHAFT; PLANETARY GEAR
(B) 		8-98238-294-0 01 1 1507-
336 WASHER; THRUST,PLANETARY GEAR 1-09503-230-0 10 1 1507-
340 GEAR; RING
Z=86 OKUBO GEAR 		1-34371-014-0 01 1 1507-
340 GEAR; RING
Z=86 NIPPON GEAR 		1-34371-018-0 01 1 1507-
340 GEAR; RING
Z=86 ISUZU GEAR 		1-34371-019-0 01 1 1507-
342 FLANGE; OUTPUT 1-37243-370-0 01 1 1507-
345 BOLT; FLANGE TO YOKE
M14X48.5 		1-09046-013-0 04 1 1507-
357 RING 1-31349-044-0 04 1 1507-
379 PIECE; DIST,MAINSHAFT 1-33363-034-0 02 1 1507-
400 BEARING; OUTPUT SHAFT RR
NSK W/SNAP RING 		8-98153-252-0 01 1 1507-
407 GEAR; PRIMARY MAIN
Z=33 		8-98303-531-0 01 1 1507-
437 PLATE; LOCK 1-34252-032-0 01 1 1507-
467 COLLAR; SHAFT 1-33234-091-1 01 1 1507-
471 SHAFT; INPUT 8-98303-549-0 01 1 1507-
481 RING; BLOCK
(A) 		8-98303-317-0 01 1 1507-
481 RING; BLOCK
(B) 		8-98303-318-0 01 1 1507-
482 GEAR; PRIMARY 8-98303-533-0 01 1 1507-
483 BEARING; TAPER
NTN 		8-98316-126-0 01 1 1507-
484 PLATE; SETTING 1-33313-023-0 01 1 1507-
485 PIECE; GUIDE 1-33363-040-1 01 1 1507-
487 SYNCHRONIZER; RANGE CHANGE 8-98239-908-1 02 1 1507-
488 CLUTCH; DOG,RANGE
(B) 		8-98238-509-0 01 1 1507-
488 CLUTCH; DOG,RANGE
(A) 		8-98239-163-0 01 1 1507-
489 WASHER; THRUST 1-09503-308-0 01 1 1507-
490 GASKET; SEAL,CASE
ID=10 		1-09623-369-0 01 1 1507-
491 PLATE; OUTPUT SHAFT 1-34252-026-0 01 1 1507-
492 BOLT; PLATE 1-09000-740-0 02 1 1507-
493 GASKET; OUTPUT SHAFT 9-09561-385-0 01 1 1507-
495 PINION; PLANETARY
Z=30 		1-34361-023-0 05 1 1507-
496 BEARING; PLANETARY
NSK 		1-09811-424-0 10 1 1507-
496 BEARING; PLANETARY
NTN 		1-09811-425-0 10 1 1507-
497 BEARING; RING GEAR
NTN 		8-98239-433-0 01 1 1507-
498 CONE; SYN 8-98239-910-0 02 1 1507-
612 GALLERY; OIL 8-98239-463-0 01 1 1507-
