2-20B — MANUAL TRANSMISSION ASM AND CASE (#164019) — 116 parça

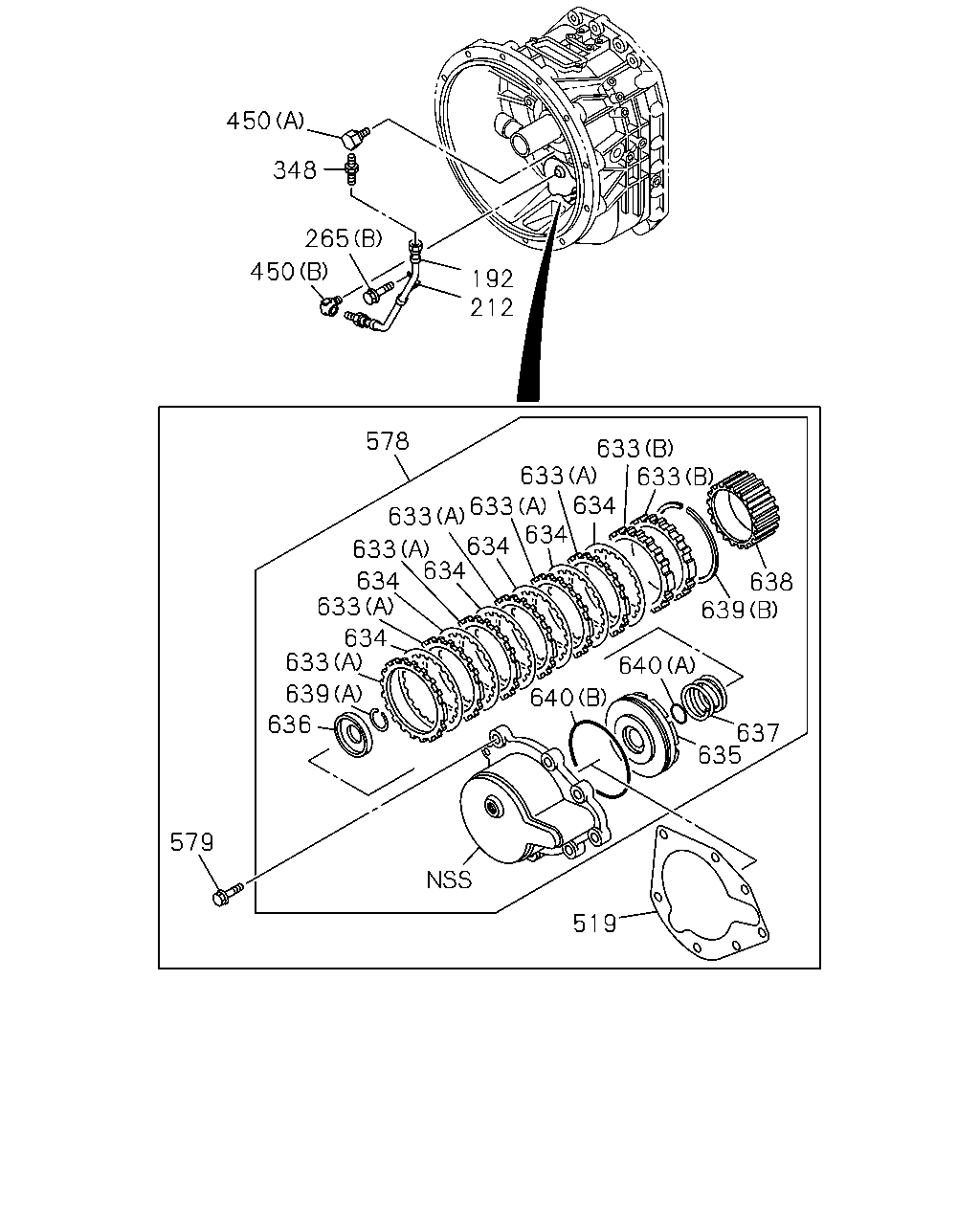

çizim 484253
450 348 265 450 192 212 578 633 633 633 634 634 633 633 633 634 634 633 634 633 639 636 579 519 635 637 640 640 639 638 634
BalonParca AdiParca NoAdetTipApplied Date
192 HOSE; FLEX,TRANS
L=252 		1-09365-062-0 01 1 1507-
212 CLIP; FLEX HOSE
ID=9 H=20 L=25 		1-09701-073-0 01 1 1507-
265 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 05 1 1507-
265 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 01 1 1507-
348 NIPPLE; GREASE,SHAFT 9-09902-299-0 01 1 1507-
450 ADAPTER; OIL
(A) 		1-09660-012-0 01 1 1507-
450 ADAPTER; OIL
(B) PT1/8 ELBOW 		8-94338-418-1 01 1 1507-
519 GASKET; SHAFT 1-34142-034-0 01 1 1507-
578 BRAKE; COUNTER SHAFT 1-33316-005-1 01 1 1507-
579 BOLT; COUNTER SHAFT
M10X30 FLANGE 		0-28151-030-0 07 1 1507-
633 PLATE; SEPARATE,BRAKE
(A) 		1-33319-208-0 06 1 1507-
633 PLATE; SEPARATE,BRAKE
(B) T=3.6 		1-33319-209-0 02 1 1507-
633 PLATE; SEPARATE,BRAKE
(B) T=3.8 		1-33319-210-0 02 1 1507-
633 PLATE; SEPARATE,BRAKE
(B) T=4.0 		1-33319-211-0 02 1 1507-
633 PLATE; SEPARATE,BRAKE
(B) T=4.2 		1-33319-212-0 02 1 1507-
634 PLATE; FRICTION,BRAKE 1-33319-207-0 06 1 1507-
635 PISTON; BRAKE
T=4.90 		1-33319-230-0 01 1 1507-
636 PLATE; PRESSURE,BRAKE 1-33319-213-1 01 1 1507-
637 SPRING; BRAKE 1-33319-215-0 01 1 1507-
638 HUB; BRAKE 1-33319-220-0 01 1 1507-
639 RING; BRAKE
(A) 		1-33319-216-0 01 1 1507-
639 RING; BRAKE
(B) 		1-33319-217-0 01 1 1507-
640 GASKET; BRAKE
(A) 		1-33319-218-0 01 1 1507-
640 GASKET; BRAKE
(B) 		1-33319-219-0 01 1 1507-

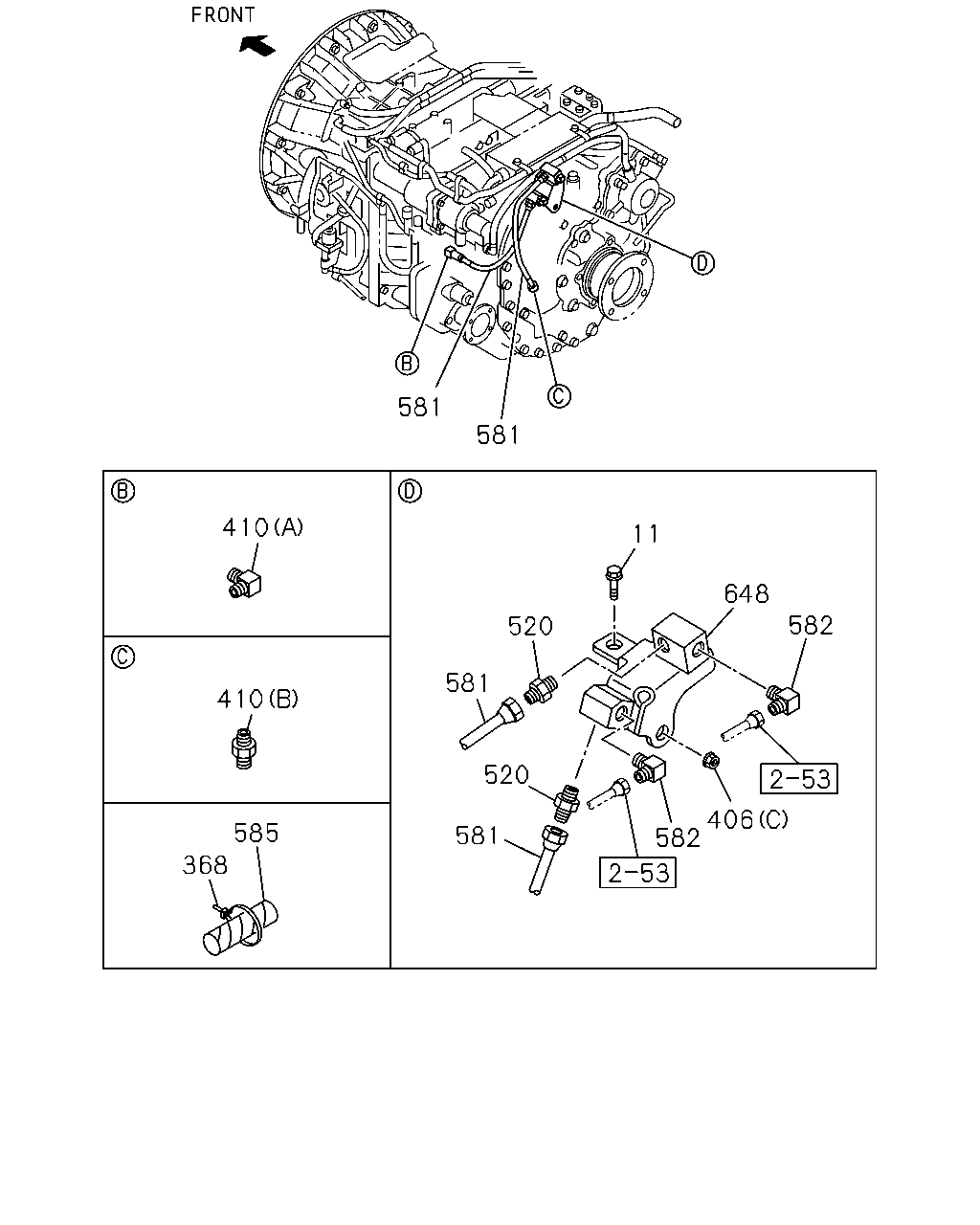

çizim 484260
581 581 11 648 582 520 581 520 581 582 406 585 368 410 410
BalonParca AdiParca NoAdetTipApplied Date
11 BOLT; BRKT
M10X25 FLANGE 		0-28751-025-0 01 1 1507-
368 CLIP; BAND,CABLE
L=250 		1-09707-126-0 01 1 1507-
406 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 04 1 1507-
406 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 1507-
406 NUT; BRKT
(C) M10 FLANGE 		0-91180-110-0 01 1 1507-
410 UNION; OIL PIPE
(B) R1/4 & M16 		0-92306-008-0 01 1 1507-
410 UNION; OIL PIPE
(A) R1/4 & M16 ELBOW 		1-09660-800-1 01 1 1507-
520 CONNECTOR
R1/4 & M16 		0-92306-008-0 02 1 1507-
581 HOSE; OIL COOLER
L=360 		1-09365-234-0 02 1 1507-
582 NIPPLE; ELBOW
R3/8 & M22 ELBOW 		1-09660-612-1 02 1 1507-
585 BAND; FLEX HOSE
L=175 		1-09707-178-0 01 1 1507-
648 UNION ASM 8-98131-605-2 01 1 1507-

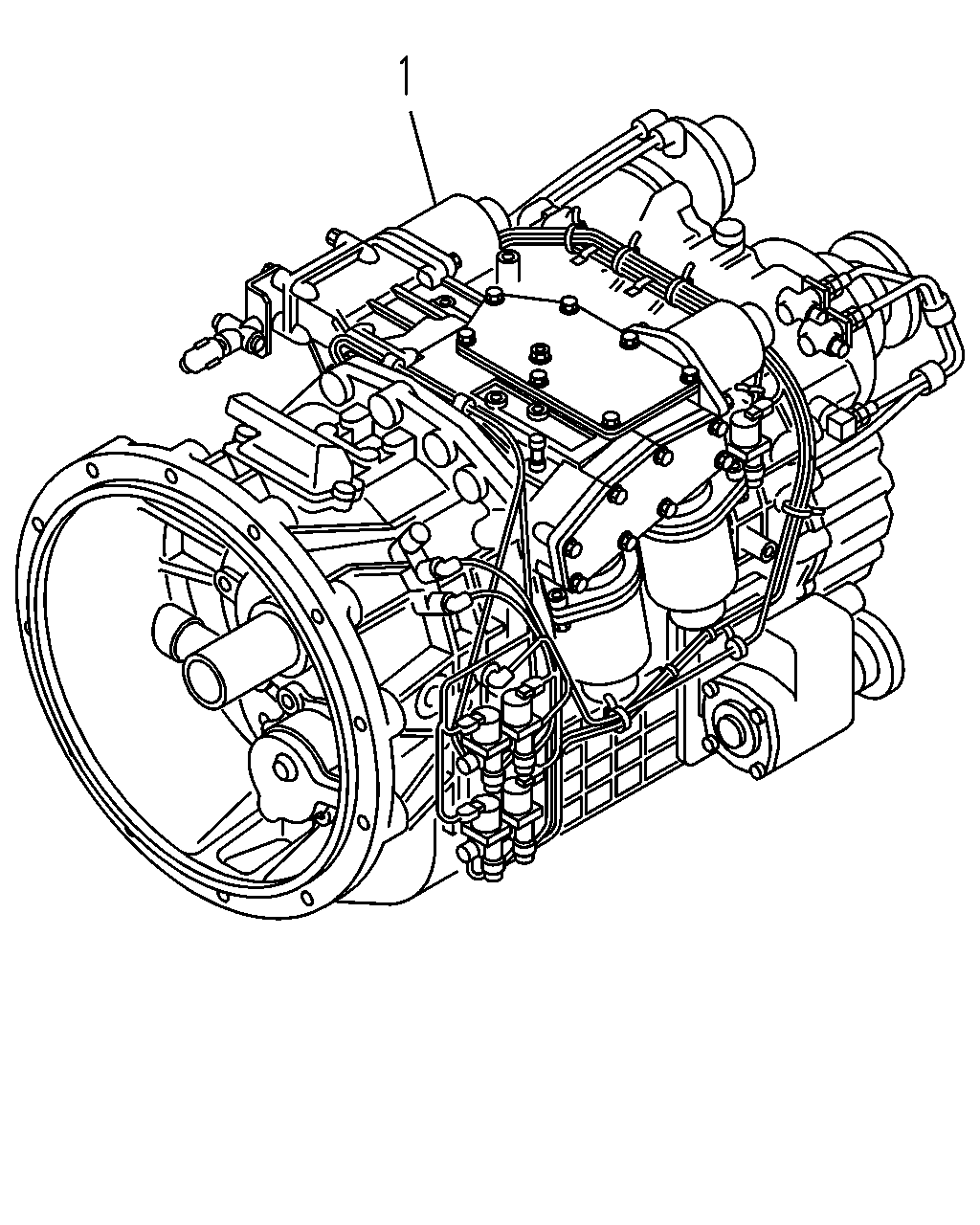

çizim 484907
1
BalonParca AdiParca NoAdetTipApplied Date
1 TRANSMISSION ASM; MANUAL
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) 		1-33044-719-0 01 1 1507-
1 TRANSMISSION ASM; MANUAL
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) 		1-33044-719-0 01 1 1507-

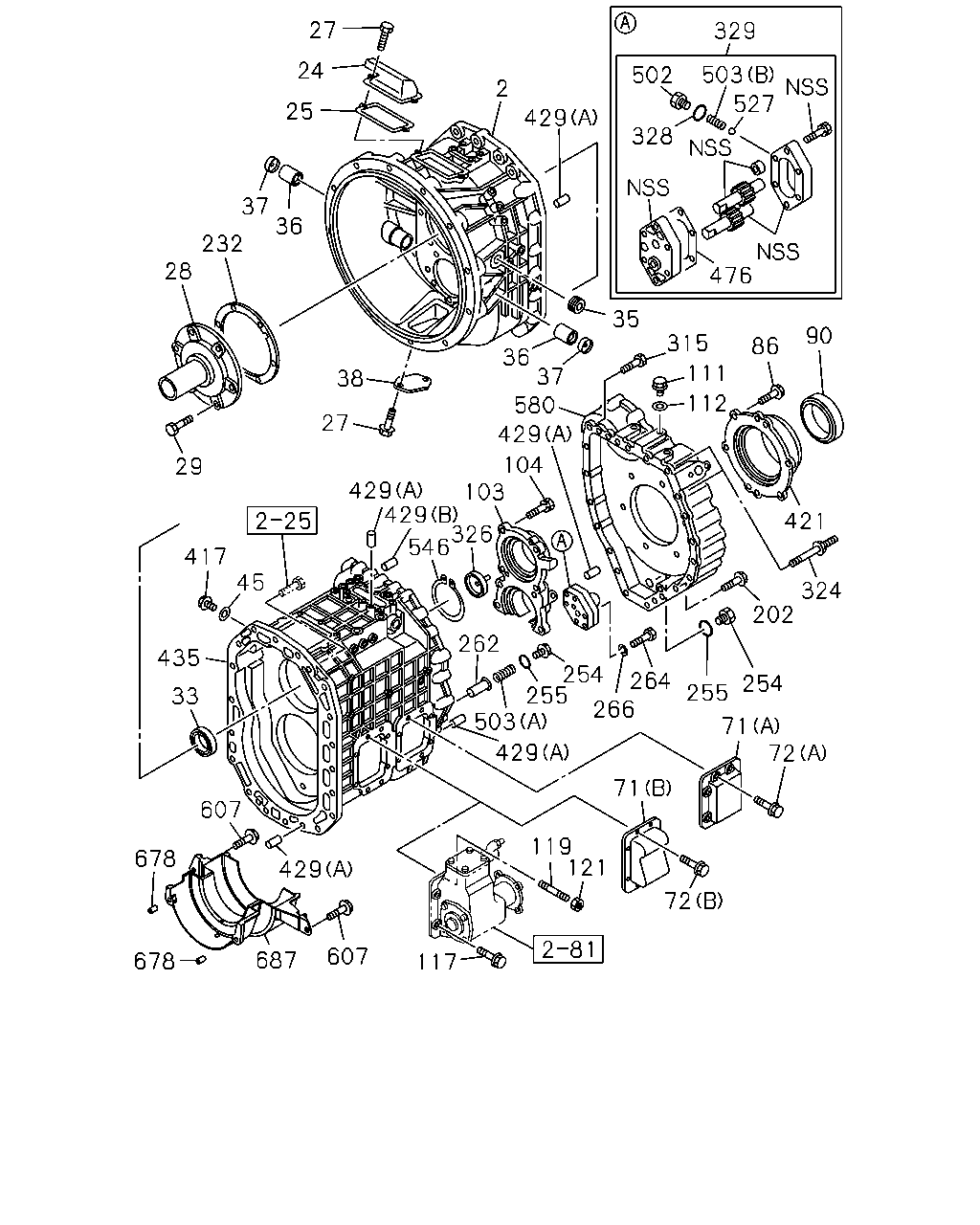

çizim 485182
27 24 25 37 36 232 28 29 27 38 2 429 502 329 503 527 476 90 328 315 35 111 86 112 421 324 202 254 255 264 71 72 266 71 72 121 119 429 503 255 254 262 326 546 429 429 103 104 429 580 37 36 417 45 435 33 607 678 429 117 607 687 678
BalonParca AdiParca NoAdetTipApplied Date
2 HOUSING; CLU 8-98186-687-1 01 1 1507-
24 COVER; CHECK HOLE,DUST 1-31131-037-0 01 1 1507-
25 GASKET; COVER
ALSO INCLUDED IN GASKET SET(M/T). 		8-98283-291-0 01 1 1507-
27 BOLT; COVER TO CLU HSG
M8X12 FLANGE 		0-28050-812-0 04 1 1507-
28 COVER; FRT,TRANS CASE 1-33121-153-0 01 1 1507-
29 BOLT; FRT COVER
M10X40 FLANGE 		8-98230-249-0 06 1 1507-
33 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-624-0 01 1 1507-
35 GROMMET; CLU HSG
OD=31 		9-09575-796-0 01 1 1507-
36 BEARING; NEEDLE,CLU HSG 1-09811-087-0 02 1 1507-
37 SEAL; DUST,CLU HSG
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-003-0 02 1 1507-
38 COVER; CHECK HOLE,LWR 1-31131-003-0 01 1 1507-
45 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=26.8 		1-09623-058-0 01 1 1507-
71 COVER; SIDE,TRANS CASE
(A) 		1-33141-066-0 01 1 1507-
71 COVER; SIDE,TRANS CASE
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) 		1-33141-057-1 01 1 1507-
72 BOLT; SIDE COVER
(A) M10X35 FLANGE 		0-28751-035-0 08 1 1507-
72 BOLT; SIDE COVER
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) M12X30 FLANGE 		1-09044-086-0 08 1 1507-
86 BOLT; RR COVER
M17X35 		1-09044-076-0 06 1 1507-
90 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-625-0 01 1 1507-
103 RETAINER; BRG 1-33151-060-1 01 1 1507-
104 BOLT; BRG RET
M10X38 FLANGE 		1-09049-029-1 08 1 1507-
111 PLUG; DRAIN FILLER
M24X17 FLANGE 		1-09604-022-0 02 1 1507-
112 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=26.8 		1-09623-058-0 02 1 1507-
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X35 FLANGE 		0-28751-235-0 04 1 1507-
119 STUD; PTO FIX
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X30 L=48 		8-98059-951-0 04 1 1507-
121 NUT; PTO FIX
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12 FLANGE 		0-91180-212-0 04 1 1507-
202 BOLT; PLATE
M12X35 FLANGE 		0-28751-235-0 09 1 1507-
232 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33142-051-1 01 1 1507-
254 PLUG; DRAIN,OIL
M24X17 FLANGE 		1-09604-023-0 02 1 1507-
255 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=26.8 		1-09623-058-0 02 1 1507-
262 STRAINER; OIL PUMP 1-41383-003-0 01 1 1507-
264 BOLT; OIL PUMP
M8X65 		0-10805-865-0 02 1 1507-
264 BOLT; OIL PUMP
M8X50 		0-10855-850-0 02 1 1507-
266 WASHER; LK
ID=8.2 		0-91510-508-0 04 1 1507-
315 BOLT; CASE
M12X50 FLANGE 		0-28151-250-0 11 1 1507-
315 BOLT; CASE
M12X110 FLANGE 		0-28156-211-0 05 1 1507-
315 BOLT; CASE
M12X35 FLANGE 		0-28751-235-0 02 1 1507-
324 STUD; RR COVER
M10X18,M12X110 L=139.5 		1-09049-033-1 02 1 1507-
326 NOZZLE; OIL,OUTLET 1-33219-272-0 01 1 1507-
328 GASKET; PLUG 1-34159-100-0 01 1 1507-
329 PUMP ASM; OIL 8-98283-996-0 01 1 1507-
417 PLUG; OIL FILLER,TRANS
M24X17 FLANGE 		1-09604-022-0 01 1 1507-
421 COVER; RR,TRANS 1-33131-238-0 01 1 1507-
429 PIN; STRAIGHT
(A) OD=10 L=18 		9-08151-018-0 06 1 1507-
429 PIN; STRAIGHT
(B) OD=12 L=32 		9-08161-232-0 01 1 1507-
435 CASE; TRANS 8-98049-690-1 01 1 1507-
476 GASKET; COVER,OIL PUMP 1-34159-099-0 01 1 1507-
502 PLUG; OIL PUMP 1-34159-101-0 01 1 1507-
503 SPRING; OIL PUMP
(A) 		1-09580-504-0 01 1 1507-
503 SPRING; OIL PUMP
(B) 		1-34159-102-0 01 1 1507-
527 BALL; OIL PUMP 9-00097-531-0 01 1 1507-
546 RING; SNAP,BRG
T=2.00 		1-09588-150-1 01 1 1507-
580 CASE; RANGE 1-33115-052-0 01 1 1507-
607 BOLT; COVER
M10X25 FLANGE 		0-28151-025-0 02 1 1507-
678 PIN
OD=10 L=18 		9-08151-018-0 02 1 1507-
687 COVER; GEAR 8-98200-758-1 01 1 1507-

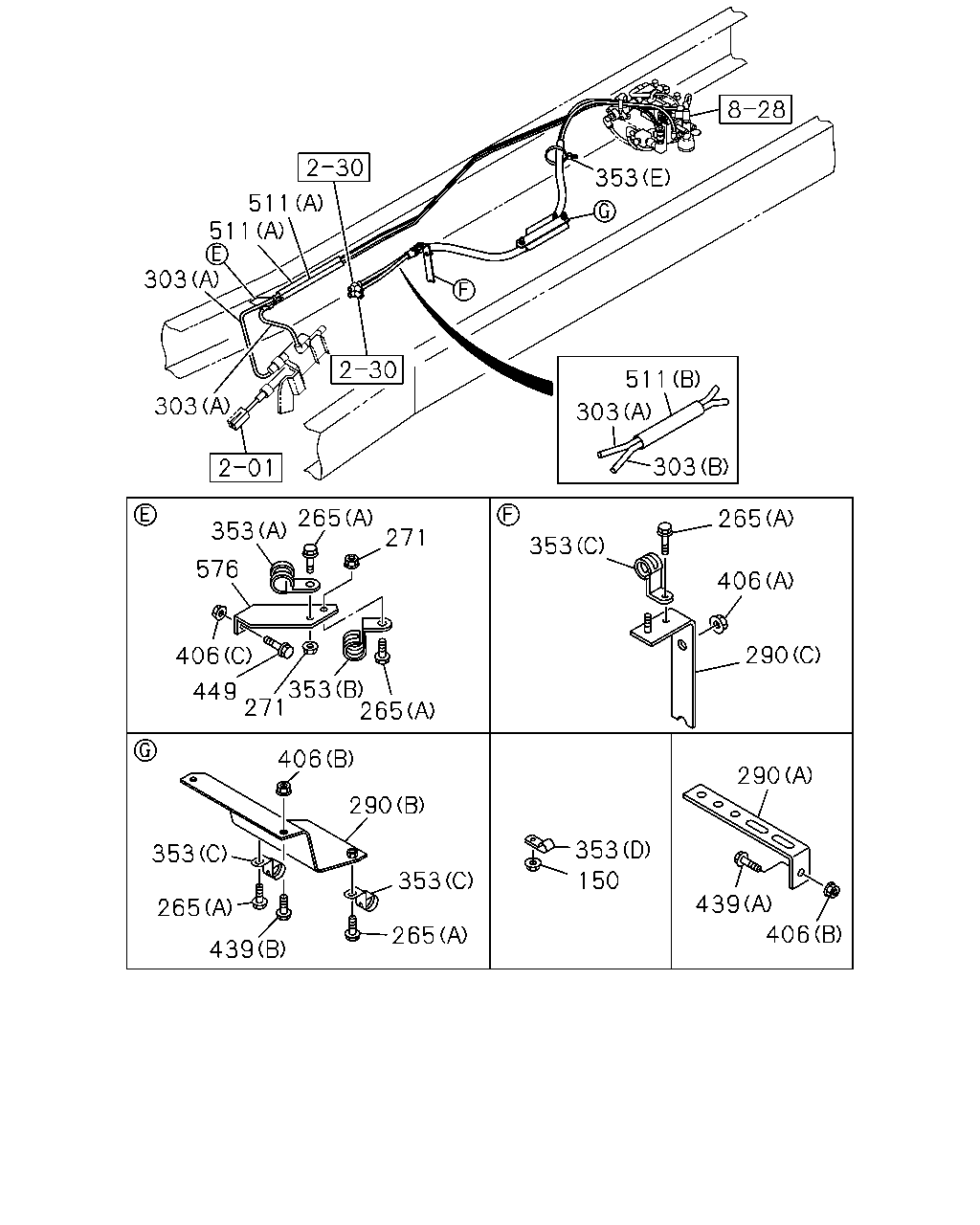

çizim 485324
511 511 303 303 353 265 511 303 406 290 353 271 265 353 576 406 449 271 353 265 290 439 406 150 353 265 353 290 406 353 265 439 303
BalonParca AdiParca NoAdetTipApplied Date
150 NUT
M8 FLANGE 		0-91180-108-0 02 1 1507-
265 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 05 1 1507-
265 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 01 1 1507-
271 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1507-
290 BRACKET; CLIP
(A) L=160 H=30 		1-47479-759-0 01 1 1507-
290 BRACKET; CLIP
(B) 		8-98101-509-0 01 1 1507-
290 BRACKET; CLIP
(C) 		8-98293-681-0 01 1 1507-
303 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 01 1 1507-
303 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 04 1 1507-
353 CLIP; NYLON TUBE
(C) ID=21 L=30 H=40 		1-09700-991-1 03 1 1507-
353 CLIP; NYLON TUBE
(A) ID=18 L=28 		1-09701-067-0 01 1 1507-
353 CLIP; NYLON TUBE
(B) ID=16 H=25 L=25 		1-09701-162-0 01 1 1507-
353 CLIP; NYLON TUBE
(E) L=350 		1-09707-183-0 02 1 1507-
353 CLIP; NYLON TUBE
(D) ID=21 L=24 		8-98019-191-0 01 1 1507-
406 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 04 1 1507-
406 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 1507-
406 NUT; BRKT
(C) M10 FLANGE 		0-91180-110-0 01 1 1507-
439 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1507-
439 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1507-
449 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1507-
511 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=10 		1-87411-019-0 02 1 1507-
511 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=13 		1-87411-022-0 01 1 1507-
576 BRACKET; NYLON TUBE 1-47479-773-0 01 1 1507-
