2-07B — CLUTCH BOOSTER; MINIPACK (#164016) — 70 parça

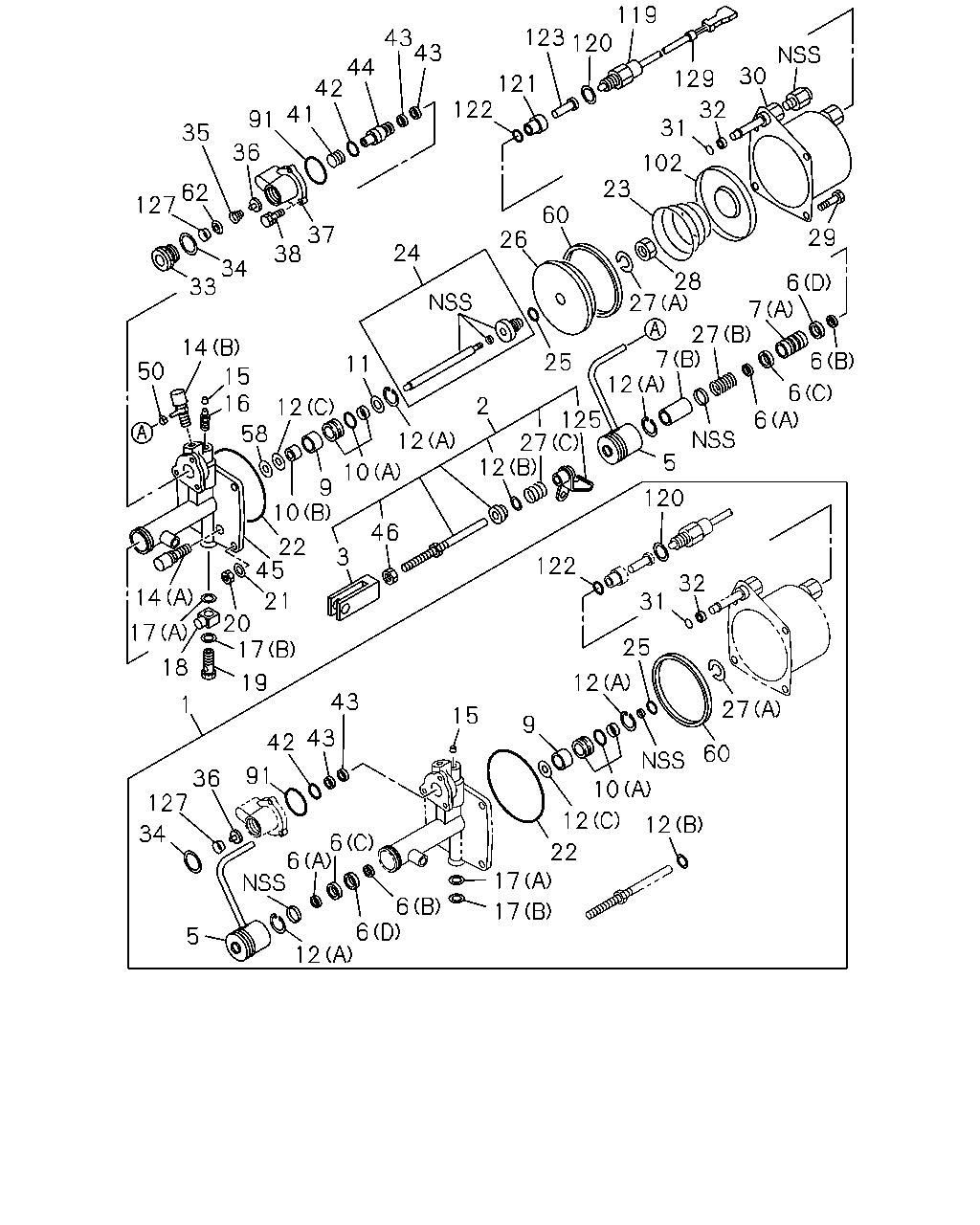

çizim 484917
35 62 127 34 33 38 37 91 36 41 42 44 43 43 123 121 122 120 119 129 30 32 31 102 23 60 26 28 27 7 6 29 6 6 6 7 27 12 125 27 12 2 12 10 46 9 10 12 11 122 32 31 27 25 12 9 60 10 12 12 17 17 43 43 15 42 91 1 36 127 34 6 6 6 6 12 5 24 14 15 16 50 58 22 45 21 20 17 14 17 120 5 3 19 18 25 22
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; CLU BOOSTER 1-31829-620-0 01 1 1507-
2 ROD; PUSH,CLU BOOSTER 1-31824-256-0 01 1 1507-
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-619-0 01 1 1507-
5 GUARD; PISTON,CLU BOOSTER 1-31829-626-0 01 1 1507-
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-441-0 01 1 1507-
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-442-0 01 1 1507-
6 GASKET; PISTON CUP,CLU BOOSTER
(C) 		1-31829-443-0 01 1 1507-
6 GASKET; PISTON CUP,CLU BOOSTER
(D) 		1-31829-444-0 01 1 1507-
7 PISTON; CLU BOOSTER
(B) 		1-31821-068-0 01 1 1507-
7 PISTON; CLU BOOSTER
(A) 		1-31821-081-0 01 1 1507-
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 1507-
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 1507-
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 1507-
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 1507-
12 RING; RET,CLU BOOSTER
(A) 		1-31829-142-0 02 1 1507-
12 RING; RET,CLU BOOSTER
(C) 		1-31829-446-0 01 1 1507-
12 RING; RET,CLU BOOSTER
(B) 		1-31829-621-0 01 1 1507-
14 COVER; EXH,CLU BOOSTER
(B) 		1-31829-366-0 01 1 1507-
14 COVER; EXH,CLU BOOSTER
(A) 		1-31829-365-0 01 1 1507-
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 1507-
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 1507-
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 1507-
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 1507-
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 1507-
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 1507-
20 NUT; END PLATE TO SHELL,CLU BOOSTER 1-31829-624-0 04 1 1507-
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 1507-
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-31829-281-0 01 1 1507-
23 SPRING; SHELL,CLU BOOSTER 1-31829-506-0 01 1 1507-
24 ROD; PUSH,CLU BOOSTER 1-31824-211-0 01 1 1507-
25 GASKET; PUSH ROD,CLU BOOSTER 1-31829-277-0 01 1 1507-
26 PISTON; SHELL,CLU BOOSTER 1-31821-080-0 01 1 1507-
27 SPRING; CLU BOOSTER
(A) 		1-31829-291-0 01 1 1507-
27 SPRING; CLU BOOSTER
(B) 		1-31829-505-0 01 1 1507-
27 SPRING; CLU BOOSTER
(C) 		1-31829-510-0 01 1 1507-
28 NUT; PUSH ROD,CLU BOOSTER 1-31829-290-0 01 1 1507-
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-078-0 04 1 1507-
30 SHELL; CYL,CLU BOOSTER 1-31811-120-0 01 1 1507-
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 1507-
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 1507-
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-448-0 01 1 1507-
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 1507-
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-451-0 01 1 1507-
36 VALVE; POPPET,CLU BOOSTER 1-31829-452-0 01 1 1507-
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 1507-
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 1507-
41 SPRING; DIAPH,CLU BOOSTER 1-31829-288-0 01 1 1507-
42 GASKET; FITTING,CLU BOOSTER 1-31829-143-0 01 1 1507-
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 1507-
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-087-0 01 1 1507-
45 PLATE; END,CLU BOOSTER 1-31811-119-0 01 1 1507-
46 NUT; PUSH ROD,CLU BOOSTER 1-31829-625-0 01 1 1507-
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-063-0 01 1 1507-
58 WASHER; PISTON,CLU BOOSTER 1-31829-294-0 01 1 1507-
60 GASKET; SHELL,CLU BOOSTER 1-31829-454-0 01 1 1507-
62 RETAINER; POPPET 1-31829-489-0 01 1 1507-
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 1507-
102 PLATE; BOOSTER 1-31829-508-0 01 1 1507-
119 SWITCH; CLU BOOSTER 1-31824-178-0 01 1 1507-
120 GASKET; SWITCH 1-31829-361-0 01 1 1507-
121 GUIDE; ROD 1-31824-165-0 01 1 1507-
122 GASKET; ROD 1-31829-360-0 01 1 1507-
123 ROD; SWITCH
L=23.2 		1-31824-167-0 AR 1 1507-
123 ROD; SWITCH
L=24.0 		1-31824-168-0 AR 1 1507-
123 ROD; SWITCH
L=22.5 		1-31824-176-0 AR 1 1507-
123 ROD; SWITCH
L=24.5 		1-31824-189-0 AR 1 1507-
123 ROD; SWITCH
L=25.0 		1-31824-212-0 AR 1 1507-
125 BRACKET; CLU BOOSTER 1-31829-622-0 01 1 1507-
127 FILTER; POPPET 1-31829-488-0 01 1 1507-
129 CONNECTOR ASM; CLU BOOSTER 1-09656-753-0 01 1 1507-
