◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11678 - CYJ RHD EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-07A - CLUTCH BOOSTER; MINIPACK ▶
2-07A — CLUTCH BOOSTER; MINIPACK (#164015) — 69 parça

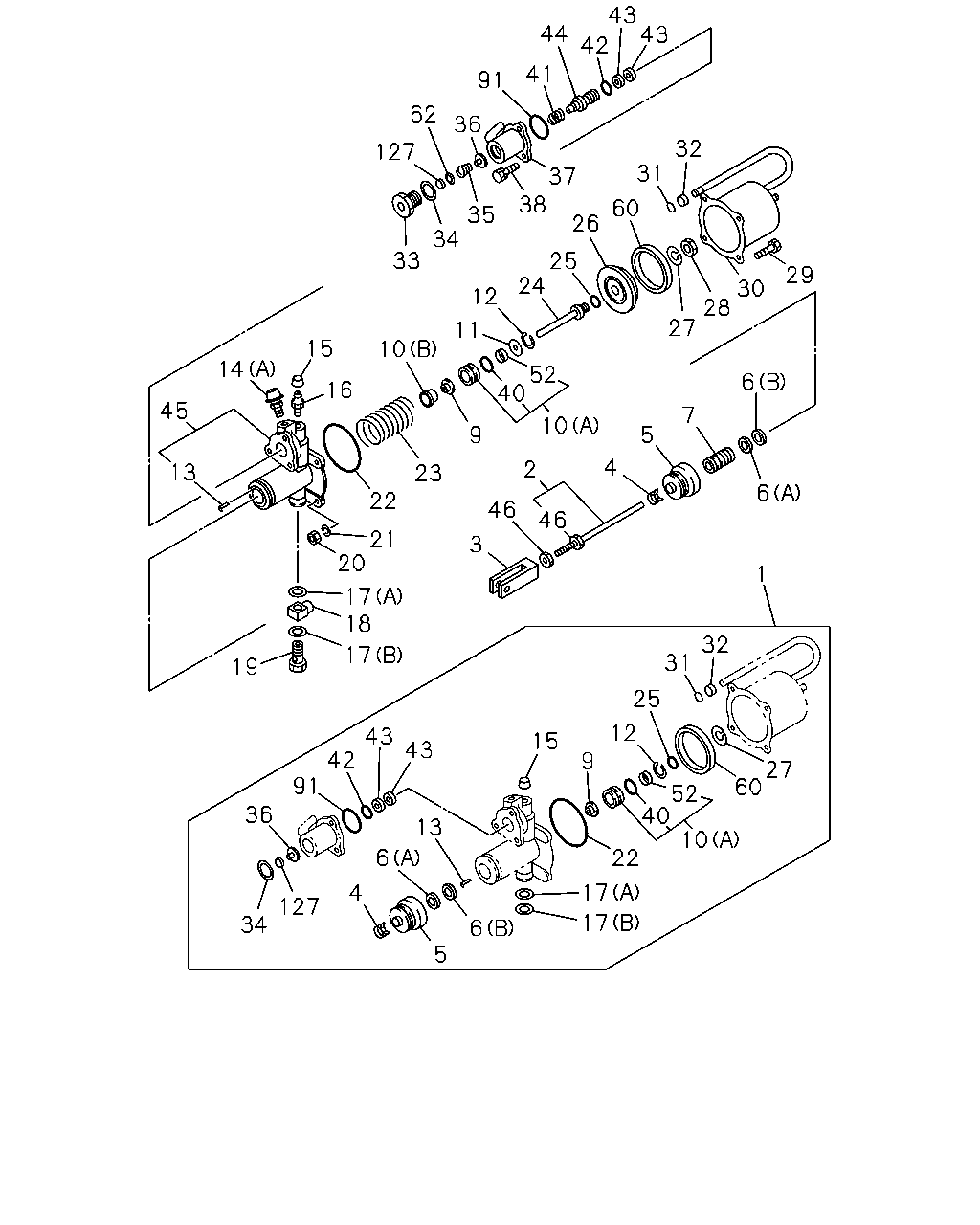

çizim 471775
44 43 43 42 41 91 36 62 127 33 34 35 38 37 31 32 60 26 25 24 12 11 10 52 40 27 28 30 29 6 7 5 4 6 10 2 46 46 3 23 22 20 17 21 18 17 19 13 45 14 15 16 43 43 42 91 32 1 27 60 52 40 10 12 25 31 15 9 22 17 17 6 5 6 13 127 34 36 9 4
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; CLU BOOSTER 1-31829-551-0 01 1 1504-
2 ROD; PUSH,CLU BOOSTER 1-31824-172-0 01 1 1504-
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-187-0 01 1 1504-
4 CLAMP; BOOSTER 1-31829-168-0 01 1 1504-
5 GUARD; PISTON,CLU BOOSTER 1-31829-174-0 01 1 1504-
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 1504-
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 1504-
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 1504-
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 1504-1506
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 1507-
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 1504-1506
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 1507-
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 1504-1506
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 1507-
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 1504-1506
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 1507-
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 1504-
13 PIN; SPR 1-31829-109-0 01 1 1504-
14 COVER; EXH,CLU BOOSTER
(A) 		1-31829-365-0 01 1 1504-1506
14 COVER; EXH,CLU BOOSTER
(A) 		1-31829-365-0 01 1 1507-
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 1504-1506
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 1507-
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 1504-1506
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 1507-
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 1504-1506
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 1507-
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 1504-1506
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 1507-
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 1504-1506
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 1507-
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 1504-1506
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 1507-
20 NUT; END PLATE TO SHELL,CLU BOOSTER 9-83315-085-0 04 1 1504-
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=8.2 		9-09150-508-0 04 1 1504-
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-327-0 01 1 1504-
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 1504-
24 ROD; PUSH,CLU BOOSTER 1-31829-334-0 01 1 1504-
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 1504-
26 PISTON; SHELL,CLU BOOSTER 1-31821-083-0 01 1 1504-
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 1504-
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 1504-
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 1-31829-015-0 04 1 1504-
30 SHELL; CYL,CLU BOOSTER 1-31811-123-0 01 1 1504-
31 GASKET; SHELL,CLU BOOSTER 1-31829-113-0 01 1 1504-
32 BUSHING; SHELL,CLU BOOSTER 1-31829-114-0 01 1 1504-
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 1504-
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 1504-1506
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 1507-
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-451-0 01 1 1504-1506
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-451-0 01 1 1507-
36 VALVE; POPPET,CLU BOOSTER 1-31829-452-0 01 1 1504-1506
36 VALVE; POPPET,CLU BOOSTER 1-31829-452-0 01 1 1507-
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-092-0 01 1 1504-
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 1504-1506
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 1507-
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 1504-
41 SPRING; DIAPH,CLU BOOSTER 1-31829-420-0 01 1 1504-
42 GASKET; FITTING,CLU BOOSTER 1-31829-123-0 01 1 1504-
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-083-0 02 1 1504-
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-030-0 01 1 1504-
45 PLATE; END,CLU BOOSTER 1-31811-064-0 01 1 1504-
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 1504-
52 SEAL; OIL,END PLATE,CLU BOOSTER 1-47819-027-0 01 1 1504-
60 GASKET; SHELL,CLU BOOSTER 1-31829-535-0 01 1 1504-
62 RETAINER; POPPET 1-31829-489-0 01 1 1504-1506
62 RETAINER; POPPET 1-31829-489-0 01 1 1507-
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 1504-1506
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 1507-
127 FILTER; POPPET 1-31829-495-0 01 1 1504-
