2-01B — CLUTCH (#164014) — 29 parça

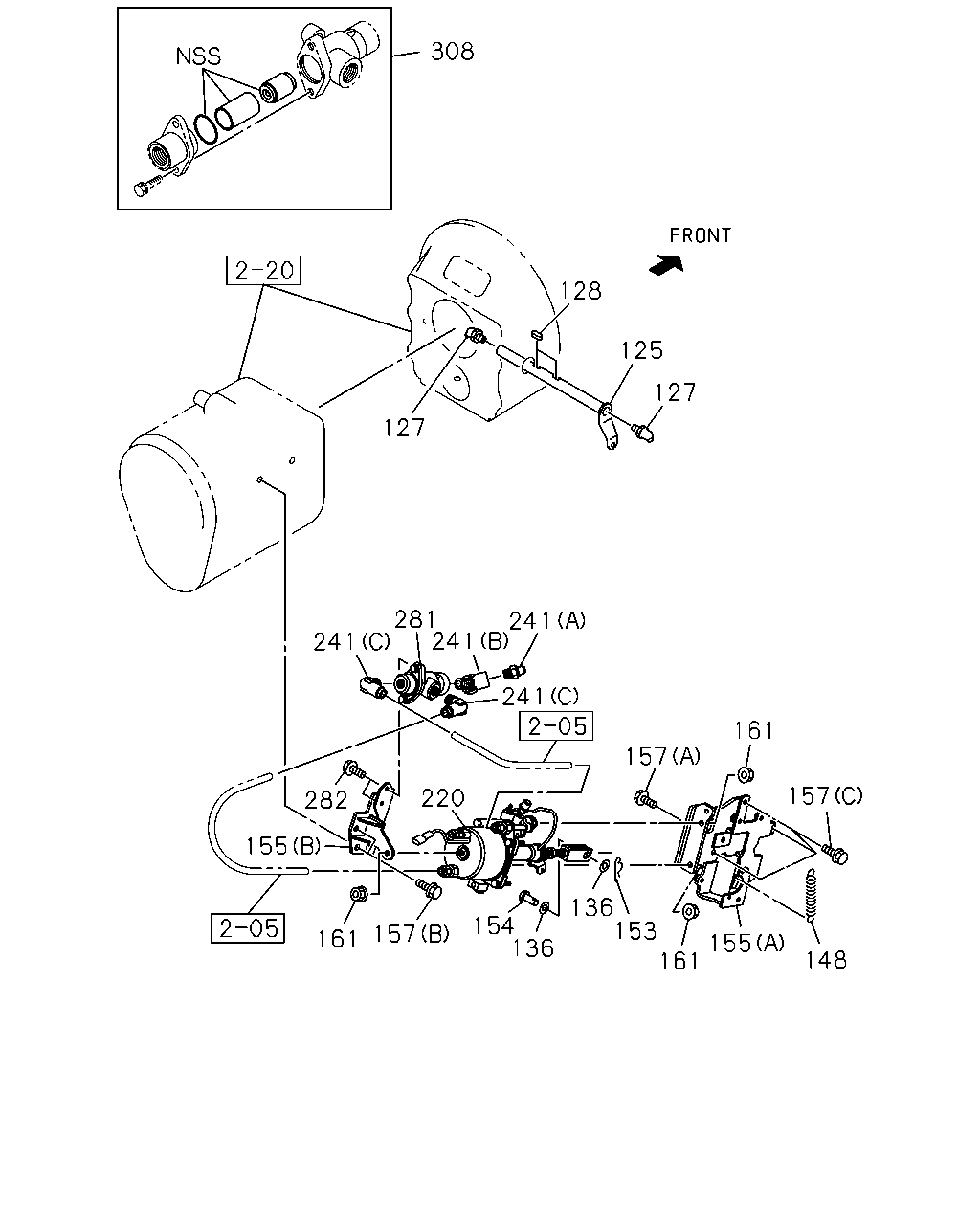

çizim 484240
308 128 125 127 127 241 281 241 241 282 220 157 155 161 157 136 154 153 136 161 161 157 155 148 241
BalonParca AdiParca NoAdetTipApplied Date
125 SHAFT; CLU 1-31342-312-0 01 1 1507-
127 NIPPLE; GREASE,CLU SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1507-
128 KEY; FEATHER,CLU SHAFT 1-09735-045-0 02 1 1507-
136 WASHER; PL
ID=15 		0-91610-514-0 02 1 1507-
148 SPRING; CLU RETURN
L=43 		1-31349-024-0 01 1 1507-
153 PIN; SPLIT,CLU SHAFT 1-09747-009-0 01 1 1507-
154 PIN; JAW JOINT
L=35 		1-31424-003-0 01 1 1507-
155 BRACKET; MINIPACK
(A) 		8-98249-697-2 01 1 1507-
155 BRACKET; MINIPACK
(B) 		8-98249-699-1 01 1 1507-
157 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1507-
157 BOLT; BRKT
(B) M10X25 FLANGE 		0-28151-025-0 02 1 1507-
157 BOLT; BRKT
(C) M10X30 FLANGE 		0-28751-030-0 03 1 1507-
161 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 1507-
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-564-0 01 1 1507-
241 CONNECTOR
(A) DIN8,R3/8 STRAIGHT 		1-09660-651-1 01 1 1507-
241 CONNECTOR
(B) R3/8 ELBOW 45 DEGREES 		1-09664-209-0 01 1 1507-
241 CONNECTOR
(C) ELBOW 		1-31829-591-0 02 1 1507-
281 VALVE; CHK 1-48410-594-0 01 1 1507-
282 BOLT; VLV
M8X12 FLANGE 		0-28050-812-0 02 1 1507-
308 REPAIR KIT; CHECK VALVE 1-31829-514-0 01 1 1507-

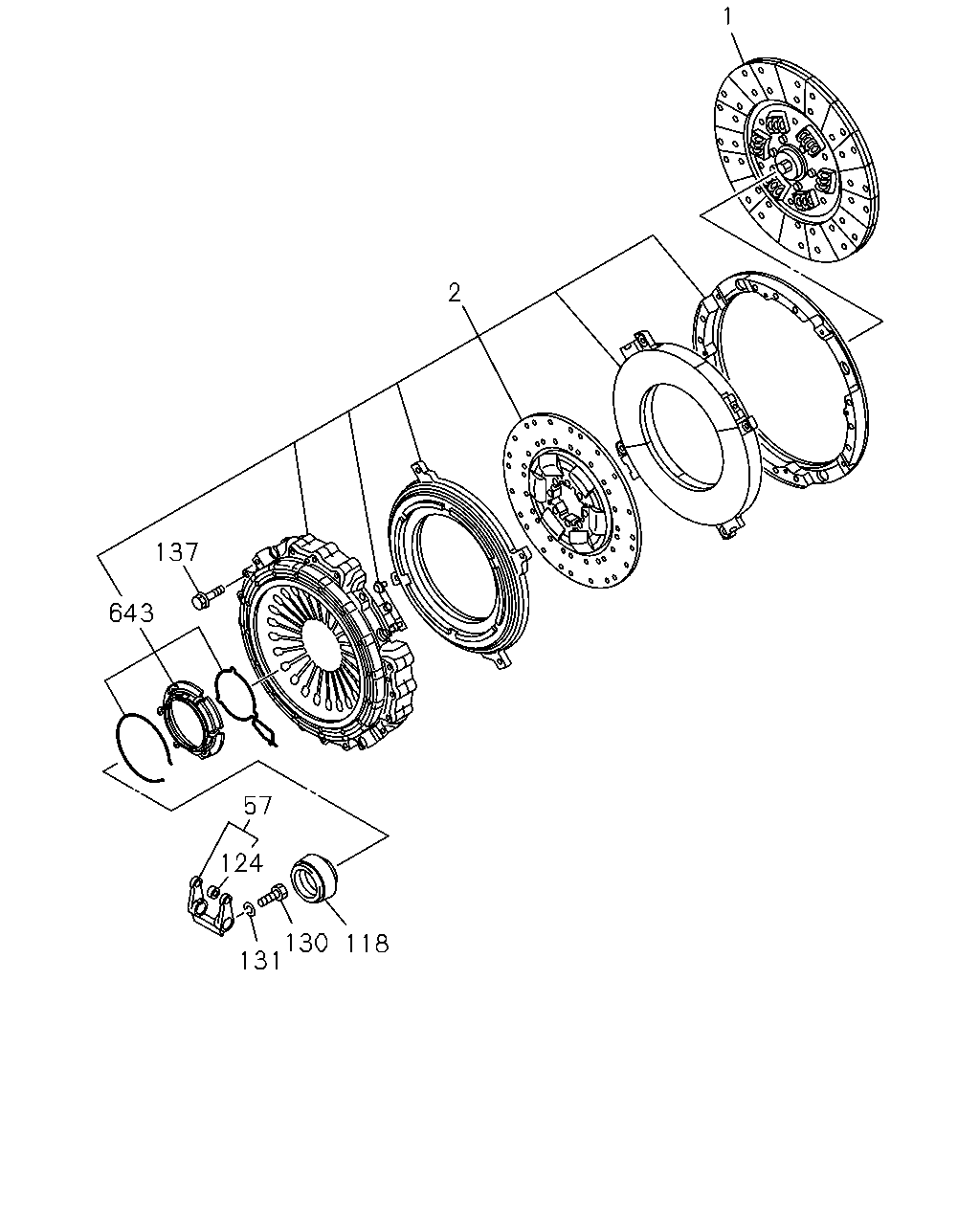

çizim 484243
2 1 643 137 57 124 131 118 130
BalonParca AdiParca NoAdetTipApplied Date
1 DISC; CLUTCH
15.5" 		1-31240-975-0 01 1 1507-
2 PLATE ASM; PRESSURE,CLU 1-31220-414-0 01 1 1507-
57 FORK; SHIFT,CLU 1-31340-066-1 01 1 1507-
118 BEARING; CLU RELEASE 1-31310-028-0 01 1 1507-
124 BEARING; CAM,SHIFT FORK 1-31349-060-1 02 1 1507-
130 SCREW; SHIFT FORK
M8X14 		0-61200-814-0 01 1 1507-
131 WASHER; LK,SHIFT FORK
ID=8.2 		0-91510-508-0 01 1 1507-
137 BOLT; CLU COVER
M10X110 FLANGE 		0-28156-011-0 12 1 1507-
643 REPAIR KIT; CLUTCH 8-98207-785-0 01 1 1507-
