◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51485 - TFR SHORT(THAI) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-27 - SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM ▶
8-27 — SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM (#164012) — 5 parça

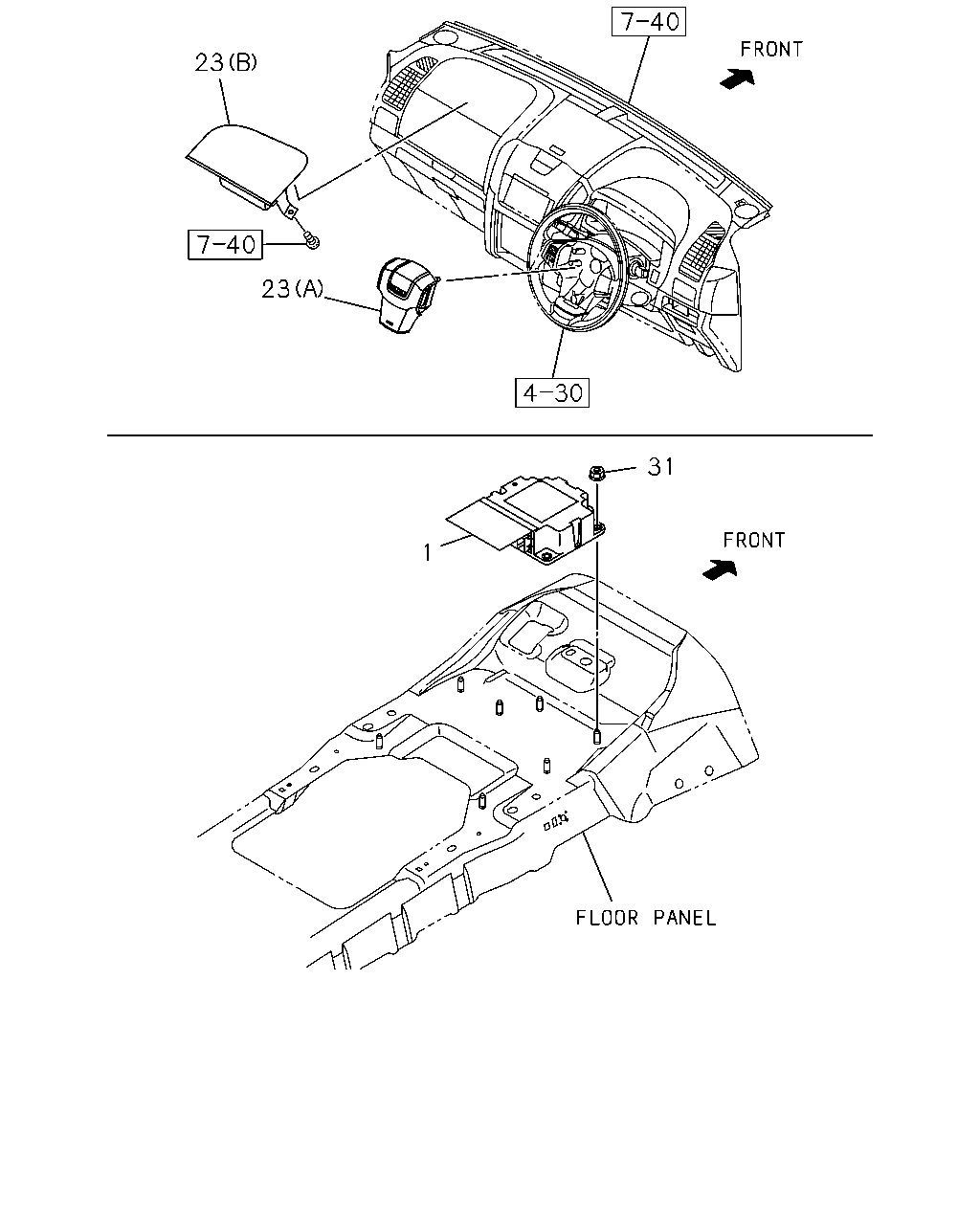

çizim 484929
23 23 31 1
BalonParca AdiParca NoAdetTipApplied Date
1 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER<AK5> THA 		8-98127-250-2 01 1 1510-
23 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER<AK5> (B) BLACK THA 		8-97416-642-7 01 1 1506-
23 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER<AK5> EQUIPMENT IMPACT<EPS> (A) BLACK THA 		8-97424-332-0 01 1 1506-
23 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER<AK5> EXC. EQUIPMENT IMPACT<EPS> (A) BLACK THA 		8-97416-641-6 01 1 1506-
31 NUT
AIR BAG DRIVER & PASSENGER<AK5> M6 FLANGE THA 		0-91180-206-0 03 1 1510-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
