◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10634 - FSS/FTS-RHD ▶ 5 - Frame, Cab Mounting ▶ 5-16 - OIL PUMP; CAB TILT ▶
5-16 — OIL PUMP; CAB TILT (#1640) — 80 parça

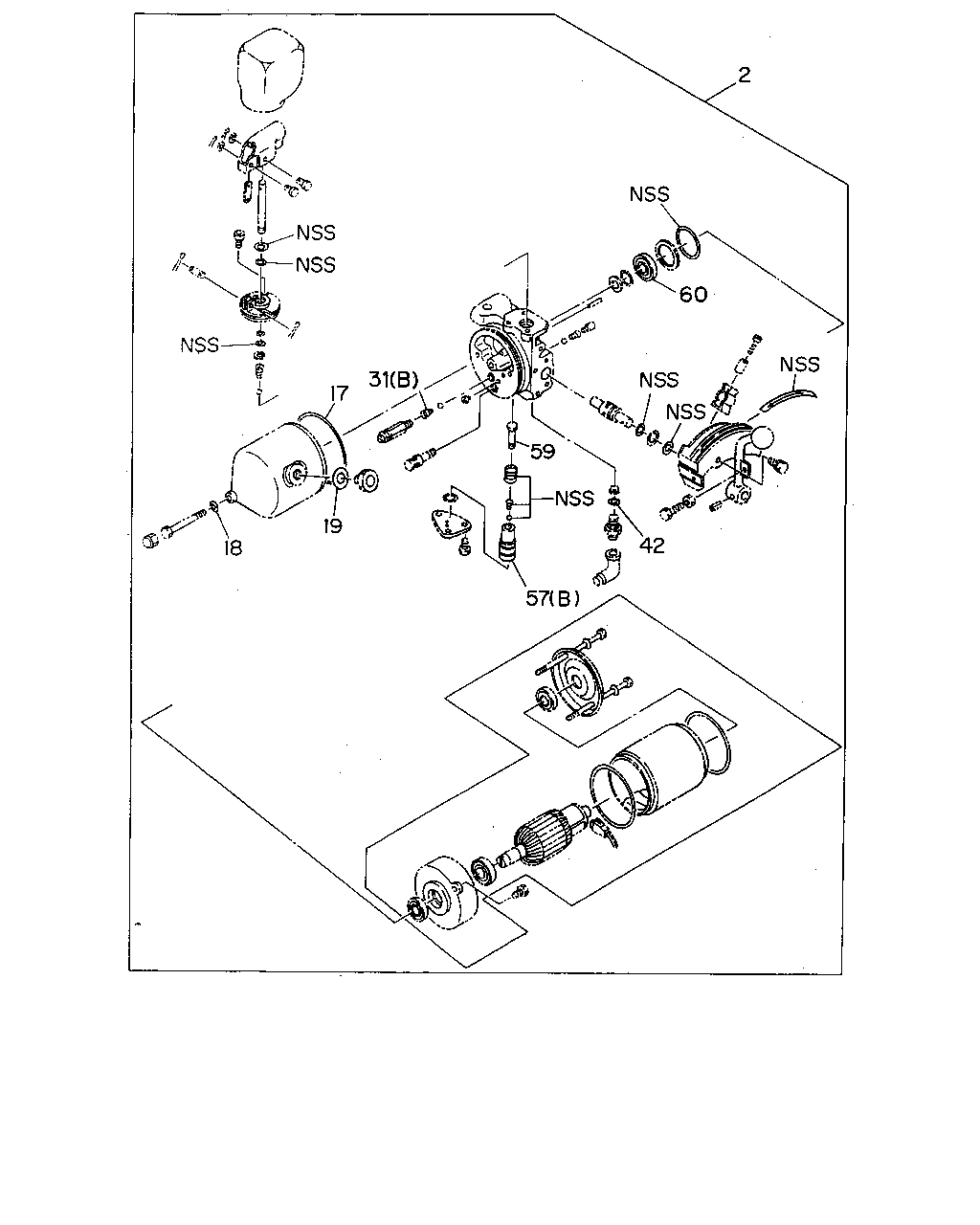

çizim 29210
2 18 19 17 31 59 60 42 57
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; OIL PUMP 1-85579-019-0 01 1 9207-
17 GASKET; RESERVOIR 1-53458-054-0 01 1 9207-
18 GASKET; RESERVOIR BOLT 1-53458-051-0 01 1 9207-
19 GASKET; CAP 1-53458-050-0 01 1 9207-
31 SPRING; DELIVERY
(A) 		1-53458-032-0 01 1 9207-
31 SPRING; DELIVERY
(B) 		1-53458-034-0 01 1 9207-
42 GASKET; NIPPLE 1-53458-016-0 02 1 9207-
57 ADAPTER; CONNECTOR
(A) 		1-53458-242-0 01 1 9207-
57 ADAPTER; CONNECTOR
(B) 		1-53458-251-0 01 1 9207-
59 ORIFICE; OIL PUMP 1-53458-252-0 01 1 9207-
60 BEARING; OIL PUMP 1-53458-043-0 01 1 9207-

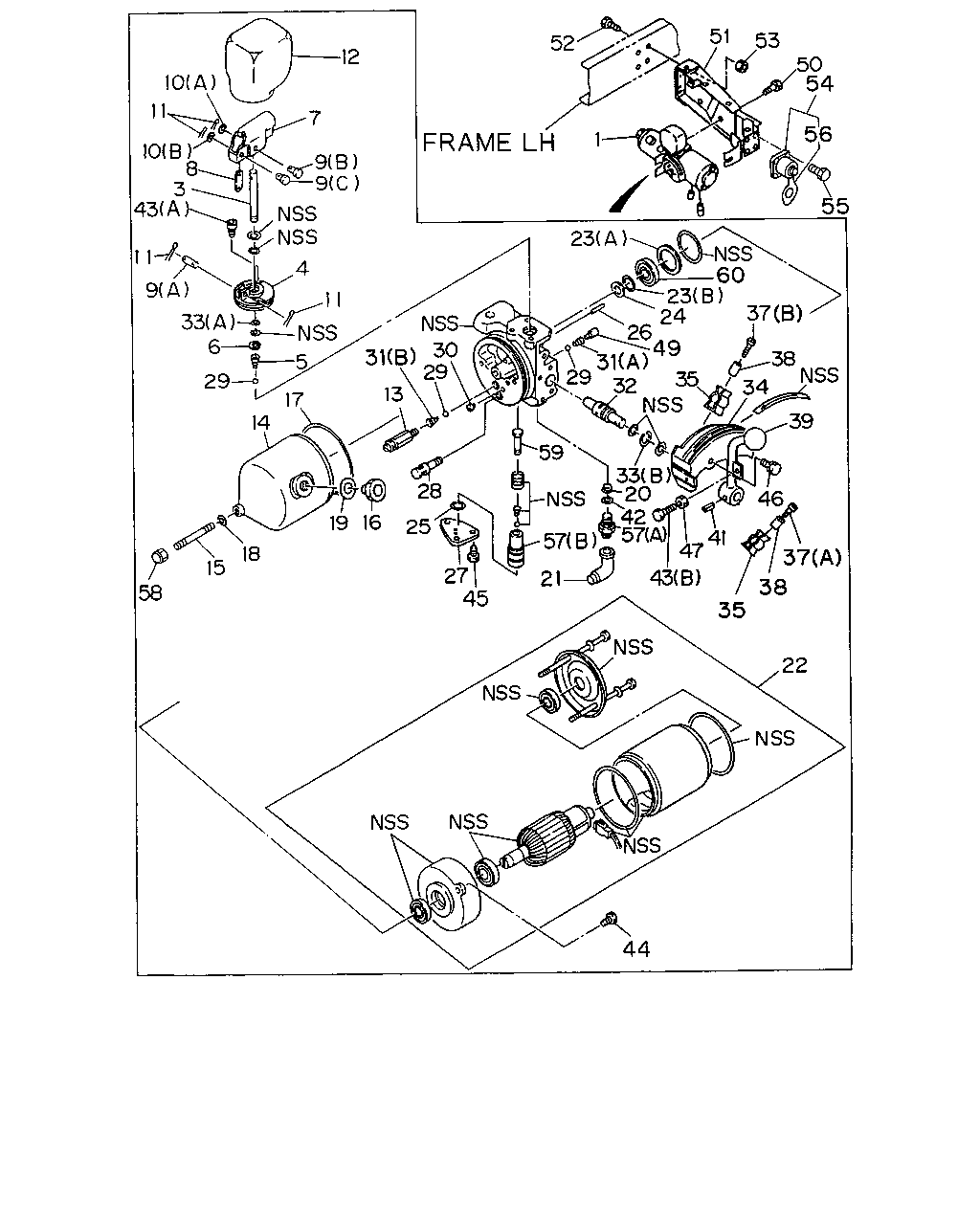

çizim 29673
12 10 11 10 8 7 9 9 3 43 11 9 33 6 29 5 11 4 14 17 58 15 18 19 16 25 28 13 31 29 30 52 1 51 53 50 54 56 55 23 60 23 24 26 49 37 38 34 35 31 29 59 57 27 45 21 32 33 20 42 57 43 47 41 46 39 35 38 37 22 44
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP; OIL,CAB TILT 1-53459-999-6 01 1 9207-
3 PISTON; MANUAL 1-53458-068-0 01 1 9207-
4 BRACKET; OIL PUMP 1-53458-067-0 01 1 9207-
5 SPRING; SUCTION 1-53458-066-0 01 1 9207-
6 RING; SNAP 1-53458-065-0 01 1 9207-
7 SOCKET; OIL PUMP 1-53458-063-0 01 1 9207-
8 LINK; OIL PUMP 1-53458-062-0 01 1 9207-
9 PIN; OIL PUMP
(C) 		1-53458-057-0 01 1 9207-
9 PIN; OIL PUMP
(B) 		1-53458-060-0 01 1 9207-
9 PIN; OIL PUMP
(A) 		1-53458-061-0 01 1 9207-
10 WASHER; OIL PUMP
(A) 		1-53458-013-0 01 1 9207-
10 WASHER; OIL PUMP
(B) 		1-53458-059-0 01 1 9207-
11 PIN; SPLIT,OIL PUMP 1-53458-058-0 04 1 9207-
12 BOOT; OIL PUMP 1-56513-001-0 01 1 9207-
13 VALVE; RELIEF,OIL PUMP 1-53458-246-0 01 1 9207-
14 RESERVOIR; OIL PUMP 1-53458-245-0 01 1 9207-
15 BOLT; RESERVOIR 1-53458-244-0 01 1 9207-
16 CAP 1-53458-164-0 01 1 9207-
17 GASKET; RESERVOIR 1-53458-054-0 01 1 9207-
18 GASKET; RESERVOIR BOLT 1-53458-051-0 01 1 9207-
19 GASKET; CAP 1-53458-050-0 01 1 9207-
20 FILTER; OIL PUMP 1-53458-243-0 02 1 9207-
21 CONNECTOR; OIL PUMP
M14 R1/8 ELBOW 		9-09224-308-2 02 1 9207-
22 MOTOR; OIL PUMP 1-53458-233-0 01 1 9207-9512
22 MOTOR; OIL PUMP 1-53458-752-0 01 1 9601-
23 WASHER; MOTOR
(A) 		1-53458-018-0 01 1 9207-
23 WASHER; MOTOR
(B) 		1-53458-045-0 01 1 9207-
24 RING; SNAP,MOTOR 1-53458-044-0 01 1 9207-
25 GASKET; OIL PUMP 1-53458-039-0 01 1 9207-
26 PIN; SPR,OIL PUMP 1-53458-038-0 02 1 9207-
27 COVER; OIL PUMP 1-53458-037-0 01 1 9207-
28 PIPE; OIL PUMP 1-53458-036-0 01 1 9207-
29 BALL; OIL PUMP 1-53458-035-0 04 1 9207-
30 PLUG; OIL PUMP 1-53458-033-0 02 1 9207-
31 SPRING; DELIVERY
(A) 		1-53458-032-0 01 1 9207-
31 SPRING; DELIVERY
(B) 		1-53458-034-0 01 1 9207-
32 VALVE; OIL PUMP 1-53458-141-0 01 1 9207-
33 RING; BACK UP
(A) 		1-53458-014-0 01 1 9207-
33 RING; BACK UP
(B) 		1-53458-028-0 01 1 9207-
34 HOLDER; LEVER 1-53458-137-0 01 1 9207-
35 STOPPER; LEVER 1-53458-023-0 02 1 9207-
37 SCREW; STOPPER
(A) 		1-53458-005-0 01 1 9207-
37 SCREW; STOPPER
(B) 		1-53458-124-0 01 1 9207-9310
37 SCREW; STOPPER
(B) M5X20 		1-53458-523-0 01 1 9311-
38 COLLAR; STOPPER 1-53458-022-0 01 1 9207-9310
38 COLLAR; STOPPER 1-53458-524-0 02 1 9311-
39 LEVER; OIL PUMP 1-53458-241-0 01 1 9207-
41 PIN; SPR,LEVER 1-53458-132-0 01 1 9207-
42 GASKET; NIPPLE 1-53458-016-0 02 1 9207-
43 BOLT; LEVER
(B) 		1-53458-008-0 01 1 9207-
43 BOLT; LEVER
(A) 		1-53458-012-0 03 1 9207-
44 BOLT; MOTOR
M6X20 		1-53458-007-0 02 1 9207-
45 BOLT; COVER 1-53458-006-0 03 1 9207-
46 BOLT; LEVER HOLDER
M6X8 		1-53458-004-0 02 1 9207-
47 NUT; LEVER 1-53458-003-0 01 1 9207-
49 VALVE; STOPPER 1-53458-144-0 01 1 9207-9210
50 BOLT; OIL PUMP
M10X20 W/LK WASHER 		0-50041-020-0 03 1 9207-
51 BRACKET; OIL PUMP 1-53459-639-5 01 1 9207-
52 BOLT; BRKT
M10X35 W/LK WASHER 		0-50041-035-0 04 1 9207-9307
52 BOLT; BRKT
M10X35 FLANGE 		0-28081-035-0 04 1 9308-
53 NUT; BRKT
M10 		9-09110-510-0 04 1 9207-
54 BOX ASM; SWITCH 1-82389-007-1 01 1 9207-
55 BOLT; SW BOX
M6X20 W/LK&PL WASHER 		0-50140-620-0 04 1 9207-
56 COVER; SW BOX 1-82389-008-0 01 1 9207-
57 ADAPTER; CONNECTOR
(A) 		1-53458-242-0 01 1 9207-
57 ADAPTER; CONNECTOR
(B) 		1-53458-251-0 01 1 9207-
58 NUT; CAP,RESERVOIR 1-53458-253-0 01 1 9207-
59 ORIFICE; OIL PUMP 1-53458-252-0 01 1 9207-
60 BEARING; OIL PUMP 1-53458-043-0 01 1 9207-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
