◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11352 - FVR(MIDDLE EAST) ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#16393) — 182 parça

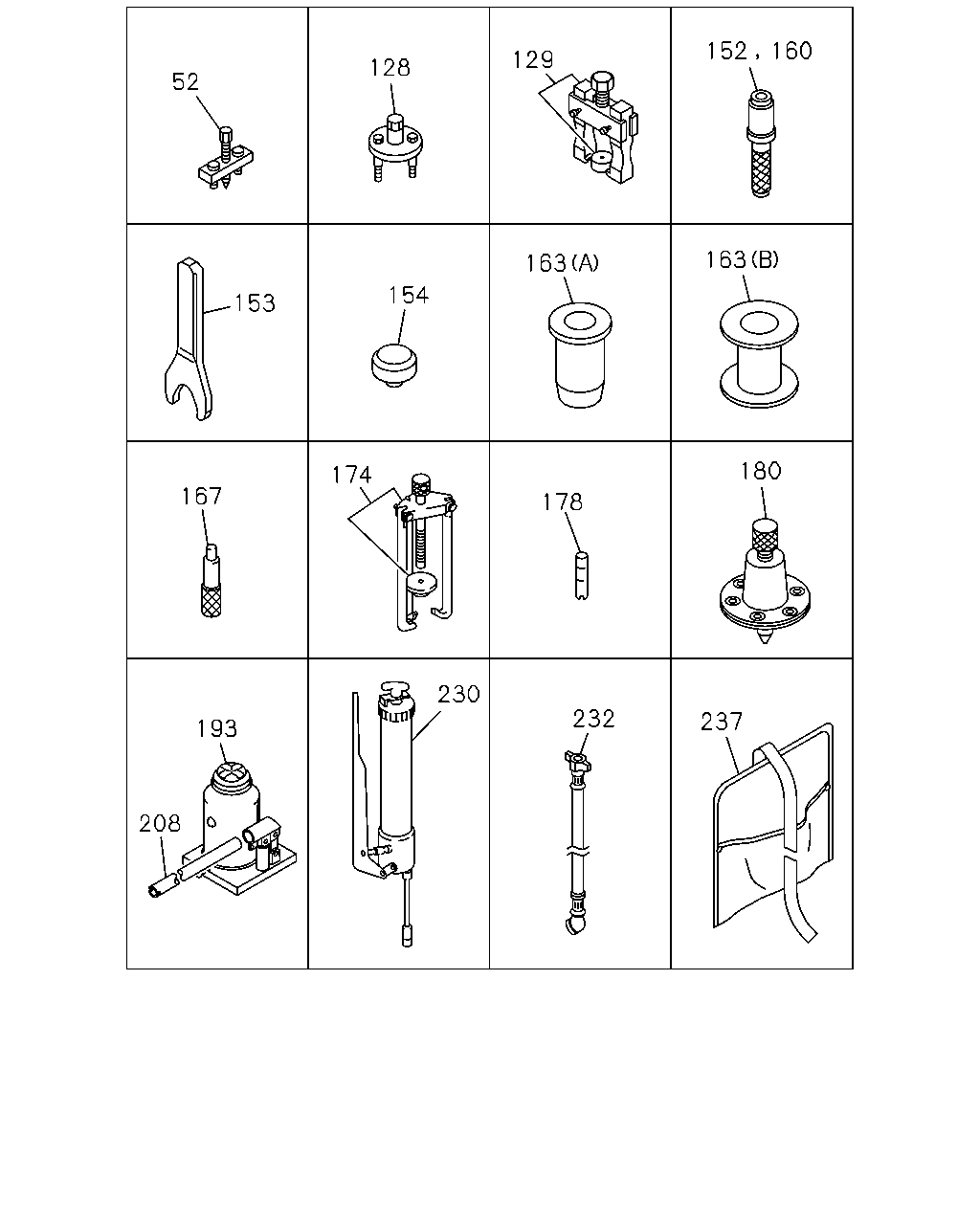

çizim 65417
52 128 129 152 160 153 154 163 163 167 174 178 180 193 208 230 232 237
BalonParca AdiParca NoAdetTipApplied Date A B
52 REMOVER; WATER PUMP
6SD1 STD ENG(37L) 		1-85210-047-0 01 1 9601-0308 ● ●
128 PULLER ASM; STRG WHEEL 9-85210-099-0 01 1 9601-0308 ● ●
128 PULLER ASM; STRG WHEEL 9-85210-099-0 01 1 0309- ●
129 PULLER ASM; PITMAN ARM 1-85210-011-0 01 1 9601-0308 ● ●
129 PULLER ASM; PITMAN ARM 1-85210-011-0 01 1 0309- ●
152 DRIVER; NEEDLE,KING PIN
L=220 		1-85238-001-0 01 1 9601-0308 ● ●
152 DRIVER; NEEDLE,KING PIN
L=220 		1-85238-001-0 01 1 0309- ●
153 DRIVER; WASHER,THRUST WASHER 1-85238-002-0 01 1 9601-0308 ● ●
153 DRIVER; WASHER,THRUST WASHER 1-85238-002-0 01 1 0309- ●
154 SLEEPER; KING PIN 1-85238-003-0 01 1 9601-0308 ● ●
154 SLEEPER; KING PIN 1-85238-003-0 01 1 0309- ●
160 REMOVER; NEEDLE BRG
L=220 		1-85238-001-0 01 1 9601-0308 ● ●
160 REMOVER; NEEDLE BRG
L=220 		1-85238-001-0 01 1 0309- ●
163 TOOL; SETTING
(A) L=195 		1-85221-162-1 01 1 0005- ●
163 TOOL; SETTING
(B) L=150 		1-85221-163-0 01 1 0005- ●
167 ALIGNER; CLU PILOT
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> L=185 		1-85253-012-0 01 1 9601-9803 ● ●
167 ALIGNER; CLU PILOT
L=185 		1-85253-012-0 01 1 9804-0004 ● ●
167 ALIGNER; CLU PILOT
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> L=185 		1-85253-012-0 01 1 0005-0308 ● ●
167 ALIGNER; CLU PILOT
L=185 		1-85253-012-0 01 1 0309- ●
174 PULLER ASM; MAIN CLU SHAFT 9-85210-148-0 01 1 9601-0308 ● ●
174 PULLER ASM; MAIN CLU SHAFT 9-85210-148-0 01 1 0309- ●
178 BAR; TRANS GUIDE 9-85291-203-0 01 1 9601-0308 ● ●
178 BAR; TRANS GUIDE 9-85291-203-0 01 1 0309- ●
180 PULLER; FRT & RR HUB 1-85210-002-0 01 1 9601-9803 ● ●
180 PULLER; FRT & RR HUB 1-85210-002-0 01 1 9601-9803 ● ●
180 PULLER; FRT & RR HUB 1-85210-002-0 02 1 9804-0308 ● ●
180 PULLER; FRT & RR HUB 1-85210-002-0 02 1 0309- ●
193 JACK ASM
DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 10TON 		1-85510-013-1 01 1 9601-0004 ● ●
193 JACK ASM
10TON 		1-85510-013-1 01 1 0005-0208 ● ●
193 JACK ASM
TOOL A KIT<SK9>,TOOL B KIT<SL1> 10TON 		1-85510-013-1 01 1 0209-0308 ● ●
193 JACK ASM
TOOL A KIT<SK9>,TOOL B KIT<SL1> 10TON 		1-85510-013-1 01 1 0309-0309 ●
193 JACK ASM
DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) TOOL A KIT<SK9>,TOOL B KIT<SL1> 10TON 		1-85510-013-1 01 1 0309-0504 ●
193 JACK ASM
TOOL A KIT<SK9>,TOOL B KIT<SL1> EXC. DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87),C AUTIONS ARABIAN<WJ7> 10TON 		1-85510-013-1 01 1 0309-0504 ●
193 JACK ASM
TOOL A KIT<SK9>,TOOL B KIT<SL1> 10TON 		8-97607-599-0 01 1 0505- ●
193 JACK ASM
TOOL A KIT<SK9>,TOOL B KIT<SL1> CAUTIONS ARABIAN<WJ7> EXC. DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 10TON 		1-85510-025-0 01 1 0309-0504 ●
208 HANDLE; JACK
L=600 		1-85515-008-0 01 1 9601-0105 ● ●
208 HANDLE; JACK
L=600 		1-85515-009-0 01 1 0106-0308 ● ●
208 HANDLE; JACK
L=600 		1-85515-009-0 01 1 0309-1107 ●
208 HANDLE; JACK
L=600 		8-98181-437-0 01 1 1108- ●
230 PUMP; GREASE
DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-85556-007-2 01 1 9601-0004 ● ●
230 PUMP; GREASE 1-85556-007-2 01 1 0005-0208 ● ●
230 PUMP; GREASE
TOOL B KIT<SL1> 		1-85556-007-2 01 1 0209-0308 ● ●
230 PUMP; GREASE
TOOL B KIT<SL1> 		1-85556-007-5 01 1 0309- ●
232 HOSE; AIR,AIR CHARGE
TIRE INFLATOR DEVICE<SG4> 		1-09360-245-1 01 1 9601-0308 ● ●
232 HOSE; AIR,AIR CHARGE
TIRE INFLATOR DEVICE<SG4> 		1-09360-245-1 01 1 0309- ●
237 BAG; TOOL
DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		8-97130-902-0 01 1 9601-0004 ● ●
237 BAG; TOOL 8-97130-902-0 01 1 0005-0208 ● ●
237 BAG; TOOL
TOOL A KIT<SK9>,TOOL B KIT<SL1> 		8-97130-902-0 01 1 0209-0308 ● ●
237 BAG; TOOL
TOOL A KIT<SK9>,TOOL B KIT<SL1> 		8-97130-902-1 01 1 0309- ●
çizim 65504
274 271 268 209 285 281 280 283 282 284
BalonParca AdiParca NoAdetTipApplied Date A B
209 CLIP; JACK HANDLE 1-73638-011-1 02 1 9601-0308 ● ●
209 CLIP; JACK HANDLE 1-73638-011-1 02 1 0309-0708 ●
209 CLIP; JACK HANDLE 8-98053-799-0 02 1 0709- ●
268 SCREW; CLIP
M6X12 W/LK WASHER 		9-03910-612-0 02 1 9601-0308 ● ●
268 SCREW; CLIP
M6X12 W/LK WASHER 		9-03910-612-0 02 1 0309-0604 ●
268 SCREW; CLIP
M6X12 W/LK WASHER 		0-36220-612-0 02 1 0605- ●
271 CLIP; TIRE HANGER 1-73638-012-1 02 1 9601-0308 ● ●
271 CLIP; TIRE HANGER 1-73638-012-1 02 1 0309-0708 ●
271 CLIP; TIRE HANGER 8-98053-800-0 02 1 0709- ●
274 SCREW; CLIP
M6X12 W/LK WASHER 		9-03910-612-0 02 1 9601-0308 ● ●
274 SCREW; CLIP
M6X12 W/LK WASHER 		9-03910-612-0 02 1 0309-0604 ●
274 SCREW; CLIP
M6X12 W/LK WASHER 		0-36220-612-0 02 1 0605- ●
280 BOX; TOOL
KEY LOCK TOOL BOX<RC5> 		1-85561-006-2 01 1 9601-0308 ● ●
280 BOX; TOOL
KEY LOCK TOOL BOX<RC5> 		1-85561-006-3 01 1 0310- ●
281 BRACKET; TOOL BOX
KEY LOCK TOOL BOX<RC5> 		1-53459-665-2 02 1 9601-0308 ● ●
281 BRACKET; TOOL BOX
KEY LOCK TOOL BOX<RC5> 		1-53459-665-2 02 1 0310- ●
282 NUT; BRKT
KEY LOCK TOOL BOX<RC5> M10 		9-09110-510-0 04 1 9601-9606 ● ●
282 NUT; BRKT
KEY LOCK TOOL BOX<RC5> M10 FLANGE 		0-91150-210-0 04 1 9607-0308 ● ●
282 NUT; BRKT
KEY LOCK TOOL BOX<RC5> M10 FLANGE 		0-91150-210-0 04 1 0310-0602 ●
282 NUT; BRKT
KEY LOCK TOOL BOX<RC5> M10 FLANGE 		0-91180-210-0 04 1 0603- ●
283 WASHER; LK,BRKT
KEY LOCK TOOL BOX<RC5> ID=10.2 		9-09150-510-0 04 1 9601-0308 ● ●
283 WASHER; LK,BRKT
KEY LOCK TOOL BOX<RC5> ID=10.2 		9-09150-510-0 04 1 0310-0603 ●
283 WASHER; LK,BRKT
KEY LOCK TOOL BOX<RC5> ID=10.2 		0-91510-510-0 04 1 0604- ●
284 BOLT; TOOL BOX
KEY LOCK TOOL BOX<RC5> M10X20 W/LK WASHER 		0-50041-020-0 04 1 9601-9606 ● ●
284 BOLT; TOOL BOX
KEY LOCK TOOL BOX<RC5> M10X20 FLANGE 		0-28681-020-0 04 1 9607-0308 ● ●
284 BOLT; TOOL BOX
KEY LOCK TOOL BOX<RC5> M10X20 FLANGE 		0-28681-020-0 04 1 0310-0512 ●
284 BOLT; TOOL BOX
KEY LOCK TOOL BOX<RC5> M10X20 FLANGE 		0-28651-020-0 04 1 0601- ●
285 NUT; TOOL BOX
KEY LOCK TOOL BOX<RC5> M10 		9-09110-510-0 04 1 9601-9606 ● ●
285 NUT; TOOL BOX
KEY LOCK TOOL BOX<RC5> M10 FLANGE 		0-91150-210-0 04 1 9607-0308 ● ●
285 NUT; TOOL BOX
KEY LOCK TOOL BOX<RC5> M10 FLANGE 		0-91150-210-0 04 1 0310-0602 ●
285 NUT; TOOL BOX
KEY LOCK TOOL BOX<RC5> M10 FLANGE 		0-91180-210-0 04 1 0603- ●
çizim 66612
5 1 12 141 9 23 13 22 21 20 19 17 29 29 57 52 29 84 70 61 77
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		9-23110-018-0 01 1 9601-0308 ●
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		9-23110-018-0 01 1 9601-0308 ●
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		9-23110-018-0 01 1 0309- ●
5 WRENCH ASM; NUT,MAINSHAFT
MAL6S M/T(Y1V) 		1-85110-010-0 01 1 9601-9803 ● ●
9 WRENCH; WHEEL PIN
DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) B=33X30 L=450 		1-85111-033-1 01 1 9601-0208 ● ●
9 WRENCH; WHEEL PIN
DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) TOOL A KIT<SK9>,TOOL B KIT<SL1> B=33X30 L=450 		1-85111-033-1 01 1 0209-0308 ● ●
9 WRENCH; WHEEL PIN
DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) TOOL A KIT<SK9>,TOOL B KIT<SL1> B=33X30 L=450 		1-85111-033-1 01 1 0309-1601 ●
9 WRENCH; WHEEL PIN
DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) TOOL A KIT<SK9>,TOOL B KIT<SL1> B=33X30 L=450 		8-98316-700-0 01 1 1602- ●
9 WRENCH; WHEEL PIN
EXC. DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) B=41X21 L=440 		1-85113-015-1 01 1 0005-0208 ● ●
9 WRENCH; WHEEL PIN
TOOL A KIT<SK9>,TOOL B KIT<SL1> EXC. DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) B=41X21 L=440 		1-85113-015-1 01 1 0209-0308 ● ●
9 WRENCH; WHEEL PIN
TOOL A KIT<SK9>,TOOL B KIT<SL1> EXC. DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) B=41X21 L=440 		1-85113-015-1 01 1 0309-1601 ●
9 WRENCH; WHEEL PIN
TOOL A KIT<SK9>,TOOL B KIT<SL1> EXC. DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) B=41X21 L=445 		8-98316-703-0 01 1 1602- ●
12 HANDLE; WRENCH,WHEEL PIN
DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) OD=25 L=480 		1-85116-011-0 01 1 9601-0004 ● ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		1-85116-011-0 01 1 0005-0208 ● ●
12 HANDLE; WRENCH,WHEEL PIN
TOOL A KIT<SK9>,TOOL B KIT<SL1> OD=25 L=480 		1-85116-011-0 01 1 0209-0308 ● ●
12 HANDLE; WRENCH,WHEEL PIN
TOOL A KIT<SK9>,TOOL B KIT<SL1> OD=25 L=480 		1-85116-011-0 01 1 0309-1501 ●
12 HANDLE; WRENCH,WHEEL PIN
TOOL A KIT<SK9>,TOOL B KIT<SL1> OD=25 L=480 		8-98257-407-0 01 1 1502- ●
13 WRENCH; MONKEY
DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) L=255 		1-85117-002-1 01 1 9601-0004 ● ●
13 WRENCH; MONKEY
L=255 		1-85117-002-1 01 1 0005-0208 ● ●
13 WRENCH; MONKEY
TOOL B KIT<SL1> L=255 		1-85117-002-1 01 1 0209-0211 ● ●
13 WRENCH; MONKEY
TOOL B KIT<SL1> L=247 		1-85117-006-0 01 1 0212-0308 ● ●
13 WRENCH; MONKEY
TOOL B KIT<SL1> L=247 		1-85117-006-0 01 1 0309-1407 ●
13 WRENCH; MONKEY
TOOL B KIT<SL1> L=255 		8-98270-303-0 01 1 1408- ●
17 HAMMER
DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		9-85121-406-0 01 1 9601-0004 ● ●
17 HAMMER 9-85121-406-0 01 1 0005-0208 ● ●
17 HAMMER
TOOL B KIT<SL1> 		9-85121-406-0 01 1 0209-0308 ● ●
17 HAMMER
TOOL B KIT<SL1> 		9-85121-406-0 01 1 0309- ●
19 WRENCH; 7X8
DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 8X10 		9-99592-108-0 01 1 9601-9602 ● ●
20 WRENCH; 10X12
DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 10X12 		9-09592-110-0 01 1 9601-0004 ● ●
20 WRENCH; 10X12
10X12 		9-09592-110-0 01 1 0005-0208 ● ●
20 WRENCH; 10X12
TOOL B KIT<SL1> 10X12 		9-09592-110-0 01 1 0209-0308 ● ●
20 WRENCH; 10X12
TOOL B KIT<SL1> 10X12 		9-09592-110-0 01 1 0309-0607 ●
20 WRENCH; 10X12
TOOL B KIT<SL1> 10X12 		0-95902-510-0 01 1 0608- ●
21 WRENCH; 14X17
DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 14X17 		9-09592-114-0 01 1 9601-0004 ● ●
21 WRENCH; 14X17
14X17 		9-09592-114-0 01 1 0005-0208 ● ●
21 WRENCH; 14X17
TOOL B KIT<SL1> 14X17 		9-09592-114-0 01 1 0209-0308 ● ●
21 WRENCH; 14X17
TOOL B KIT<SL1> 14X17 		9-09592-114-0 01 1 0309-0607 ●
21 WRENCH; 14X17
TOOL B KIT<SL1> 14X17 		0-95902-514-0 01 1 0608- ●
22 WRENCH; 19X22
DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 19X22 		9-99592-119-0 01 1 9601-0004 ● ●
22 WRENCH; 19X22
19X22 		9-99592-119-0 01 1 0005-0208 ● ●
22 WRENCH; 19X22
TOOL B KIT<SL1> 19X22 		9-99592-119-0 01 1 0209-0308 ● ●
22 WRENCH; 19X22
TOOL B KIT<SL1> 19X22 		9-99592-119-0 01 1 0309-0607 ●
22 WRENCH; 19X22
TOOL B KIT<SL1> 19X22 		0-95902-519-0 01 1 0608- ●
23 WRENCH; 24X27
DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 24X27 		9-09592-124-0 01 1 9601-0004 ● ●
23 WRENCH; 24X27
24X27 		9-09592-124-0 01 1 0005-0208 ● ●
23 WRENCH; 24X27
TOOL B KIT<SL1> 24X27 		9-09592-124-0 01 1 0209-0308 ● ●
23 WRENCH; 24X27
TOOL B KIT<SL1> 24X27 		9-09592-124-0 01 1 0309-0607 ●
23 WRENCH; 24X27
TOOL B KIT<SL1> 24X27 		0-95902-524-0 01 1 0608- ●
29 DRIVER; SCREW
DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) (A) <-> L=285 		1-85151-004-0 01 1 9601-0004 ● ●
29 DRIVER; SCREW
(A) <-> L=285 		1-85151-004-0 01 1 0005-0208 ● ●
29 DRIVER; SCREW
TOOL B KIT<SL1> (A) <-> L=285 		1-85151-004-0 01 1 0209-0308 ● ●
29 DRIVER; SCREW
TOOL B KIT<SL1> (A) <-> L=285 		1-85151-004-0 01 1 0309-0611 ●
29 DRIVER; SCREW
TOOL B KIT<SL1> (A) <-> L=275 		8-98061-105-0 01 1 0612- ●
29 DRIVER; SCREW
DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) (B) <+>,<-> L=160 		8-94242-798-1 01 1 9601-0004 ● ●
29 DRIVER; SCREW
(B) <+>,<-> L=160 		8-94242-798-1 01 1 0005-0208 ● ●
29 DRIVER; SCREW
TOOL A KIT<SK9>,TOOL B KIT<SL1> (B) <+>,<-> L=160 		8-94242-798-1 01 1 0209-0308 ● ●
29 DRIVER; SCREW
TOOL A KIT<SK9>,TOOL B KIT<SL1> (B) <+>,<-> L=160 		8-94242-798-1 01 1 0309- ●
29 DRIVER; SCREW
DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) (C) <+> L=190 		9-09595-522-0 01 1 9601-0004 ● ●
29 DRIVER; SCREW
(C) <+> L=190 		9-09595-522-0 01 1 0005-0208 ● ●
29 DRIVER; SCREW
TOOL B KIT<SL1> (C) <+> L=190 		9-09595-522-0 01 1 0209-0308 ● ●
29 DRIVER; SCREW
TOOL B KIT<SL1> (C) <+> L=190 		9-09595-522-0 01 1 0309- ●
52 REMOVER; WATER PUMP
6SD1 STD ENG(37L) 		1-85210-047-0 01 1 9601-0308 ● ●
57 TOOL; SETTING CRANK GEAR
6SD1 STD ENG(37L) ID=144.5 		1-85221-072-0 01 1 9601-0308 ● ●
61 PULLER ASM; PILOT BRG 1-85210-050-0 01 1 9601-0308 ● ●
61 PULLER ASM; PILOT BRG 1-85210-050-0 01 1 0309- ●
70 TOOL; SETTING,OIL SEAL
6SD1 STD ENG(37L) 		1-85220-025-1 01 1 9601-0308 ● ●
77 TOOL; SETTING,CYL LINER
6SD1 STD ENG(37L) 		1-85221-073-0 01 1 9601-0308 ● ●
84 REPLACER; VALVE SEAL
6HH1 STD ENG(65L) 		8-94396-815-0 01 1 9601-0308 ● ●
84 REPLACER; VALVE SEAL 8-94396-815-0 01 1 0309- ●
141 HANDLE; WRENCH
OD=25 L=480 		1-85116-011-0 01 1 9601-0308 ● ●
141 HANDLE; WRENCH
OD=25 L=480 		1-85116-011-0 01 1 0309-1501 ●
141 HANDLE; WRENCH
OD=25 L=480 		8-98257-407-0 01 1 1502- ●

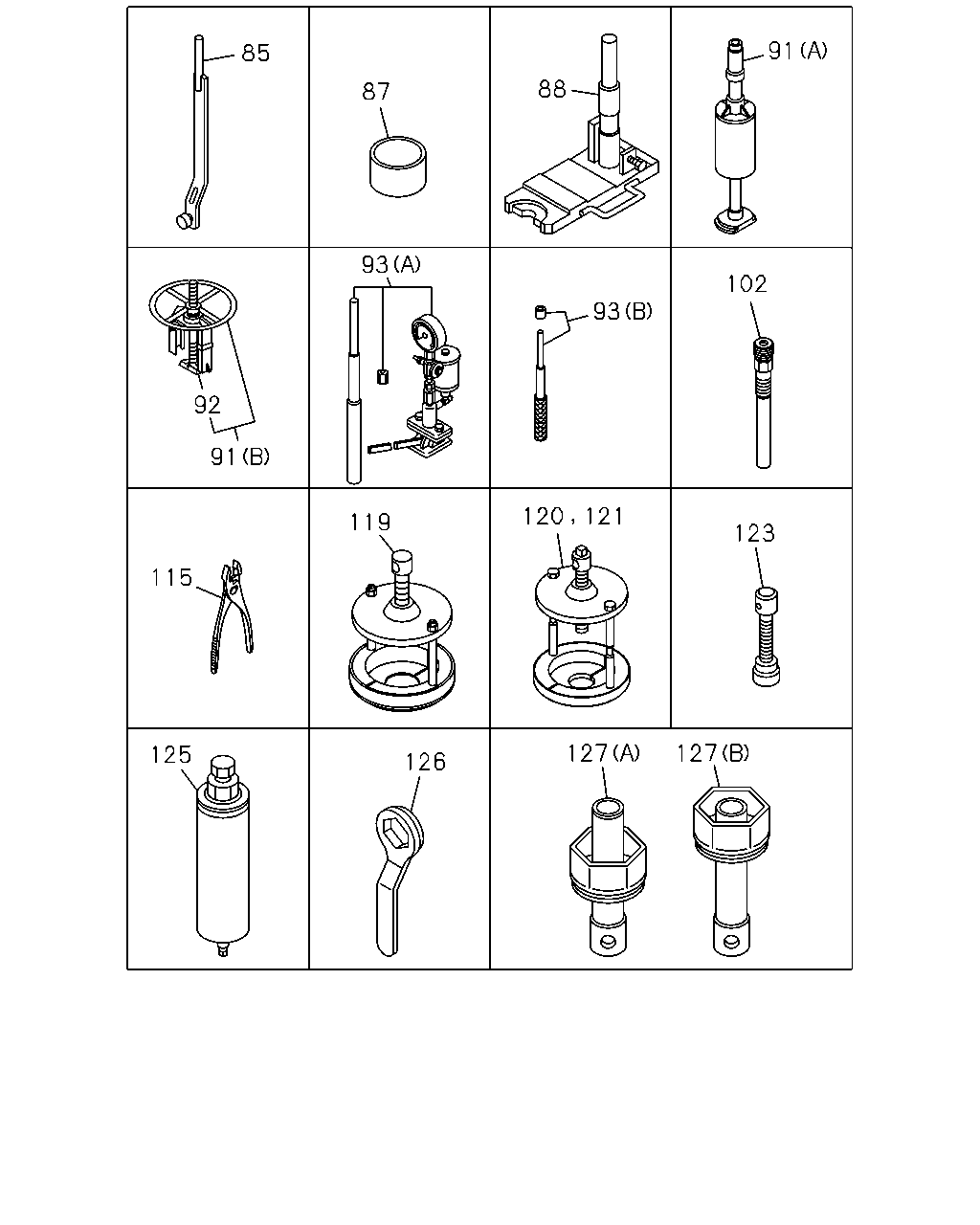

çizim 66617
91 85 88 87 93 102 93 92 91 120 121 119 123 115 127 127 125 126
BalonParca AdiParca NoAdetTipApplied Date A B
85 REPLACER ASM; VALVE SPR
6SD1 STD ENG(37L) 		1-85235-007-0 01 1 9601-0308 ● ●
87 TOOL; PISTON
6SD1 STD ENG(37L) 		1-85221-082-0 01 1 9601-0308 ● ●
88 TOOL; CONNROD BUSHING
6SD1 STD ENG(37L) 		1-85220-037-0 01 1 9601-0308 ● ●
91 REPLACER ASM; CYL LINER
6HH1 STD ENG(65L) (B) 		8-94396-849-0 01 1 9601-0308 ● ●
91 REPLACER ASM; CYL LINER
(B) 		8-94396-849-0 01 1 0309- ●
91 REPLACER ASM; CYL LINER
6SD1 STD ENG(37L) (A) 		1-85231-021-0 01 1 9601-0308 ● ●
92 ANKLE; REPLACER,CYL LINER
6HH1 STD ENG(65L) 		8-94396-821-0 01 1 9601-0308 ● ●
92 ANKLE; REPLACER,CYL LINER 8-94396-821-0 01 1 0309- ●
93 SETTING KIT; VALVE GUIDE
6HH1 STD ENG(65L) (A) 		1-85220-001-0 01 1 9601-0308 ● ●
93 SETTING KIT; VALVE GUIDE
(A) 		1-85220-001-0 01 1 0309- ●
93 SETTING KIT; VALVE GUIDE
6SD1 STD ENG(37L) (B) L=260 		9-85231-202-0 01 1 9601-0308 ● ●
102 ADAPTER; COMP GAGE
6SD1 STD ENG(37L) 		5-85317-001-0 01 1 9601-0308 ● ●
115 PLIER
DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		5-85171-001-0 01 1 9601-9602 ● ●
115 PLIER
DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		5-85171-002-0 01 1 9603-0004 ● ●
115 PLIER 5-85171-002-0 01 1 0005-0208 ● ●
115 PLIER
TOOL B KIT<SL1> 		5-85171-002-0 01 1 0209-0308 ● ●
115 PLIER
TOOL B KIT<SL1> 		5-85171-002-0 01 1 0309-1410 ●
115 PLIER
TOOL B KIT<SL1> 		8-98282-845-0 01 1 1411- ●
119 PULLER ASM; TOP GEAR BRG
MAL6S M/T(Y1V) L=235 		9-85210-190-0 01 1 9601-0308 ● ●
120 PULLER ASM; MAIN REAR BRG
MAL6S M/T(Y1V) L=285 		9-85210-184-0 01 1 9601-0308 ● ●
121 PULLER ASM; COUNTER REAR
MAL6S M/T(Y1V) L=285 		9-85210-184-0 01 1 9601-0308 ● ●
123 PULLER; SPEEDOMETER BUSHING
MAL6S M/T(Y1V) 		9-85210-091-0 01 1 9601-0308 ● ●
125 PULLER ASM; KING PIN
L=450 		1-85210-009-0 01 1 9601-0308 ● ●
125 PULLER ASM; KING PIN
L=450 		1-85210-009-0 01 1 0309- ●
126 WRENCH; FRT HUB BRG NUT
L=350 B=75 		1-85110-002-1 01 1 9601-0308 ● ●
126 WRENCH; FRT HUB BRG NUT
L=350 B=75 		1-85110-002-1 01 1 0309- ●
127 WRENCH ASM; HUB BRG NUT
(A) L=400 B=105 		9-85113-509-0 01 1 9601-0308 ● ●
127 WRENCH ASM; HUB BRG NUT
(A) L=400 B=105 		9-85113-509-0 01 1 0309- ●
127 WRENCH ASM; HUB BRG NUT
(B) B=98 L=305 		9-85113-533-2 01 1 9601-0308 ● ●
127 WRENCH ASM; HUB BRG NUT
(B) B=98 L=305 		9-85113-533-2 01 1 0309- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
