◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11352 - FVR(MIDDLE EAST) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-90 - RADIO AND TV ▶
8-90 — RADIO AND TV (#16392) — 52 parça

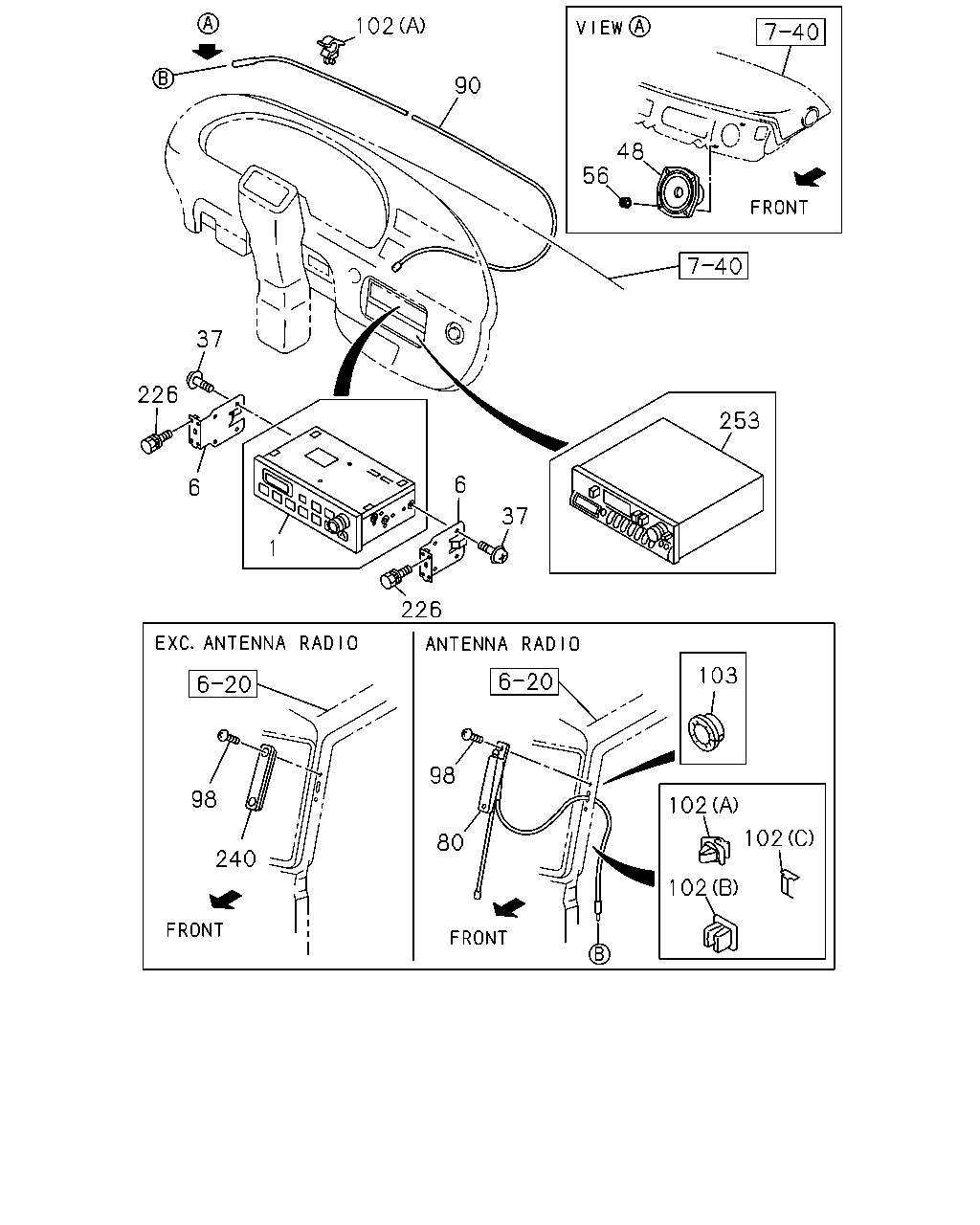

çizim 65416
48 56 90 102 37 226 6 1 226 6 37 253 102 102 102 103 98 80 240 98
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIO
RADIO CLARION(SK2) EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-84112-063-0 01 1 9601-9911 ● ●
1 RADIO
RADIO CLARION(SK2) EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-84112-068-0 01 1 9912-0308 ● ●
1 RADIO
RADIO CLARION(SK2) EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-84112-068-0 01 1 0309-0702 ●
1 RADIO
RADIO CLARION(SK2) EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> CLARION AM/FM 		8-98029-605-0 01 1 0703- ●
6 BRACKET; RADIO TO PANEL 1-65671-551-4 02 1 9601-0308 ● ●
6 BRACKET; RADIO TO PANEL 1-65671-551-4 02 1 0309-0612 ●
6 BRACKET; RADIO TO PANEL 1-65671-822-1 02 1 0701- ●
37 SCREW; CASSETTE & RADIO
RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 9601-0308 ● ●
37 SCREW; CASSETTE & RADIO
RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 0309-0604 ●
37 SCREW; CASSETTE & RADIO
RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) M5X10 W/LK+PL WASHER 		0-36230-510-0 04 1 0605- ●
48 SPEAKER; AUDIO
RADIO CLARION(SK2) EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-84114-050-0 01 1 9601-0308 ● ●
48 SPEAKER; AUDIO
RADIO CLARION(SK2) EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-84114-050-0 01 1 0309-0309 ●
48 SPEAKER; AUDIO
RADIO CLARION(SK2) EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-84114-073-0 01 1 0309-0702 ●
48 SPEAKER; AUDIO
RADIO CLARION(SK2) EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-84114-073-0 02 1 0703-0905 ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. RADIO CLARION(SK2) 		1-84114-073-0 02 1 0703-0905 ●
48 SPEAKER; AUDIO
RADIO CLARION(SK2) EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		8-98140-326-1 02 1 0906- ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. RADIO CLARION(SK2) 		8-98140-326-1 02 1 0906- ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. RADIO CLARION(SK2) 		1-84114-050-0 02 1 9601-0308 ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. RADIO CLARION(SK2) 		1-84114-050-0 02 1 0309-0309 ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. RADIO CLARION(SK2) 		1-84114-073-0 02 1 0309-0702 ●
56 NUT; SPEAKER,RADIO OR STEREO
RADIO CLARION(SK2) EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M5 FLANGE 		1-09984-170-0 02 1 9601-0308 ● ●
56 NUT; SPEAKER,RADIO OR STEREO
RADIO CLARION(SK2) EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M5 FLANGE 		1-09984-170-0 02 1 0309-0702 ●
56 NUT; SPEAKER,RADIO OR STEREO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M5 FLANGE 		1-09984-170-0 04 1 0703- ●
56 NUT; SPEAKER,RADIO OR STEREO
RADIO CLARION(SK2) EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M5 FLANGE 		1-09984-170-0 04 1 0703- ●
56 NUT; SPEAKER,RADIO OR STEREO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M5 FLANGE 		1-09984-170-0 04 1 9601-0308 ● ●
56 NUT; SPEAKER,RADIO OR STEREO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M5 FLANGE 		1-09984-170-0 04 1 0309-0702 ●
80 ANTENNA
ANTENNA RADIO<U73> 		1-84115-055-2 01 1 9601-0308 ● ●
80 ANTENNA
ANTENNA RADIO<U73> 		1-84115-055-2 01 1 0309-1203 ●
80 ANTENNA
ANTENNA RADIO<U73> 		8-98210-874-1 01 1 1204- ●
90 CABLE; ANTENNA,FEEDER
ANTENNA RADIO<U73> 		1-84113-011-2 01 1 9601-0308 ● ●
90 CABLE; ANTENNA,FEEDER
ANTENNA RADIO<U73> 		1-84113-011-2 01 1 0309- ●
98 SCREW; TAP,ANTENNA
M5X11 		1-09981-536-1 02 1 9601-0308 ● ●
98 SCREW; TAP,ANTENNA
M5X11 		1-09981-536-1 02 1 0309- ●
102 CLIP; CABLE
ANTENNA RADIO<U73> (C) L=20 SET=10 PIECE 		1-09987-246-2 01 1 1410- ●
102 CLIP; CABLE
ANTENNA RADIO<U73> (A) WO/PACKING ID=4.8 		8-94128-483-0 02 1 9601-9612 ● ●
102 CLIP; CABLE
ANTENNA RADIO<U73> (A) WO/PACKING ID=4.8 		8-94128-483-0 07 1 9701-9803 ● ●
102 CLIP; CABLE
ANTENNA RADIO<U73> (A) WO/PACKING ID=4.8 		8-94128-483-0 05 1 9804-9808 ● ●
102 CLIP; CABLE
ANTENNA RADIO<U73> (A) WO/PACKING ID=4.8 		8-94128-483-0 04 1 9809-9809 ● ●
102 CLIP; CABLE
ANTENNA RADIO<U73> (A) WO/PACKING ID=4.8 		8-94128-483-0 05 1 9810-9902 ● ●
102 CLIP; CABLE
ANTENNA RADIO<U73> (B) W/PACKING ID=4.8 		1-73907-618-0 05 1 9903-0308 ● ●
102 CLIP; CABLE
ANTENNA RADIO<U73> (B) W/PACKING ID=4.8 		1-73907-618-0 05 1 0309- ●
102 CLIP; CABLE
ANTENNA RADIO<U73> (A) WO/PACKING ID=4.8 		8-94128-483-0 02 1 9804-0308 ● ●
102 CLIP; CABLE
ANTENNA RADIO<U73> (A) WO/PACKING ID=4.8 		8-94128-483-0 02 1 0309- ●
103 GROMMET; ANTENNA HOLE,FRT
ANTENNA RADIO<U73> 		8-97027-381-0 01 1 9601-0308 ● ●
103 GROMMET; ANTENNA HOLE,FRT
ANTENNA RADIO<U73> 		8-97027-381-0 01 1 0309- ●
226 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9601-0308 ● ●
226 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0309- ●
240 COVER; ANTENNA
EXC. ANTENNA RADIO<U73> 		1-79996-296-0 01 1 9601-0308 ● ●
240 COVER; ANTENNA
EXC. ANTENNA RADIO<U73> 		1-79996-296-0 01 1 0309- ●
253 DECK ASM; RADIO & CD
RADIO AM/FM STEREO & TAPE PLAYER(UN3) SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-84122-032-2 01 1 9601-9911 ● ●
253 DECK ASM; RADIO & CD
RADIO AM/FM STEREO & TAPE PLAYER(UN3) SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-84122-038-1 01 1 9912-0308 ● ●
253 DECK ASM; RADIO & CD
RADIO AM/FM STEREO & TAPE PLAYER(UN3) SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-84122-038-1 01 1 0309- ●
