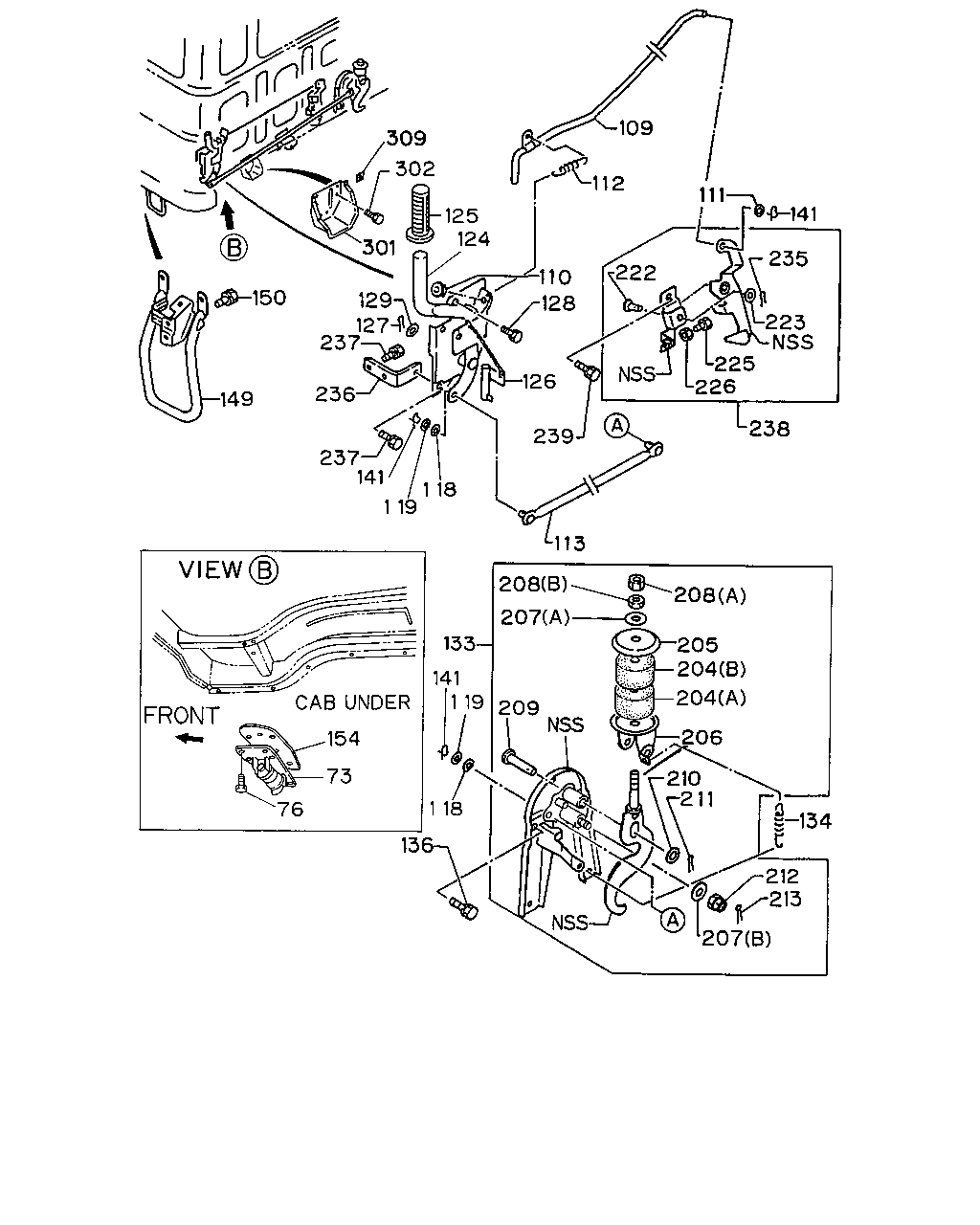

5-15 — CAB MOUNTING; CAB SIDE (#1639) — 136 parça

109 112 111 141 235 222 223 225 226 238 239 126 128 110 124 125 302 309 150 301 129 237 127 149 236 237 113 118 119 141 154 73 76 133 141 119 209 118 136 207 134 212 213 211 210 204 204 206 205 207 208

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
73	PAD; TORSION BAR	1-71238-020-0	02	1	9207-	●	●	●	●
76	BOLT; PAD M10X30	1-09980-517-0	06	1	9207-	●	●	●	●
109	ROD; SAFETY,CAB LK	1-79718-276-8	01	1	9207-	●	●	●	●
110	BUSHING; SAFETY ROD,CAB LOCK	1-79718-319-1	01	1	9207-	●	●	●	●
111	WASHER; PL,SAFETY ROD	1-09985-137-0	01	1	9207-	●	●	●	●
112	SPRING; RETURN,SAFETY ROD	1-79718-285-1	01	1	9207-	●	●	●	●
113	ROD; CONN,CAB LK	1-79718-267-1	01	1	9207-	●	●	●	●	●
118	WASHER; PL,CONNROD ID=10.5	1-09985-107-0	02	1	9207-	●	●	●	●	●
119	WASHER; WAVE,CAB LOCK ROD	1-09985-045-0	02	1	9207-	●	●	●	●	●
124	LEVER ASM; HAND,CAB LK	1-79718-477-2	01	1	9207-	●	●	●	●
124	LEVER ASM; HAND,CAB LK	1-79718-480-2	01	1	9207-					●
125	GRIP; HAND LEVER,CAB LOCK	1-79718-303-2	01	1	9207-9508	●	●	●	●	●
126	PIN; LK,HAND LEVER	1-79718-479-1	01	1	9207-	●	●	●	●	●
127	PIN; SPLIT,BRKT L=30 L=30	1-09987-080-0	01	1	9207-9508	●	●	●	●	●
128	BOLT; BRKT M8X25 W/LK&PL WASHER	1-09980-548-0	03	1	9207-	●	●	●	●	●
129	WASHER; PL,BRKT ID=17	1-09985-109-0	01	1	9207-9508	●	●	●	●	●
133	LOCK ASM; CAB	1-79718-426-4	01	1	9207-9311	●	●	●	●
133	LOCK ASM; CAB EXC. AUSTRALIA EQUIPMENT(RR3)	1-79718-426-4	01	1	9207-9311					●
133	LOCK ASM; CAB	1-79718-550-3	01	1	9312-	●	●	●	●
133	LOCK ASM; CAB EXC. AUSTRALIA EQUIPMENT(RR3)	1-79718-550-3	01	1	9312-					●
133	LOCK ASM; CAB AUSTRALIA EQUIPMENT(RR3)	1-79718-466-2	01	1	9207-					●
134	SPRING; CAB LK LEVER	1-09985-044-0	01	1	9207-	●	●	●	●	●
136	BOLT; CAB LK M10X25 W/LK&PL WASHER	1-09980-488-0	05	1	9207-	●	●	●	●	●
141	PIN; SNAP,CAB LOCK ROD L=27.7	1-09987-141-0	01	1	9207-	●	●	●	●
141	PIN; SNAP,CAB LOCK ROD L=32.6	1-09987-142-0	02	1	9207-	●	●	●	●	●
149	HANDLE; TILT	1-71998-468-0	01	1	9207-	●	●	●	●
150	BOLT; TILT HANDLE M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	9207-	●	●	●	●
154	PLATE; LEVER PAD SUSP SEAT W/SEAT BELT ANCHORAGE<WN5>	1-71238-021-0	06	1	9207-	●	●	●	●
204	RUBBER; REBOUND,CAB LK (A)	1-79718-429-1	01	1	9207-	●	●	●	●	●
204	RUBBER; REBOUND,CAB LK AUSTRALIA EQUIPMENT(RR3) (B)	1-79718-022-1	01	1	9207-					●
205	PLATE; SUPPORT,REBOUND RUBBER	1-79718-129-1	01	1	9207-	●	●	●	●	●
206	SUPPORT; REBOUND RUBBER	1-79718-434-0	01	1	9207-	●	●	●	●
206	SUPPORT; REBOUND RUBBER EXC. AUSTRALIA EQUIPMENT(RR3)	1-79718-434-0	01	1	9207-					●
206	SUPPORT; REBOUND RUBBER AUSTRALIA EQUIPMENT(RR3)	1-79718-471-0	01	1	9207-					●
207	WASHER; PL,SUPPORT PLATE (A) ID=15 OD=36	1-09985-112-0	01	1	9207-9509	●	●	●	●	●
207	WASHER; PL,SUPPORT PLATE AUSTRALIA EQUIPMENT(RR3) (A) ID=15 OD=36	1-09985-112-0	01	1	9510-					●
207	WASHER; PL,SUPPORT PLATE (B) ID=19 OD=44	1-09985-113-0	01	1	9207-	●	●	●	●	●
208	NUT; SUPPORT PLATE (A) M14	1-09984-066-0	01	1	9207-	●	●	●	●	●
208	NUT; SUPPORT PLATE (B) M14	1-09984-067-0	01	1	9207-	●	●	●	●	●
209	PIN; JOINT,SUPPORT	1-09987-083-0	01	1	9207-	●	●	●	●	●
210	WASHER; PL,SUPPORT ID=17	1-09985-109-0	01	1	9207-	●	●	●	●	●
211	PIN; SPLIT,SUPPORT OD=3.7 L=28	9-08114-028-0	01	1	9510-	●	●	●	●
211	PIN; SPLIT,SUPPORT EXC. AUSTRALIA EQUIPMENT(RR3) OD=3.7 L=28	9-08114-028-0	01	1	9510-					●
211	PIN; SPLIT,SUPPORT L=30 L=30	1-09987-080-0	01	1	9207-9509	●	●	●	●	●
211	PIN; SPLIT,SUPPORT AUSTRALIA EQUIPMENT(RR3) L=30 L=30	1-09987-080-0	01	1	9510-					●
212	NUT; BRKT,CAB LOCK M18 SLOTTED	1-09984-079-0	01	1	9207-	●	●	●	●	●
213	PIN; SPLIT,BRKT,CAB LK L=30	1-09987-080-0	01	1	9207-9509	●	●	●	●	●
213	PIN; SPLIT,BRKT,CAB LK OD=3.7 L=30	9-08114-030-0	01	1	9510-	●	●	●	●	●
222	PIN; JOINT,SAFETY LK	1-09987-159-0	01	1	9207-	●	●	●	●
223	WASHER; PL,SAFETY LK ID=12.5 OD=22 T=1.6	1-09985-108-0	01	1	9207-	●	●	●	●
225	BOLT; SAFETY LK M8X30	1-09980-277-0	01	1	9207-	●	●	●	●
226	NUT; SAFETY LK M8	1-09984-065-0	01	1	9207-	●	●	●	●
235	PIN; SNAP	1-09987-158-1	01	1	9207-	●	●	●	●
236	SUPPORT ASM; HAND LEVER,CAB LOCK	1-79718-286-3	01	1	9207-	●	●	●	●	●
237	BOLT; HAND LEVER SUPPORT,CAB LOCK M8X25	1-09980-491-0	02	1	9207-	●	●	●	●	●
238	LOCK ASM; SAFETY,CAB TILT	1-79718-307-9	01	1	9207-9507	●	●	●	●
238	LOCK ASM; SAFETY,CAB TILT	1-79718-602-2	01	1	9508-	●	●	●	●
239	BOLT; SAFETY LK	1-09980-487-0	02	1	9207-	●	●	●	●
301	BRACKET; RR MTG,CAB	1-62580-165-0	01	1	9207-	●	●	●	●
301	BRACKET; RR MTG,CAB	1-62580-053-2	01	1	9207-	●	●	●	●
301	BRACKET; RR MTG,CAB	1-62580-189-1	01	1	9207-					●
301	BRACKET; RR MTG,CAB	1-62580-188-0	01	1	9207-					●
302	BOLT; BRKT,CAB M8X25 W/LK&PL WASHER	1-09980-526-0	12	1	9207-	●	●	●	●	●
309	SEAL; WATER 25X25	8-94272-533-0	08	1	9207-	●	●	●	●	●

3 7 1 13 1 7 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	LEVER; TORSION BAR	1-53459-768-2	01	1	9207-	●	●	●	●
1	LEVER; TORSION BAR	1-53459-767-2	01	1	9207-	●	●	●	●
3	BOLT; LEVER M10X32	1-09000-435-0	04	1	9207-	●	●	●	●
7	NUT; LK,LEVER M10	9-09110-510-0	04	1	9207-	●	●	●	●
13	BOLT; BUSHING,TORSION BAR M6X16 W/LK&PL WASHER	0-50140-616-0	02	1	9207-	●	●	●	●

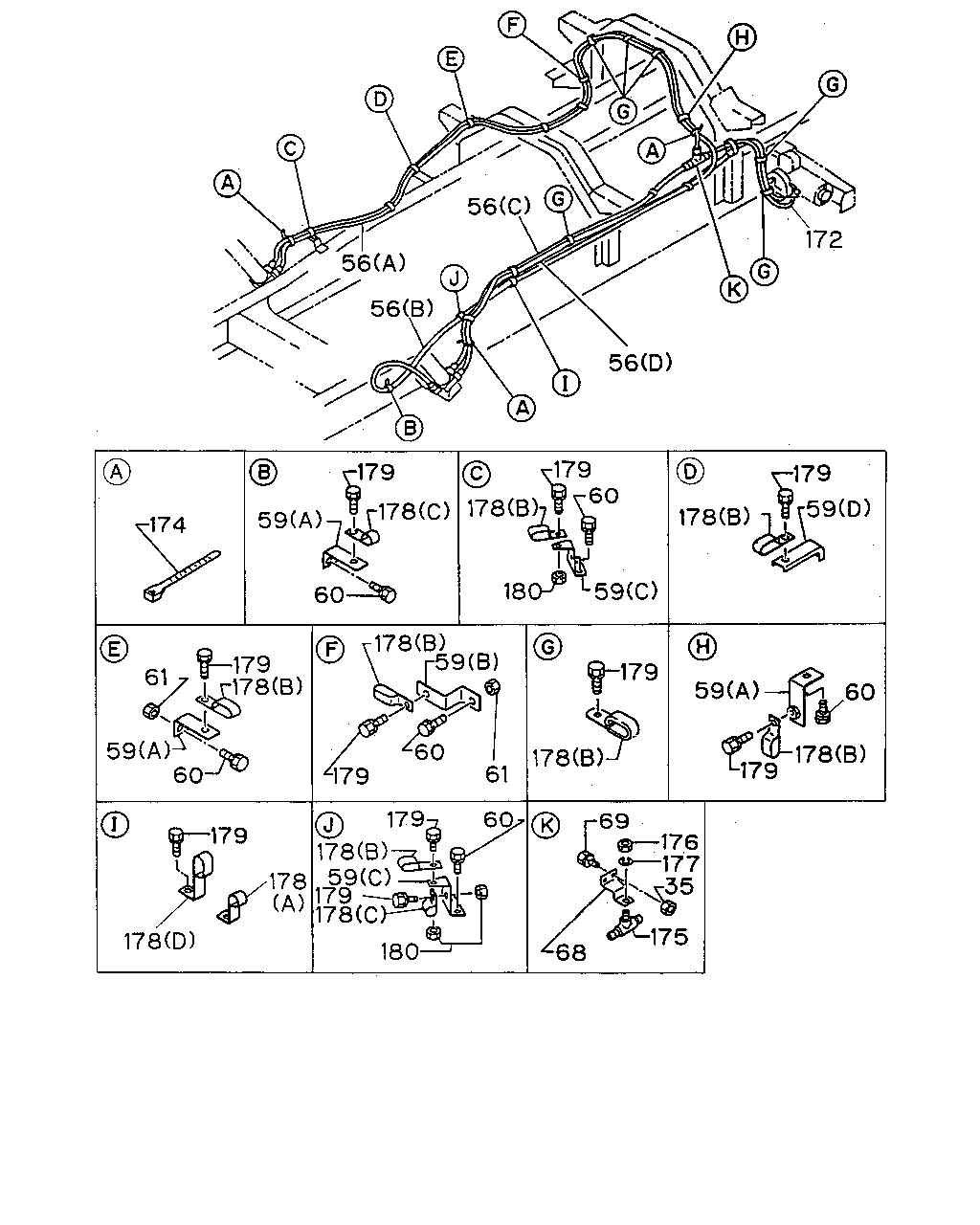

172 56 56 56 56 174 59 179 178 60 179 178 60 180 59 178 179 59 61 59 179 178 60 178 179 59 60 61 178 179 59 60 179 178 178 179 178 178 59 179 178 179 180 60 69 176 177 35 175 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	E
35	NUT; BRKT M8	9-09110-408-0	02	1	9207-	●
56	HOSE; FLEX,OIL PIPE (C) L=1900	1-09364-576-4	01	1	9207-	●
56	HOSE; FLEX,OIL PIPE (D) L=2820	1-09364-610-2	01	1	9207-	●
56	HOSE; FLEX,OIL PIPE (A) L=3230	1-09364-634-3	01	1	9207-	●
56	HOSE; FLEX,OIL PIPE (B) L=5650	1-09364-635-2	01	1	9207-	●
59	BRACKET; CLIP (D)	1-47475-520-0	02	1	9207-	●
59	BRACKET; CLIP (A) L=68	1-47475-525-0	01	1	9207-	●
59	BRACKET; CLIP (A) L=90 B=25	1-47475-530-0	02	1	9207-	●
59	BRACKET; CLIP (B)	1-47475-654-2	01	1	9207-	●
59	BRACKET; CLIP (C)	1-53459-700-0	01	1	9207-	●
59	BRACKET; CLIP (C)	1-53459-701-1	01	1	9207-	●
60	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	10	1	9207-	●
61	NUT; BRKT M8	9-09110-408-0	02	1	9207-	●
68	BRACKET; UNION	1-47475-749-0	01	1	9207-	●
69	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	02	1	9207-	●
172	HOSE; FLEX,OIL TILT L=870	1-09364-611-2	01	1	9207-	●
174	CLIP; BAND,FLEX HOSE L=140	5-09707-031-1	04	1	9207-	●
175	UNION; FLEX HOSE	9-09228-608-1	01	1	9207-	●
176	NUT; UNION M14	9-99111-414-0	01	1	9207-	●
177	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9207-	●
178	CLIP; FLEX HOSE (D)	1-09700-847-0	01	1	9207-	●
178	CLIP; FLEX HOSE (A)	1-09700-848-0	01	1	9207-	●
178	CLIP; FLEX HOSE (C)	9-09525-025-0	04	1	9207-	●
178	CLIP; FLEX HOSE (B) L=16	9-09535-025-0	14	1	9207-	●
178	CLIP; FLEX HOSE (B) L=50	9-09535-085-0	01	1	9207-	●
179	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28080-820-0	19	1	9207-	●
180	NUT; CLIP M8	9-09110-408-0	15	1	9207-	●

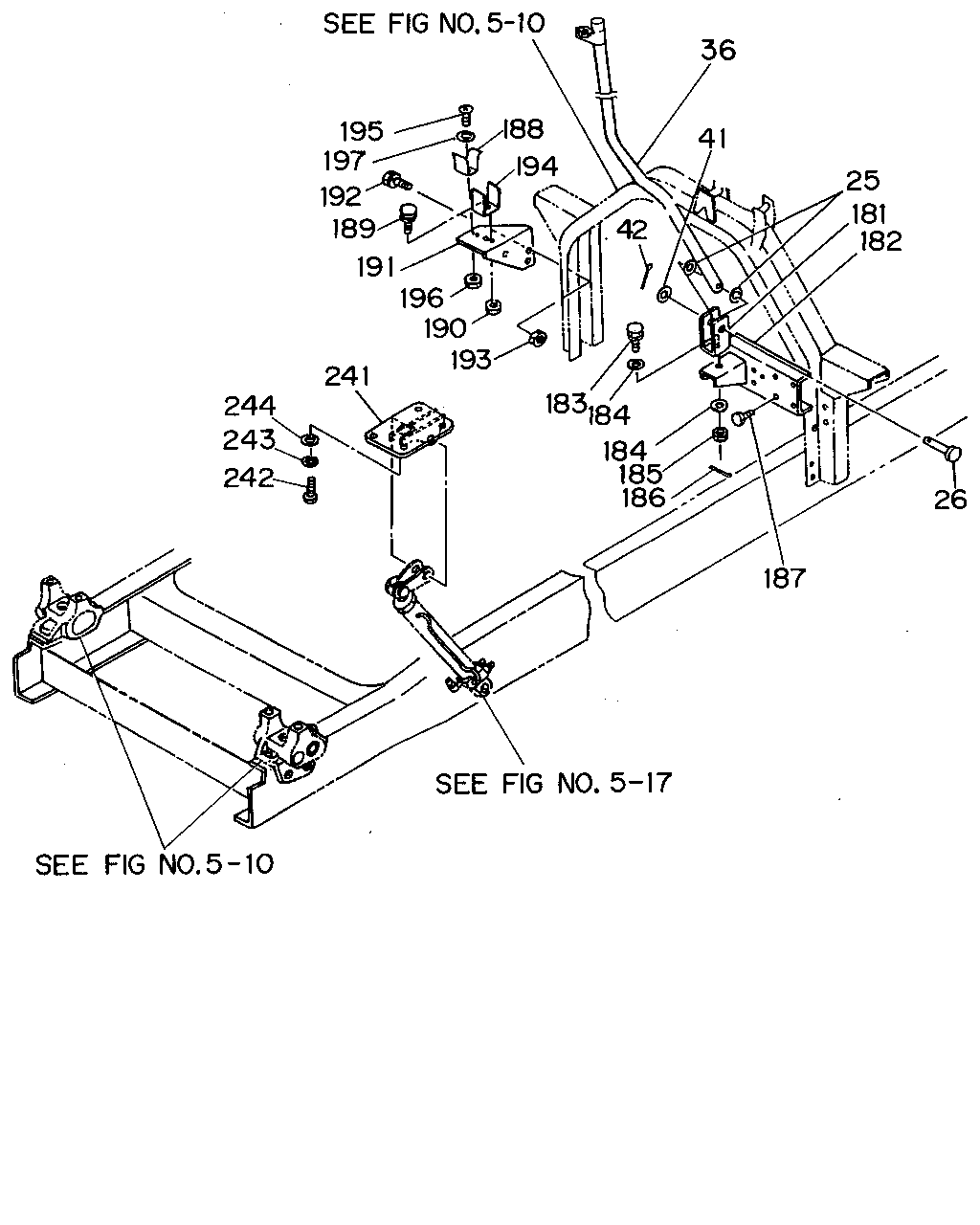

36 41 25 181 182 26 187 186 185 184 184 183 193 188 194 42 195 197 192 189 191 196 190 241 244 243 242

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	E
25	WASHER; PL,STAY ID=15 OD=30	9-09164-614-0	02	1	9207-	●
26	PIN; STAY OD=14 L=62	9-08234-462-0	01	1	9207-	●
36	STAY; OIL TILT	1-53719-029-0	01	1	9207-	●
41	WASHER; PL,STAY ID=15	9-09160-514-0	01	1	9207-	●
42	PIN; SPLIT,STAY OD=3.7 L=25	9-08114-025-0	01	1	9207-	●
181	BRACKET; STAY,OIL TILT	1-53719-018-1	01	1	9207-	●
182	BRACKET; STAY BRKT,OIL TILT	1-53719-022-7	01	1	9207-	●
183	BOLT; BRKT M16X40 W/PIN HOLE	1-09042-043-0	01	1	9207-	●
184	WASHER; PL,BRKT ID=17	9-09160-516-0	03	1	9207-	●
185	NUT; BRKT M16 SLOTTED	9-99116-516-0	01	1	9207-	●
186	PIN; BRKT OD=3.7 L=25	9-08114-025-0	01	1	9207-	●
187	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	04	1	9207-	●
188	CLIP; STAY,OIL TILT	1-09709-114-0	01	1	9207-	●
189	BOLT; CLIP M6X16 W/LK WASHER	0-50040-616-0	02	1	9207-	●
190	NUT; CLIP M6	9-09110-406-0	02	1	9207-	●
191	BRACKET; CLIP,STAY	1-53719-021-1	01	1	9207-	●
192	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	02	1	9207-	●
193	NUT; BRKT M8	9-09110-408-0	02	1	9207-	●
194	GUIDE; STAY	1-53719-020-0	01	1	9207-	●
195	SCREW; GUIDE M4X12	9-93490-412-0	02	1	9207-	●
196	NUT; GUIDE M4	9-99110-404-0	02	1	9207-	●
197	WASHER; LK,GUIDE ID=4.1	9-09150-504-0	02	1	9207-	●
241	BRACKET; POWER CYL UPR,CAB TILT	1-53739-012-0	02	1	9207-	●
242	BOLT; POWER CYL BRKT,CAB TILT M12X35	1-09980-530-0	08	1	9207-	●
243	WASHER; LK,POWER CYL BRKT	1-09985-189-0	08	1	9207-	●
244	WASHER; PL,POWER CYL BRKT ID=12.5	1-09503-171-0	08	1	9207-	●

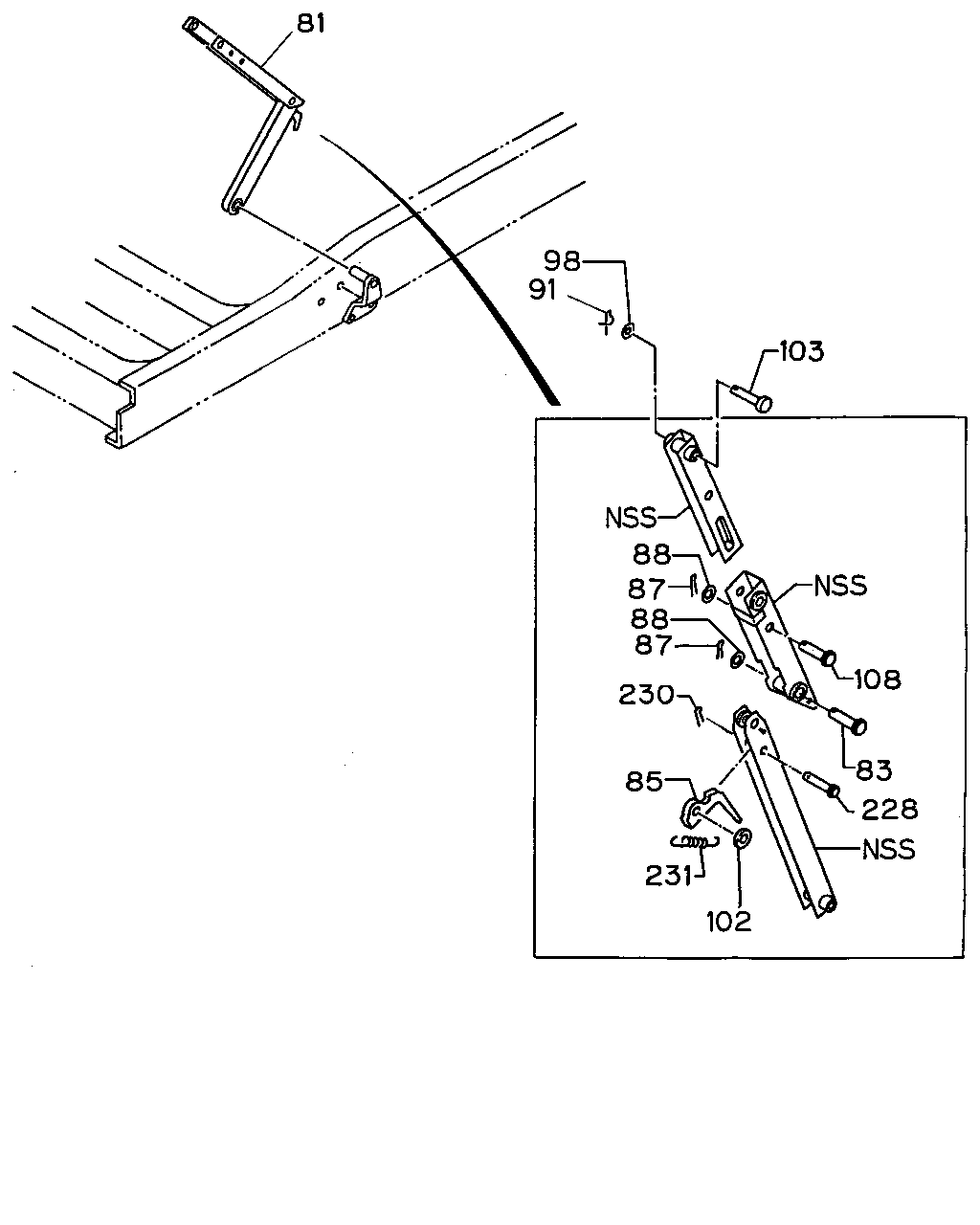

81 98 91 103 88 87 88 87 230 85 231 102 108 83 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
81	STAY ASM; CAB TILT	1-62500-485-8	01	1	9207-	●	●
81	STAY ASM; CAB TILT	1-62500-486-9	01	1	9207-			●	●
83	PIN; JOINT,CAB STAY OD=12 L=42	1-09744-111-0	01	1	9207-	●	●	●	●
85	LEVER; LOCK,CAB STAY	1-62500-503-0	01	1	9207-	●	●	●	●
87	PIN; SPLIT,CAB STAY PIN	1-09746-020-0	02	1	9207-	●	●	●	●
88	WASHER; PL,CAB STAY PIN ID=12.5 OD=22	8-94279-627-0	02	1	9207-	●	●	●	●
91	PIN; SPLIT,CAB STAY	1-09746-021-0	01	1	9207-	●	●	●	●
98	WASHER; CAB STAY ID=12.5 OD=22 T=1.6	1-09985-108-0	01	1	9207-	●	●	●	●
102	WASHER; PL,CAB STAY ID=8.4 OD=16	1-09985-174-0	01	1	9207-	●	●	●	●
103	PIN; JOINT,CAB STAY	1-09744-081-1	01	1	9207-	●	●	●	●
108	PIN; ADJ,CAB STAY	1-09744-078-1	01	1	9207-	●	●	●	●
228	PIN; SAFETY LOCK SPRING,CAB STAY	1-09744-086-2	01	1	9207-	●	●	●	●
230	PIN; SPLIT CAB STAY	1-09746-019-0	01	1	9207-	●	●	●	●
231	SPRING; RETURN,LOCK LEVER,CAB STAY	1-09583-244-0	01	1	9207-	●	●	●	●
