8-71 — COMPRESSOR; AIR CONDITIONING (#16387) — 28 parça

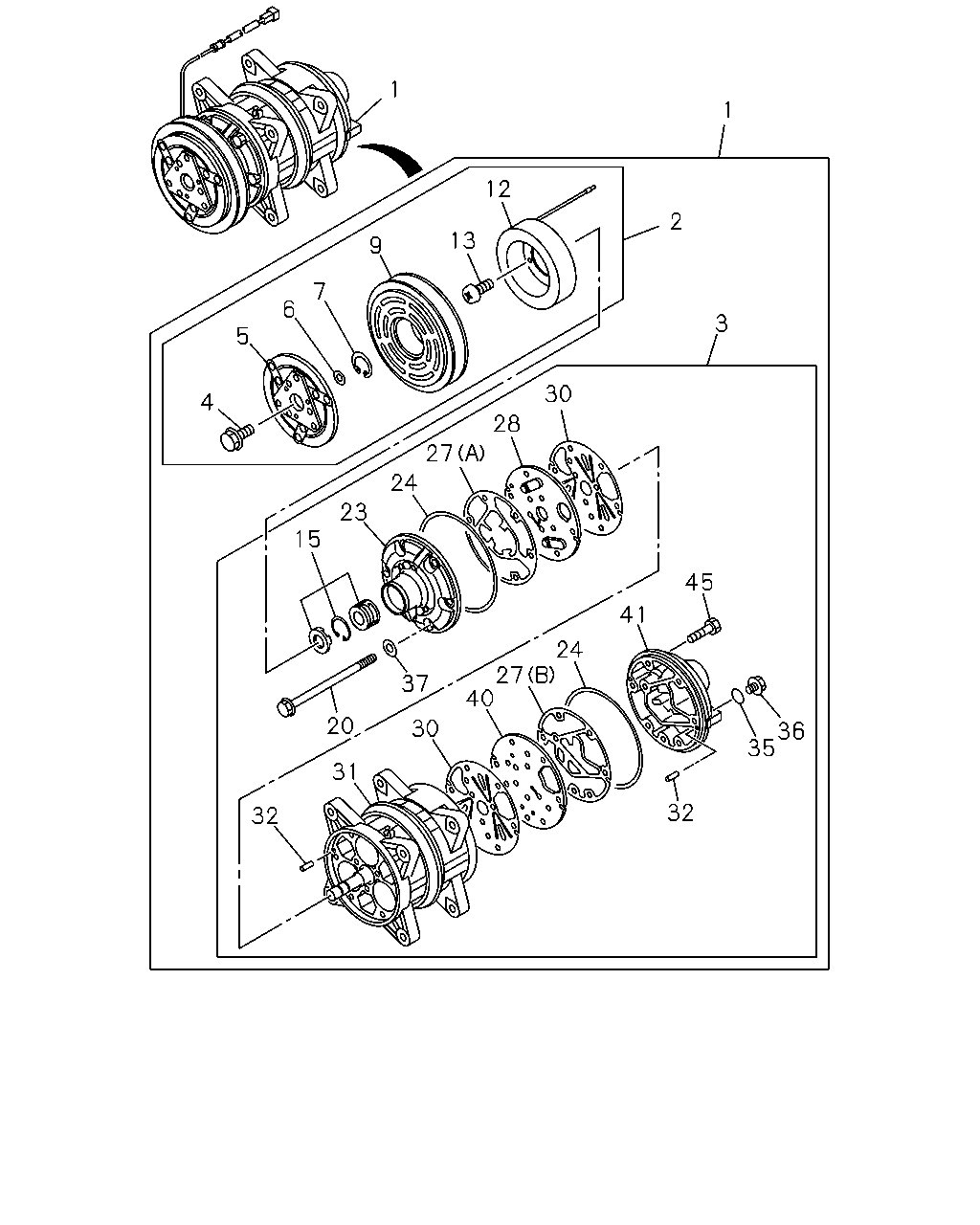

çizim 66614
1 1 12 2 13 9 7 6 3 5 30 4 28 27 24 23 15 45 41 24 27 40 37 20 30 36 35 31 32 32
BalonParca AdiParca NoAdetTipApplied Date A B
1 COMPRESSOR ASM; A/C
6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83532-295-1 01 1 0303-0308 ● ●
2 CLUTCH; MAGNET,A/C
6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83533-041-0 01 1 0303-0308 ● ●
3 COMPRESSOR ASM; A/C
6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83532-299-0 01 1 0303-0308 ● ●
4 BOLT; MAGNET CLU
6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-94164-439-0 01 1 0303-0308 ● ●
5 ARMATURE ASM; MAGNET CLU,A/C
6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97034-788-0 01 1 0303-0308 ● ●
6 SHIM; MAGNET CLU
6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) T=0.1 		8-94120-721-0 AR 1 0303-0308 ● ●
6 SHIM; MAGNET CLU
6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) T=0.3 		8-94120-722-0 AR 1 0303-0308 ● ●
6 SHIM; MAGNET CLU
6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) T=0.5 		8-94120-723-0 AR 1 0303-0308 ● ●
7 RING; SNAP,PULLEY
6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-94120-724-0 01 1 0303-0308 ● ●
9 PULLEY; MAGNET CLU
6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-616-1 01 1 0303-0308 ● ●
12 COIL; FIELD,MAGNET CLU
6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83578-093-0 01 1 0303-0308 ● ●
13 SCREW; COIL FIELD
6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-94120-727-0 03 1 0303-0308 ● ●
15 SEAL; SHAFT
6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83578-090-0 01 1 0303-0308 ● ●
20 BOLT; CMPR
6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97233-738-0 06 1 0303-0308 ● ●
23 HEAD; CYL,FRT
6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97178-401-0 01 1 0303-0308 ● ●
24 GASKET; CMPR
6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-951-0 02 1 0303-0308 ● ●
27 GASKET; CYL HD
6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97170-930-0 01 1 0303-0308 ● ●
27 GASKET; CYL HD
6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97170-933-0 01 1 0303-0308 ● ●
28 PLATE; VLV,CMPR
6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97170-932-1 01 1 0303-0308 ● ●
30 VALVE; SUCTION
6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97134-755-0 02 1 0303-0308 ● ●
31 CYLINDER & SHAFT ASM; AIR CMPR
6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97138-177-0 01 1 0303-0308 ● ●
32 PIN; CMPR
6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-94154-711-0 04 1 0303-0308 ● ●
35 GASKET; PLUG,CYL
6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) "R-134A" 		8-97081-395-0 01 1 0303-0308 ● ●
36 PLUG; CYL
6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-94164-473-0 01 1 0303-0308 ● ●
37 GASKET; CMPR
6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97233-739-0 06 1 0303-0308 ● ●
40 PLATE; VLV,RR
6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97170-931-1 01 1 0303-0308 ● ●
41 HEAD; CYL,RR
6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) 		8-97170-929-1 01 1 0303-0308 ● ●
45 BOLT; PLATE TO CYL HD
6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) M10X35 W/LK&PL WASHER 		9-01971-035-0 01 1 0303-0308 ● ●
