Sayfa 8-52 - Isuzu EPC

8-52 — PIPING; AIR CONDITIONING (#16385) — 208 parça

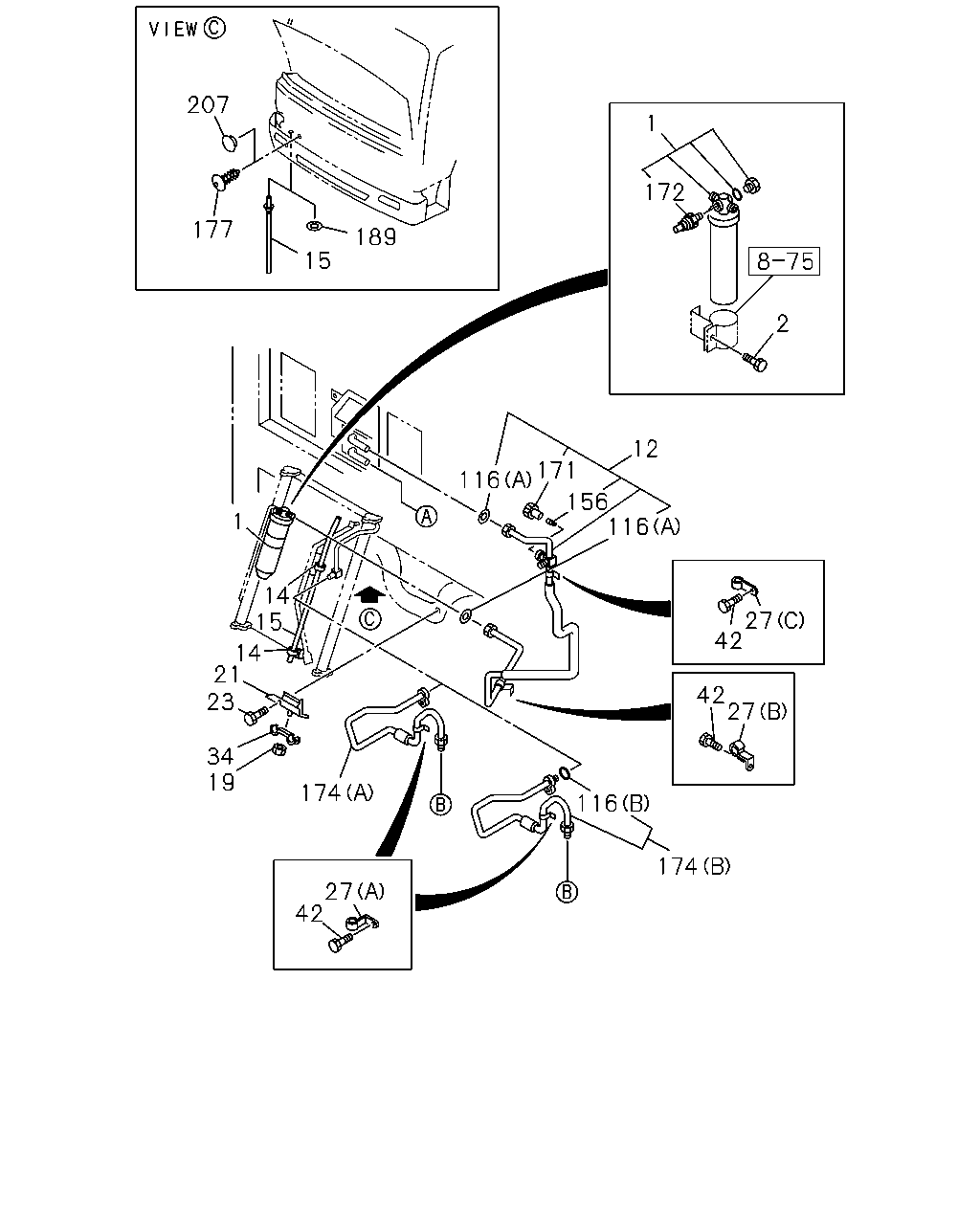

207 1 172 177 189 15 2 12 171 116 156 116 1 14 15 27 42 14 21 23 42 27 34 19 174 116 174 27 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; RECEIVER AIR CONDITIONER MANUAL CONTROL(C60)	1-83535-078-0	01	1	9601-9803	●	●
1	TANK; RECEIVER AIR CONDITIONER MANUAL CONTROL(C60)	1-83535-088-0	01	1	0201-0308	●	●
1	TANK; RECEIVER AIR CONDITIONER MANUAL CONTROL(C60)	1-83535-088-0	01	1	0309-		●
2	BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9601-9803	●	●
2	BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0201-0308	●	●
2	BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0309-		●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-544-0	01	1	9601-9803	●	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-684-0	01	1	0201-0308	●	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-684-0	01	1	0309-		●
14	CLIP; BAND,EVAP DRAIN HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-94410-200-0	02	1	9601-9803	●	●
14	CLIP; BAND,EVAP DRAIN HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-94410-200-0	01	1	0201-0308	●	●
14	CLIP; BAND,EVAP DRAIN HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-94410-200-0	01	1	0309-		●
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60)	1-83566-903-3	01	1	9601-9702	●	●
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-411-0	01	1	9703-9803	●	●
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-635-0	01	1	0201-0308	●	●
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-635-0	01	1	0309-		●
15	HOSE; DRAIN HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83566-904-2	01	1	9601-9702	●	●
15	HOSE; DRAIN HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83572-412-0	01	1	9703-0308	●	●
15	HOSE; DRAIN HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83572-412-0	01	1	0309-		●
19	NUT; CLIP FIX AIR CONDITIONER MANUAL CONTROL(C60) M8	9-09110-408-0	01	1	9601-9606	●	●
19	NUT; CLIP FIX AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9607-9803	●	●
19	NUT; CLIP FIX AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	0201-0308	●	●
19	NUT; CLIP FIX AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	0309-0602		●
19	NUT; CLIP FIX AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	0603-		●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-928-1	01	1	9601-9803	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-928-2	01	1	0201-0308	●	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-928-2	01	1	0309-		●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28080-820-0	01	1	9601-9606	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28680-825-0	01	1	9607-9801	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	01	1	9802-9803	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	01	1	0201-0308	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	01	1	0309-0512		●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28650-820-0	01	1	0601-		●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=13 H=18 L=20	1-09700-813-0	01	1	9601-9803	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11 H=20 L=20	5-09700-351-0	01	1	9601-9803	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=13 L=20	9-09525-235-0	01	1	9601-9803	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=13 H=18 L=20	1-09700-813-0	01	1	0201-0308	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=13 H=18 L=20	1-09700-813-0	01	1	0309-		●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0201-0308	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0309-0707		●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11 H=20 L=20	8-98033-780-0	01	1	0708-		●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=13 L=20	9-09525-235-0	01	1	0201-0308	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=13 L=20	9-09525-235-0	01	1	0309-0606		●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=13 L=20	0-95235-235-0	01	1	0607-		●
34	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=12.2 & 16.2	1-83574-190-0	01	1	9601-9803	●	●
34	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=12.2 & 16.2	1-83574-190-0	01	1	0201-0308	●	●
34	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=12.2 & 16.2	1-83574-190-0	01	1	0309-		●
42	SCREW; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9601-9803	●	●
42	SCREW; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0201-0308	●	●
42	SCREW; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0309-0904		●
42	SCREW; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-		●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=6	8-94481-700-0	02	1	9601-9803	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97161-776-0	02	1	0201-0308	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97161-776-0	02	1	0309-		●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=15.5	8-97161-777-0	01	1	0201-0308	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=15.5	8-97161-777-0	01	1	0309-		●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-100-0	01	1	9601-9803	●	●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-100-0	01	1	0201-0308	●	●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-100-0	01	1	0309-		●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H	8-97083-101-0	01	1	9601-9803	●	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H	8-97083-101-0	01	1	0201-0308	●	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H	8-97083-101-0	01	1	0309-		●
172	SWITCH; PRESS,RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83544-047-0	01	1	9601-9803	●	●
172	SWITCH; PRESS,RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83544-047-0	01	1	0201-0308	●	●
172	SWITCH; PRESS,RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83544-047-0	01	1	0309-		●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83567-543-0	01	1	9601-9803	●	●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83567-683-0	01	1	0201-0308	●	●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83567-683-0	01	1	0309-		●
177	PLUG; CLIP EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=15 BLACK	8-94279-804-0	01	1	9601-9711	●	●
177	PLUG; CLIP EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=15 BLACK	8-94279-804-0	02	1	9712-9803	●	●
177	PLUG; CLIP OD=15 BLACK	8-94279-804-0	02	1	9804-9804	●	●
177	PLUG; CLIP OD=25 BLACK	1-76798-019-0	02	1	9804-9804	●	●
189	GROMMET EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	9-09575-397-0	01	1	9601-9803	●	●
189	GROMMET EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	9-09575-397-0	01	1	9804-0112	●	●
189	GROMMET EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	9-09575-397-0	01	1	0201-0308	●	●
189	GROMMET EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	9-09575-397-0	01	1	0309-		●
207	SEAL; FLEX HOSE OD=25 BLACK	1-76798-019-0	01	1	9903-0112	●	●
207	SEAL; FLEX HOSE EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK	1-76798-019-0	01	1	0201-0308	●	●
207	SEAL; FLEX HOSE EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK	1-76798-019-0	01	1	0309-		●

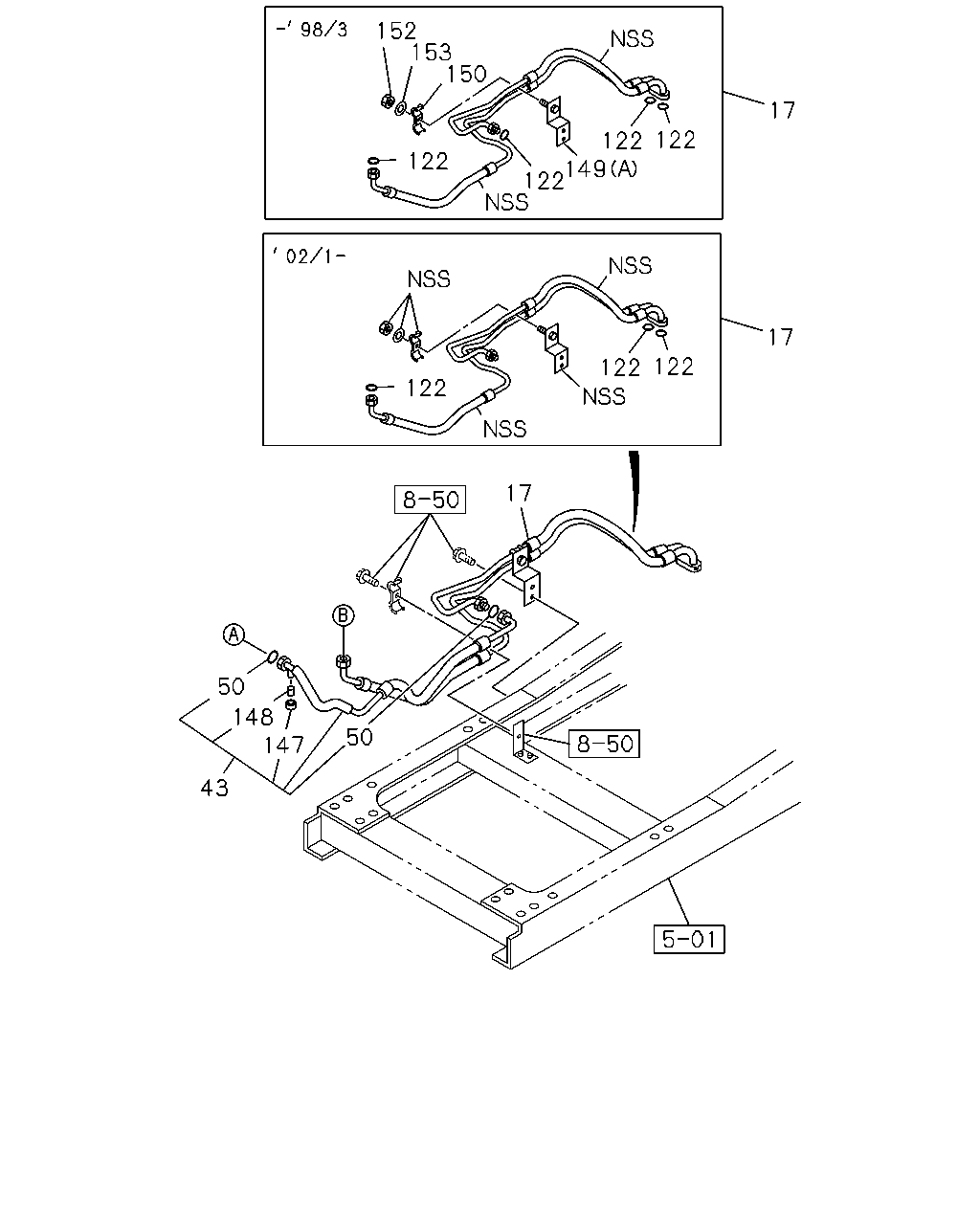

152 153 150 17 122 122 149 122 122 17 122 122 122 17 50 148 147 50 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	HOSE; FLEX,CMPR TO PIPE 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-267-0	01	1	9601-9611	●	●
17	HOSE; FLEX,CMPR TO PIPE 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-381-0	01	1	9612-9803	●	●
17	HOSE; FLEX,CMPR TO PIPE 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-670-1	01	1	0201-0308	●	●
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-670-1	01	1	0309-		●
17	HOSE; FLEX,CMPR TO PIPE 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-229-1	01	1	9601-9803	●	●
17	HOSE; FLEX,CMPR TO PIPE 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-671-2	01	1	0201-0308	●	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-083-2	01	1	9601-9803	●	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-666-2	01	1	0201-0308	●	●
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-666-2	01	1	0309-		●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-228-1	01	1	9601-9803	●	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-667-2	01	1	0201-0308	●	●
50	GASKET; FLEX HOSE,A/C 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) ID=13.9	8-94113-330-0	02	1	9601-9803	●	●
50	GASKET; FLEX HOSE,A/C 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	02	1	0201-0308	●	●
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	02	1	0309-		●
50	GASKET; FLEX HOSE,A/C 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) ID=13.9	8-94113-330-0	01	1	9601-9803	●	●
50	GASKET; FLEX HOSE,A/C 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	01	1	0201-0308	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) ID=10.8	8-94113-331-0	01	1	9601-9803	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) ID=11.0	8-94461-900-0	01	1	9601-9803	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) ID=14.8	8-94461-901-0	01	1	9601-9803	●	●
122	GASKET 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) ID=15.5	8-97161-777-0	01	1	0201-0209	●	●
122	GASKET 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	01	1	0201-0308	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	01	1	0309-		●
122	GASKET 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) ID=13.9	8-94113-330-0	01	1	9601-9803	●	●
122	GASKET 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) ID=15.5	8-97161-777-0	02	1	0201-0209	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) ID=15.5	8-97161-777-0	02	1	0210-0308	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) ID=15.5	8-97161-777-0	02	1	0309-		●
122	GASKET 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	02	1	0201-0308	●	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	8-97083-102-0	01	1	9601-9803	●	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	8-97083-102-0	01	1	0201-0308	●	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	8-97083-102-0	01	1	0309-		●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-100-0	01	1	9601-9803	●	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-892-0	01	1	0201-0209	●	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-100-0	01	1	0210-0308	●	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-100-0	01	1	0309-		●
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-878-0	01	1	9601-9803	●	●
149	BRACKET; COOLER HOSE 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-934-0	01	1	9601-9803	●	●
150	CLIP; HOSE 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-165-0	01	1	9601-9803	●	●
150	CLIP; HOSE 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-165-0	02	1	9601-9803	●	●
152	NUT; CLIP 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) M8	9-09110-408-0	01	1	9601-9611	●	●
152	NUT; CLIP 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) M6	9-09110-406-0	01	1	9612-9803	●	●
152	NUT; CLIP 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) M8	9-09110-408-0	02	1	9601-9803	●	●
153	WASHER AIR CONDITIONER MANUAL CONTROL(C60) ID=6.1	9-09150-506-0	01	1	9601-9803	●	●

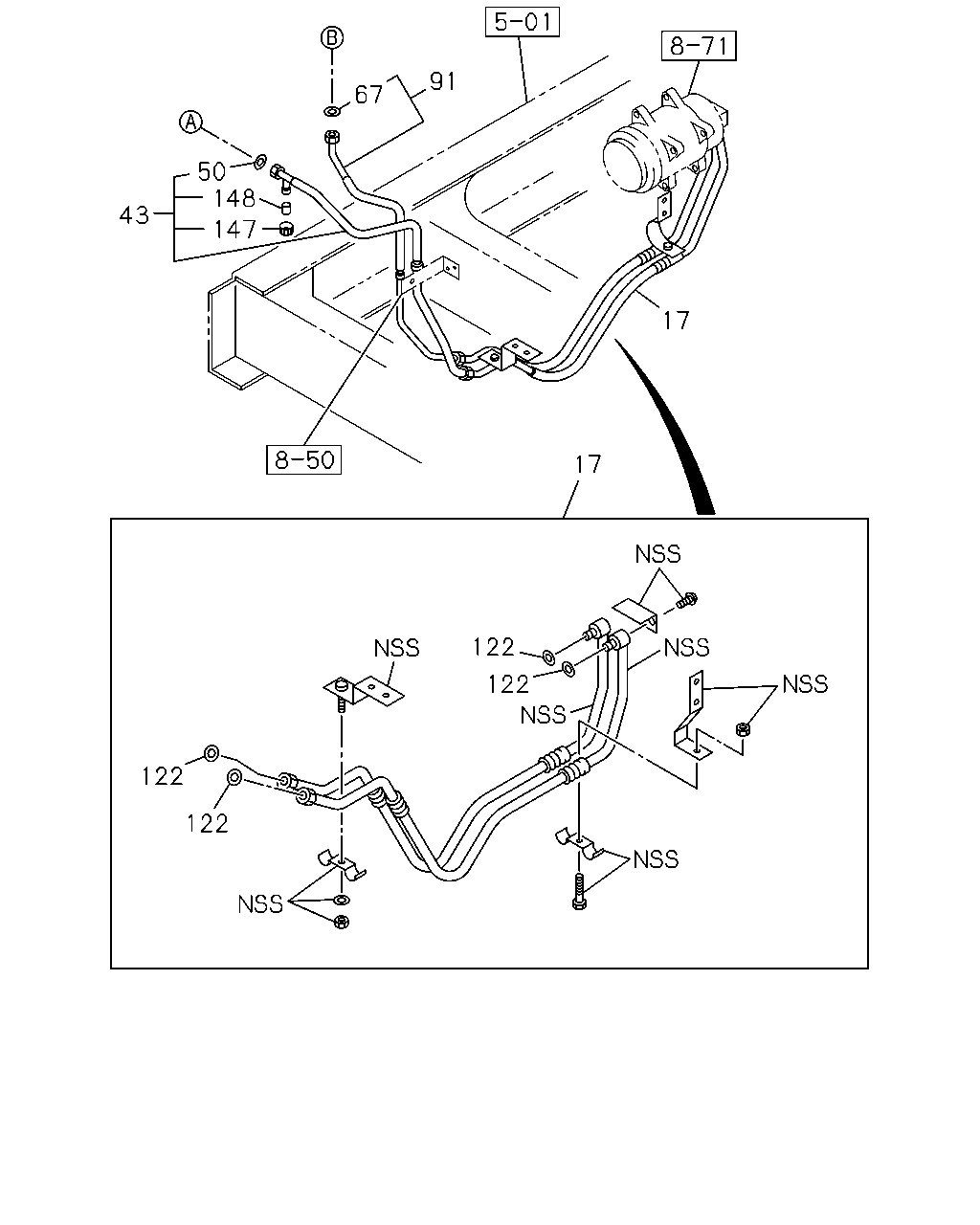

91 67 50 148 43 147 17 17 122 122 122 122

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	HOSE; FLEX,CMPR TO PIPE 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-267-0	01	1	9601-9611	●	●
17	HOSE; FLEX,CMPR TO PIPE 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-381-0	01	1	9612-9803	●	●
17	HOSE; FLEX,CMPR TO PIPE 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-670-1	01	1	0201-0308	●	●
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-670-1	01	1	0309-		●
17	HOSE; FLEX,CMPR TO PIPE 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-229-1	01	1	9601-9803	●	●
17	HOSE; FLEX,CMPR TO PIPE 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-671-2	01	1	0201-0308	●	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-083-2	01	1	9601-9803	●	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-666-2	01	1	0201-0308	●	●
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-666-2	01	1	0309-		●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-228-1	01	1	9601-9803	●	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-667-2	01	1	0201-0308	●	●
50	GASKET; FLEX HOSE,A/C 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) ID=13.9	8-94113-330-0	02	1	9601-9803	●	●
50	GASKET; FLEX HOSE,A/C 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	02	1	0201-0308	●	●
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	02	1	0309-		●
50	GASKET; FLEX HOSE,A/C 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) ID=13.9	8-94113-330-0	01	1	9601-9803	●	●
50	GASKET; FLEX HOSE,A/C 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	01	1	0201-0308	●	●
67	GASKET; FLEX HOSE 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) ID=10.8	8-94113-331-0	01	1	9601-9803	●	●
67	GASKET; FLEX HOSE 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) ID=15.5	8-97161-777-0	01	1	0201-0308	●	●
91	HOSE; FLEX,CMPR 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-227-1	01	1	9601-9803	●	●
91	HOSE; FLEX,CMPR 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-668-1	01	1	0201-0308	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) ID=10.8	8-94113-331-0	01	1	9601-9803	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) ID=11.0	8-94461-900-0	01	1	9601-9803	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) ID=14.8	8-94461-901-0	01	1	9601-9803	●	●
122	GASKET 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) ID=15.5	8-97161-777-0	01	1	0201-0209	●	●
122	GASKET 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	01	1	0201-0308	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	01	1	0309-		●
122	GASKET 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) ID=13.9	8-94113-330-0	01	1	9601-9803	●	●
122	GASKET 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) ID=15.5	8-97161-777-0	02	1	0201-0209	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) ID=15.5	8-97161-777-0	02	1	0210-0308	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) ID=15.5	8-97161-777-0	02	1	0309-		●
122	GASKET 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	02	1	0201-0308	●	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	8-97083-102-0	01	1	9601-9803	●	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	8-97083-102-0	01	1	0201-0308	●	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	8-97083-102-0	01	1	0309-		●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-100-0	01	1	9601-9803	●	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-892-0	01	1	0201-0209	●	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-100-0	01	1	0210-0308	●	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-100-0	01	1	0309-		●

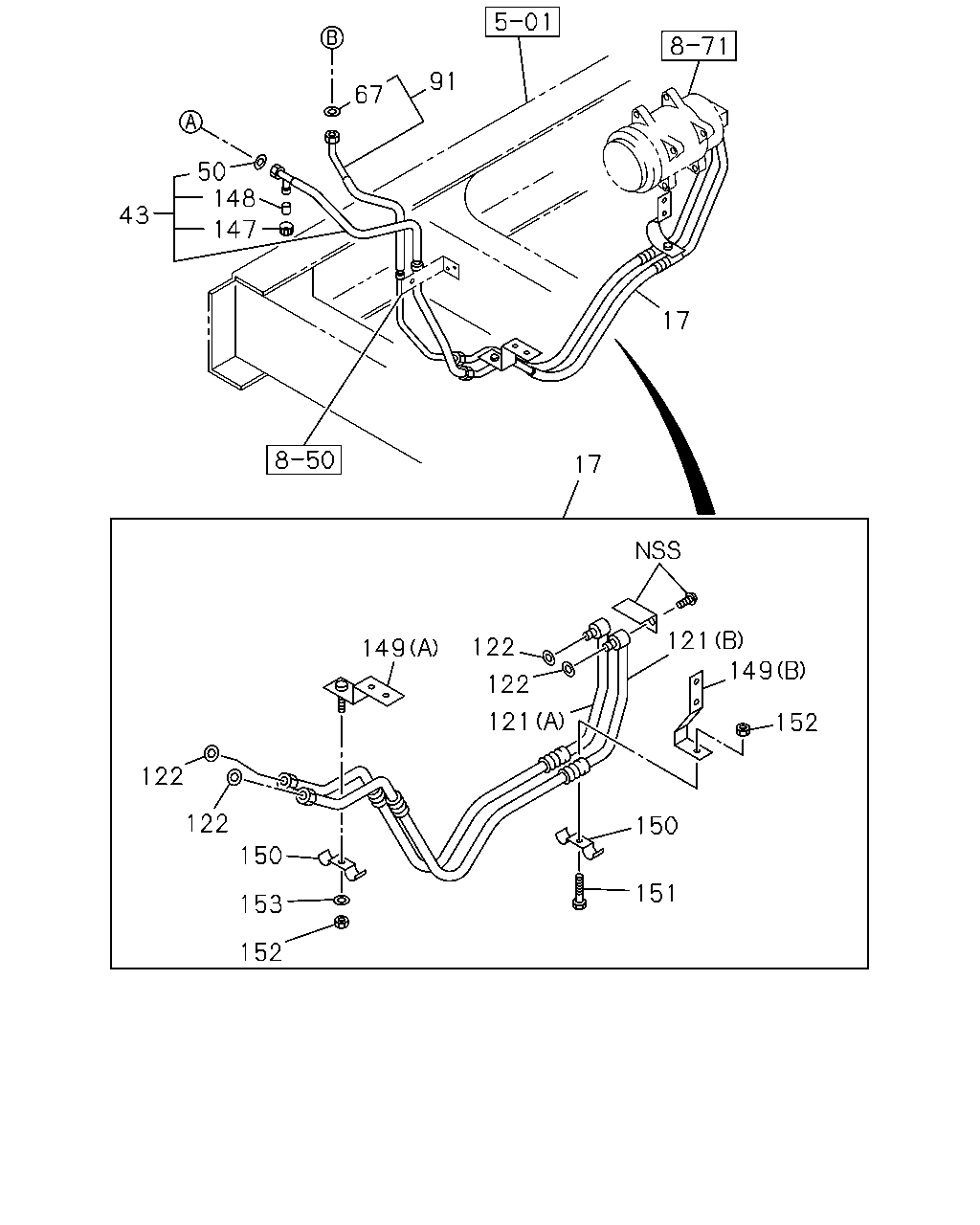

91 67 50 148 43 147 17 17 121 149 122 149 122 121 152 122 122 150 150 151 153 152

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	HOSE; FLEX,CMPR TO PIPE 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-267-0	01	1	9601-9611	●	●
17	HOSE; FLEX,CMPR TO PIPE 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-381-0	01	1	9612-9803	●	●
17	HOSE; FLEX,CMPR TO PIPE 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-670-1	01	1	0201-0308	●	●
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-670-1	01	1	0309-		●
17	HOSE; FLEX,CMPR TO PIPE 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-229-1	01	1	9601-9803	●	●
17	HOSE; FLEX,CMPR TO PIPE 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-671-2	01	1	0201-0308	●	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-083-2	01	1	9601-9803	●	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-666-2	01	1	0201-0308	●	●
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-666-2	01	1	0309-		●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-228-1	01	1	9601-9803	●	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-667-2	01	1	0201-0308	●	●
50	GASKET; FLEX HOSE,A/C 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) ID=13.9	8-94113-330-0	02	1	9601-9803	●	●
50	GASKET; FLEX HOSE,A/C 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	02	1	0201-0308	●	●
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	02	1	0309-		●
50	GASKET; FLEX HOSE,A/C 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) ID=13.9	8-94113-330-0	01	1	9601-9803	●	●
50	GASKET; FLEX HOSE,A/C 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	01	1	0201-0308	●	●
67	GASKET; FLEX HOSE 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) ID=10.8	8-94113-331-0	01	1	9601-9803	●	●
67	GASKET; FLEX HOSE 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) ID=15.5	8-97161-777-0	01	1	0201-0308	●	●
91	HOSE; FLEX,CMPR 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-227-1	01	1	9601-9803	●	●
91	HOSE; FLEX,CMPR 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-668-1	01	1	0201-0308	●	●
121	HOSE; COOLER 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-262-0	01	1	9601-9803	●	●
121	HOSE; COOLER 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-263-0	01	1	9601-9803	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) ID=10.8	8-94113-331-0	01	1	9601-9803	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) ID=11.0	8-94461-900-0	01	1	9601-9803	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) ID=14.8	8-94461-901-0	01	1	9601-9803	●	●
122	GASKET 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) ID=15.5	8-97161-777-0	01	1	0201-0209	●	●
122	GASKET 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	01	1	0201-0308	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	01	1	0309-		●
122	GASKET 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) ID=13.9	8-94113-330-0	01	1	9601-9803	●	●
122	GASKET 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) ID=15.5	8-97161-777-0	02	1	0201-0209	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) ID=15.5	8-97161-777-0	02	1	0210-0308	●	●
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) ID=15.5	8-97161-777-0	02	1	0309-		●
122	GASKET 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3	8-97161-778-0	02	1	0201-0308	●	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	8-97083-102-0	01	1	9601-9803	●	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	8-97083-102-0	01	1	0201-0308	●	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	8-97083-102-0	01	1	0309-		●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-100-0	01	1	9601-9803	●	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-892-0	01	1	0201-0209	●	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-100-0	01	1	0210-0308	●	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-100-0	01	1	0309-		●
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-878-0	01	1	9601-9803	●	●
149	BRACKET; COOLER HOSE 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83571-934-0	01	1	9601-9803	●	●
150	CLIP; HOSE 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-165-0	01	1	9601-9803	●	●
150	CLIP; HOSE 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-165-0	02	1	9601-9803	●	●
151	BOLT; CLIP FIX,COOLER HOSE 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) M6X20 W/LK WASHER	0-50040-620-0	01	1	9601-9803	●	●
152	NUT; CLIP 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) M8	9-09110-408-0	01	1	9601-9611	●	●
152	NUT; CLIP 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) M6	9-09110-406-0	01	1	9612-9803	●	●
152	NUT; CLIP 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) M8	9-09110-408-0	02	1	9601-9803	●	●
153	WASHER AIR CONDITIONER MANUAL CONTROL(C60) ID=6.1	9-09150-506-0	01	1	9601-9803	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
