8-50 — AIR CONDITIONING SYSTEM; FRONT (#16384) — 111 parça

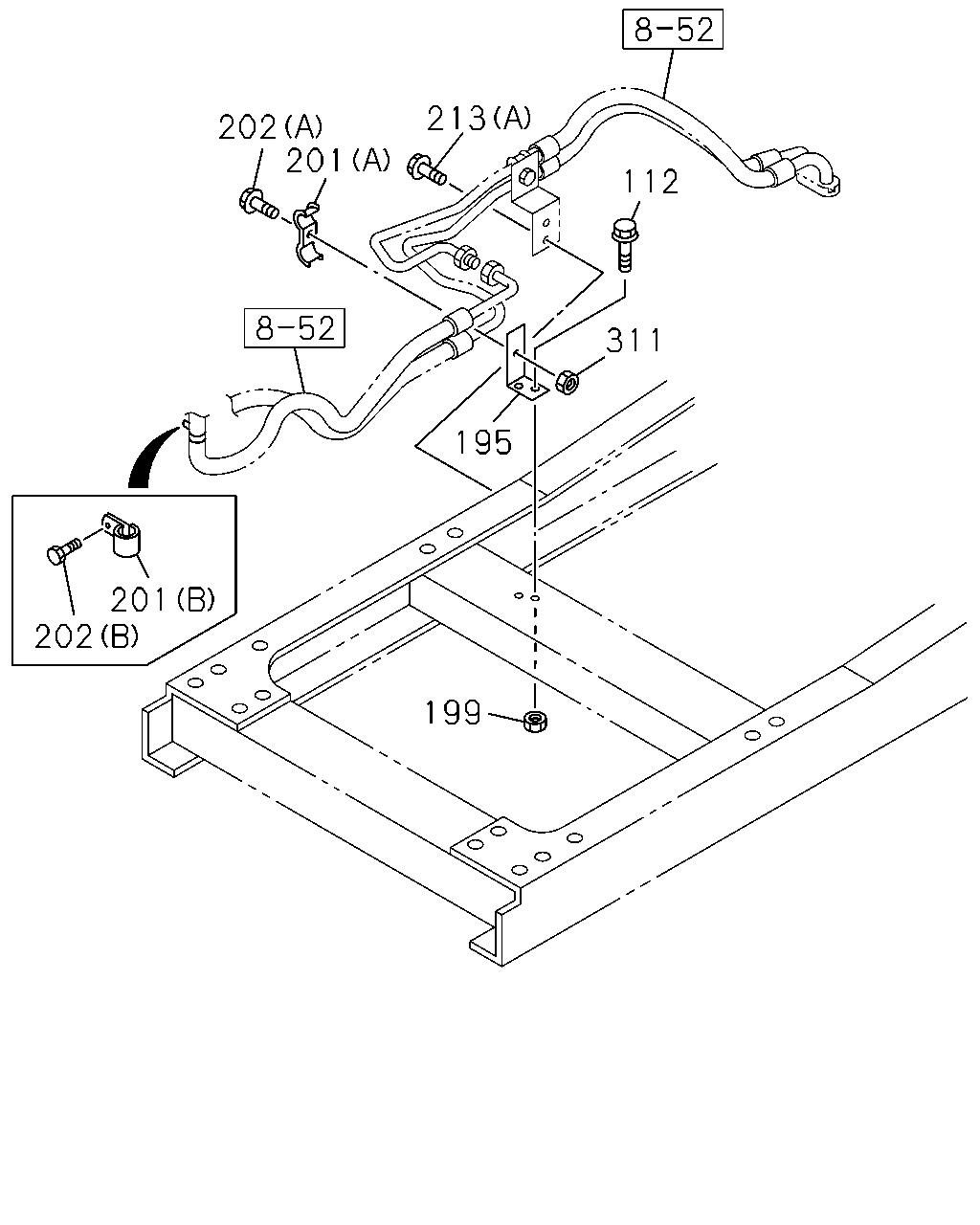

213 202 201 112 311 195 201 202 199

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
112	BOLT; STAY AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●	●
112	BOLT; STAY AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28680-825-0	02	1	9607-9803	●	●
112	BOLT; STAY AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28680-825-0	02	1	0201-0308	●	●
112	BOLT; STAY AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28680-825-0	02	1	0309-0512		●
112	BOLT; STAY AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
195	STAY; CLIP AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-896-0	01	1	9601-9803	●	●
195	STAY; CLIP AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-896-0	01	1	0201-0308	●	●
195	STAY; CLIP AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-896-0	01	1	0309-1004		●
195	STAY; CLIP AIR CONDITIONER MANUAL CONTROL(C60)	8-98151-192-0	01	1	1005-		●
199	NUT AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	02	1	0201-0308	●	●
199	NUT AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	02	1	0309-0602		●
199	NUT AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	02	1	0603-		●
201	CLIP; HOSE,CMPR TO EVAP AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2	1-83574-190-0	01	1	9601-9803	●	●
201	CLIP; HOSE,CMPR TO EVAP AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=19 L=20	9-09525-836-0	01	1	9709-9803	●	●
201	CLIP; HOSE,CMPR TO EVAP AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2	1-83574-190-0	01	1	0201-0308	●	●
201	CLIP; HOSE,CMPR TO EVAP AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2	1-83574-190-0	01	1	0309-		●
201	CLIP; HOSE,CMPR TO EVAP AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=19 L=20	9-09525-836-0	01	1	0201-0308	●	●
201	CLIP; HOSE,CMPR TO EVAP AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=19 L=20	9-09525-836-0	01	1	0309-0606		●
201	CLIP; HOSE,CMPR TO EVAP AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=19 L=20	0-95235-836-0	01	1	0607-		●
202	BOLT; CLIP,FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28080-820-0	01	1	9601-9606	●	●
202	BOLT; CLIP,FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28680-820-0	01	1	9607-9803	●	●
202	BOLT; CLIP,FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE	0-28680-825-0	01	1	9709-9803	●	●
202	BOLT; CLIP,FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28680-820-0	01	1	0201-0308	●	●
202	BOLT; CLIP,FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28680-820-0	01	1	0309-0512		●
202	BOLT; CLIP,FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-0709		●
202	BOLT; CLIP,FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X40 FLANGE	0-28650-840-0	01	1	0710-		●
202	BOLT; CLIP,FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE	0-28680-825-0	01	1	0201-0308	●	●
202	BOLT; CLIP,FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE	0-28680-825-0	01	1	0309-0512		●
202	BOLT; CLIP,FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-		●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●	●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9803	●	●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28680-825-0	02	1	0201-0308	●	●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28680-825-0	02	1	0309-0512		●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-0608		●
213	BOLT; FLEX HOSE TO CMPR 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28650-825-0	02	1	0609-		●
213	BOLT; FLEX HOSE TO CMPR 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X35 FLANGE	0-28681-035-0	01	1	0201-0308	●	●
213	BOLT; FLEX HOSE TO CMPR 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X35 FLANGE	0-28681-035-0	01	1	0309-0403		●
213	BOLT; FLEX HOSE TO CMPR 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> (A) M10X35 FLANGE	0-28681-035-0	01	1	0404-0512		●
213	BOLT; FLEX HOSE TO CMPR 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> (A) M10X35 FLANGE	0-28651-035-0	01	1	0601-		●
213	BOLT; FLEX HOSE TO CMPR 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 FLANGE	0-28080-816-0	02	1	9601-9803	●	●
213	BOLT; FLEX HOSE TO CMPR 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (C) M10X45 FLANGE	0-28081-045-0	01	1	9601-9803	●	●
213	BOLT; FLEX HOSE TO CMPR 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 FLANGE	0-28080-816-0	02	1	0201-0308	●	●
213	BOLT; FLEX HOSE TO CMPR 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (C) M10X45 FLANGE	0-28081-045-0	01	1	0201-0308	●	●
311	NUT; HOSE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8	9-09110-408-0	01	1	9601-9606	●	●
311	NUT; HOSE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9607-9803	●	●
311	NUT; HOSE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	0201-0308	●	●
311	NUT; HOSE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	0309-0602		●
311	NUT; HOSE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	0603-		●

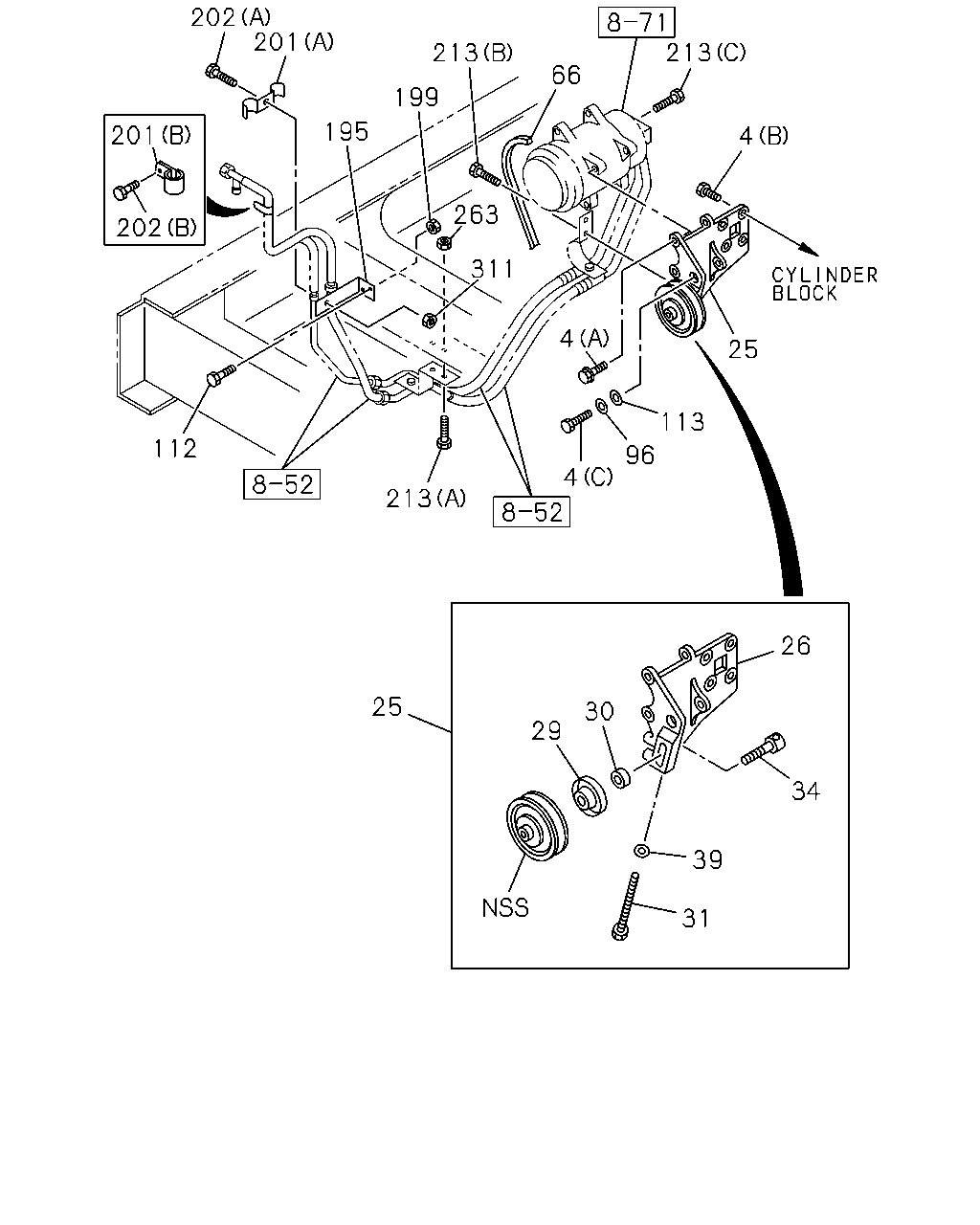

202 201 213 213 66 199 195 201 4 263 202 311 4 25 113 112 96 4 213 26 25 30 29 34 39 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	BOLT; A/C CMPR BRKT 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X40 FLANGE	0-28181-040-0	04	1	0303-0308	●	●
4	BOLT; A/C CMPR BRKT 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X40 W/LK WASHER	0-50041-040-0	04	1	0303-0308	●	●
4	BOLT; A/C CMPR BRKT 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (C) M10X135	1-09020-090-0	01	1	0303-0308	●	●
25	PULLEY ASM; IDLER,CMPR 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83570-021-0	01	1	0303-0308	●	●
26	BRACKET; IDLE PULLEY,A/C 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-708-0	01	1	0303-0308	●	●
29	COVER; DUST,IDLE PULLEY 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	9-13369-603-0	01	1	0303-0308	●	●
30	COLLAR; IDLE PULLEY 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-144-0	01	1	0303-0308	●	●
31	BOLT; ADJ,IDLE PULLEY 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	8-94238-324-0	01	1	0303-0308	●	●
34	SHAFT; IDLE PULLEY 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-236-0	01	1	0303-0308	●	●
39	WASHER; LK,ADJ BOLT 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-492-0	01	1	0303-0308	●	●
66	BELT; A/C CMPR 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) L=1196	1-13671-464-1	01	1	0303-0308	●	●
96	WASHER; LK 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) ID=10.2	9-09150-510-0	01	1	0303-0308	●	●
112	BOLT; STAY AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●	●
112	BOLT; STAY AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28680-825-0	02	1	9607-9803	●	●
112	BOLT; STAY AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28680-825-0	02	1	0201-0308	●	●
112	BOLT; STAY AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28680-825-0	02	1	0309-0512		●
112	BOLT; STAY AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
113	WASHER; PL,BRKT 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) ID=10.5 OD=18	9-09160-510-0	01	1	0303-0308	●	●
195	STAY; CLIP AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-896-0	01	1	9601-9803	●	●
195	STAY; CLIP AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-896-0	01	1	0201-0308	●	●
195	STAY; CLIP AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-896-0	01	1	0309-1004		●
195	STAY; CLIP AIR CONDITIONER MANUAL CONTROL(C60)	8-98151-192-0	01	1	1005-		●
199	NUT AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	02	1	0201-0308	●	●
199	NUT AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	02	1	0309-0602		●
199	NUT AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	02	1	0603-		●
201	CLIP; HOSE,CMPR TO EVAP AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2	1-83574-190-0	01	1	9601-9803	●	●
201	CLIP; HOSE,CMPR TO EVAP AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=19 L=20	9-09525-836-0	01	1	9709-9803	●	●
201	CLIP; HOSE,CMPR TO EVAP AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2	1-83574-190-0	01	1	0201-0308	●	●
201	CLIP; HOSE,CMPR TO EVAP AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2	1-83574-190-0	01	1	0309-		●
201	CLIP; HOSE,CMPR TO EVAP AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=19 L=20	9-09525-836-0	01	1	0201-0308	●	●
201	CLIP; HOSE,CMPR TO EVAP AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=19 L=20	9-09525-836-0	01	1	0309-0606		●
201	CLIP; HOSE,CMPR TO EVAP AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=19 L=20	0-95235-836-0	01	1	0607-		●
202	BOLT; CLIP,FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28080-820-0	01	1	9601-9606	●	●
202	BOLT; CLIP,FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28680-820-0	01	1	9607-9803	●	●
202	BOLT; CLIP,FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE	0-28680-825-0	01	1	9709-9803	●	●
202	BOLT; CLIP,FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28680-820-0	01	1	0201-0308	●	●
202	BOLT; CLIP,FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28680-820-0	01	1	0309-0512		●
202	BOLT; CLIP,FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-0709		●
202	BOLT; CLIP,FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X40 FLANGE	0-28650-840-0	01	1	0710-		●
202	BOLT; CLIP,FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE	0-28680-825-0	01	1	0201-0308	●	●
202	BOLT; CLIP,FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE	0-28680-825-0	01	1	0309-0512		●
202	BOLT; CLIP,FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-		●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●	●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9803	●	●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28680-825-0	02	1	0201-0308	●	●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28680-825-0	02	1	0309-0512		●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-0608		●
213	BOLT; FLEX HOSE TO CMPR 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28650-825-0	02	1	0609-		●
213	BOLT; FLEX HOSE TO CMPR 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X35 FLANGE	0-28681-035-0	01	1	0201-0308	●	●
213	BOLT; FLEX HOSE TO CMPR 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X35 FLANGE	0-28681-035-0	01	1	0309-0403		●
213	BOLT; FLEX HOSE TO CMPR 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> (A) M10X35 FLANGE	0-28681-035-0	01	1	0404-0512		●
213	BOLT; FLEX HOSE TO CMPR 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> (A) M10X35 FLANGE	0-28651-035-0	01	1	0601-		●
213	BOLT; FLEX HOSE TO CMPR 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 FLANGE	0-28080-816-0	02	1	9601-9803	●	●
213	BOLT; FLEX HOSE TO CMPR 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (C) M10X45 FLANGE	0-28081-045-0	01	1	9601-9803	●	●
213	BOLT; FLEX HOSE TO CMPR 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 FLANGE	0-28080-816-0	02	1	0201-0308	●	●
213	BOLT; FLEX HOSE TO CMPR 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (C) M10X45 FLANGE	0-28081-045-0	01	1	0201-0308	●	●
263	NUT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	02	1	9703-9803	●	●
263	NUT; FLEX HOSE 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	02	1	0201-0308	●	●
311	NUT; HOSE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8	9-09110-408-0	01	1	9601-9606	●	●
311	NUT; HOSE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9607-9803	●	●
311	NUT; HOSE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	0201-0308	●	●
311	NUT; HOSE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	0309-0602		●
311	NUT; HOSE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	0603-		●
