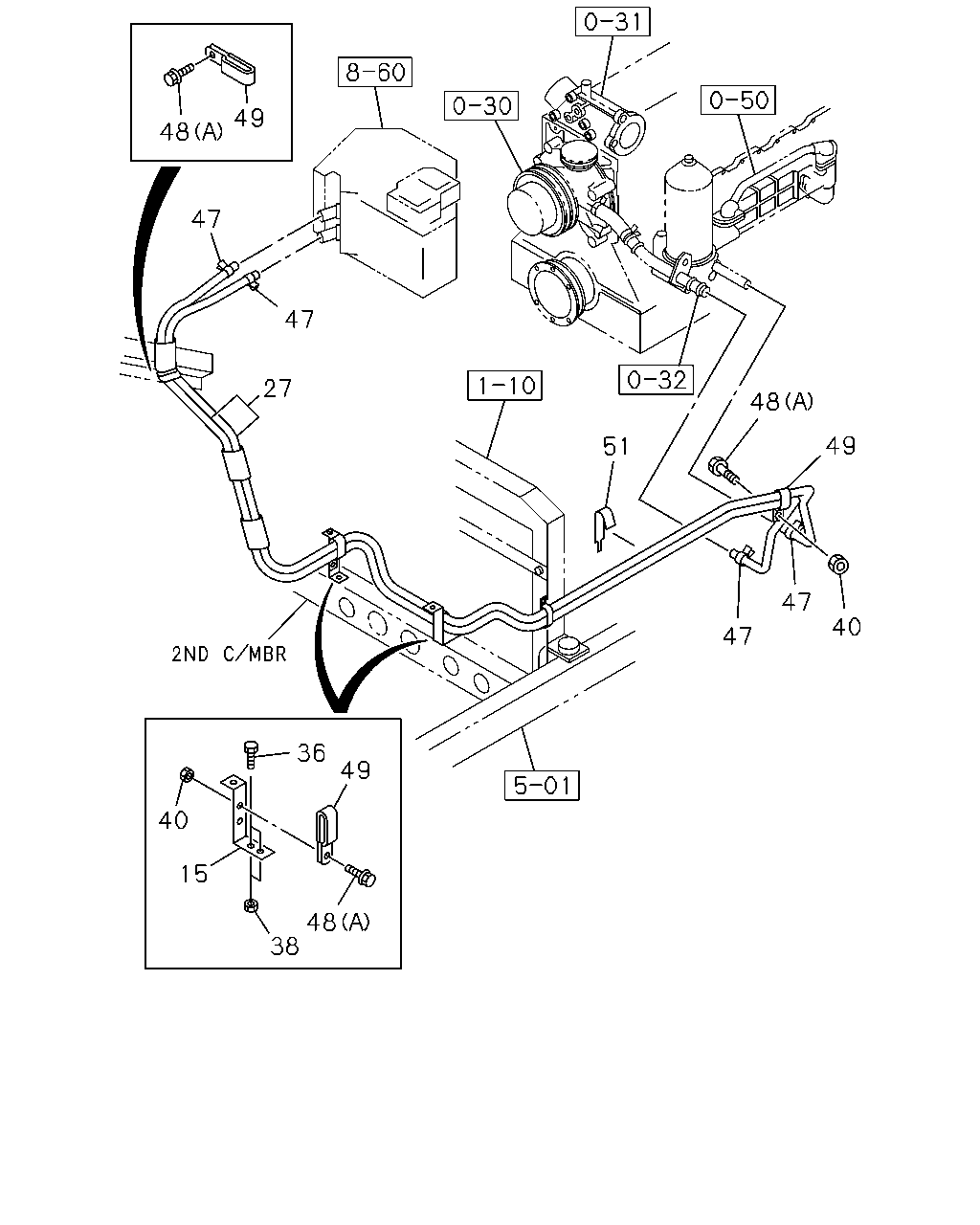

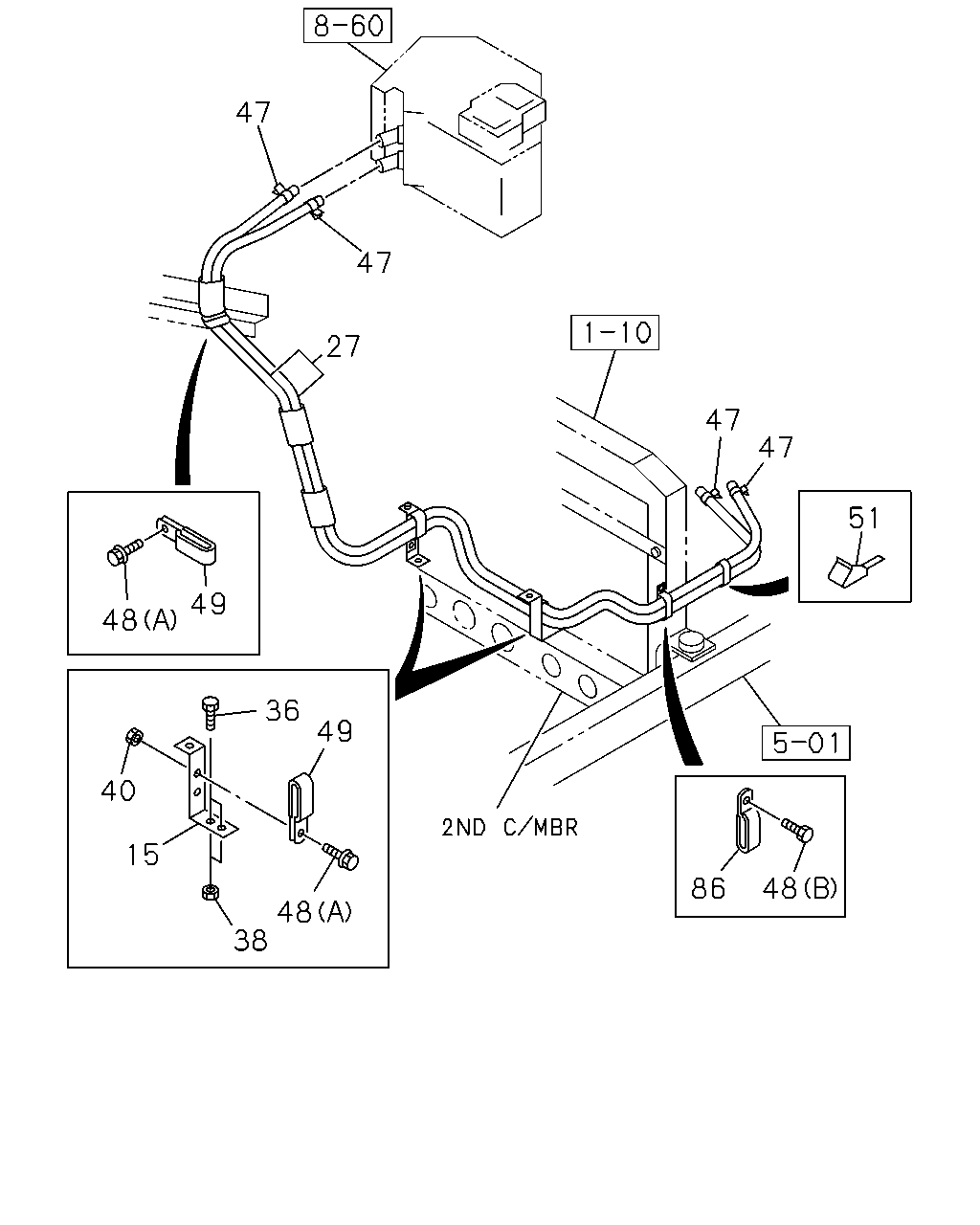

15 |
BRACKET; WATER HOSE
6SD1 STD ENG(37L)
|
1-83571-927-1 |
01 |
1 |
9601-9607 |
● |
● |
| |
15 |
BRACKET; WATER HOSE
6HH1 STD ENG(65L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
|
1-83571-927-1 |
01 |
1 |
9601-9607 |
● |
● |
| |
15 |
BRACKET; WATER HOSE
|
1-83571-927-1 |
01 |
1 |
9601-9607 |
● |
● |
| |
15 |
BRACKET; WATER HOSE
|
1-83571-927-1 |
02 |
1 |
9608-0308 |
● |
● |
| |
15 |
BRACKET; WATER HOSE
|
1-83571-927-1 |
02 |
1 |
0309- |
|
● |
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
6HH1 STD ENG(65L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
|
1-83565-630-1 |
01 |
1 |
9601-9803 |
● |
● |
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
6HH1 STD ENG(65L)
HEATER & DEFROSTER(C41)
|
1-83565-630-2 |
01 |
1 |
9804-0112 |
● |
● |
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
6HH1 STD ENG(65L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
|
1-83565-630-2 |
01 |
1 |
0201-0308 |
● |
● |
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
6HH1 STD ENG(65L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
|
1-83565-630-2 |
01 |
1 |
0309- |
|
● |
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
6SD1 STD ENG(37L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
|
1-83565-612-1 |
01 |
1 |
9601-9611 |
● |
● |
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
6SD1 STD ENG(37L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
|
1-83565-655-1 |
01 |
1 |
9612-9803 |
● |
● |
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
6SD1 STD ENG(37L)
HEATER & DEFROSTER(C41)
|
1-83565-655-2 |
01 |
1 |
9804-0112 |
● |
● |
| |
27 |
HOSE; WATER,HTR UNIT TO WATER PIPE
6SD1 STD ENG(37L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
|
1-83565-655-2 |
01 |
1 |
0201-0308 |
● |
● |
| |
36 |
BOLT; BRKT
M8X25 FLANGE
|
0-28680-825-0 |
04 |
1 |
9608-9801 |
● |
● |
| |
36 |
BOLT; BRKT
M8X20 FLANGE
|
0-28680-820-0 |
04 |
1 |
9802-0308 |
● |
● |
| |
36 |
BOLT; BRKT
M8X20 FLANGE
|
0-28680-820-0 |
04 |
1 |
0309-0512 |
|
● |
| |
36 |
BOLT; BRKT
M8X20 FLANGE
|
0-28650-820-0 |
04 |
1 |
0601- |
|
● |
| |
36 |
BOLT; BRKT
6SD1 STD ENG(37L)
M8X20 FLANGE
|
0-28080-820-0 |
02 |
1 |
9601-9606 |
● |
● |
| |
36 |
BOLT; BRKT
6HH1 STD ENG(65L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
M8X20 FLANGE
|
0-28080-820-0 |
02 |
1 |
9601-9606 |
● |
● |
| |
36 |
BOLT; BRKT
M8X20 FLANGE
|
0-28080-820-0 |
02 |
1 |
9601-9606 |
● |
● |
| |
36 |
BOLT; BRKT
6SD1 STD ENG(37L)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9607-9607 |
● |
● |
| |
36 |
BOLT; BRKT
6HH1 STD ENG(65L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9607-9607 |
● |
● |
| |
36 |
BOLT; BRKT
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9607-9607 |
● |
● |
| |
36 |
BOLT; BRKT
6SD1 STD ENG(37L)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9608-9608 |
● |
● |
| |
36 |
BOLT; BRKT
6HH1 STD ENG(65L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9608-9608 |
● |
● |
| |
38 |
NUT; BRKT
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
9608-0308 |
● |
● |
| |
38 |
NUT; BRKT
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
0309-0602 |
|
● |
| |
38 |
NUT; BRKT
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0603- |
|
● |
| |
38 |
NUT; BRKT
6SD1 STD ENG(37L)
M8
|
9-09110-408-0 |
02 |
1 |
9601-9606 |
● |
● |
| |
38 |
NUT; BRKT
6HH1 STD ENG(65L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
M8
|
9-09110-408-0 |
02 |
1 |
9601-9606 |
● |
● |
| |
38 |
NUT; BRKT
M8
|
9-09110-408-0 |
02 |
1 |
9601-9606 |
● |
● |
| |
38 |
NUT; BRKT
6SD1 STD ENG(37L)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9607-9607 |
● |
● |
| |
38 |
NUT; BRKT
6HH1 STD ENG(65L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9607-9607 |
● |
● |
| |
38 |
NUT; BRKT
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9607-9607 |
● |
● |
| |
38 |
NUT; BRKT
6SD1 STD ENG(37L)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9608-9608 |
● |
● |
| |
38 |
NUT; BRKT
6HH1 STD ENG(65L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9608-9608 |
● |
● |
| |
40 |
NUT; CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
M8
|
9-09110-408-0 |
02 |
1 |
9601-9606 |
● |
● |
| |
40 |
NUT; CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9607-9803 |
● |
● |
| |
40 |
NUT; CLIP
HEATER & DEFROSTER(C41)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9804-9903 |
● |
● |
| |
40 |
NUT; CLIP
HEATER & DEFROSTER(C41)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9904-0112 |
● |
● |
| |
40 |
NUT; CLIP
6SD1 STD ENG(37L)
HEATER & DEFROSTER(C41)
OIL FILTER SETTING DOWNWARD<E7V>
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9904-0112 |
● |
● |
| |
40 |
NUT; CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0201-0308 |
● |
● |
| |
40 |
NUT; CLIP
6SD1 STD ENG(37L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
OIL FILTER SETTING DOWNWARD<E7V>
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0201-0308 |
● |
● |
| |
40 |
NUT; CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0309-0602 |
|
● |
| |
40 |
NUT; CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
|
● |
| |
40 |
NUT; CLIP
6SD1 STD ENG(37L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
M8
|
9-09110-408-0 |
01 |
1 |
9601-9606 |
● |
● |
| |
40 |
NUT; CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
M8
|
9-09110-408-0 |
01 |
1 |
9601-9606 |
● |
● |
| |
40 |
NUT; CLIP
6SD1 STD ENG(37L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9607-9607 |
● |
● |
| |
40 |
NUT; CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9607-9607 |
● |
● |
| |
40 |
NUT; CLIP
6SD1 STD ENG(37L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9608-9803 |
● |
● |
| |
40 |
NUT; CLIP
6SD1 STD ENG(37L)
HEATER & DEFROSTER(C41)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9804-9903 |
● |
● |
| |
40 |
NUT; CLIP
6SD1 STD ENG(37L)
HEATER & DEFROSTER(C41)
EXC. OIL FILTER SETTING DOWNWARD<E7V>
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9904-0112 |
● |
● |
| |
40 |
NUT; CLIP
6SD1 STD ENG(37L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
EXC. OIL FILTER SETTING DOWNWARD<E7V>
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0201-0308 |
● |
● |
| |
47 |
CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
ID=22
|
8-94382-401-0 |
04 |
1 |
9601-9803 |
● |
● |
| |
47 |
CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41)
ID=22
|
8-94382-401-0 |
04 |
1 |
9804-0112 |
● |
● |
| |
47 |
CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
ID=22
|
8-94382-401-0 |
04 |
1 |
0201-0308 |
● |
● |
| |
47 |
CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
ID=22
|
8-94382-401-0 |
04 |
1 |
0309-0611 |
|
● |
| |
47 |
CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
ID=22
|
8-97359-141-0 |
04 |
1 |
0612- |
|
● |
| |
48 |
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(A)
M8X20 FLANGE
|
0-28080-820-0 |
02 |
1 |
9601-9606 |
● |
● |
| |
48 |
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(A)
M8X20 FLANGE
|
0-28080-820-0 |
02 |
1 |
9601-9606 |
● |
● |
| |
48 |
BOLT; CLIP FIX
6SD1 STD ENG(37L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(A)
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
9607-9607 |
● |
● |
| |
48 |
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(A)
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
9607-9607 |
● |
● |
| |
48 |
BOLT; CLIP FIX
6SD1 STD ENG(37L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(A)
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
9608-9801 |
● |
● |
| |
48 |
BOLT; CLIP FIX
6SD1 STD ENG(37L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(A)
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
9802-9803 |
● |
● |
| |
48 |
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(A)
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
9802-9803 |
● |
● |
| |
48 |
BOLT; CLIP FIX
HEATER & DEFROSTER(C41)
(A)
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
9804-9901 |
● |
● |
| |
48 |
BOLT; CLIP FIX
6SD1 STD ENG(37L)
HEATER & DEFROSTER(C41)
(A)
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
9804-9901 |
● |
● |
| |
48 |
BOLT; CLIP FIX
HEATER & DEFROSTER(C41)
(A)
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
9902-9903 |
● |
● |
| |
48 |
BOLT; CLIP FIX
HEATER & DEFROSTER(C41)
(A)
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
9902-9903 |
● |
● |
| |
48 |
BOLT; CLIP FIX
HEATER & DEFROSTER(C41)
(A)
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
9904-0112 |
● |
● |
| |
48 |
BOLT; CLIP FIX
HEATER & DEFROSTER(C41)
(A)
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
9904-0112 |
● |
● |
| |
48 |
BOLT; CLIP FIX
6SD1 STD ENG(37L)
HEATER & DEFROSTER(C41)
OIL FILTER SETTING DOWNWARD<E7V>
(A)
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
9904-0112 |
● |
● |
| |
48 |
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(A)
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
0201-0308 |
● |
● |
| |
48 |
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(A)
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
0201-0308 |
● |
● |
| |
48 |
BOLT; CLIP FIX
6SD1 STD ENG(37L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
OIL FILTER SETTING DOWNWARD<E7V>
(A)
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
0201-0308 |
● |
● |
| |
48 |
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(A)
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
0309-0512 |
|
● |
| |
48 |
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(A)
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
0309-0512 |
|
● |
| |
48 |
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(A)
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0601- |
|
● |
| |
48 |
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(A)
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0601- |
|
● |
| |
48 |
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(A)
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
9607-9801 |
● |
● |
| |
48 |
BOLT; CLIP FIX
6HH1 STD ENG(65L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(B)
M8X16 W/LK&PL WASHER
|
1-09980-498-0 |
01 |
1 |
9601-9803 |
● |
● |
| |
48 |
BOLT; CLIP FIX
6HH1 STD ENG(65L)
HEATER & DEFROSTER(C41)
(B)
M8X16 W/LK&PL WASHER
|
1-09980-498-0 |
01 |
1 |
9804-0112 |
● |
● |
| |
48 |
BOLT; CLIP FIX
6HH1 STD ENG(65L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(B)
M8X16 W/LK&PL WASHER
|
1-09980-498-0 |
01 |
1 |
0201-0308 |
● |
● |
| |
48 |
BOLT; CLIP FIX
6HH1 STD ENG(65L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(B)
M8X16 W/LK&PL WASHER
|
1-09980-498-0 |
01 |
1 |
0309- |
|
● |
| |
48 |
BOLT; CLIP FIX
6SD1 STD ENG(37L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(A)
M8X20 FLANGE
|
0-28080-820-0 |
01 |
1 |
9601-9606 |
● |
● |
| |
48 |
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(A)
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
9607-9803 |
● |
● |
| |
48 |
BOLT; CLIP FIX
HEATER & DEFROSTER(C41)
(A)
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
9804-9901 |
● |
● |
| |
48 |
BOLT; CLIP FIX
6SD1 STD ENG(37L)
HEATER & DEFROSTER(C41)
(A)
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
9902-9903 |
● |
● |
| |
48 |
BOLT; CLIP FIX
6SD1 STD ENG(37L)
HEATER & DEFROSTER(C41)
EXC. OIL FILTER SETTING DOWNWARD<E7V>
(A)
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
9904-0112 |
● |
● |
| |
48 |
BOLT; CLIP FIX
6SD1 STD ENG(37L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
EXC. OIL FILTER SETTING DOWNWARD<E7V>
(A)
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
0201-0308 |
● |
● |
| |
49 |
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
ID=24X2 L=25
|
1-09700-710-0 |
02 |
1 |
9601-9607 |
● |
● |
| |
49 |
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
ID=24X2 L=25
|
1-09700-710-0 |
02 |
1 |
9601-9607 |
● |
● |
| |
49 |
CLIP; WATER HOSE,HTR
6SD1 STD ENG(37L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
ID=24X2 L=25
|
1-09700-710-0 |
01 |
1 |
9608-9803 |
● |
● |
| |
49 |
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
ID=24X2 L=25
|
1-09700-710-0 |
01 |
1 |
9608-9803 |
● |
● |
| |
49 |
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41)
ID=24X2 L=25
|
1-09700-710-0 |
01 |
1 |
9804-9901 |
● |
● |
| |
49 |
CLIP; WATER HOSE,HTR
6SD1 STD ENG(37L)
HEATER & DEFROSTER(C41)
ID=24X2 L=25
|
1-09700-710-0 |
01 |
1 |
9804-9901 |
● |
● |
| |
49 |
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41)
ID=24X2 L=25
|
1-09700-710-0 |
02 |
1 |
9902-9903 |
● |
● |
| |
49 |
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41)
ID=24X2 L=25
|
1-09700-710-0 |
02 |
1 |
9902-9903 |
● |
● |
| |
49 |
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41)
ID=24X2 L=25
|
1-09700-710-0 |
02 |
1 |
9904-0112 |
● |
● |
| |
49 |
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41)
ID=24X2 L=25
|
1-09700-710-0 |
02 |
1 |
9904-0112 |
● |
● |
| |
49 |
CLIP; WATER HOSE,HTR
6SD1 STD ENG(37L)
HEATER & DEFROSTER(C41)
OIL FILTER SETTING DOWNWARD<E7V>
ID=24X2 L=25
|
1-09700-710-0 |
02 |
1 |
9904-0112 |
● |
● |
| |
49 |
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
ID=24X2 L=25
|
1-09700-710-0 |
02 |
1 |
0201-0308 |
● |
● |
| |
49 |
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
ID=24X2 L=25
|
1-09700-710-0 |
02 |
1 |
0201-0308 |
● |
● |
| |
49 |
CLIP; WATER HOSE,HTR
6SD1 STD ENG(37L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
OIL FILTER SETTING DOWNWARD<E7V>
ID=24X2 L=25
|
1-09700-710-0 |
02 |
1 |
0201-0308 |
● |
● |
| |
49 |
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
ID=24X2 L=25
|
1-09700-710-0 |
02 |
1 |
0309- |
|
● |
| |
49 |
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
ID=24X2 L=25
|
1-09700-710-0 |
02 |
1 |
0309- |
|
● |
| |
49 |
CLIP; WATER HOSE,HTR
6SD1 STD ENG(37L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
ID=24X2 L=25
|
1-09700-710-0 |
01 |
1 |
9601-9607 |
● |
● |
| |
49 |
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
ID=24X2 L=25
|
1-09700-710-0 |
02 |
1 |
9608-9803 |
● |
● |
| |
49 |
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41)
ID=24X2 L=25
|
1-09700-710-0 |
02 |
1 |
9804-9901 |
● |
● |
| |
49 |
CLIP; WATER HOSE,HTR
6SD1 STD ENG(37L)
HEATER & DEFROSTER(C41)
ID=24X2 L=25
|
1-09700-710-0 |
01 |
1 |
9902-9903 |
● |
● |
| |
49 |
CLIP; WATER HOSE,HTR
6SD1 STD ENG(37L)
HEATER & DEFROSTER(C41)
EXC. OIL FILTER SETTING DOWNWARD<E7V>
ID=24X2 L=25
|
1-09700-710-0 |
01 |
1 |
9904-0112 |
● |
● |
| |
49 |
CLIP; WATER HOSE,HTR
6SD1 STD ENG(37L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
EXC. OIL FILTER SETTING DOWNWARD<E7V>
ID=24X2 L=25
|
1-09700-710-0 |
01 |
1 |
0201-0308 |
● |
● |
| |
51 |
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
L=170
|
1-83574-139-0 |
01 |
1 |
9601-9803 |
● |
● |
| |
51 |
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41)
L=170
|
1-83574-139-0 |
01 |
1 |
9804-0112 |
● |
● |
| |
51 |
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
L=170
|
1-83574-139-0 |
01 |
1 |
0201-0308 |
● |
● |
| |
51 |
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
L=170
|
1-83574-139-0 |
01 |
1 |
0309-1205 |
|
● |
| |
51 |
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
L=170
|
8-98166-021-0 |
01 |
1 |
1206- |
|
● |
| |
86 |
CLIP; HTR HOSE
6HH1 STD ENG(65L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
|
1-83571-049-1 |
01 |
1 |
9601-9803 |
● |
● |
| |
86 |
CLIP; HTR HOSE
6HH1 STD ENG(65L)
HEATER & DEFROSTER(C41)
|
1-83571-049-1 |
01 |
1 |
9804-0112 |
● |
● |
| |
86 |
CLIP; HTR HOSE
6HH1 STD ENG(65L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
|
1-83571-049-1 |
01 |
1 |
0201-0308 |
● |
● |
| |
86 |
CLIP; HTR HOSE
6HH1 STD ENG(65L)
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
|
1-83571-049-1 |
01 |
1 |
0309- |
|
● |
