◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11352 - FVR(MIDDLE EAST) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#16381) — 109 parça

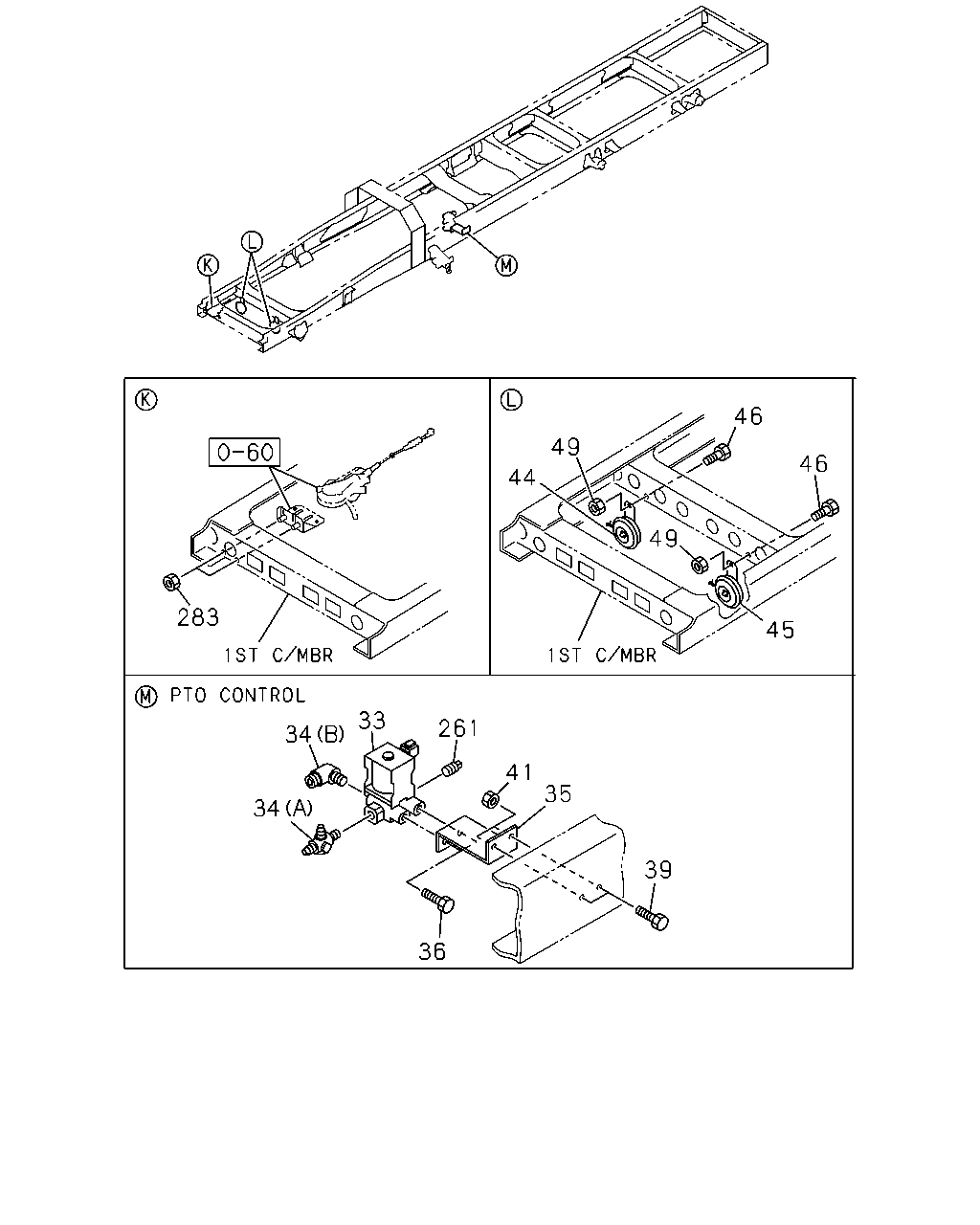

çizim 65989
46 49 46 44 49 283 45 33 261 34 41 35 34 39 36
BalonParca AdiParca NoAdetTipApplied Date A B
33 VALVE; MAG,PTO CONT
PTO CONTROL<SV6> 		1-82563-600-4 01 1 9601-0308 ● ●
33 VALVE; MAG,PTO CONT
PTO CONTROL<SV6> 		1-82563-600-5 01 1 0309- ●
34 CONNECTOR; MAG VLV,INL PORT
PTO CONTROL<SV6> (B) M20 & PT1/4 ELBOW 		1-09660-681-0 01 1 9601-9803 ● ●
34 CONNECTOR; MAG VLV,INL PORT
PTO CONTROL<SV6> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9804-9806 ● ●
34 CONNECTOR; MAG VLV,INL PORT
6HH1 STD ENG(65L) PTO CONTROL<SV6> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9807-0308 ● ●
34 CONNECTOR; MAG VLV,INL PORT
PTO CONTROL<SV6> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0309- ●
34 CONNECTOR; MAG VLV,INL PORT
PTO CONTROL<SV6> (A) 		1-09660-718-1 01 1 9601-9803 ● ●
34 CONNECTOR; MAG VLV,INL PORT
PTO CONTROL<SV6> (A) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 9804-0308 ● ●
34 CONNECTOR; MAG VLV,INL PORT
PTO CONTROL<SV6> (A) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 0309- ●
34 CONNECTOR; MAG VLV,INL PORT
6SD1 STD ENG(37L) PTO CONTROL<SV6> (B) M20 & PT1/4 ELBOW 		1-09660-681-0 01 1 9807-0204 ● ●
34 CONNECTOR; MAG VLV,INL PORT
6SD1 STD ENG(37L) PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0205-0308 ● ●
35 BRACKET; MAG VLV,PTO CONT
PTO CONTROL<SV6> 		1-47477-462-0 01 1 9601-9704 ● ●
35 BRACKET; MAG VLV,PTO CONT
PTO CONTROL<SV6> 		1-47477-953-0 01 1 9705-0004 ● ●
35 BRACKET; MAG VLV,PTO CONT
6SD1 STD ENG(37L) PTO CONTROL<SV6> 		1-47477-953-0 01 1 0005-0308 ● ●
35 BRACKET; MAG VLV,PTO CONT
6HH1 STD ENG(65L) PTO CONTROL<SV6> 		1-47477-967-0 01 1 0005-0308 ● ●
35 BRACKET; MAG VLV,PTO CONT
PTO CONTROL<SV6> 		1-47477-967-0 01 1 0309- ●
36 BOLT; MAG VLV,PTO CONT
PTO CONTROL<SV6> M8X20 FLANGE 		0-28080-820-0 02 1 9601-0308 ● ●
36 BOLT; MAG VLV,PTO CONT
PTO CONTROL<SV6> M8X20 FLANGE 		0-28080-820-0 02 1 0309-0512 ●
36 BOLT; MAG VLV,PTO CONT
PTO CONTROL<SV6> M8X20 FLANGE 		0-28050-820-0 02 1 0601- ●
39 BOLT; BRKT,MAG VLV
PTO CONTROL<SV6> M8X30 FLANGE 		0-28080-830-0 02 1 9601-9606 ● ●
39 BOLT; BRKT,MAG VLV
PTO CONTROL<SV6> M8X35 FLANGE 		0-28680-835-0 02 1 9607-0308 ● ●
39 BOLT; BRKT,MAG VLV
PTO CONTROL<SV6> M8X35 FLANGE 		0-28680-835-0 02 1 0309-0512 ●
39 BOLT; BRKT,MAG VLV
PTO CONTROL<SV6> M8X35 FLANGE 		0-28650-835-0 02 1 0601- ●
41 NUT; BRKT,MAG VLV
PTO CONTROL<SV6> M8 		9-09110-408-0 02 1 9601-9606 ● ●
41 NUT; BRKT,MAG VLV
PTO CONTROL<SV6> M8 FLANGE 		0-91150-108-0 02 1 9607-0308 ● ●
41 NUT; BRKT,MAG VLV
PTO CONTROL<SV6> M8 FLANGE 		0-91150-108-0 02 1 0309-0602 ●
41 NUT; BRKT,MAG VLV
PTO CONTROL<SV6> M8 FLANGE 		0-91180-108-0 02 1 0603- ●
44 HORN; HIGH NOTE 1-83410-061-1 01 1 9601-0308 ● ●
44 HORN; HIGH NOTE 1-83410-061-1 01 1 0309- ●
45 HORN; LOW NOTE 1-83410-062-1 01 1 9601-0308 ● ●
45 HORN; LOW NOTE 1-83410-062-1 01 1 0309- ●
46 BOLT; HORN TO BODY
M8X25 FLANGE 		0-28080-825-0 02 1 9601-9606 ● ●
46 BOLT; HORN TO BODY
M8X25 FLANGE 		0-28680-825-0 02 1 9607-0308 ● ●
46 BOLT; HORN TO BODY
M8X25 FLANGE 		0-28680-825-0 02 1 0309-0512 ●
46 BOLT; HORN TO BODY
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
49 NUT; HORN TO BODY
EXC. FRONT STABILIZER SHAFT<F59> M8 FLANGE 		5-09440-005-0 02 1 9601-9606 ● ●
49 NUT; HORN TO BODY
EXC. FRONT STABILIZER SHAFT<F59> M8 FLANGE 		0-91150-108-0 02 1 9607-0308 ● ●
49 NUT; HORN TO BODY
M8 FLANGE 		0-91150-108-0 02 1 0309-0602 ●
49 NUT; HORN TO BODY
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
261 PLUG; MAG VLV
PTO CONTROL<SV6> PT1/4 		9-99204-513-0 01 1 9601-0308 ● ●
261 PLUG; MAG VLV
PTO CONTROL<SV6> PT1/4 		9-99204-513-0 01 1 0309- ●
283 NUT; BRKT
M8 FLANGE 		5-09440-005-0 02 1 9601-9606 ● ●
283 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9607-0308 ● ●
283 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0309-0403 ●
283 NUT; BRKT
6HH1 STD ENG(65L) M8 FLANGE 		0-91150-108-0 02 1 0404-0602 ●
283 NUT; BRKT
6HH1 STD ENG(65L) M8 FLANGE 		0-91180-108-0 02 1 0603- ●

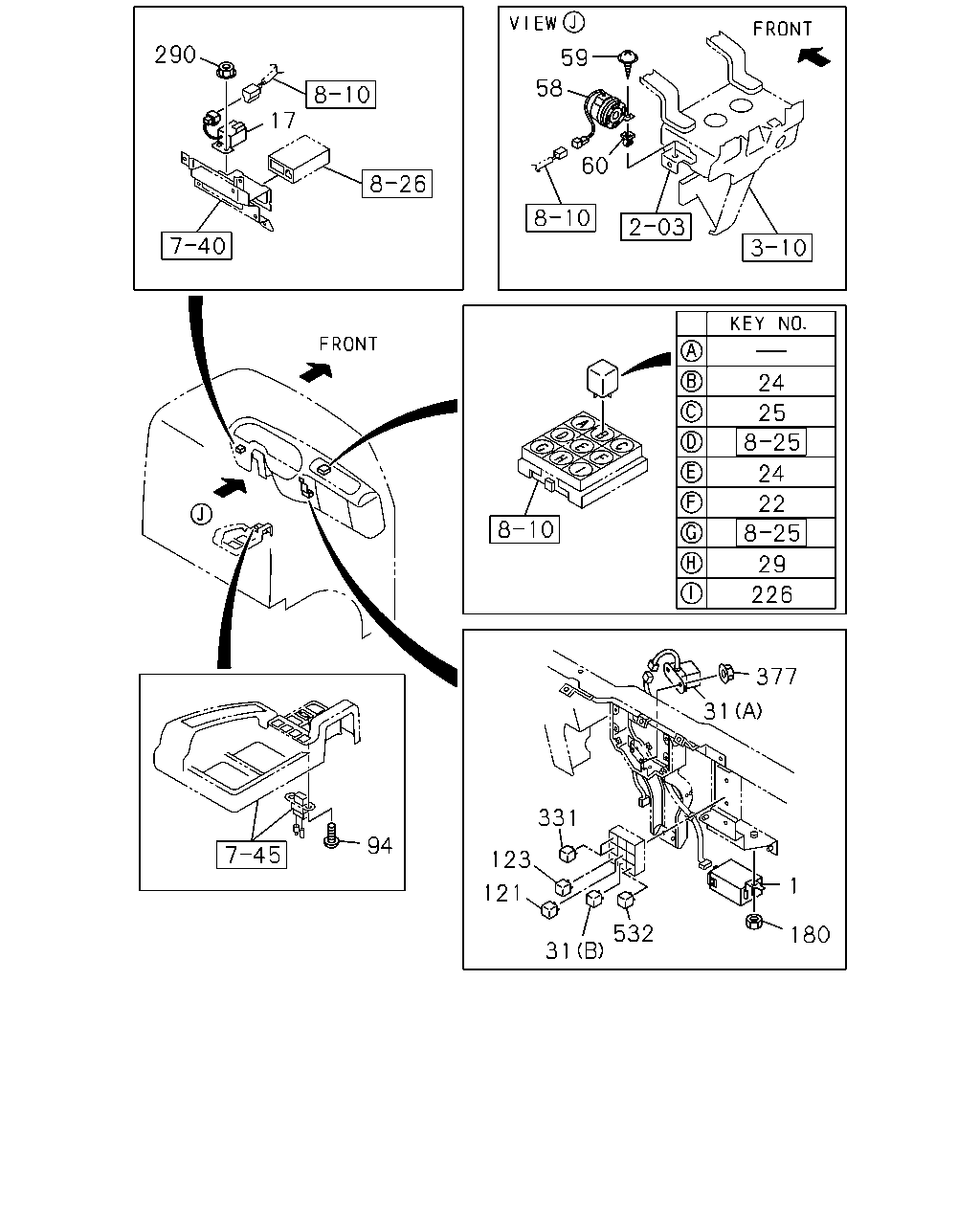

çizim 66644
290 59 58 17 60 24 25 24 22 29 226 377 31 331 94 123 1 121 532 31 180
BalonParca AdiParca NoAdetTipApplied Date A B
1 UNIT; FLASHER 1-83470-060-1 01 1 9601-0308 ● ●
1 UNIT; FLASHER 1-83470-060-1 01 1 0309- ●
17 TIMER; SEAT BELT 1-82550-183-1 01 1 9601-0308 ● ●
17 TIMER; SEAT BELT 1-82550-183-1 01 1 0309- ●
22 RELAY; STOP LAMP
24V 12.5A MITUBA 		8-97062-815-1 01 1 9601-0111 ● ●
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-0308 ● ●
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0309- ●
24 RELAY; LIGHTING
24V 12.5A MITUBA 		8-97062-815-1 02 1 9601-0111 ● ●
24 RELAY; LIGHTING
24V 12.5A PANASONIC 		8-97262-933-0 02 1 0112-0308 ● ●
24 RELAY; LIGHTING
24V 12.5A PANASONIC 		8-97262-933-0 02 1 0309- ●
25 RELAY; TAIL LAMP
24V 12.5A MITUBA 		8-97062-815-1 01 1 9601-0111 ● ●
25 RELAY; TAIL LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-0308 ● ●
25 RELAY; TAIL LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0309- ●
29 RELAY; HORN
24V 12.5A MITUBA 		8-97062-815-1 01 1 9601-0111 ● ●
29 RELAY; HORN
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-0308 ● ●
29 RELAY; HORN
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0309- ●
31 RELAY; PTO CONT
PTO CONTROL<SV6> (A) 24V 		1-82550-187-1 01 1 9601-0308 ● ●
31 RELAY; PTO CONT
PTO CONTROL<SV6> (A) 24V 		1-82550-187-1 01 1 0309- ●
31 RELAY; PTO CONT
PTO CONTROL<SV6> (B) 24V 12.5A MITUBA 		8-97062-815-1 01 1 9601-0111 ● ●
31 RELAY; PTO CONT
PTO CONTROL<SV6> (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-0308 ● ●
31 RELAY; PTO CONT
PTO CONTROL<SV6> (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0309- ●
58 BUZZER; AIR PRESSURE WARNING
NIKKO 		1-83460-056-0 01 1 9601-0004 ● ●
58 BUZZER; AIR PRESSURE WARNING
METRO DENSO 		1-83460-074-1 01 1 0005-0308 ● ●
58 BUZZER; AIR PRESSURE WARNING
METRO DENSO 		1-83460-074-1 01 1 0309-0403 ●
58 BUZZER; AIR PRESSURE WARNING
6HH1 STD ENG(65L) METRO DENSO 		1-83460-074-1 01 1 0404-0612 ●
58 BUZZER; AIR PRESSURE WARNING
6HH1 STD ENG(65L) METRO DENSO 		8-98069-865-0 01 1 0701- ●
58 BUZZER; AIR PRESSURE WARNING
METRO DENSO 		1-83460-074-0 01 1 9904-9907 ● ●
58 BUZZER; AIR PRESSURE WARNING
EXC. NIKKO<Y70> METRO DENSO 		1-83460-074-1 01 1 9908-0004 ● ●
59 SCREW; BUZZER
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9601-0308 ● ●
59 SCREW; BUZZER
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0309-0604 ●
59 SCREW; BUZZER
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 01 1 0605- ●
60 GROMMET; SCREW,BUZZER
D=8.6X7.7 L=7.5 		8-94279-078-0 01 1 9601-0308 ● ●
60 GROMMET; SCREW,BUZZER
D=8.6X7.7 L=7.5 		8-94279-078-0 01 1 0309- ●
94 SCREW; CONSENT TO BLIND PNL
M5X12 TAPPING W/PL WASHER 		0-74110-512-0 02 1 9601-9810 ● ●
94 SCREW; CONSENT TO BLIND PNL
M5X10 TAPPING W/PL WASHER 		0-74110-510-0 02 1 9811-0308 ● ●
94 SCREW; CONSENT TO BLIND PNL
M5X10 TAPPING W/PL WASHER 		0-74110-510-0 02 1 0309-0604 ●
94 SCREW; CONSENT TO BLIND PNL
M5X10 TAPPING W/PL WASHER 		0-74160-510-0 02 1 0605- ●
121 RELAY; PARKING BRK
24V 12.5A MITUBA 		8-97062-815-1 01 1 9601-0111 ● ●
121 RELAY; PARKING BRK
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-0308 ● ●
121 RELAY; PARKING BRK
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0309- ●
123 RELAY; HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 12.5A MITUBA 		8-97062-815-1 01 1 9601-9803 ● ●
123 RELAY; HTR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 12.5A MITUBA 		8-97062-815-1 01 1 9804-0111 ● ●
123 RELAY; HTR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-0112 ● ●
123 RELAY; HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0201-0308 ● ●
123 RELAY; HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0309- ●
180 NUT; FLASHER UNIT
M6 FLANGE 		0-91150-106-0 01 1 9601-0308 ● ●
180 NUT; FLASHER UNIT
M6 FLANGE 		0-91150-106-0 01 1 0309-0602 ●
180 NUT; FLASHER UNIT
M6 FLANGE 		0-91180-106-0 01 1 0603- ●
226 RELAY; EXH BRK
24V 12.5A MITUBA 		8-97062-815-1 01 1 9601-0111 ● ●
226 RELAY; EXH BRK
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-0308 ● ●
226 RELAY; EXH BRK
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0309- ●
290 NUT
M6 FLANGE 		0-91150-106-0 02 1 9601-0308 ● ●
290 NUT
M6 FLANGE 		0-91150-106-0 02 1 0309-0602 ●
290 NUT
M6 FLANGE 		0-91180-106-0 02 1 0603- ●
331 RELAY; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A MITUBA 		8-97062-815-1 02 1 9601-9803 ● ●
331 RELAY; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC 		8-97262-933-0 02 1 0201-0308 ● ●
331 RELAY; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC 		8-97262-933-0 02 1 0309- ●
377 NUT; RELAY
PTO CONTROL<SV6> M6 FLANGE 		0-91150-106-0 02 1 9601-0308 ● ●
377 NUT; RELAY
PTO CONTROL<SV6> M6 FLANGE 		0-91150-106-0 02 1 0309-0602 ●
377 NUT; RELAY
PTO CONTROL<SV6> M6 FLANGE 		0-91180-106-0 02 1 0603- ●
532 RELAY; SEAT BELT WARNING
24V 12.5A MITUBA 		8-97062-815-1 01 1 9601-0111 ● ●
532 RELAY; SEAT BELT WARNING
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-0308 ● ●
532 RELAY; SEAT BELT WARNING
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0309- ●
