◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11352 - FVR(MIDDLE EAST) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#16380) — 33 parça

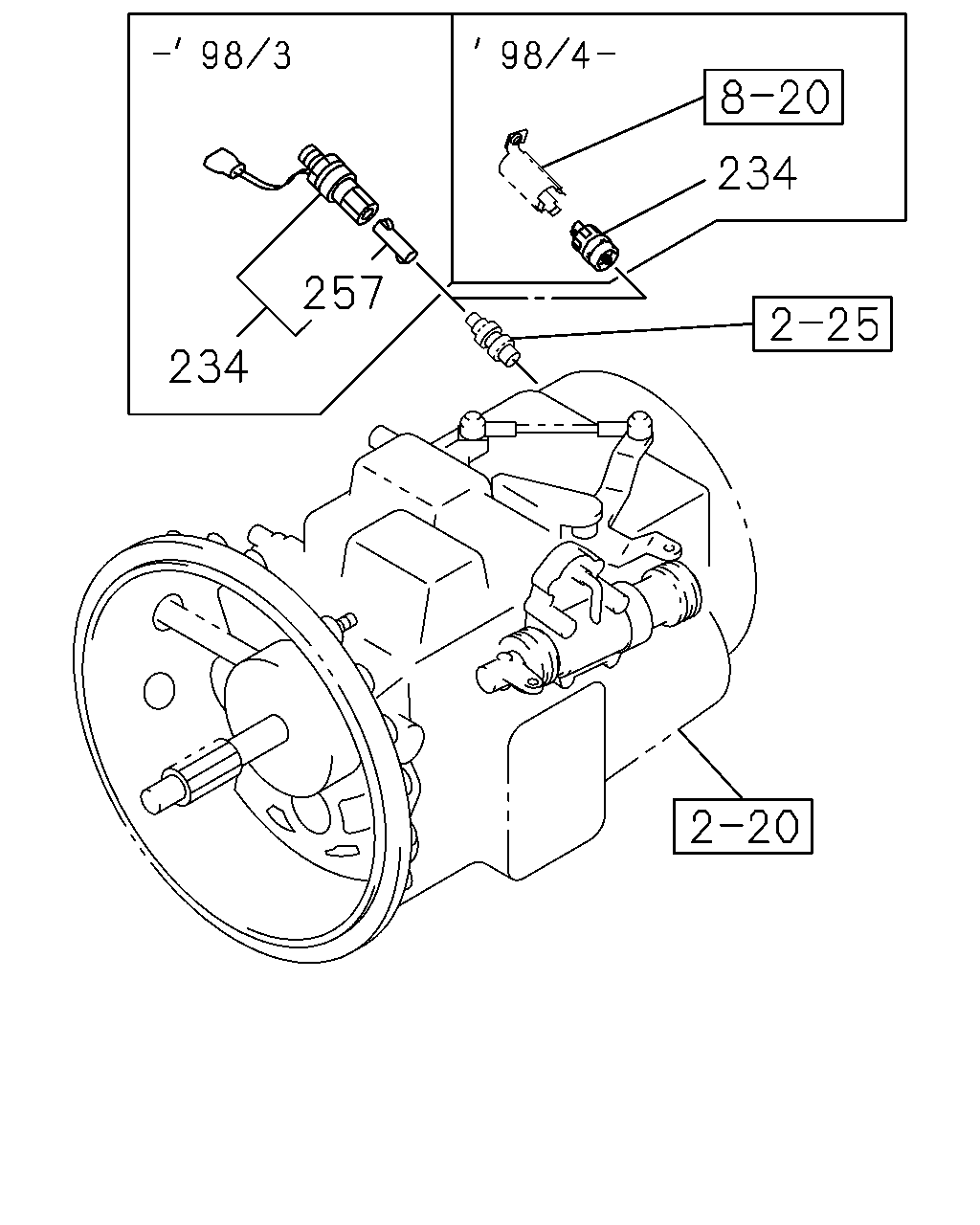

çizim 65360
234 257 234
BalonParca AdiParca NoAdetTipApplied Date A B
234 SENSOR; VEHICLE SPD
MAL6S M/T(Y1V) 		1-83127-254-2 01 1 9601-9803 ● ●
234 SENSOR; VEHICLE SPD
MLD7R M/T(X5L),MLD6A M/T(X5N) 		1-83127-241-1 01 1 9601-9803 ● ●
234 SENSOR; VEHICLE SPD 1-80240-001-1 01 1 9804-0202 ● ●
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-0 01 1 0203-0308 ● ●
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-0 01 1 0309-0403 ●
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 0404- ●
257 KEY; SPEED SENSOR
MAL6S M/T(Y1V) 		1-83129-125-0 01 1 9601-9803 ● ●
257 KEY; SPEED SENSOR
MLD7R M/T(X5L),MLD6A M/T(X5N) 		1-83129-126-0 01 1 9601-9803 ● ●

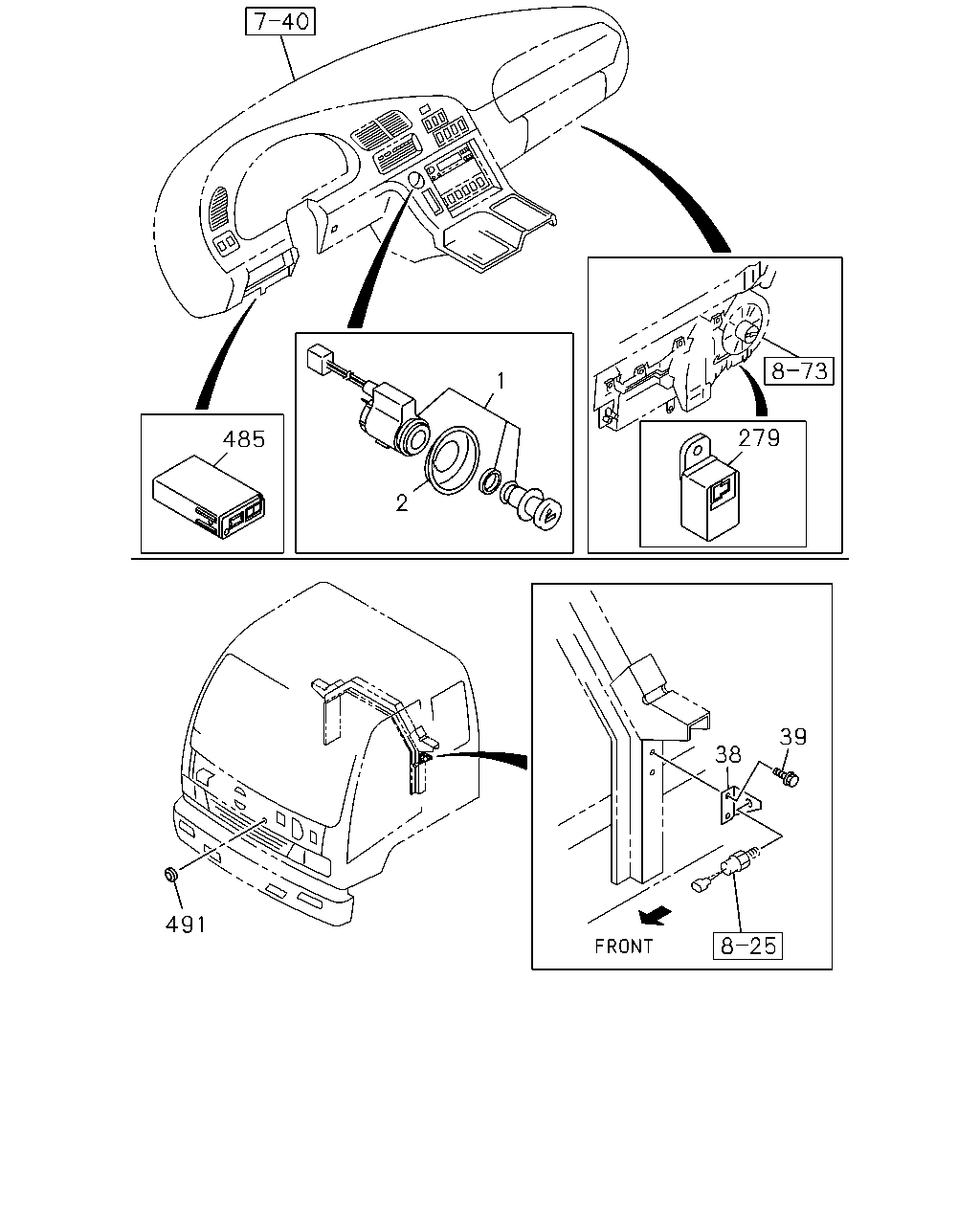

çizim 66569
1 279 485 2 39 38 491
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR 8-97064-970-1 01 1 9601-0108 ● ●
1 LIGHTER; CIGAR 8-97320-325-0 01 1 0109-0308 ● ●
1 LIGHTER; CIGAR 8-97320-325-0 01 1 0309- ●
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 9601-0308 ● ●
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 0309- ●
38 BRACKET; SW,STARTER SUB 1-82699-351-0 01 1 9601-0004 ● ●
38 BRACKET; SW,STARTER SUB 1-82698-232-0 01 1 0005-0211 ● ●
38 BRACKET; SW,STARTER SUB
EXC. STARTER SWITCH DELETION<E5D> 		1-82698-232-0 01 1 0212-0308 ● ●
38 BRACKET; SW,STARTER SUB
EXC. STARTER SWITCH DELETION<E5D> 		1-82698-232-0 01 1 0309- ●
39 BOLT; BRKT,STARTER SUB SW
M8X20 FLANGE 		0-28080-820-0 02 1 9601-9606 ● ●
39 BOLT; BRKT,STARTER SUB SW
M8X25 FLANGE 		0-28680-825-0 02 1 9607-9801 ● ●
39 BOLT; BRKT,STARTER SUB SW
M8X20 FLANGE 		0-28680-820-0 02 1 9802-0211 ● ●
39 BOLT; BRKT,STARTER SUB SW
EXC. STARTER SWITCH DELETION<E5D> M8X20 FLANGE 		0-28680-820-0 02 1 0212-0308 ● ●
39 BOLT; BRKT,STARTER SUB SW
EXC. STARTER SWITCH DELETION<E5D> M8X20 FLANGE 		0-28680-820-0 02 1 0309-0512 ●
39 BOLT; BRKT,STARTER SUB SW
EXC. STARTER SWITCH DELETION<E5D> M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
279 BUZZER ASM; SEAT BELT WARNING
12V 		5-83460-004-1 01 1 9601-0308 ● ●
279 BUZZER ASM; SEAT BELT WARNING
12V 		5-83460-004-1 01 1 0309- ●
485 CONTROL UNIT; SPEED SENSOR 1-82540-065-0 01 1 9601-9809 ● ●
485 CONTROL UNIT; SPEED SENSOR 1-82540-065-0 01 1 9810-0004 ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-038-1 01 1 0005-0308 ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-038-1 01 1 0309-0403 ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-149-0 01 1 0404-0410 ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-158-0 01 1 0411- ●
491 PLUG; HOLE,CONT UNIT
OD=54.5 		1-73907-309-0 01 1 9601-0308 ● ●
491 PLUG; HOLE,CONT UNIT
OD=54.5 		1-73907-309-0 01 1 0309- ●
