5-10 — CAB MOUNTING; FRAME SIDE (#1638) — 122 parça

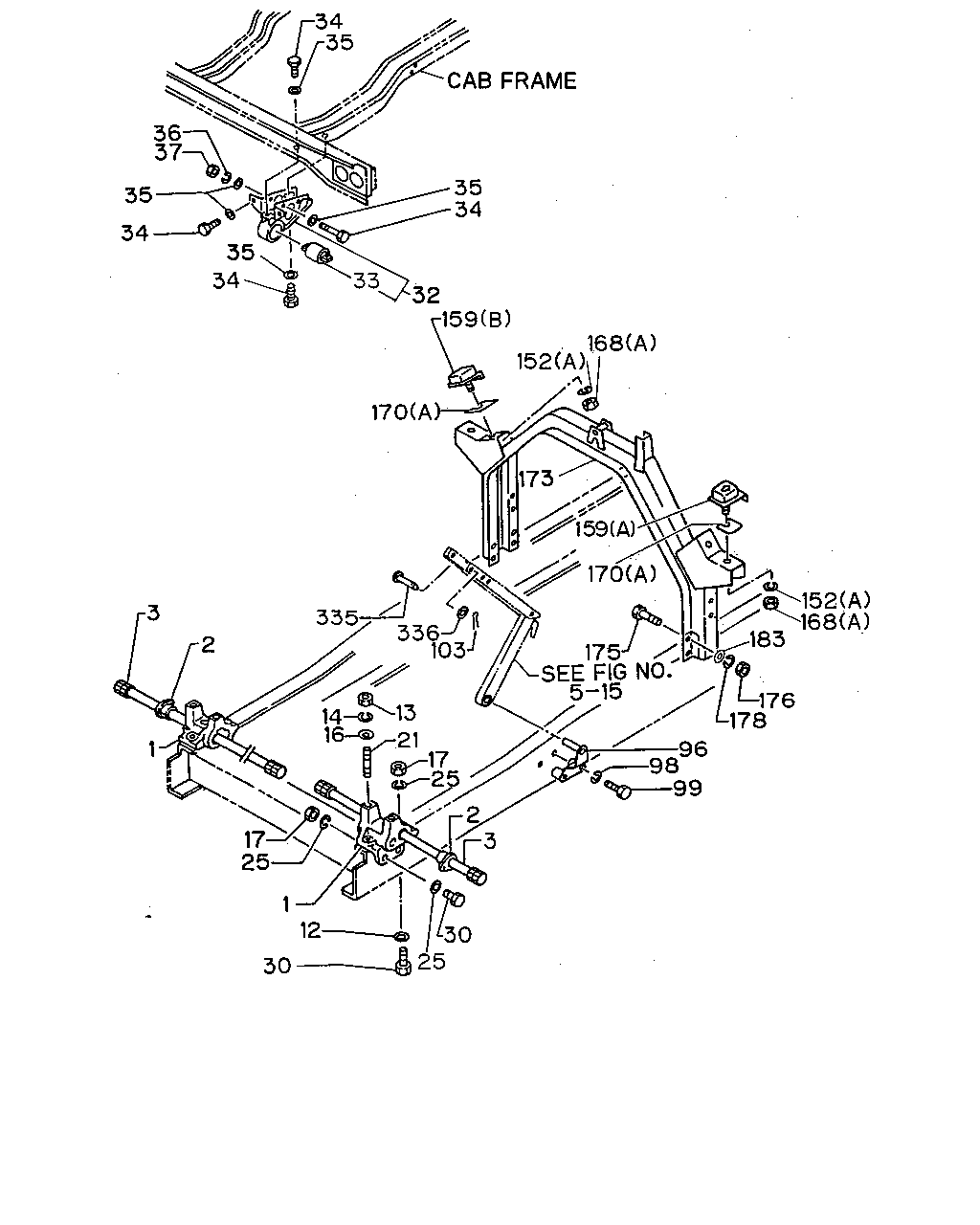

34 35 35 34 36 35 34 37 34 35 32 33 159 170 152 168 173 170 159 152 183 168 175 176 178 96 98 99 103 336 335 3 1 2 17 25 1 12 30 25 30 3 2 25 17 21 16 14 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	BRACKET; CAB MTG	1-53453-115-3	01	1	9207-	●	●
1	BRACKET; CAB MTG	1-53453-114-3	01	1	9207-	●	●
1	BRACKET; CAB MTG	1-53453-119-3	01	1	9207-			●	●
1	BRACKET; CAB MTG	1-53453-118-3	01	1	9207-			●	●
1	BRACKET; CAB MTG	1-53453-086-5	01	1	9207-					●
1	BRACKET; CAB MTG	1-53453-085-5	01	1	9207-					●
2	BUSHING; TORSION BAR	1-53459-783-0	02	1	9207-	●	●	●	●
3	TORSION BAR	1-09585-119-0	01	1	9207-	●	●	●	●
3	TORSION BAR	1-09585-118-0	01	1	9207-	●	●	●	●
12	WASHER; LK,BRKT ID=15	9-09651-069-0	12	1	9207-	●	●	●	●	●
13	NUT; BUSHING TO STUD M12	9-99110-512-0	04	1	9207-	●	●	●	●	●
14	WASHER; LK,STUD ID=12.2	9-09150-612-0	04	1	9207-	●	●	●	●	●
16	WASHER; PL,STUD ID=12.5	1-09503-171-0	04	1	9207-	●	●	●	●	●
17	NUT; BRKT,CAB TILT M14	9-99110-514-0	08	1	9207-	●	●	●	●	●
21	STUD; BRKT,CAB TILT	1-09302-101-0	04	1	9207-	●	●	●	●	●
25	WASHER; LK,BRKT,CAB TILT ID=14.2	9-09150-614-0	08	1	9207-	●	●	●	●	●
30	BOLT; CAB FRT FOOT M14X50	9-91066-450-0	06	1	9207-	●	●
30	BOLT; CAB FRT FOOT M14X65	9-91066-465-0	02	1	9207-	●	●	●	●	●
30	BOLT; CAB FRT FOOT M14X45	9-92061-445-0	06	1	9207-			●	●	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-185-5	01	1	9207-	●	●	●	●	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-184-5	01	1	9207-	●	●	●	●	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT	1-53459-635-3	02	1	9207-	●	●	●	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE M10X30	1-09980-546-0	08	1	9207-	●	●	●	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE M10X100	1-09980-547-0	04	1	9207-	●	●	●	●	●
35	WASHER; PL,CAB MTG BRKT ID=10.5 OD=22.0	1-09985-183-0	02	1	9207-	●	●	●	●	●
35	WASHER; PL,CAB MTG BRKT ID=10.5 OD=26.0	1-09985-184-0	14	1	9207-	●	●	●	●	●
36	WASHER; LK,CAB MTG BRKT ID=10	1-09985-185-0	04	1	9207-	●	●	●	●	●
37	NUT; CAB MTG BRKT,CAB SIDE M10	1-09984-142-0	04	1	9207-	●	●	●	●	●
96	BRACKET; CAB STAY	1-62500-481-2	01	1	9207-	●	●	●	●
98	WASHER; LK,BRKT ID=10.2	9-09150-610-0	02	1	9207-9307	●	●	●	●
99	BOLT; BRKT M10X30	9-02061-030-0	02	1	9207-9307	●	●
99	BOLT; BRKT M10X30 FLANGE	0-28091-030-0	02	1	9308-	●	●	●	●
99	BOLT; BRKT M10X25	9-02061-025-0	02	1	9207-9307			●	●
103	PIN; SPLIT,CAB STAY	1-09746-020-0	01	1	9207-	●	●	●	●
152	WASHER; LK,CUSHION RUBBER (A) ID=12.2	9-09150-512-0	04	1	9207-9503	●	●	●	●	●
152	WASHER; LK,CUSHION RUBBER (B) ID=12.2	9-09150-512-0	02	1	9207-9503					●
159	RUBBER; CUSHION,CAB MTG (B)	1-53459-619-3	02	1	9207-	●	●	●	●	●
159	RUBBER; CUSHION,CAB MTG (A)	1-53459-620-3	02	1	9207-	●	●	●	●	●
159	RUBBER; CUSHION,CAB MTG (C)	9-54347-160-1	02	1	9207-					●
168	NUT; CUSHION RUBBER,BODY MTG (A) M12	9-99110-512-0	04	1	9207-9503	●	●	●	●	●
168	NUT; CUSHION RUBBER,BODY MTG (A) M12 FLANGE	0-91150-112-0	04	1	9504-	●	●	●	●	●
168	NUT; CUSHION RUBBER,BODY MTG (B) M12	9-99110-512-0	02	1	9207-9503					●
168	NUT; CUSHION RUBBER,BODY MTG (B) M12 FLANGE	0-91150-112-0	02	1	9504-					●
170	SHIM; CUSHION RUBBER (A) T=1.6	1-53459-621-0	AR	1	9207-	●	●	●	●	●
170	SHIM; CUSHION RUBBER (B) T=1.6	9-54347-136-1	AR	1	9207-					●
173	MEMBER; CAB MTG RR	1-53454-420-1	01	1	9207-	●	●
173	MEMBER; CAB MTG RR	1-53454-419-1	01	1	9207-			●	●
173	MEMBER; CAB MTG RR (B)	1-53454-367-1	01	1	9207-					●
173	MEMBER; CAB MTG RR (A)	1-53454-421-1	01	1	9207-					●
175	BOLT; MEMBER TO FRAME M10X40	9-01066-040-0	08	1	9207-	●	●	●	●	●
175	BOLT; MEMBER TO FRAME M10X35	9-02061-035-0	08	1	9207-					●
176	NUT; MEMBER M10	9-09110-510-0	06	1	9207-9307	●	●
176	NUT; MEMBER M10	9-09110-510-0	06	1	9308-	●	●	●	●	●
176	NUT; MEMBER M10	9-09110-510-0	04	1	9207-9307			●	●	●
176	NUT; MEMBER M10	9-09110-510-0	04	1	9207-9307					●
176	NUT; MEMBER M10	9-09110-510-0	08	1	9308-					●
178	WASHER; LK,MEMBER ID=10.2	9-09150-610-0	08	1	9207-	●	●	●	●	●
178	WASHER; LK,MEMBER ID=10.2	9-09150-610-0	08	1	9207-					●
183	WASHER; PL,MEMBER	1-09503-222-0	12	1	9207-			●	●
183	WASHER; PL,MEMBER	1-09503-222-0	14	1	9207-					●
335	PIN; ADJ,STAY LOCK OD=12 L=45	1-09744-084-1	01	1	9207-	●	●	●	●
336	WASHER; PL,STAY LOCK ID=12.5 OD=22	8-94279-627-0	01	1	9207-	●	●	●	●

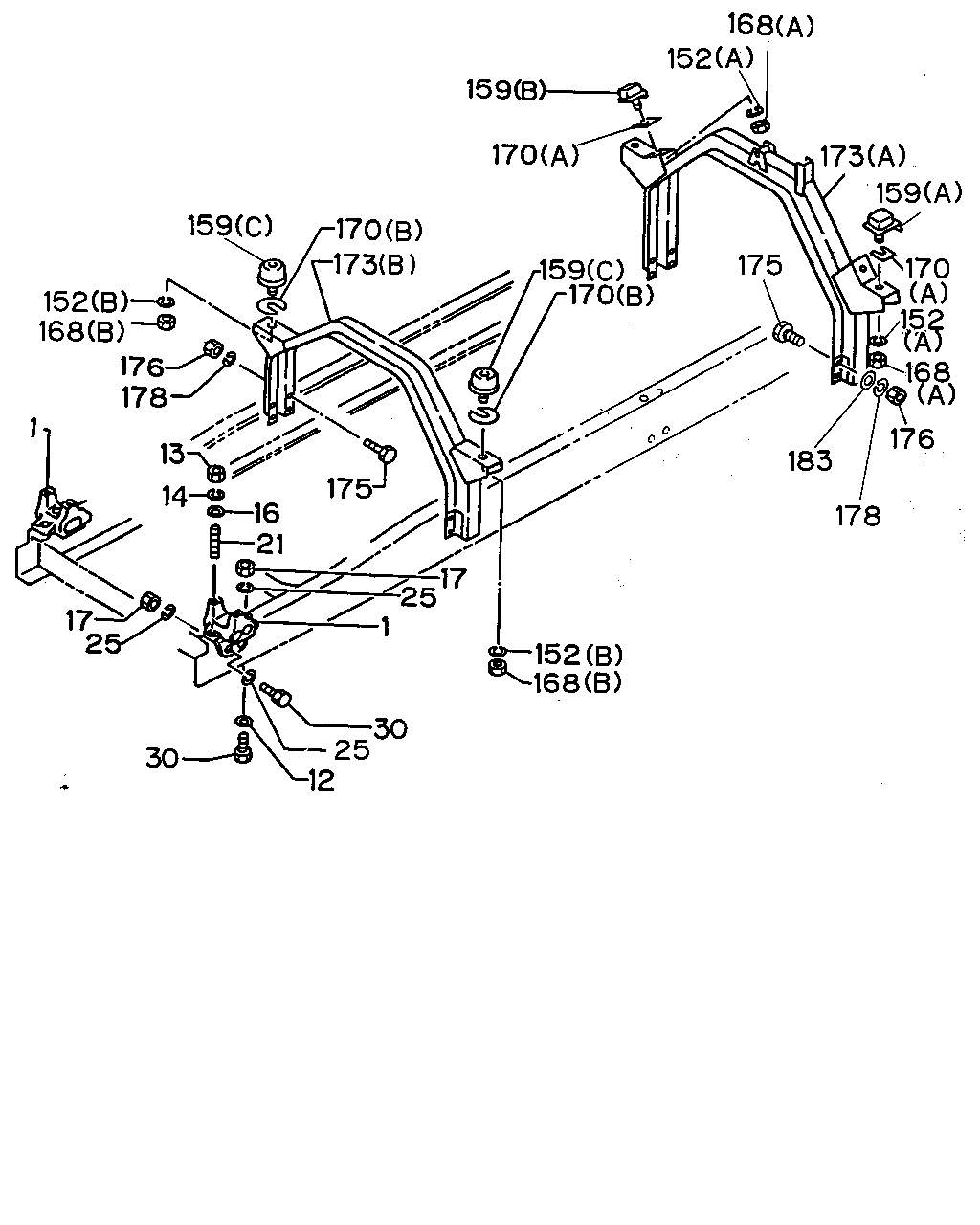

30 12 25 30 25 17 1 176 168 152 178 14 13 21 16 175 1 25 17 168 152 178 183 176 168 152 170 159 173 175 168 152 159 170 159 170 173 170 159

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	BRACKET; CAB MTG	1-53453-115-3	01	1	9207-	●	●
1	BRACKET; CAB MTG	1-53453-114-3	01	1	9207-	●	●
1	BRACKET; CAB MTG	1-53453-119-3	01	1	9207-			●	●
1	BRACKET; CAB MTG	1-53453-118-3	01	1	9207-			●	●
1	BRACKET; CAB MTG	1-53453-086-5	01	1	9207-					●
1	BRACKET; CAB MTG	1-53453-085-5	01	1	9207-					●
12	WASHER; LK,BRKT ID=15	9-09651-069-0	12	1	9207-	●	●	●	●	●
13	NUT; BUSHING TO STUD M12	9-99110-512-0	04	1	9207-	●	●	●	●	●
14	WASHER; LK,STUD ID=12.2	9-09150-612-0	04	1	9207-	●	●	●	●	●
16	WASHER; PL,STUD ID=12.5	1-09503-171-0	04	1	9207-	●	●	●	●	●
17	NUT; BRKT,CAB TILT M14	9-99110-514-0	08	1	9207-	●	●	●	●	●
21	STUD; BRKT,CAB TILT	1-09302-101-0	04	1	9207-	●	●	●	●	●
25	WASHER; LK,BRKT,CAB TILT ID=14.2	9-09150-614-0	08	1	9207-	●	●	●	●	●
30	BOLT; CAB FRT FOOT M14X50	9-91066-450-0	06	1	9207-	●	●
30	BOLT; CAB FRT FOOT M14X65	9-91066-465-0	02	1	9207-	●	●	●	●	●
30	BOLT; CAB FRT FOOT M14X45	9-92061-445-0	06	1	9207-			●	●	●
152	WASHER; LK,CUSHION RUBBER (A) ID=12.2	9-09150-512-0	04	1	9207-9503	●	●	●	●	●
152	WASHER; LK,CUSHION RUBBER (B) ID=12.2	9-09150-512-0	02	1	9207-9503					●
159	RUBBER; CUSHION,CAB MTG (B)	1-53459-619-3	02	1	9207-	●	●	●	●	●
159	RUBBER; CUSHION,CAB MTG (A)	1-53459-620-3	02	1	9207-	●	●	●	●	●
159	RUBBER; CUSHION,CAB MTG (C)	9-54347-160-1	02	1	9207-					●
168	NUT; CUSHION RUBBER,BODY MTG (A) M12	9-99110-512-0	04	1	9207-9503	●	●	●	●	●
168	NUT; CUSHION RUBBER,BODY MTG (A) M12 FLANGE	0-91150-112-0	04	1	9504-	●	●	●	●	●
168	NUT; CUSHION RUBBER,BODY MTG (B) M12	9-99110-512-0	02	1	9207-9503					●
168	NUT; CUSHION RUBBER,BODY MTG (B) M12 FLANGE	0-91150-112-0	02	1	9504-					●
170	SHIM; CUSHION RUBBER (A) T=1.6	1-53459-621-0	AR	1	9207-	●	●	●	●	●
170	SHIM; CUSHION RUBBER (B) T=1.6	9-54347-136-1	AR	1	9207-					●
173	MEMBER; CAB MTG RR	1-53454-420-1	01	1	9207-	●	●
173	MEMBER; CAB MTG RR	1-53454-419-1	01	1	9207-			●	●
173	MEMBER; CAB MTG RR (B)	1-53454-367-1	01	1	9207-					●
173	MEMBER; CAB MTG RR (A)	1-53454-421-1	01	1	9207-					●
175	BOLT; MEMBER TO FRAME M10X40	9-01066-040-0	08	1	9207-	●	●	●	●	●
175	BOLT; MEMBER TO FRAME M10X35	9-02061-035-0	08	1	9207-					●
176	NUT; MEMBER M10	9-09110-510-0	06	1	9207-9307	●	●
176	NUT; MEMBER M10	9-09110-510-0	06	1	9308-	●	●	●	●	●
176	NUT; MEMBER M10	9-09110-510-0	04	1	9207-9307			●	●	●
176	NUT; MEMBER M10	9-09110-510-0	04	1	9207-9307					●
176	NUT; MEMBER M10	9-09110-510-0	08	1	9308-					●
178	WASHER; LK,MEMBER ID=10.2	9-09150-610-0	08	1	9207-	●	●	●	●	●
178	WASHER; LK,MEMBER ID=10.2	9-09150-610-0	08	1	9207-					●
183	WASHER; PL,MEMBER	1-09503-222-0	12	1	9207-			●	●
183	WASHER; PL,MEMBER	1-09503-222-0	14	1	9207-					●

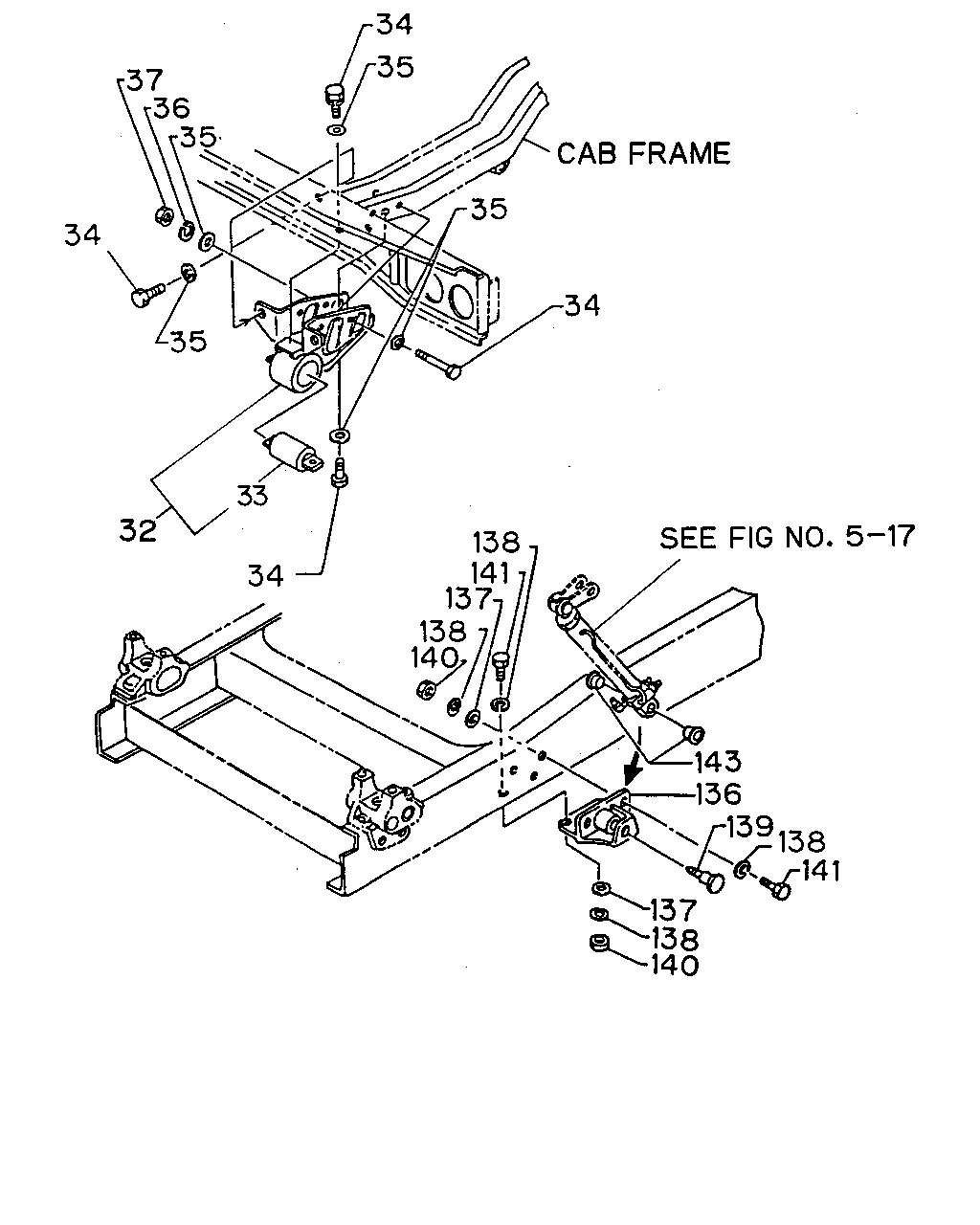

34 35 37 35 36 34 35 35 34 33 32 34 138 137 141 138 140 143 136 139 138 141 137 138 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-185-5	01	1	9207-	●	●	●	●	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-184-5	01	1	9207-	●	●	●	●	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT	1-53459-635-3	02	1	9207-	●	●	●	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE M10X30	1-09980-546-0	08	1	9207-	●	●	●	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE M10X100	1-09980-547-0	04	1	9207-	●	●	●	●	●
35	WASHER; PL,CAB MTG BRKT ID=10.5 OD=22.0	1-09985-183-0	02	1	9207-	●	●	●	●	●
35	WASHER; PL,CAB MTG BRKT ID=10.5 OD=26.0	1-09985-184-0	14	1	9207-	●	●	●	●	●
36	WASHER; LK,CAB MTG BRKT ID=10	1-09985-185-0	04	1	9207-	●	●	●	●	●
37	NUT; CAB MTG BRKT,CAB SIDE M10	1-09984-142-0	04	1	9207-	●	●	●	●	●
136	BRACKET; OIL CYL	1-53459-757-1	01	1	9207-					●
136	BRACKET; OIL CYL	1-53459-758-1	01	1	9207-					●
137	WASHER; PL,BRKT ID=15	9-09651-069-0	16	1	9207-					●
138	WASHER; LK,BRKT ID=14.2	9-09150-514-0	08	1	9207-					●
139	PIN; OIL CYL,LWR	1-53459-490-3	02	1	9207-					●
140	NUT; BRKT M14	9-99110-514-0	08	1	9207-					●
141	BOLT; BRKT M14X40	9-92061-440-0	05	1	9207-					●
141	BOLT; BRKT M14X45	9-92061-445-0	03	1	9207-					●
143	SPACER; OIL CYL,LWR	1-53459-491-2	04	1	9207-					●
