8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#16379) — 52 parça

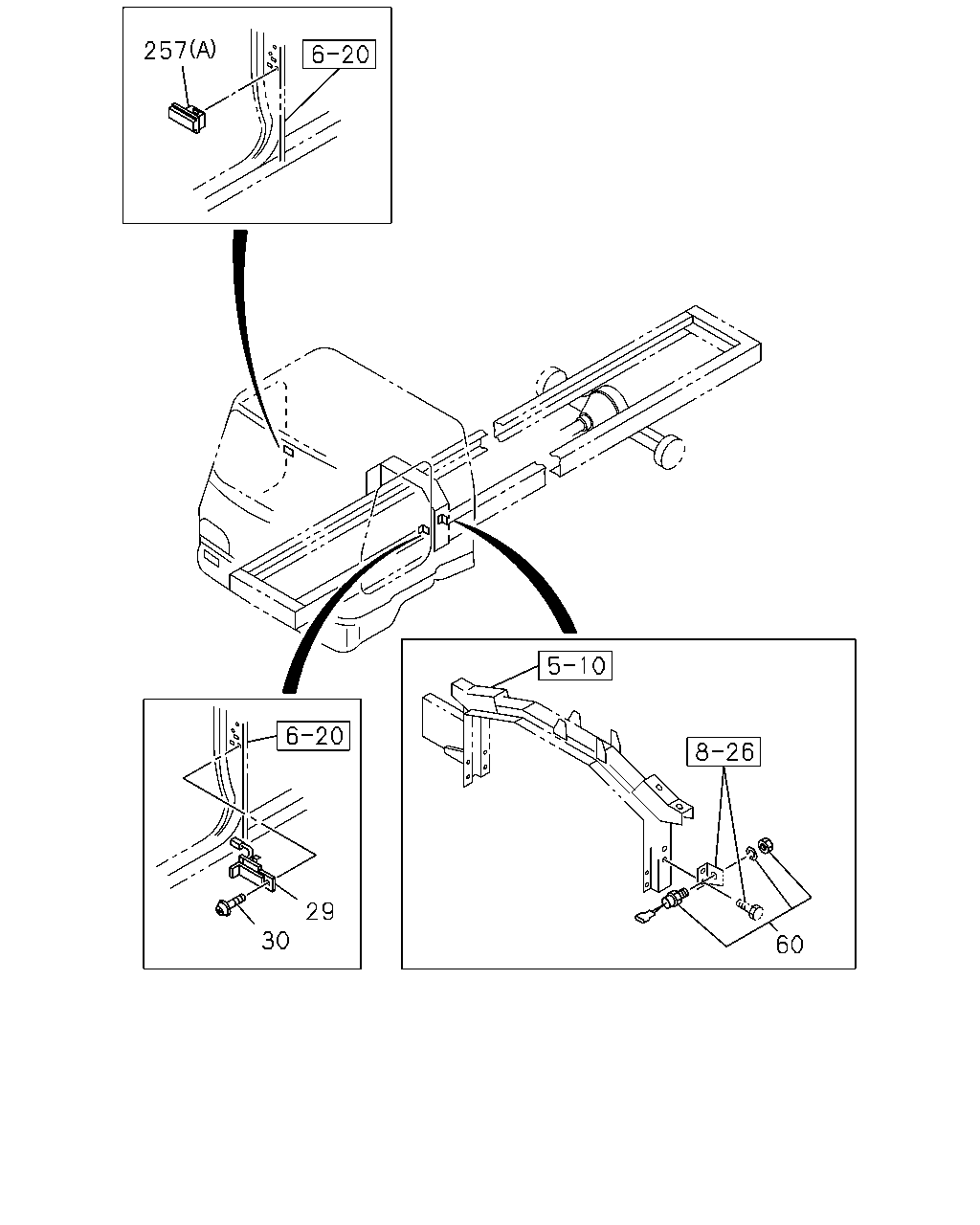

257 29 30 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	SWITCH; DOOR	8-97855-032-3	01	1	9601-0308	●	●
29	SWITCH; DOOR	8-97855-032-3	01	1	0309-		●
30	SCREW; DOOR SW M5X16	8-94279-341-0	01	1	9601-9906	●	●
30	SCREW; DOOR SW M5X11	1-09981-536-1	01	1	9907-0308	●	●
30	SCREW; DOOR SW M5X11	1-09981-536-1	01	1	0309-		●
60	SWITCH; STARTER SUB	1-82380-107-1	01	1	9601-0211	●	●
60	SWITCH; STARTER SUB EXC. STARTER SWITCH DELETION<E5D>	1-82380-107-1	01	1	0212-0308	●	●
60	SWITCH; STARTER SUB EXC. STARTER SWITCH DELETION<E5D>	1-82380-107-1	01	1	0309-		●
257	COVER; HOLE,SW (A)	8-94229-914-1	01	1	9601-0308	●	●
257	COVER; HOLE,SW (A)	8-94229-914-1	01	1	0309-		●
257	COVER; HOLE,SW EXC. POWER WINDOW<A30> (B)	1-82389-011-2	01	1	9601-9803	●	●
257	COVER; HOLE,SW (B)	1-82389-011-2	01	1	9804-0308	●	●
257	COVER; HOLE,SW (B)	1-82389-011-2	01	1	0309-		●
257	COVER; HOLE,SW EXC. POWER WINDOW<A30> (B)	1-82389-012-2	01	1	9601-9803	●	●
257	COVER; HOLE,SW (B)	1-82389-012-2	01	1	9804-0308	●	●
257	COVER; HOLE,SW (B)	1-82389-012-2	01	1	0309-		●

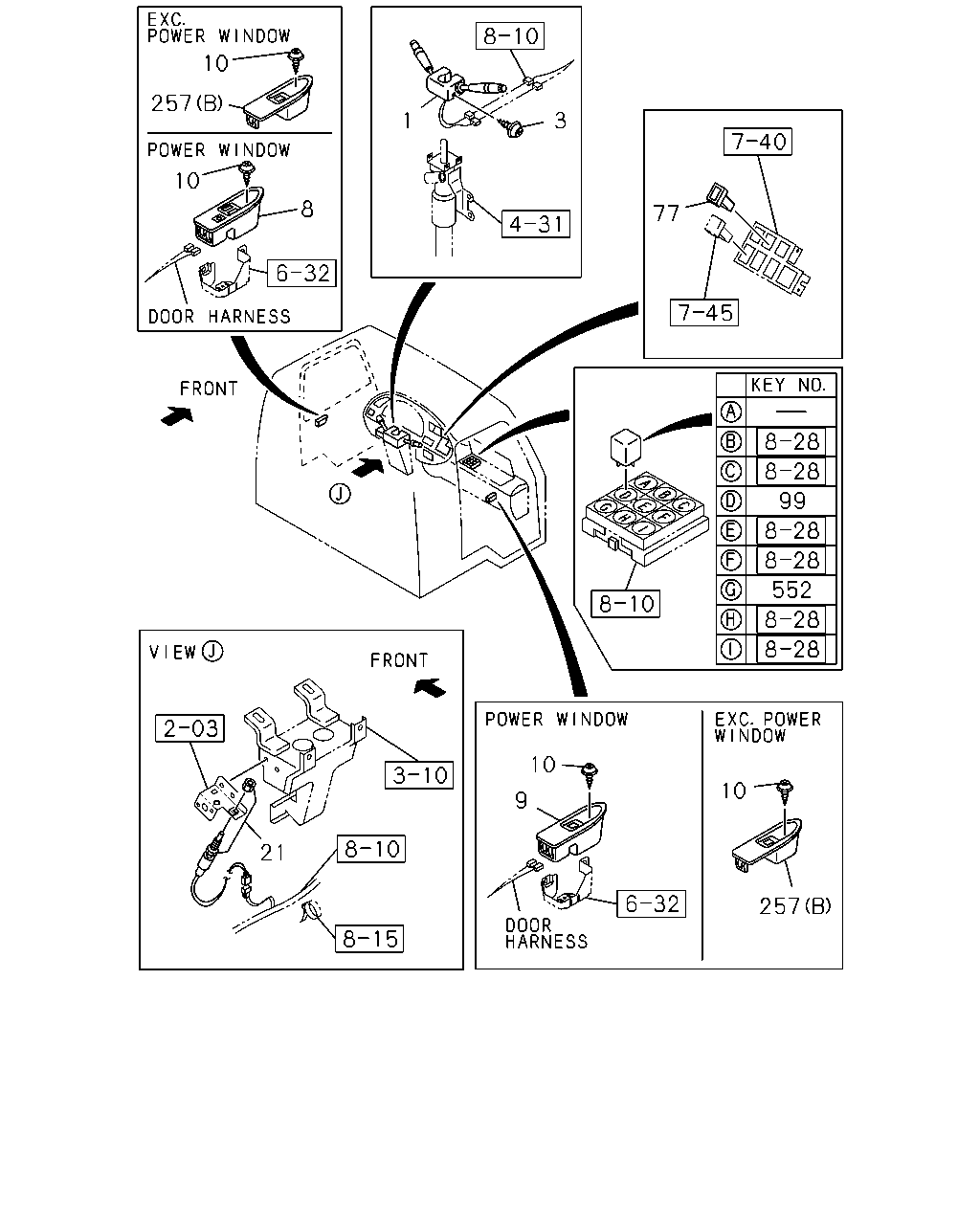

10 257 3 1 10 8 77 99 552 10 10 9 21 257

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SWITCH; COMB HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82360-405-3	01	1	9601-9803	●	●
1	SWITCH; COMB EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82360-371-3	01	1	9601-9803	●	●
1	SWITCH; COMB	1-82360-371-4	01	1	9804-0004	●	●
1	SWITCH; COMB	1-82360-405-4	01	1	0005-0103	●	●
1	SWITCH; COMB	1-82360-647-0	01	1	0104-0308	●	●
1	SWITCH; COMB	1-82360-642-0	01	1	0309-0312		●
1	SWITCH; COMB	1-82360-731-0	01	1	0401-		●
3	SCREW; COMB SW M5X12 TAPPING W/PL WASHER	0-74105-512-0	04	1	9601-0308	●	●
3	SCREW; COMB SW M5X12 TAPPING W/PL WASHER	0-74105-512-0	04	1	0309-0604		●
3	SCREW; COMB SW M5X12 TAPPING W/PL WASHER	0-74165-512-0	04	1	0605-		●
8	SWITCH; POWER WINDOW POWER WINDOW<A30> DRIVER	1-82380-142-1	01	1	9601-9709	●	●
8	SWITCH; POWER WINDOW POWER WINDOW<A30> DRIVER	1-82380-157-1	01	1	9710-9803	●	●
9	SWITCH; POWER WINDOW POWER WINDOW<A30> PASSENGER	1-82380-143-0	01	1	9601-9709	●	●
9	SWITCH; POWER WINDOW POWER WINDOW<A30> PASSENGER	1-82380-158-1	01	1	9710-9803	●	●
10	SCREW; POWER WINDOW SW M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	9601-0308	●	●
10	SCREW; POWER WINDOW SW M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0309-0604		●
10	SCREW; POWER WINDOW SW M5X16 TAPPING W/PL WASHER	0-74360-516-0	02	1	0605-		●
21	SWITCH; CLU	1-82380-114-2	01	1	9601-0308	●	●
21	SWITCH; CLU	1-82380-114-2	01	1	0309-0403		●
21	SWITCH; CLU 6HH1 STD ENG(65L)	1-82380-114-3	01	1	0404-		●
77	SWITCH; PTO PTO CONTROL<SV6>	1-82340-403-0	01	1	9601-0308	●	●
77	SWITCH; PTO PTO CONTROL<SV6>	1-82340-403-0	01	1	0309-		●
99	RELAY; FOG LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	0005-0111	●	●
99	RELAY; FOG LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-0308	●	●
99	RELAY; FOG LAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 12.5A MITUBA	8-97062-815-1	01	1	9601-9803	●	●
257	COVER; HOLE,SW (A)	8-94229-914-1	01	1	9601-0308	●	●
257	COVER; HOLE,SW (A)	8-94229-914-1	01	1	0309-		●
257	COVER; HOLE,SW EXC. POWER WINDOW<A30> (B)	1-82389-011-2	01	1	9601-9803	●	●
257	COVER; HOLE,SW (B)	1-82389-011-2	01	1	9804-0308	●	●
257	COVER; HOLE,SW (B)	1-82389-011-2	01	1	0309-		●
257	COVER; HOLE,SW EXC. POWER WINDOW<A30> (B)	1-82389-012-2	01	1	9601-9803	●	●
257	COVER; HOLE,SW (B)	1-82389-012-2	01	1	9804-0308	●	●
257	COVER; HOLE,SW (B)	1-82389-012-2	01	1	0309-		●
552	RELAY; CIGAR LIGHTER 24V 12.5A MITUBA	8-97062-815-1	01	1	9601-0111	●	●
552	RELAY; CIGAR LIGHTER 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-0308	●	●
552	RELAY; CIGAR LIGHTER 24V 12.5A PANASONIC	8-97262-933-0	01	1	0309-		●
