8-21 — METER ASM (#16378) — 86 parça

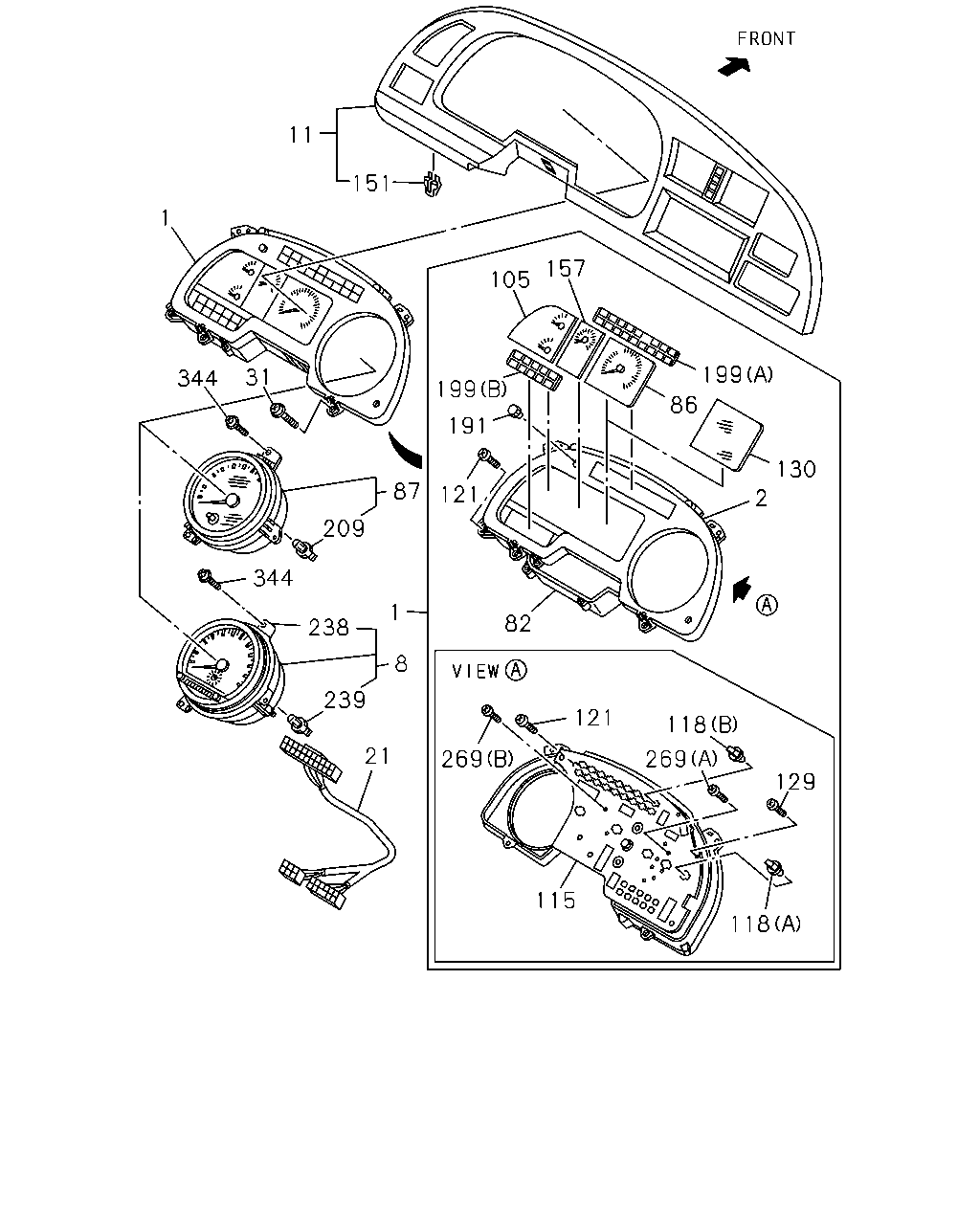

çizim 64087
11 151 1 157 105 31 199 344 199 86 191 130 87 121 2 209 344 1 82 238 8 239 121 118 21 269 269 129 115 118
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER
EXC. TACHOMETER<UD7> 		1-83114-748-1 01 1 9601-9704 ● ●
1 METER COMPL; CLUSTER
EXC. TACHOMETER<UD7> 		1-83114-973-0 01 1 9705-0308 ● ●
1 METER COMPL; CLUSTER
EXC. TACHOMETER<UD7> 		1-83114-973-0 01 1 0309- ●
1 METER COMPL; CLUSTER
6HH1 STD ENG(65L) TACHOMETER<UD7> INDICATOR TAIL & STOP LAMP<YD6> 		1-83114-751-1 01 1 9601-9704 ● ●
1 METER COMPL; CLUSTER
6HH1 STD ENG(65L) TACHOMETER<UD7> INDICATOR TAIL & STOP LAMP<YD6> 		1-83114-976-0 01 1 9705-9803 ● ●
1 METER COMPL; CLUSTER
6HH1 STD ENG(65L) TACHOMETER<UD7> EXC. INDICATOR TAIL & STOP LAMP<YD6> 		1-83114-750-1 01 1 9601-9704 ● ●
1 METER COMPL; CLUSTER
6HH1 STD ENG(65L) TACHOMETER<UD7> EXC. INDICATOR TAIL & STOP LAMP<YD6> 		1-83114-975-0 01 1 9705-9803 ● ●
1 METER COMPL; CLUSTER
6HH1 STD ENG(65L) TACHOMETER<UD7> 		1-83114-975-0 01 1 9804-0308 ● ●
1 METER COMPL; CLUSTER
TACHOMETER<UD7> 		1-83114-975-0 01 1 0309- ●
1 METER COMPL; CLUSTER
6SD1 STD ENG(37L) TACHOMETER<UD7> INDICATOR TAIL & STOP LAMP<YD6> 		1-83114-754-1 01 1 9601-9704 ● ●
1 METER COMPL; CLUSTER
6SD1 STD ENG(37L) TACHOMETER<UD7> INDICATOR TAIL & STOP LAMP<YD6> 		1-83114-979-0 01 1 9705-9803 ● ●
1 METER COMPL; CLUSTER
6SD1 STD ENG(37L) TACHOMETER<UD7> EXC. INDICATOR TAIL & STOP LAMP<YD6> 		1-83114-753-1 01 1 9601-9704 ● ●
1 METER COMPL; CLUSTER
6SD1 STD ENG(37L) TACHOMETER<UD7> EXC. INDICATOR TAIL & STOP LAMP<YD6> 		1-83114-978-0 01 1 9705-9803 ● ●
1 METER COMPL; CLUSTER
6SD1 STD ENG(37L) TACHOMETER<UD7> 		1-83114-978-0 01 1 9804-0004 ● ●
1 METER COMPL; CLUSTER
6SD1 STD ENG(37L) TACHOMETER<UD7> 		1-83114-978-0 01 1 0005-0308 ● ●
2 PANEL; CLUSTER 1-83119-499-0 01 1 9601-0308 ● ●
2 PANEL; CLUSTER 1-83119-499-0 01 1 0309- ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H 7DAYS<WC7> 		1-83120-663-1 01 1 9601-9706 ● ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H 7DAYS<WC7> 		1-83120-807-0 01 1 9707-0301 ● ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H 7DAYS<WC7> 		1-83120-857-0 01 1 0302-0308 ● ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H 7DAYS<WC7> 		1-83120-857-0 01 1 0309- ●
11 CLUSTER ASM; METER 1-72418-022-7 01 1 9601-0308 ● ●
11 CLUSTER ASM; METER 1-72418-022-7 01 1 0309- ●
21 HARNESS; TACHOGRAPH
TACHOGRAPH 140KM/H 7DAYS<WC7> 		1-82624-665-1 01 1 9601-0308 ● ●
21 HARNESS; TACHOGRAPH
TACHOGRAPH 140KM/H 7DAYS<WC7> 		1-82624-665-1 01 1 0309- ●
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 9601-0308 ● ●
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 0309-0604 ●
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 03 1 0605- ●
82 CASE ASM; CLUSTER METER 1-83119-432-0 01 1 9601-0308 ● ●
82 CASE ASM; CLUSTER METER 1-83119-432-0 01 1 0309- ●
86 TACHOMETER; CLUSTER METER
6HH1 STD ENG(65L) TACHOMETER<UD7> 		1-83120-667-0 01 1 9601-9704 ● ●
86 TACHOMETER; CLUSTER METER
6HH1 STD ENG(65L) TACHOMETER<UD7> 		1-83120-566-0 01 1 9705-0308 ● ●
86 TACHOMETER; CLUSTER METER
TACHOMETER<UD7> 		1-83120-566-0 01 1 0309- ●
86 TACHOMETER; CLUSTER METER
6SD1 STD ENG(37L) TACHOMETER<UD7> 		1-83120-673-0 01 1 9601-9704 ● ●
86 TACHOMETER; CLUSTER METER
6SD1 STD ENG(37L) TACHOMETER<UD7> 		1-83120-835-0 01 1 9705-0308 ● ●
87 SPEEDOMETER
EXC. TACHOGRAPH 140KM/H 7DAYS<WC7> 		1-83120-490-1 01 1 9601-0308 ● ●
87 SPEEDOMETER
EXC. TACHOGRAPH 140KM/H 7DAYS<WC7> 		1-83120-490-1 01 1 0309- ●
105 GAUGE; THERMO & FUEL,CLUSTER METER 1-83180-209-0 01 1 9601-9704 ● ●
105 GAUGE; THERMO & FUEL,CLUSTER METER 1-83180-274-0 01 1 9705-0308 ● ●
105 GAUGE; THERMO & FUEL,CLUSTER METER 1-83180-274-0 01 1 0309- ●
115 CIRCUIT; PRINTED,CLUSTER METER
TACHOMETER<UD7> INDICATOR TAIL & STOP LAMP<YD6> 		1-83189-308-0 01 1 9601-9803 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
TACHOMETER<UD7> EXC. INDICATOR TAIL & STOP LAMP<YD6> 		1-83189-320-0 01 1 9601-9803 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
TACHOMETER<UD7> 		1-83189-320-0 01 1 9804-0308 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
TACHOMETER<UD7> 		1-83189-320-0 01 1 0309- ●
115 CIRCUIT; PRINTED,CLUSTER METER
EXC. TACHOMETER<UD7> 		1-83189-307-0 01 1 9601-0308 ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
EXC. TACHOMETER<UD7> 		1-83189-307-0 01 1 0309- ●
118 BULB; CLUSTER METER
TACHOMETER<UD7> (A) 24V 3W GREEN SOCKET 		1-82194-061-0 04 1 9601-0308 ● ●
118 BULB; CLUSTER METER
TACHOMETER<UD7> (A) 24V 3W GREEN SOCKET 		1-82194-061-0 04 1 0309- ●
118 BULB; CLUSTER METER
TACHOMETER<UD7> INDICATOR TAIL & STOP LAMP<YD6> (B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 14 1 9601-9803 ● ●
118 BULB; CLUSTER METER
(B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 13 1 9804-0308 ● ●
118 BULB; CLUSTER METER
(B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 13 1 0309- ●
118 BULB; CLUSTER METER
EXC. TACHOMETER<UD7> (A) 24V 3W GREEN SOCKET 		1-82194-061-0 03 1 9601-0308 ● ●
118 BULB; CLUSTER METER
EXC. TACHOMETER<UD7> (A) 24V 3W GREEN SOCKET 		1-82194-061-0 03 1 0309- ●
118 BULB; CLUSTER METER
EXC. TACHOMETER<UD7> (B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 13 1 9601-9803 ● ●
118 BULB; CLUSTER METER
TACHOMETER<UD7> EXC. INDICATOR TAIL & STOP LAMP<YD6> (B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 13 1 9601-9803 ● ●
121 SCREW; PANEL FIX,CLUSTER METER
M4 TAPPING 		1-83119-442-0 08 1 9601-0308 ● ●
121 SCREW; PANEL FIX,CLUSTER METER
M4 TAPPING 		1-83119-442-0 08 1 0309- ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
M3 TAPPING 		1-83119-052-0 10 1 9601-0308 ● ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
M3 TAPPING 		1-83119-052-0 10 1 0309- ●
130 COVER; METER HOLE,CLUSTER METER
EXC. TACHOMETER<UD7> 		1-83119-523-0 01 1 9601-0308 ● ●
130 COVER; METER HOLE,CLUSTER METER
EXC. TACHOMETER<UD7> 		1-83119-523-0 01 1 0309- ●
151 CLIP; METER CLUSTER 8-97853-939-4 10 1 9601-9812 ● ●
151 CLIP; METER CLUSTER 8-97217-066-0 10 1 9901-0308 ● ●
151 CLIP; METER CLUSTER 8-97217-066-0 10 1 0309- ●
157 METER; AIR PRESSURE,CLUSTER METER 1-83150-187-0 01 1 9601-0308 ● ●
157 METER; AIR PRESSURE,CLUSTER METER 1-83150-187-0 01 1 0309- ●
191 KNOB; BULB CHECK 1-83119-500-0 01 1 9601-0308 ● ●
191 KNOB; BULB CHECK 1-83119-500-0 01 1 0309- ●
199 LENS; WARNING LAMP
(B) 		1-83119-435-0 01 1 9601-0308 ● ●
199 LENS; WARNING LAMP
(B) 		1-83119-435-0 01 1 0309- ●
199 LENS; WARNING LAMP
(A) 		1-83119-526-0 01 1 9601-0308 ● ●
199 LENS; WARNING LAMP
(A) 		1-83119-526-0 01 1 0309- ●
209 BULB; SPEEDOMETER
EXC. TACHOGRAPH 140KM/H 7DAYS<WC7> 24V 3W GREEN SOCKET 		1-82194-061-0 02 1 9601-0308 ● ●
209 BULB; SPEEDOMETER
EXC. TACHOGRAPH 140KM/H 7DAYS<WC7> 24V 3W GREEN SOCKET 		1-82194-061-0 02 1 0309- ●
238 PANEL; TACHOGRAPH
TACHOGRAPH 140KM/H 7DAYS<WC7> 		1-83129-311-0 01 1 9601-0308 ● ●
238 PANEL; TACHOGRAPH
TACHOGRAPH 140KM/H 7DAYS<WC7> 		1-83129-311-0 01 1 0309- ●
239 BULB; TACHOGRAPH
TACHOGRAPH 140KM/H 7DAYS<WC7> 24V 1.8W 		1-82194-076-0 03 1 9601-0301 ● ●
239 BULB; TACHOGRAPH
TACHOGRAPH 140KM/H 7DAYS<WC7> 24V 1.4W 		5-82194-034-0 03 1 0302-0308 ● ●
239 BULB; TACHOGRAPH
TACHOGRAPH 140KM/H 7DAYS<WC7> 24V 1.4W 		5-82194-034-0 03 1 0309- ●
269 SCREW; METER CLUSTER
(A) M3 TAPPING 		1-83119-441-0 06 1 9601-0308 ● ●
269 SCREW; METER CLUSTER
(A) M3 TAPPING 		1-83119-441-0 06 1 0309- ●
269 SCREW; METER CLUSTER
TACHOMETER<UD7> (B) M3 TAPPING 		1-83119-439-0 03 1 9601-0308 ● ●
269 SCREW; METER CLUSTER
TACHOMETER<UD7> (B) M3 TAPPING 		1-83119-439-0 03 1 0309- ●
344 SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 9601-0308 ● ●
344 SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 0309-0604 ●
344 SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 03 1 0605- ●
