◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11352 - FVR(MIDDLE EAST) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#16376) — 562 parça

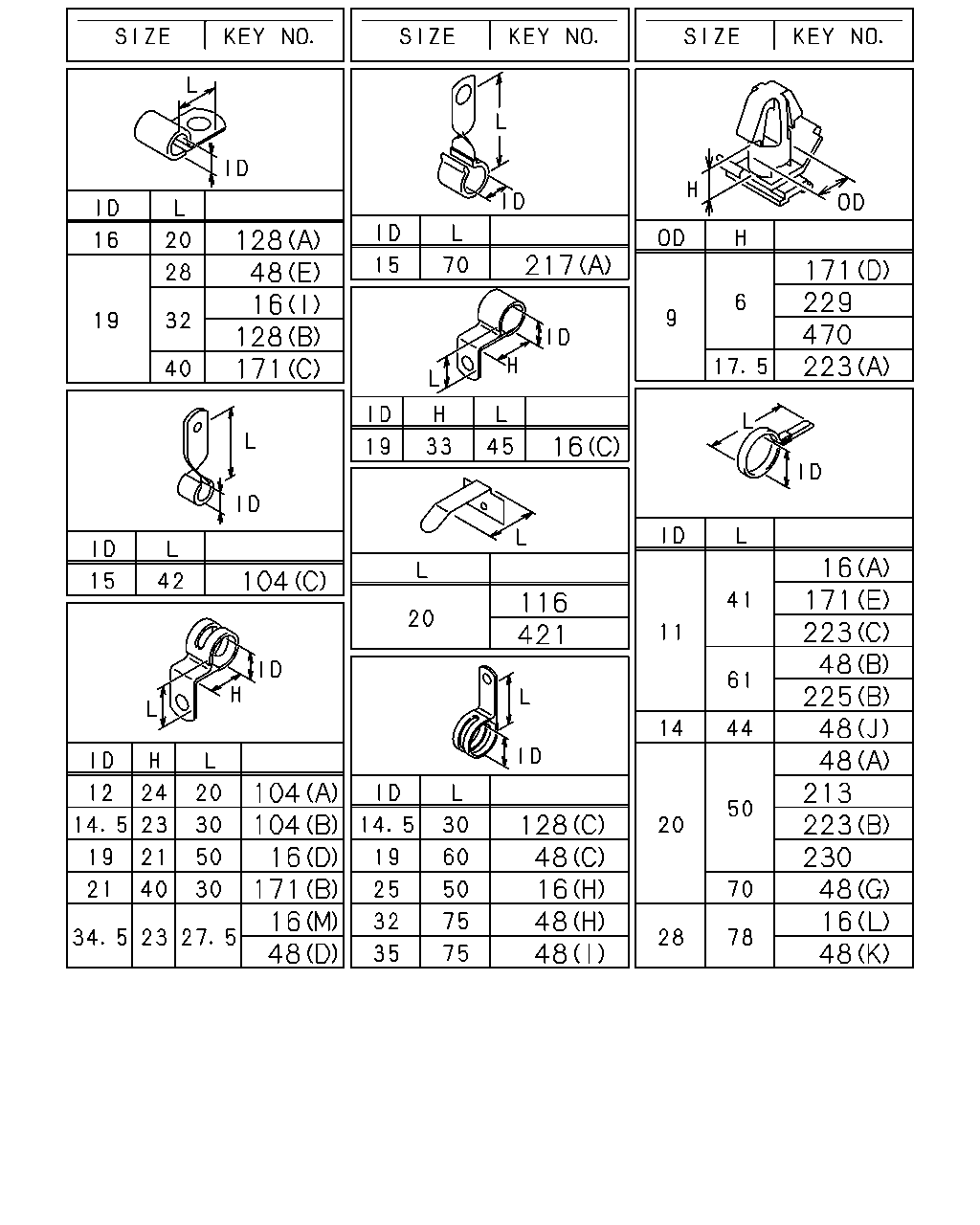

çizim 15852
128 48 16 128 171 217 171 229 470 223 16 16 171 223 48 225 48 48 213 223 230 48 16 48 104 116 421 104 104 16 171 16 48 128 48 16 48 48
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 9601-0308 ● ●
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0309- ●
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 03 1 9601-0308 ● ●
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 03 1 0309- ●
16 CLIP; HARNESS
(L) ID=28 L=78 		1-09700-858-0 01 1 9601-0308 ● ●
16 CLIP; HARNESS
(L) ID=28 L=78 		1-09700-858-0 01 1 9601-0308 ● ●
16 CLIP; HARNESS
(L) ID=28 L=78 		1-09700-858-0 01 1 0309-0702 ●
16 CLIP; HARNESS
(L) ID=28 L=78 		1-09700-858-0 01 1 0309-0702 ●
16 CLIP; HARNESS
(L) ID=28 L=78 		1-09700-858-0 01 1 0703- ●
16 CLIP; HARNESS
(L) ID=28 L=78 		1-09700-858-0 01 1 0703- ●
16 CLIP; HARNESS
(L) ID=28 L=78 		1-09700-858-0 01 1 0703- ●
16 CLIP; HARNESS
(M) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9601-0308 ● ●
16 CLIP; HARNESS
(M) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0309- ●
16 CLIP; HARNESS
(H) ID=25 L=50 		1-09701-019-0 01 1 9601-0308 ● ●
16 CLIP; HARNESS
(H) ID=25 L=50 		1-09701-019-0 01 1 0309- ●
16 CLIP; HARNESS
(B) L=300 		1-09707-001-1 01 1 9601-0308 ● ●
16 CLIP; HARNESS
(B) L=300 		1-09707-001-1 01 1 0309- ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 01 1 9601-0308 ● ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 01 1 0309- ●
16 CLIP; HARNESS
POWER WINDOW<A30> (F) L=55 		8-94432-655-0 06 1 9601-9803 ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (G) L=175 		8-97110-167-0 04 1 9601-9803 ● ●
16 CLIP; HARNESS
6HH1 STD ENG(65L) (C) ID=19 H=33 L=45 		1-09701-045-0 01 1 9601-9801 ● ●
16 CLIP; HARNESS
6HH1 STD ENG(65L) (D) ID=19 H=21 L=50 		1-09700-910-1 01 1 9802-0308 ● ●
16 CLIP; HARNESS
(D) ID=19 H=21 L=50 		1-09700-910-1 01 1 0309- ●
16 CLIP; HARNESS
6HH1 STD ENG(65L) (J) L=180 		1-09707-162-1 01 1 9601-0209 ● ●
16 CLIP; HARNESS
6HH1 STD ENG(65L) (I) ID=19 L=32 		9-09525-866-0 01 1 9601-0308 ● ●
16 CLIP; HARNESS
(I) ID=19 L=32 		9-09525-866-0 01 1 0309-0606 ●
16 CLIP; HARNESS
(I) ID=19 L=32 		0-95235-866-0 01 1 0607- ●
16 CLIP; HARNESS
6SD1 STD ENG(37L) (K) L=140 		5-09707-031-1 01 1 9601-0308 ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 12 1 9601-0308 ●
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) (B) ID=11 L=61 		1-09700-484-0 07 1 9601-0301 ●
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) (B) ID=11 L=61 		1-09700-484-0 07 1 9601-0301 ●
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) (B) ID=11 L=61 		1-09700-484-0 05 1 0302-0308 ●
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) (B) ID=11 L=61 		1-09700-484-0 05 1 0302-0308 ●
48 CLIP; FRAME HARNESS
(F) L=180 		1-09707-162-0 01 1 9601-9703 ● ●
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		9-09525-856-0 01 1 9601-0004 ● ●
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		9-09525-856-0 01 1 0005-0308 ● ●
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		9-09525-856-0 01 1 0309-0606 ●
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		0-95235-856-0 01 1 0607- ●
48 CLIP; FRAME HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9601-0308 ● ●
48 CLIP; FRAME HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0309- ●
48 CLIP; FRAME HARNESS
(F) L=180 		1-09707-162-1 01 1 0202-0308 ● ●
48 CLIP; FRAME HARNESS
(F) L=180 		1-09707-162-1 01 1 0309-0403 ●
48 CLIP; FRAME HARNESS
6HH1 STD ENG(65L) (F) L=180 		1-09707-162-1 01 1 0404- ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=61 		1-09700-484-0 02 1 0302-0308 ● ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=61 		1-09700-484-0 02 1 0309-0702 ●
48 CLIP; FRAME HARNESS
6HH1 STD ENG(65L) (A) ID=11 L=41 		1-09700-403-0 07 1 9601-0201 ● ●
48 CLIP; FRAME HARNESS
6HH1 STD ENG(65L) (A) ID=11 L=41 		1-09700-403-0 05 1 0202-0308 ● ●
48 CLIP; FRAME HARNESS
(A) ID=11 L=41 		1-09700-403-0 05 1 0309- ●
48 CLIP; FRAME HARNESS
6HH1 STD ENG(65L) (G) ID=20 L=70 		1-09700-485-0 05 1 9601-9808 ● ●
48 CLIP; FRAME HARNESS
6HH1 STD ENG(65L) (G) ID=20 L=70 		1-09700-485-0 04 1 9809-0004 ● ●
48 CLIP; FRAME HARNESS
6HH1 STD ENG(65L) (K) ID=28 L=78 		1-09700-858-0 04 1 9601-0308 ● ●
48 CLIP; FRAME HARNESS
(K) ID=28 L=78 		1-09700-858-0 04 1 0309- ●
48 CLIP; FRAME HARNESS
6HH1 STD ENG(65L) (J) ID=14 L=44 		9-09917-427-0 02 1 9601-9806 ● ●
48 CLIP; FRAME HARNESS
(J) ID=14 L=44 		9-09917-427-0 02 1 9807-0308 ● ●
48 CLIP; FRAME HARNESS
6HH1 STD ENG(65L) (J) ID=14 L=44 		9-09917-427-0 02 1 0309- ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 9601-9806 ● ●
48 CLIP; FRAME HARNESS
6HH1 STD ENG(65L) (A) ID=20 L=50 		9-09917-430-0 01 1 9601-9806 ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 9807-0308 ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 9807-0308 ● ●
48 CLIP; FRAME HARNESS
6HH1 STD ENG(65L) (A) ID=20 L=50 		9-09917-430-0 01 1 0309- ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 0309- ●
48 CLIP; FRAME HARNESS
6HH1 STD ENG(65L) (G) ID=20 L=70 		1-09700-485-0 01 1 9605-0004 ● ●
48 CLIP; FRAME HARNESS
6HH1 STD ENG(65L) (G) ID=20 L=70 		1-09700-485-0 05 1 0005-0201 ● ●
48 CLIP; FRAME HARNESS
6HH1 STD ENG(65L) (G) ID=20 L=70 		1-09700-485-0 06 1 0202-0308 ● ●
48 CLIP; FRAME HARNESS
(G) ID=20 L=70 		1-09700-485-0 06 1 0309- ●
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) (G) ID=20 L=70 		1-09700-485-0 07 1 9601-9603 ● ●
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) (G) ID=20 L=70 		1-09700-485-0 10 1 9604-9803 ● ●
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) (G) ID=20 L=70 		1-09700-485-0 03 1 9804-0004 ● ●
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) (G) ID=20 L=70 		1-09700-485-0 07 1 0005-0308 ● ●
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) (I) ID=35 L=75 		1-09700-608-2 01 1 9601-0308 ● ●
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) (H) ID=32 L=75 		1-09700-704-1 02 1 9601-0308 ● ●
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) (K) ID=28 L=78 		1-09700-858-0 03 1 9601-0308 ● ●
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) (A) ID=20 L=50 		9-09917-430-0 03 1 9601-9603 ● ●
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) (C) ID=19 L=60 		9-09525-896-0 01 1 9606-0308 ● ●
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) (G) ID=20 L=70 		1-09700-485-0 07 1 9804-0004 ● ●
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) (G) ID=20 L=70 		1-09700-485-0 03 1 0005-0308 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (A) ID=20 L=50 		9-09917-430-0 13 1 9601- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (A) ID=20 L=50 		9-09917-430-0 15 1 9601-0308 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (A) ID=20 L=50 		9-09917-430-0 16 1 9601-0308 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (A) ID=20 L=50 		9-09917-430-0 18 1 9601- ●
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) (B) ID=11 L=61 		1-09700-484-0 08 1 9601-0301 ●
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) (B) ID=11 L=61 		1-09700-484-0 06 1 0302-0308 ●
104 CLIP; HEADLAMP HARNESS
(A) ID=12 H=24 L=20 		1-09700-605-0 02 1 0410- ●
104 CLIP; HEADLAMP HARNESS
(B) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 0410- ●
104 CLIP; HEADLAMP HARNESS
(C) ID=15 L=42 		9-09716-203-1 02 1 0410- ●
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> EXC. MAP LAMP<C85> L=20 SET=10 PIECE 		1-09987-246-2 02 1 9601-9803 ● ●
116 CLIP; ROOF HARNESS
LOW ROOF<6XQ> L=20 SET=10 PIECE 		1-09987-246-2 05 1 9601-9803 ● ●
116 CLIP; ROOF HARNESS
MAP LAMP<C85> L=20 SET=10 PIECE 		1-09987-246-2 05 1 9601-9803 ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 9804-0009 ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 06 1 0010-0112 ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 0201-0308 ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 0309-1409 ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 06 1 1410- ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 9601-0308 ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0309-0606 ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0607- ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=19 L=32 		9-09525-862-0 01 1 9601-0011 ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(C) ID=14.5 L=30 		9-09916-893-1 01 1 0012-0308 ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(C) ID=14.5 L=30 		9-09916-893-1 01 1 0309- ●
171 CLIP; STARTER HARNESS
(G) ID=18 L=44 		8-94225-185-0 01 1 9601-0209 ● ●
171 CLIP; STARTER HARNESS
(F) L=300 		1-09707-001-1 01 1 0005-0308 ● ●
171 CLIP; STARTER HARNESS
(F) L=300 		1-09707-001-1 01 1 0309- ●
171 CLIP; STARTER HARNESS
MAL6 M/T<X9G> (E) ID=11 L=41 		1-09700-403-0 02 1 9601-9605 ● ●
171 CLIP; STARTER HARNESS
MAL6S M/T(Y1V) (E) ID=11 L=41 		1-09700-403-0 01 1 9606-0308 ● ●
171 CLIP; STARTER HARNESS
MAL6 M/T<X9G>,MLD6 M/T<X9Y> (D) OD=9 H=6 		1-09709-178-0 01 1 9601-9608 ● ●
171 CLIP; STARTER HARNESS
(D) OD=9 H=6 		1-09709-178-0 01 1 9601-9608 ● ●
171 CLIP; STARTER HARNESS
(D) OD=9 H=6 		1-09709-178-0 01 1 9609-9609 ● ●
171 CLIP; STARTER HARNESS
(D) OD=9 H=6 		1-09709-178-0 01 1 9609-0004 ● ●
171 CLIP; STARTER HARNESS
MAL6 M/T<X9G>,MLD6 M/T<X9Y> (D) OD=9 H=6 		1-09709-178-0 01 1 9609-0004 ● ●
171 CLIP; STARTER HARNESS
(D) OD=9 H=6 		1-09709-178-0 01 1 0005-0005 ● ●
171 CLIP; STARTER HARNESS
MAL6 M/T<X9G>,MLD6 M/T<X9Y> (D) OD=9 H=6 		1-09709-178-0 01 1 0005-0005 ● ●
171 CLIP; STARTER HARNESS
(D) OD=9 H=6 		1-09709-178-0 02 1 0005-0308 ● ●
171 CLIP; STARTER HARNESS
(D) OD=9 H=6 		1-09709-178-0 02 1 0309- ●
171 CLIP; STARTER HARNESS
MAL6S M/T(Y1V) (B) ID=21 L=30 H=40 		1-09700-991-1 02 1 9601-0308 ● ●
171 CLIP; STARTER HARNESS
MAL6S M/T(Y1V) (C) ID=19 L=40 		9-09525-876-0 01 1 9601-0308 ● ●
171 CLIP; STARTER HARNESS
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (C) ID=19 L=28 		9-09525-856-0 03 1 9601-9809 ● ●
171 CLIP; STARTER HARNESS
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (C) ID=19 L=28 		9-09525-856-0 04 1 9810-0308 ● ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		9-09525-856-0 04 1 0309-0606 ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		0-95235-856-0 04 1 0607- ●
171 CLIP; STARTER HARNESS
MLD7 M/T<X9Z> (A) L=180 		1-09707-162-1 01 1 9601-0308 ● ●
171 CLIP; STARTER HARNESS
MLD7 M/T<X9Z> (A) L=180 		1-09707-162-1 01 1 0309- ●
171 CLIP; STARTER HARNESS
6HH1 STD ENG(65L) (B) ID=21 L=30 H=40 		1-09700-991-1 01 1 9601-0308 ● ●
171 CLIP; STARTER HARNESS
(B) ID=21 L=30 H=40 		1-09700-991-1 01 1 0309- ●
171 CLIP; STARTER HARNESS
6SD1 STD ENG(37L) (H) ID=10 & 16.5 		8-94360-745-0 01 1 0201-0308 ● ●
213 CLIP; END CROSS HARNESS
ID=20 L=50 		9-09917-430-0 03 1 9601-0308 ● ●
213 CLIP; END CROSS HARNESS
ID=20 L=50 		9-09917-430-0 03 1 0309- ●
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 		1-09700-980-0 02 1 9601-0208 ● ●
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 9601-0308 ● ●
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 0309- ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=17.5 		1-09709-181-0 01 1 9601-0308 ● ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=17.5 		1-09709-181-0 01 1 0309- ●
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 04 1 9601-9703 ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 03 1 9704-0005 ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 04 1 0006-0305 ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 05 1 0306-0308 ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 05 1 0309- ●
223 CLIP; AIR TANK HARNESS
6SD1 STD ENG(37L) (C) ID=11 L=41 		1-09700-403-0 01 1 9601-0308 ● ●
225 CLIP; AIR TANK HARNESS
(A) L=180 		1-09707-162-1 01 1 9601-0112 ● ●
225 CLIP; AIR TANK HARNESS
EXC. AIR DRYER<PS7> (A) L=180 		1-09707-162-1 01 1 0201-0308 ● ●
225 CLIP; AIR TANK HARNESS
EXC. AIR DRYER<PS7> (A) L=180 		1-09707-162-1 01 1 0309- ●
225 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (C) L=600 		1-09707-107-1 01 1 0201-0308 ● ●
225 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (C) L=600 		1-09707-107-1 01 1 0309- ●
225 CLIP; AIR TANK HARNESS
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) AIR DRYER<PS7> (B) ID=11 L=61 		1-09700-484-0 02 1 0110-0308 ●
225 CLIP; AIR TANK HARNESS
WHEEL BASE 5500MM(55W) AIR DRYER<PS7> (B) ID=11 L=61 		1-09700-484-0 02 1 0309- ●
229 CLIP; STARTER SUB SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 9601-0308 ● ●
229 CLIP; STARTER SUB SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 0309- ●
230 CLIP; C/MBR HARNESS
ID=20 L=50 		9-09917-430-0 02 1 9601-0308 ● ●
230 CLIP; C/MBR HARNESS
ID=20 L=50 		9-09917-430-0 02 1 0309- ●
421 CLIP; FLOOR HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 07 1 9601-9708 ● ●
421 CLIP; FLOOR HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 9709-0101 ● ●
421 CLIP; FLOOR HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 01 1 0102-0308 ● ●
421 CLIP; FLOOR HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 01 1 0309-0406 ●
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 9601-0308 ● ●
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 0309- ●

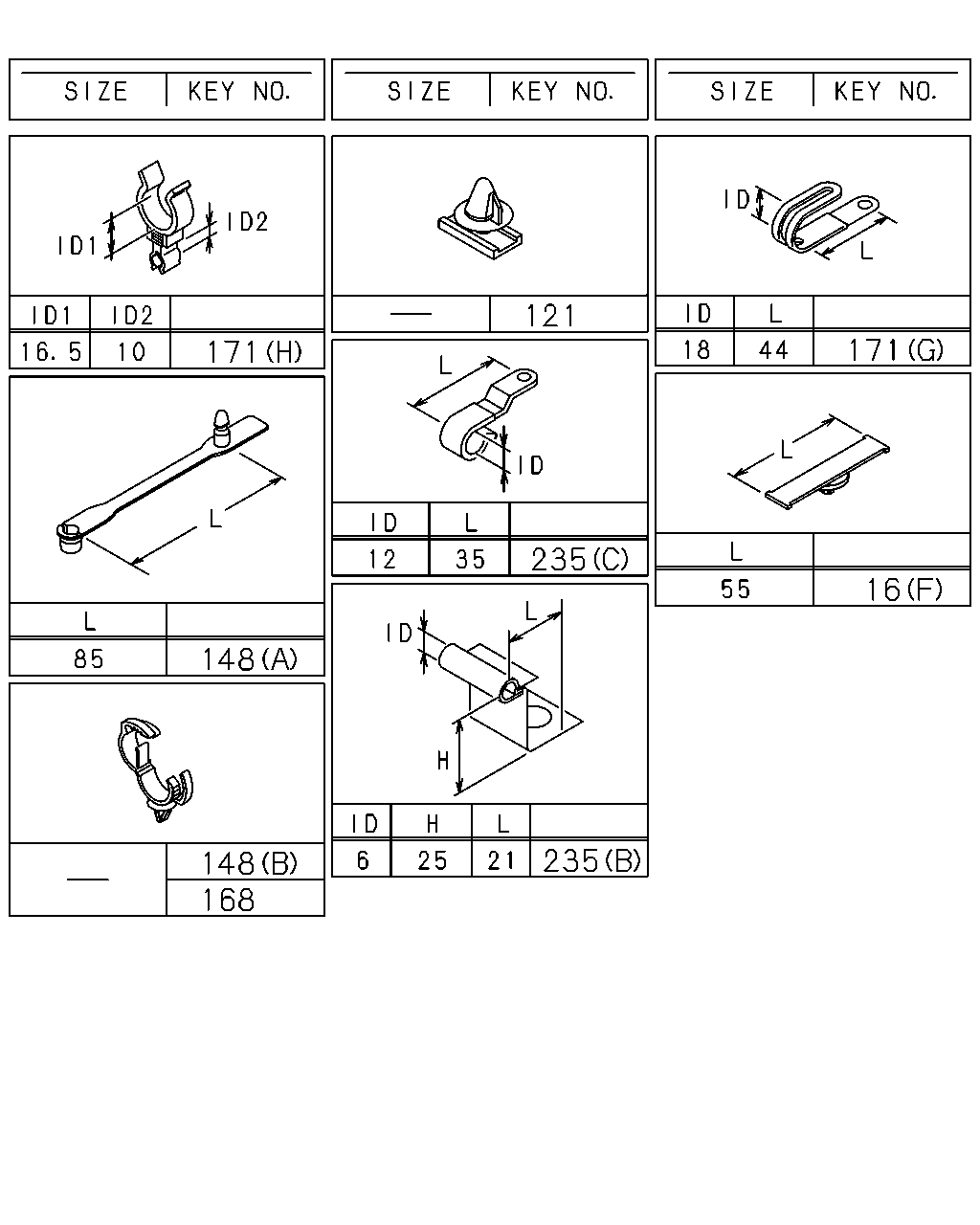

çizim 15910
121 171 171 235 16 148 235 148 168
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 9601-0308 ● ●
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0309- ●
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 03 1 9601-0308 ● ●
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 03 1 0309- ●
16 CLIP; HARNESS
(L) ID=28 L=78 		1-09700-858-0 01 1 9601-0308 ● ●
16 CLIP; HARNESS
(L) ID=28 L=78 		1-09700-858-0 01 1 9601-0308 ● ●
16 CLIP; HARNESS
(L) ID=28 L=78 		1-09700-858-0 01 1 0309-0702 ●
16 CLIP; HARNESS
(L) ID=28 L=78 		1-09700-858-0 01 1 0309-0702 ●
16 CLIP; HARNESS
(L) ID=28 L=78 		1-09700-858-0 01 1 0703- ●
16 CLIP; HARNESS
(L) ID=28 L=78 		1-09700-858-0 01 1 0703- ●
16 CLIP; HARNESS
(L) ID=28 L=78 		1-09700-858-0 01 1 0703- ●
16 CLIP; HARNESS
(M) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9601-0308 ● ●
16 CLIP; HARNESS
(M) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0309- ●
16 CLIP; HARNESS
(H) ID=25 L=50 		1-09701-019-0 01 1 9601-0308 ● ●
16 CLIP; HARNESS
(H) ID=25 L=50 		1-09701-019-0 01 1 0309- ●
16 CLIP; HARNESS
(B) L=300 		1-09707-001-1 01 1 9601-0308 ● ●
16 CLIP; HARNESS
(B) L=300 		1-09707-001-1 01 1 0309- ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 01 1 9601-0308 ● ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 01 1 0309- ●
16 CLIP; HARNESS
POWER WINDOW<A30> (F) L=55 		8-94432-655-0 06 1 9601-9803 ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (G) L=175 		8-97110-167-0 04 1 9601-9803 ● ●
16 CLIP; HARNESS
6HH1 STD ENG(65L) (C) ID=19 H=33 L=45 		1-09701-045-0 01 1 9601-9801 ● ●
16 CLIP; HARNESS
6HH1 STD ENG(65L) (D) ID=19 H=21 L=50 		1-09700-910-1 01 1 9802-0308 ● ●
16 CLIP; HARNESS
(D) ID=19 H=21 L=50 		1-09700-910-1 01 1 0309- ●
16 CLIP; HARNESS
6HH1 STD ENG(65L) (J) L=180 		1-09707-162-1 01 1 9601-0209 ● ●
16 CLIP; HARNESS
6HH1 STD ENG(65L) (I) ID=19 L=32 		9-09525-866-0 01 1 9601-0308 ● ●
16 CLIP; HARNESS
(I) ID=19 L=32 		9-09525-866-0 01 1 0309-0606 ●
16 CLIP; HARNESS
(I) ID=19 L=32 		0-95235-866-0 01 1 0607- ●
16 CLIP; HARNESS
6SD1 STD ENG(37L) (K) L=140 		5-09707-031-1 01 1 9601-0308 ● ●
121 CLIP; FACIA HARNESS
EXC. POWER WINDOW<A30> OD=7 H=1.2 		8-94364-750-0 02 1 9601-9803 ● ●
121 CLIP; FACIA HARNESS
OD=7 H=1.2 		8-94364-750-0 02 1 9804-0308 ● ●
121 CLIP; FACIA HARNESS
OD=7 H=1.2 		8-94364-750-0 02 1 0309- ●
148 CLIP; BAND,HEADLAMP HARNESS
(A) L=85 		8-94232-611-0 01 1 9601-0308 ● ●
148 CLIP; BAND,HEADLAMP HARNESS
(A) L=85 		8-94232-611-0 01 1 0309- ●
148 CLIP; BAND,HEADLAMP HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 01 1 9601-0308 ● ●
148 CLIP; BAND,HEADLAMP HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 01 1 0309- ●
168 CLIP; DASH HARNESS
ID=6 & 10-13 		8-97069-515-0 05 1 9601-0308 ● ●
168 CLIP; DASH HARNESS
ID=6 & 10-13 		8-97069-515-0 05 1 0309- ●
171 CLIP; STARTER HARNESS
(G) ID=18 L=44 		8-94225-185-0 01 1 9601-0209 ● ●
171 CLIP; STARTER HARNESS
(F) L=300 		1-09707-001-1 01 1 0005-0308 ● ●
171 CLIP; STARTER HARNESS
(F) L=300 		1-09707-001-1 01 1 0309- ●
171 CLIP; STARTER HARNESS
MAL6 M/T<X9G> (E) ID=11 L=41 		1-09700-403-0 02 1 9601-9605 ● ●
171 CLIP; STARTER HARNESS
MAL6S M/T(Y1V) (E) ID=11 L=41 		1-09700-403-0 01 1 9606-0308 ● ●
171 CLIP; STARTER HARNESS
MAL6 M/T<X9G>,MLD6 M/T<X9Y> (D) OD=9 H=6 		1-09709-178-0 01 1 9601-9608 ● ●
171 CLIP; STARTER HARNESS
(D) OD=9 H=6 		1-09709-178-0 01 1 9601-9608 ● ●
171 CLIP; STARTER HARNESS
(D) OD=9 H=6 		1-09709-178-0 01 1 9609-9609 ● ●
171 CLIP; STARTER HARNESS
(D) OD=9 H=6 		1-09709-178-0 01 1 9609-0004 ● ●
171 CLIP; STARTER HARNESS
MAL6 M/T<X9G>,MLD6 M/T<X9Y> (D) OD=9 H=6 		1-09709-178-0 01 1 9609-0004 ● ●
171 CLIP; STARTER HARNESS
(D) OD=9 H=6 		1-09709-178-0 01 1 0005-0005 ● ●
171 CLIP; STARTER HARNESS
MAL6 M/T<X9G>,MLD6 M/T<X9Y> (D) OD=9 H=6 		1-09709-178-0 01 1 0005-0005 ● ●
171 CLIP; STARTER HARNESS
(D) OD=9 H=6 		1-09709-178-0 02 1 0005-0308 ● ●
171 CLIP; STARTER HARNESS
(D) OD=9 H=6 		1-09709-178-0 02 1 0309- ●
171 CLIP; STARTER HARNESS
MAL6S M/T(Y1V) (B) ID=21 L=30 H=40 		1-09700-991-1 02 1 9601-0308 ● ●
171 CLIP; STARTER HARNESS
MAL6S M/T(Y1V) (C) ID=19 L=40 		9-09525-876-0 01 1 9601-0308 ● ●
171 CLIP; STARTER HARNESS
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (C) ID=19 L=28 		9-09525-856-0 03 1 9601-9809 ● ●
171 CLIP; STARTER HARNESS
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (C) ID=19 L=28 		9-09525-856-0 04 1 9810-0308 ● ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		9-09525-856-0 04 1 0309-0606 ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		0-95235-856-0 04 1 0607- ●
171 CLIP; STARTER HARNESS
MLD7 M/T<X9Z> (A) L=180 		1-09707-162-1 01 1 9601-0308 ● ●
171 CLIP; STARTER HARNESS
MLD7 M/T<X9Z> (A) L=180 		1-09707-162-1 01 1 0309- ●
171 CLIP; STARTER HARNESS
6HH1 STD ENG(65L) (B) ID=21 L=30 H=40 		1-09700-991-1 01 1 9601-0308 ● ●
171 CLIP; STARTER HARNESS
(B) ID=21 L=30 H=40 		1-09700-991-1 01 1 0309- ●
171 CLIP; STARTER HARNESS
6SD1 STD ENG(37L) (H) ID=10 & 16.5 		8-94360-745-0 01 1 0201-0308 ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) ID=6 H=25 L=21 		1-09700-432-0 01 1 9601-9605 ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
MAL6 M/T<X9G> (B) ID=6 H=25 L=21 		1-09700-432-0 01 1 9601-9605 ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) ID=6 H=25 L=21 		1-09700-432-0 01 1 9606-9803 ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(C) ID=12 L=35 		5-09700-206-0 01 1 9804-0308 ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(C) ID=12 L=35 		5-09700-206-0 01 1 0309- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) L=250 		5-09707-030-0 01 1 9601-9803 ● ●
çizim 65550
334 312 154 59 335 335 334 335
BalonParca AdiParca NoAdetTipApplied Date A B
59 BRACKET; FRAME HARNESS
L=95 		1-82699-085-0 01 1 9601-0308 ● ●
59 BRACKET; FRAME HARNESS
L=95 		1-82699-085-0 01 1 0309- ●
154 BRACKET; STARTER EARTH CABLE
6HH1 STD ENG(65L) 		1-47465-518-0 01 1 9601-0212 ● ●
154 BRACKET; STARTER EARTH CABLE
6HH1 STD ENG(65L) EXC. ANTI NOISE EQUIPMENT ECE<SLK> 		1-47465-518-0 01 1 0301-0308 ● ●
312 BRACKET; CLIP HARNESS 1-82699-109-0 01 1 9601-0308 ● ●
312 BRACKET; CLIP HARNESS 1-82699-109-0 01 1 0309- ●
334 BRACKET
MAL6 M/T<X9G> (A) 		1-82699-639-1 03 1 9601-9605 ● ●
334 BRACKET
MAL6 M/T<X9G> (B) 		1-82699-425-0 01 1 9606-0308 ● ●
335 BRACKET; CONNECTOR
(A) 		1-82699-517-0 01 1 9601-9910 ● ●
335 BRACKET; CONNECTOR
(A) 		1-82698-167-0 01 1 9911-0308 ● ●
335 BRACKET; CONNECTOR
(A) 		1-82698-167-0 01 1 0309- ●
335 BRACKET; CONNECTOR
MAL6S M/T(Y1V) (B) L=60 		1-82699-875-0 01 1 9601-0206 ● ●
335 BRACKET; CONNECTOR
MAL6S M/T(Y1V) (C) L=120 		1-82699-963-0 01 1 0207-0308 ● ●

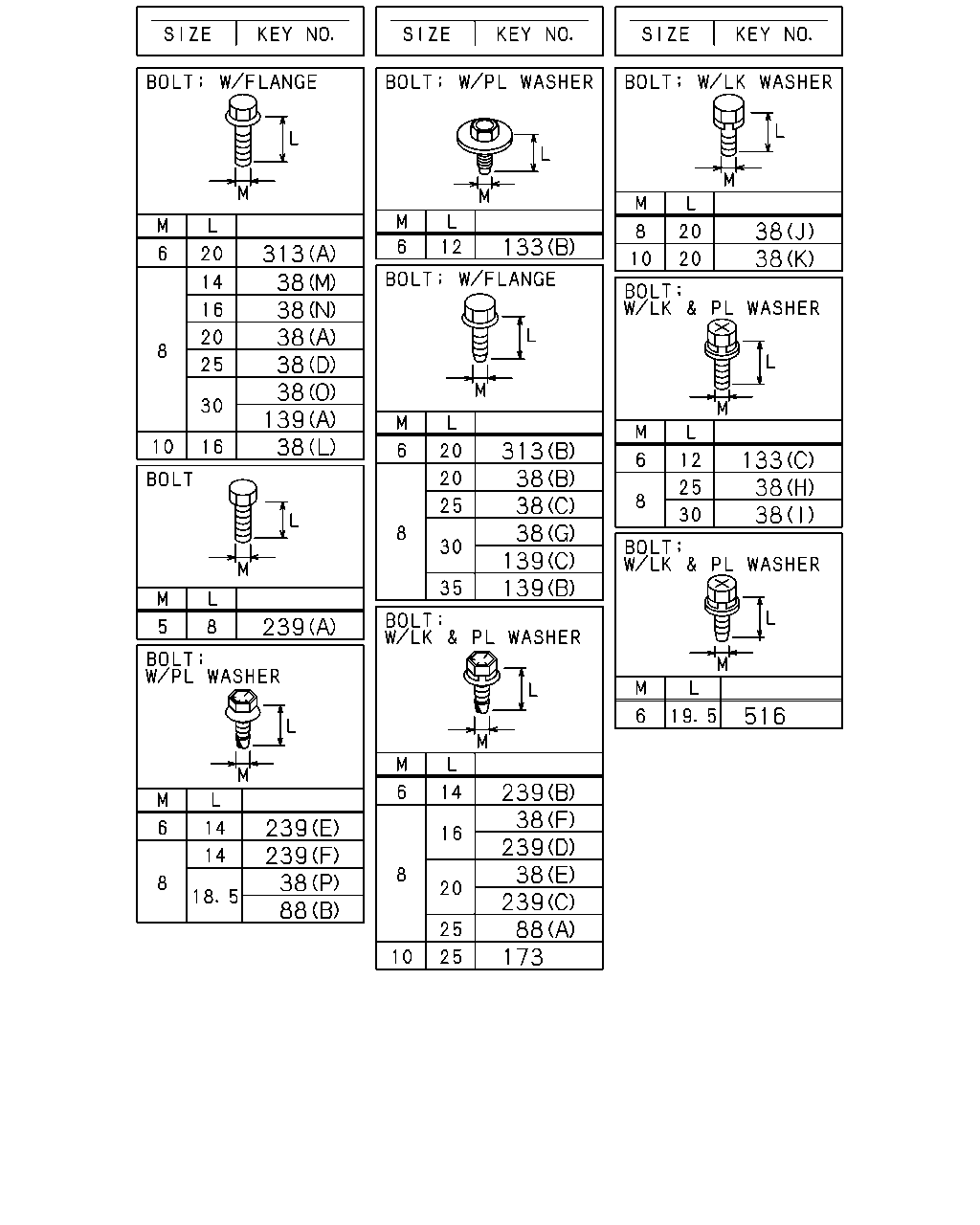

çizim 66445
38 38 133 313 38 38 38 38 38 139 38 313 38 38 38 139 139 133 38 38 239 516 239 38 239 38 239 88 173 239 239 38 88
BalonParca AdiParca NoAdetTipApplied Date A B
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28080-825-0 02 1 9601-9606 ● ●
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28080-825-0 02 1 9601-9606 ● ●
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE 		0-28680-825-0 02 1 9607-0308 ● ●
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE 		0-28680-825-0 02 1 0309-0512 ●
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
38 BOLT; CLIP,HARNESS
(E) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9601-9903 ● ●
38 BOLT; CLIP,HARNESS
(F) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9904-9909 ● ●
38 BOLT; CLIP,HARNESS
(E) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9910-0308 ● ●
38 BOLT; CLIP,HARNESS
(E) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0309-1201 ●
38 BOLT; CLIP,HARNESS
(P) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1202- ●
38 BOLT; CLIP,HARNESS
(G) M8X30 FLANGE 		0-28680-830-0 02 1 9607-0308 ● ●
38 BOLT; CLIP,HARNESS
(G) M8X30 FLANGE 		0-28680-830-0 02 1 0309-0512 ●
38 BOLT; CLIP,HARNESS
(G) M8X30 FLANGE 		0-28650-830-0 02 1 0601- ●
38 BOLT; CLIP,HARNESS
(H) M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 9607-9702 ● ●
38 BOLT; CLIP,HARNESS
(I) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9703-0308 ● ●
38 BOLT; CLIP,HARNESS
(I) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 0309-0512 ●
38 BOLT; CLIP,HARNESS
(I) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0601- ●
38 BOLT; CLIP,HARNESS
MAL6 M/T<X9G> (J) M8X20 W/LK WASHER 		0-50040-820-0 01 1 9601-9606 ● ●
38 BOLT; CLIP,HARNESS
MAL6 M/T<X9G> (B) M8X20 FLANGE 		0-28680-820-0 01 1 9607-0308 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0309-0512 ●
38 BOLT; CLIP,HARNESS
6HH1 STD ENG(65L) (B) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
38 BOLT; CLIP,HARNESS
MAL6S M/T(Y1V) (A) M8X20 FLANGE 		0-28080-820-0 03 1 9601-9608 ● ●
38 BOLT; CLIP,HARNESS
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (M) M8X14 FLANGE 		0-28080-814-0 04 1 9601-9606 ● ●
38 BOLT; CLIP,HARNESS
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (N) M8X16 FLANGE 		0-28080-816-0 04 1 9607-0308 ● ●
38 BOLT; CLIP,HARNESS
(N) M8X16 FLANGE 		0-28080-816-0 04 1 0309-0512 ●
38 BOLT; CLIP,HARNESS
(N) M8X16 FLANGE 		0-28050-816-0 04 1 0601- ●
38 BOLT; CLIP,HARNESS
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (K) M10X20 W/LK WASHER 		0-50051-020-0 01 1 9601-9606 ● ●
38 BOLT; CLIP,HARNESS
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (L) M10X16 FLANGE 		0-28181-016-0 01 1 9607-0308 ● ●
38 BOLT; CLIP,HARNESS
(L) M10X16 FLANGE 		0-28181-016-0 01 1 0309-0512 ●
38 BOLT; CLIP,HARNESS
(L) M10X16 FLANGE 		0-28151-016-0 01 1 0601- ●
38 BOLT; CLIP,HARNESS
6HH1 STD ENG(65L) (A) M8X20 FLANGE 		0-28080-820-0 02 1 9601-9606 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28080-820-0 02 1 9601-9606 ● ●
38 BOLT; CLIP,HARNESS
6HH1 STD ENG(65L) (B) M8X20 FLANGE 		0-28680-820-0 02 1 9607-0004 ● ●
38 BOLT; CLIP,HARNESS
6HH1 STD ENG(65L) (B) M8X20 FLANGE 		0-28680-820-0 02 1 0005-0308 ● ●
38 BOLT; CLIP,HARNESS
6HH1 STD ENG(65L) (A) M8X16 FLANGE 		0-28080-816-0 01 1 9810-0308 ● ●
38 BOLT; CLIP,HARNESS
(N) M8X16 FLANGE 		0-28080-816-0 01 1 0309-0512 ●
38 BOLT; CLIP,HARNESS
(N) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
38 BOLT; CLIP,HARNESS
6SD1 STD ENG(37L) (D) M8X25 FLANGE 		0-28080-825-0 03 1 9601-9606 ● ●
38 BOLT; CLIP,HARNESS
6SD1 STD ENG(37L) (G) M8X30 FLANGE 		0-28680-830-0 04 1 9607-0308 ● ●
38 BOLT; CLIP,HARNESS
6SD1 STD ENG(37L) (O) M8X30 FLANGE 		0-28080-830-0 01 1 9606-9606 ● ●
38 BOLT; CLIP,HARNESS
MAL6S M/T(Y1V) (B) M8X20 FLANGE 		0-28680-820-0 03 1 9607-0308 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 06 1 0410-0512 ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 06 1 0601- ●
88 BOLT; DOOR HARNESS EARTH
DOOR WINDOW MANUAL CONT<SKF> (A) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9601-9803 ● ●
88 BOLT; DOOR HARNESS EARTH
POWER WINDOW<A30> (A) M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 9601-9803 ● ●
88 BOLT; DOOR HARNESS EARTH
(A) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9804-0308 ● ●
88 BOLT; DOOR HARNESS EARTH
(A) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0309-1007 ●
88 BOLT; DOOR HARNESS EARTH
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1008- ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 9601-0110 ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111-0308 ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0309- ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(C) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210 ● ●
139 BOLT; BRKT
(A) M8X30 FLANGE 		0-28080-830-0 02 1 9601-9606 ● ●
139 BOLT; BRKT
(B) M8X35 FLANGE 		0-28680-835-0 02 1 9607-0209 ● ●
139 BOLT; BRKT
MAL6S M/T(Y1V) (C) M8X30 FLANGE 		0-28080-830-0 01 1 9601-9608 ● ●
139 BOLT; BRKT
MAL6S M/T(Y1V) (B) M8X35 FLANGE 		0-28680-835-0 01 1 9607-0209 ● ●
139 BOLT; BRKT
MAL6S M/T(Y1V) (B) M8X35 FLANGE 		0-28680-835-0 01 1 0210-0308 ● ●
139 BOLT; BRKT
(B) M8X35 FLANGE 		0-28680-835-0 01 1 0210-0308 ● ●
139 BOLT; BRKT
(B) M8X35 FLANGE 		0-28680-835-0 01 1 0210-0308 ● ●
139 BOLT; BRKT
(B) M8X35 FLANGE 		0-28680-835-0 01 1 0309-0512 ●
139 BOLT; BRKT
(B) M8X35 FLANGE 		0-28680-835-0 01 1 0309-0512 ●
139 BOLT; BRKT
(B) M8X35 FLANGE 		0-28650-835-0 01 1 0601- ●
139 BOLT; BRKT
(B) M8X35 FLANGE 		0-28650-835-0 01 1 0601- ●
173 BOLT; STARTER EARTH
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 9601-0308 ● ●
173 BOLT; STARTER EARTH
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0309- ●
239 BOLT; GRAND
(A) M5X8 		0-20800-508-0 01 1 9601-0308 ● ●
239 BOLT; GRAND
(A) M5X8 		0-20800-508-0 01 1 0309- ●
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 9601-9803 ● ●
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9804-0004 ● ●
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9804-0004 ● ●
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0005-0308 ● ●
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0309-1007 ●
239 BOLT; GRAND
(E) M6X14 W/PL WASHER 		8-98164-836-0 02 1 1008- ●
239 BOLT; GRAND
(C) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9601-9903 ● ●
239 BOLT; GRAND
(D) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9904-0308 ● ●
239 BOLT; GRAND
(D) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0309-1201 ●
239 BOLT; GRAND
(F) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1202- ●
313 BOLT; BRKT
(A) M6X20 FLANGE 		0-28080-620-0 01 1 9601-9606 ● ●
313 BOLT; BRKT
(B) M6X20 FLANGE 		0-28680-620-0 01 1 9607-0308 ● ●
313 BOLT; BRKT
(B) M6X20 FLANGE 		0-28680-620-0 01 1 0309-0512 ●
313 BOLT; BRKT
(B) M6X20 FLANGE 		0-28650-620-0 01 1 0601- ●
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9601-0308 ● ●
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0309- ●

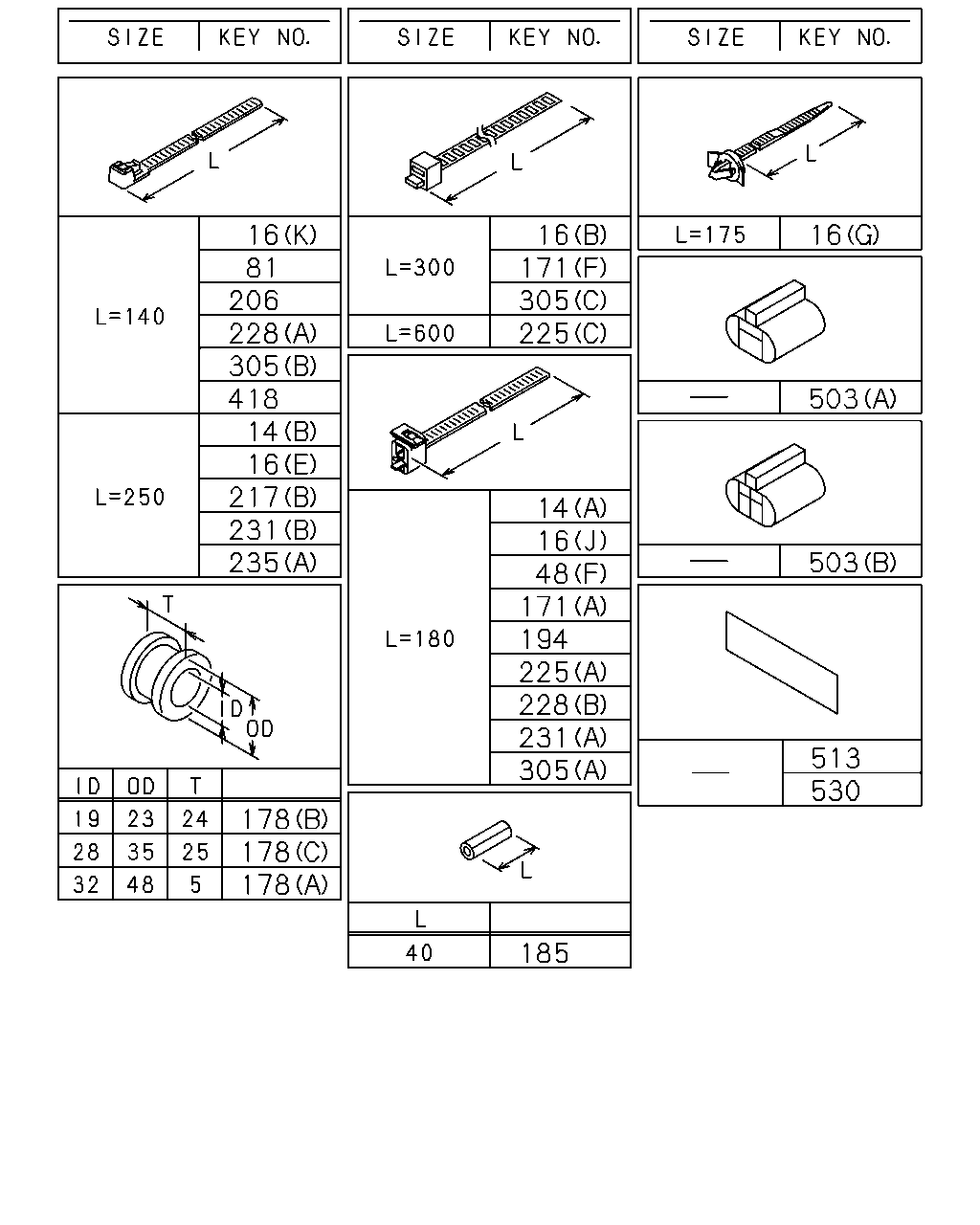

çizim 66465
16 81 206 228 305 418 14 16 217 231 235 16 171 305 225 16 503 14 16 48 171 194 225 228 231 305 503 513 530 178 178 178 185
BalonParca AdiParca NoAdetTipApplied Date A B
14 CLIP; BAND,HARNESS
(A) L=180 		1-09707-162-1 01 1 9601-0308 ● ●
14 CLIP; BAND,HARNESS
(A) L=180 		1-09707-162-1 01 1 0309- ●
14 CLIP; BAND,HARNESS
6HH1 STD ENG(65L) (B) L=250 		5-09707-030-1 01 1 0002-0308 ● ●
14 CLIP; BAND,HARNESS
(B) L=250 		5-09707-030-1 01 1 0309-1205 ●
14 CLIP; BAND,HARNESS
(B) L=250 		8-98216-430-0 01 1 1206- ●
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 9601-0308 ● ●
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0309- ●
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 03 1 9601-0308 ● ●
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 03 1 0309- ●
16 CLIP; HARNESS
(L) ID=28 L=78 		1-09700-858-0 01 1 9601-0308 ● ●
16 CLIP; HARNESS
(L) ID=28 L=78 		1-09700-858-0 01 1 9601-0308 ● ●
16 CLIP; HARNESS
(L) ID=28 L=78 		1-09700-858-0 01 1 0309-0702 ●
16 CLIP; HARNESS
(L) ID=28 L=78 		1-09700-858-0 01 1 0309-0702 ●
16 CLIP; HARNESS
(L) ID=28 L=78 		1-09700-858-0 01 1 0703- ●
16 CLIP; HARNESS
(L) ID=28 L=78 		1-09700-858-0 01 1 0703- ●
16 CLIP; HARNESS
(L) ID=28 L=78 		1-09700-858-0 01 1 0703- ●
16 CLIP; HARNESS
(M) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9601-0308 ● ●
16 CLIP; HARNESS
(M) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0309- ●
16 CLIP; HARNESS
(H) ID=25 L=50 		1-09701-019-0 01 1 9601-0308 ● ●
16 CLIP; HARNESS
(H) ID=25 L=50 		1-09701-019-0 01 1 0309- ●
16 CLIP; HARNESS
(B) L=300 		1-09707-001-1 01 1 9601-0308 ● ●
16 CLIP; HARNESS
(B) L=300 		1-09707-001-1 01 1 0309- ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 01 1 9601-0308 ● ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 01 1 0309- ●
16 CLIP; HARNESS
POWER WINDOW<A30> (F) L=55 		8-94432-655-0 06 1 9601-9803 ● ●
16 CLIP; HARNESS
POWER WINDOW<A30> (G) L=175 		8-97110-167-0 04 1 9601-9803 ● ●
16 CLIP; HARNESS
6HH1 STD ENG(65L) (C) ID=19 H=33 L=45 		1-09701-045-0 01 1 9601-9801 ● ●
16 CLIP; HARNESS
6HH1 STD ENG(65L) (D) ID=19 H=21 L=50 		1-09700-910-1 01 1 9802-0308 ● ●
16 CLIP; HARNESS
(D) ID=19 H=21 L=50 		1-09700-910-1 01 1 0309- ●
16 CLIP; HARNESS
6HH1 STD ENG(65L) (J) L=180 		1-09707-162-1 01 1 9601-0209 ● ●
16 CLIP; HARNESS
6HH1 STD ENG(65L) (I) ID=19 L=32 		9-09525-866-0 01 1 9601-0308 ● ●
16 CLIP; HARNESS
(I) ID=19 L=32 		9-09525-866-0 01 1 0309-0606 ●
16 CLIP; HARNESS
(I) ID=19 L=32 		0-95235-866-0 01 1 0607- ●
16 CLIP; HARNESS
6SD1 STD ENG(37L) (K) L=140 		5-09707-031-1 01 1 9601-0308 ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 12 1 9601-0308 ●
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) (B) ID=11 L=61 		1-09700-484-0 07 1 9601-0301 ●
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) (B) ID=11 L=61 		1-09700-484-0 07 1 9601-0301 ●
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) (B) ID=11 L=61 		1-09700-484-0 05 1 0302-0308 ●
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) (B) ID=11 L=61 		1-09700-484-0 05 1 0302-0308 ●
48 CLIP; FRAME HARNESS
(F) L=180 		1-09707-162-0 01 1 9601-9703 ● ●
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		9-09525-856-0 01 1 9601-0004 ● ●
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		9-09525-856-0 01 1 0005-0308 ● ●
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		9-09525-856-0 01 1 0309-0606 ●
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		0-95235-856-0 01 1 0607- ●
48 CLIP; FRAME HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9601-0308 ● ●
48 CLIP; FRAME HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0309- ●
48 CLIP; FRAME HARNESS
(F) L=180 		1-09707-162-1 01 1 0202-0308 ● ●
48 CLIP; FRAME HARNESS
(F) L=180 		1-09707-162-1 01 1 0309-0403 ●
48 CLIP; FRAME HARNESS
6HH1 STD ENG(65L) (F) L=180 		1-09707-162-1 01 1 0404- ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=61 		1-09700-484-0 02 1 0302-0308 ● ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=61 		1-09700-484-0 02 1 0309-0702 ●
48 CLIP; FRAME HARNESS
6HH1 STD ENG(65L) (A) ID=11 L=41 		1-09700-403-0 07 1 9601-0201 ● ●
48 CLIP; FRAME HARNESS
6HH1 STD ENG(65L) (A) ID=11 L=41 		1-09700-403-0 05 1 0202-0308 ● ●
48 CLIP; FRAME HARNESS
(A) ID=11 L=41 		1-09700-403-0 05 1 0309- ●
48 CLIP; FRAME HARNESS
6HH1 STD ENG(65L) (G) ID=20 L=70 		1-09700-485-0 05 1 9601-9808 ● ●
48 CLIP; FRAME HARNESS
6HH1 STD ENG(65L) (G) ID=20 L=70 		1-09700-485-0 04 1 9809-0004 ● ●
48 CLIP; FRAME HARNESS
6HH1 STD ENG(65L) (K) ID=28 L=78 		1-09700-858-0 04 1 9601-0308 ● ●
48 CLIP; FRAME HARNESS
(K) ID=28 L=78 		1-09700-858-0 04 1 0309- ●
48 CLIP; FRAME HARNESS
6HH1 STD ENG(65L) (J) ID=14 L=44 		9-09917-427-0 02 1 9601-9806 ● ●
48 CLIP; FRAME HARNESS
(J) ID=14 L=44 		9-09917-427-0 02 1 9807-0308 ● ●
48 CLIP; FRAME HARNESS
6HH1 STD ENG(65L) (J) ID=14 L=44 		9-09917-427-0 02 1 0309- ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 9601-9806 ● ●
48 CLIP; FRAME HARNESS
6HH1 STD ENG(65L) (A) ID=20 L=50 		9-09917-430-0 01 1 9601-9806 ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 9807-0308 ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 9807-0308 ● ●
48 CLIP; FRAME HARNESS
6HH1 STD ENG(65L) (A) ID=20 L=50 		9-09917-430-0 01 1 0309- ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 0309- ●
48 CLIP; FRAME HARNESS
6HH1 STD ENG(65L) (G) ID=20 L=70 		1-09700-485-0 01 1 9605-0004 ● ●
48 CLIP; FRAME HARNESS
6HH1 STD ENG(65L) (G) ID=20 L=70 		1-09700-485-0 05 1 0005-0201 ● ●
48 CLIP; FRAME HARNESS
6HH1 STD ENG(65L) (G) ID=20 L=70 		1-09700-485-0 06 1 0202-0308 ● ●
48 CLIP; FRAME HARNESS
(G) ID=20 L=70 		1-09700-485-0 06 1 0309- ●
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) (G) ID=20 L=70 		1-09700-485-0 07 1 9601-9603 ● ●
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) (G) ID=20 L=70 		1-09700-485-0 10 1 9604-9803 ● ●
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) (G) ID=20 L=70 		1-09700-485-0 03 1 9804-0004 ● ●
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) (G) ID=20 L=70 		1-09700-485-0 07 1 0005-0308 ● ●
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) (I) ID=35 L=75 		1-09700-608-2 01 1 9601-0308 ● ●
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) (H) ID=32 L=75 		1-09700-704-1 02 1 9601-0308 ● ●
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) (K) ID=28 L=78 		1-09700-858-0 03 1 9601-0308 ● ●
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) (A) ID=20 L=50 		9-09917-430-0 03 1 9601-9603 ● ●
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) (C) ID=19 L=60 		9-09525-896-0 01 1 9606-0308 ● ●
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) (G) ID=20 L=70 		1-09700-485-0 07 1 9804-0004 ● ●
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) (G) ID=20 L=70 		1-09700-485-0 03 1 0005-0308 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (A) ID=20 L=50 		9-09917-430-0 13 1 9601- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (A) ID=20 L=50 		9-09917-430-0 15 1 9601-0308 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (A) ID=20 L=50 		9-09917-430-0 16 1 9601-0308 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (A) ID=20 L=50 		9-09917-430-0 18 1 9601- ●
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) (B) ID=11 L=61 		1-09700-484-0 08 1 9601-0301 ●
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) (B) ID=11 L=61 		1-09700-484-0 06 1 0302-0308 ●
81 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 9601-0308 ● ●
81 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 0309-0409 ●
171 CLIP; STARTER HARNESS
(G) ID=18 L=44 		8-94225-185-0 01 1 9601-0209 ● ●
171 CLIP; STARTER HARNESS
(F) L=300 		1-09707-001-1 01 1 0005-0308 ● ●
171 CLIP; STARTER HARNESS
(F) L=300 		1-09707-001-1 01 1 0309- ●
171 CLIP; STARTER HARNESS
MAL6 M/T<X9G> (E) ID=11 L=41 		1-09700-403-0 02 1 9601-9605 ● ●
171 CLIP; STARTER HARNESS
MAL6S M/T(Y1V) (E) ID=11 L=41 		1-09700-403-0 01 1 9606-0308 ● ●
171 CLIP; STARTER HARNESS
MAL6 M/T<X9G>,MLD6 M/T<X9Y> (D) OD=9 H=6 		1-09709-178-0 01 1 9601-9608 ● ●
171 CLIP; STARTER HARNESS
(D) OD=9 H=6 		1-09709-178-0 01 1 9601-9608 ● ●
171 CLIP; STARTER HARNESS
(D) OD=9 H=6 		1-09709-178-0 01 1 9609-9609 ● ●
171 CLIP; STARTER HARNESS
(D) OD=9 H=6 		1-09709-178-0 01 1 9609-0004 ● ●
171 CLIP; STARTER HARNESS
MAL6 M/T<X9G>,MLD6 M/T<X9Y> (D) OD=9 H=6 		1-09709-178-0 01 1 9609-0004 ● ●
171 CLIP; STARTER HARNESS
(D) OD=9 H=6 		1-09709-178-0 01 1 0005-0005 ● ●
171 CLIP; STARTER HARNESS
MAL6 M/T<X9G>,MLD6 M/T<X9Y> (D) OD=9 H=6 		1-09709-178-0 01 1 0005-0005 ● ●
171 CLIP; STARTER HARNESS
(D) OD=9 H=6 		1-09709-178-0 02 1 0005-0308 ● ●
171 CLIP; STARTER HARNESS
(D) OD=9 H=6 		1-09709-178-0 02 1 0309- ●
171 CLIP; STARTER HARNESS
MAL6S M/T(Y1V) (B) ID=21 L=30 H=40 		1-09700-991-1 02 1 9601-0308 ● ●
171 CLIP; STARTER HARNESS
MAL6S M/T(Y1V) (C) ID=19 L=40 		9-09525-876-0 01 1 9601-0308 ● ●
171 CLIP; STARTER HARNESS
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (C) ID=19 L=28 		9-09525-856-0 03 1 9601-9809 ● ●
171 CLIP; STARTER HARNESS
MLD6 M/T<X9Y>,MLD7 M/T<X9Z> (C) ID=19 L=28 		9-09525-856-0 04 1 9810-0308 ● ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		9-09525-856-0 04 1 0309-0606 ●
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		0-95235-856-0 04 1 0607- ●
171 CLIP; STARTER HARNESS
MLD7 M/T<X9Z> (A) L=180 		1-09707-162-1 01 1 9601-0308 ● ●
171 CLIP; STARTER HARNESS
MLD7 M/T<X9Z> (A) L=180 		1-09707-162-1 01 1 0309- ●
171 CLIP; STARTER HARNESS
6HH1 STD ENG(65L) (B) ID=21 L=30 H=40 		1-09700-991-1 01 1 9601-0308 ● ●
171 CLIP; STARTER HARNESS
(B) ID=21 L=30 H=40 		1-09700-991-1 01 1 0309- ●
171 CLIP; STARTER HARNESS
6SD1 STD ENG(37L) (H) ID=10 & 16.5 		8-94360-745-0 01 1 0201-0308 ● ●
178 GROMMET; HARNESS
(B) ID=19 OD=23 T=24 		1-09332-103-0 01 1 9601-0308 ● ●
178 GROMMET; HARNESS
(B) ID=19 OD=23 T=24 		1-09332-103-0 01 1 0309- ●
178 GROMMET; HARNESS
LOW ROOF<6XQ> (A) ID=32 OD=48 T=5 		9-09575-232-0 01 1 9601-9803 ● ●
178 GROMMET; HARNESS
(A) ID=32 OD=48 T=5 		9-09575-232-0 01 1 9804-0308 ● ●
178 GROMMET; HARNESS
(A) ID=32 OD=48 T=5 		9-09575-232-0 01 1 0309- ●
178 GROMMET; HARNESS
6HH1 STD ENG(65L) (C) ID=28 OD=35 T=25 		1-09332-011-1 02 1 9601-0308 ● ●
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=25 		1-09332-011-1 02 1 0309- ●
178 GROMMET; HARNESS
6SD1 STD ENG(37L) (C) ID=19 OD=23 T=24 		1-09332-103-0 02 1 9601-0308 ● ●
185 SLEEVE; RUBBER
MLD7 M/T<X9Z> ID=17 OD=21 L=40 		1-09337-012-0 01 1 9601-0308 ● ●
185 SLEEVE; RUBBER
MLD7 M/T<X9Z> ID=17 OD=21 L=40 		1-09337-012-0 01 1 0309- ●
194 CLIP; BAND
L=180 		1-09707-162-1 03 1 9601-0308 ● ●
194 CLIP; BAND
L=180 		1-09707-162-1 03 1 0309- ●
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 9601-0308 ● ●
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0309- ●
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 		1-09700-980-0 02 1 9601-0208 ● ●
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 9601-0308 ● ●
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 0309- ●
225 CLIP; AIR TANK HARNESS
(A) L=180 		1-09707-162-1 01 1 9601-0112 ● ●
225 CLIP; AIR TANK HARNESS
EXC. AIR DRYER<PS7> (A) L=180 		1-09707-162-1 01 1 0201-0308 ● ●
225 CLIP; AIR TANK HARNESS
EXC. AIR DRYER<PS7> (A) L=180 		1-09707-162-1 01 1 0309- ●
225 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (C) L=600 		1-09707-107-1 01 1 0201-0308 ● ●
225 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (C) L=600 		1-09707-107-1 01 1 0309- ●
225 CLIP; AIR TANK HARNESS
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) AIR DRYER<PS7> (B) ID=11 L=61 		1-09700-484-0 02 1 0110-0308 ●
225 CLIP; AIR TANK HARNESS
WHEEL BASE 5500MM(55W) AIR DRYER<PS7> (B) ID=11 L=61 		1-09700-484-0 02 1 0309- ●
228 CLIP; COOLER HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=180 		1-09707-162-1 01 1 0201-0308 ● ●
228 CLIP; COOLER HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=180 		1-09707-162-1 01 1 0309-0405 ●
228 CLIP; COOLER HARNESS
6SD1 STD ENG(37L) HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) L=140 		5-09707-031-0 01 1 9601-9803 ● ●
228 CLIP; COOLER HARNESS
6HH1 STD ENG(65L) (A) L=140 		5-09707-031-0 01 1 9601-9803 ● ●
228 CLIP; COOLER HARNESS
6HH1 STD ENG(65L) (A) L=140 		5-09707-031-1 01 1 9804-0004 ● ●
228 CLIP; COOLER HARNESS
(A) L=140 		5-09707-031-1 01 1 0005-0112 ● ●
228 CLIP; COOLER HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) L=140 		5-09707-031-1 01 1 0201-0308 ● ●
228 CLIP; COOLER HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) L=140 		5-09707-031-1 01 1 0309-0405 ●
228 CLIP; COOLER HARNESS
(A) L=140 		5-09707-031-1 01 1 0406- ●
231 CLIP; BAND,OIL PRESS
6HH1 STD ENG(65L) (A) L=180 		1-09707-162-1 01 1 9601-0104 ● ●
231 CLIP; BAND,OIL PRESS
(A) L=180 		1-09707-162-1 01 1 0105-0308 ● ●
231 CLIP; BAND,OIL PRESS
6HH1 STD ENG(65L) (A) L=180 		1-09707-162-1 01 1 0309- ●
231 CLIP; BAND,OIL PRESS
6SD1 STD ENG(37L) (B) L=250 		5-09707-030-1 01 1 9601-0104 ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) ID=6 H=25 L=21 		1-09700-432-0 01 1 9601-9605 ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
MAL6 M/T<X9G> (B) ID=6 H=25 L=21 		1-09700-432-0 01 1 9601-9605 ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) ID=6 H=25 L=21 		1-09700-432-0 01 1 9606-9803 ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(C) ID=12 L=35 		5-09700-206-0 01 1 9804-0308 ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(C) ID=12 L=35 		5-09700-206-0 01 1 0309- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) L=250 		5-09707-030-0 01 1 9601-9803 ● ●
305 CLIP; ENG HARNESS
(A) L=180 		1-09707-162-0 01 1 9601-9612 ● ●
305 CLIP; ENG HARNESS
6HH1 STD ENG(65L) (A) L=180 		1-09707-162-1 01 1 9701-0308 ● ●
305 CLIP; ENG HARNESS
(A) L=180 		1-09707-162-1 01 1 0309- ●
305 CLIP; ENG HARNESS
6HH1 STD ENG(65L) EXC. TACHOMETER<UD7> (B) L=140 		5-09707-031-1 01 1 0002-0308 ● ●
305 CLIP; ENG HARNESS
EXC. TACHOMETER<UD7> (B) L=140 		5-09707-031-1 01 1 0309- ●
305 CLIP; ENG HARNESS
6SD1 STD ENG(37L) (C) L=300 		1-09707-001-1 01 1 9701-0308 ● ●
418 CLIP; LAMP HARNESS
RADIO CLARION(SK2) L=140 		5-09707-031-1 01 1 0703- ●
503 CONNECTOR
(A) 		1-82690-668-0 01 1 9601-9608 ● ●
503 CONNECTOR
(A) 		1-82690-668-0 01 1 9609-9803 ● ●
503 CONNECTOR
6HH1 STD ENG(65L) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-82690-668-0 01 1 9609-9803 ● ●
503 CONNECTOR
(A) 		1-82690-668-0 01 1 9804-0004 ● ●
503 CONNECTOR
6HH1 STD ENG(65L) (A) 		1-82690-668-0 01 1 9804-0004 ● ●
503 CONNECTOR
(A) 		1-82690-668-0 01 1 0005-0109 ● ●
503 CONNECTOR
(A) 		1-82690-668-0 01 1 0005-0109 ● ●
503 CONNECTOR
EXC. AIR DRYER<PS7> (A) 		1-82690-668-0 01 1 0110-0112 ● ●
503 CONNECTOR
(A) 		1-82690-668-0 01 1 0110-0112 ● ●
503 CONNECTOR
EXC. AIR DRYER<PS7> (A) 		1-82690-668-0 01 1 0201-0308 ● ●
503 CONNECTOR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-82690-668-0 01 1 0201-0308 ● ●
503 CONNECTOR
EXC. AIR DRYER<PS7> (A) 		1-82690-668-0 01 1 0309- ●
503 CONNECTOR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-82690-668-0 01 1 0309- ●
503 CONNECTOR
STARTER SWITCH DELETION<E5D> (B) 		1-82690-666-0 01 1 0212-0308 ● ●
503 CONNECTOR
STARTER SWITCH DELETION<E5D> (B) 		1-82690-666-0 01 1 0309- ●
513 TAPE; SOFT,HARNESS
100X30 		1-72498-014-1 02 1 9709-9903 ● ●
513 TAPE; SOFT,HARNESS
100X40 		1-72498-022-0 02 1 9904-0101 ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 06 1 0102-0308 ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 06 1 0309- ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 01 1 0407- ●
çizim 66610
294 524 219 294 294 294 219 294 119 133 209 210 423 520 184
BalonParca AdiParca NoAdetTipApplied Date A B
119 SCREW; DOOR HARNESS EARTH
POWER WINDOW<A30> M5X14 W/PL WASHER 		8-94447-551-0 02 1 9601-9803 ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 9601-0110 ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111-0308 ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0309- ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(C) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210 ● ●
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 9904-0308 ● ●
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0309- ●
209 WASHER; LK,GEN,EARTH
ID=5.1 		9-09150-505-0 01 1 9601-0308 ● ●
209 WASHER; LK,GEN,EARTH
ID=5.1 		9-09150-505-0 01 1 0309-0603 ●
209 WASHER; LK,GEN,EARTH
ID=5.1 		0-91510-505-0 01 1 0604- ●
210 WASHER; PL,GEN
ID=8.4 		1-09503-264-0 01 1 9904-0308 ● ●
210 WASHER; PL,GEN
ID=8.4 		1-09503-264-0 01 1 0309- ●
219 NUT
(A) M8 		9-09110-408-0 02 1 9601-9606 ● ●
219 NUT
(A) M8 		9-09110-408-0 02 1 9607-9609 ● ●
219 NUT
(B) M8 FLANGE 		0-91150-108-0 02 1 9610-0004 ● ●
219 NUT
(B) M8 FLANGE 		0-91150-108-0 04 1 0005-0308 ● ●
219 NUT
(B) M8 FLANGE 		0-91150-108-0 04 1 0309-0602 ●
219 NUT
(B) M8 FLANGE 		0-91180-108-0 04 1 0603- ●
219 NUT
(A) M8 		9-09110-408-0 04 1 9601-9606 ● ●
219 NUT
(B) M8 FLANGE 		0-91150-108-0 02 1 9607-9609 ● ●
219 NUT
(B) M8 FLANGE 		0-91150-108-0 02 1 9607-9609 ● ●
219 NUT
(B) M8 FLANGE 		0-91150-108-0 04 1 9610-0004 ● ●
219 NUT
(B) M8 FLANGE 		0-91150-108-0 02 1 0005-0308 ● ●
219 NUT
MAL6S M/T(Y1V) (A) M8 		9-09110-408-0 03 1 9606-9606 ● ●
219 NUT
MAL6S M/T(Y1V) (B) M8 FLANGE 		0-91150-108-0 03 1 9607-0308 ● ●
219 NUT
(B) M8 FLANGE 		0-91150-108-0 02 1 0309-0409 ●
219 NUT
(B) M8 FLANGE 		0-91150-108-0 02 1 0410-0602 ●
219 NUT
(B) M8 FLANGE 		0-91150-108-0 02 1 0410-0602 ●
219 NUT
(B) M8 FLANGE 		0-91180-108-0 02 1 0603- ●
219 NUT
(B) M8 FLANGE 		0-91180-108-0 02 1 0603- ●
219 NUT
6SD1 STD ENG(37L) (A) M8 		9-09110-408-0 01 1 9601-9606 ● ●
219 NUT
6SD1 STD ENG(37L) (B) M8 FLANGE 		0-91150-108-0 01 1 9607-0308 ● ●
294 NUT
(C) M6 		9-09110-406-0 01 1 9601-9606 ● ●
294 NUT
(D) M6 FLANGE 		0-91150-106-0 01 1 9607-0308 ● ●
294 NUT
(D) M6 FLANGE 		0-91150-106-0 01 1 0309-0602 ●
294 NUT
(D) M6 FLANGE 		0-91180-106-0 01 1 0603- ●
294 NUT
(A) M8 		9-09110-408-0 02 1 9601-9606 ● ●
294 NUT
(B) M8 FLANGE 		0-91150-108-0 02 1 9607-0209 ● ●
294 NUT
MAL6 M/T<X9G> (E) M10 FLANGE 		0-91150-110-0 03 1 9601-9605 ● ●
294 NUT
MAL6 M/T<X9G> (E) M10 FLANGE 		0-91150-110-0 01 1 9606-9608 ● ●
294 NUT
MAL6 M/T<X9G> (E) M10 FLANGE 		0-91150-210-0 01 1 9609-0308 ● ●
294 NUT
MAL6S M/T(Y1V) (A) M8 		9-09110-408-0 01 1 9601-9608 ● ●
294 NUT
MAL6S M/T(Y1V) (B) M8 FLANGE 		0-91150-108-0 01 1 9607-0209 ● ●
294 NUT
MAL6S M/T(Y1V) (B) M8 FLANGE 		0-91150-108-0 01 1 0210-0308 ● ●
294 NUT
(B) M8 FLANGE 		0-91150-108-0 01 1 0210-0308 ● ●
294 NUT
(B) M8 FLANGE 		0-91150-108-0 01 1 0210-0308 ● ●
294 NUT
(B) M8 FLANGE 		0-91150-108-0 01 1 0309-0602 ●
294 NUT
(B) M8 FLANGE 		0-91150-108-0 01 1 0309-0602 ●
294 NUT
(B) M8 FLANGE 		0-91180-108-0 01 1 0603- ●
294 NUT
(B) M8 FLANGE 		0-91180-108-0 01 1 0603- ●
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 01 1 9904-9909 ● ●
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 9904-0004 ● ●
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 0005-0308 ● ●
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 0309- ●
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 9601-0308 ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 0309-0602 ●
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 0603- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
